光学システムの設計と解析

R2026b
光学用途向けの、光学設計とシミュレーション、レイ トレーシング、スポット ダイアグラム、収差、レンズ歪み、像面湾曲解析

Optical Design and Simulation Library for Image Processing Toolbox™ を使用して、光学用途向け光学システムの設計とシミュレーションを行います。このライブラリを使用すると、カスタム光学設計の作成、包括的な材料ライブラリからのバルク ガラスとコーティング材料の使用、バルク材料のインポート、およびカスタムの光学材料および光学コーティングの作成が可能になります。このライブラリは、光学設計を 2 次元および 3 次元で可視化するための可視化ツールを提供します。さらに、ZMX ファイルからシステムをインポートすることで、既存の光学設計と統合できます。

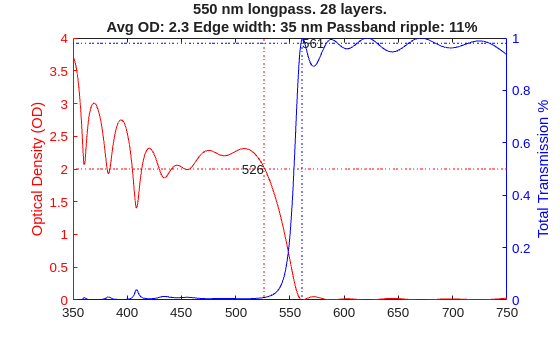

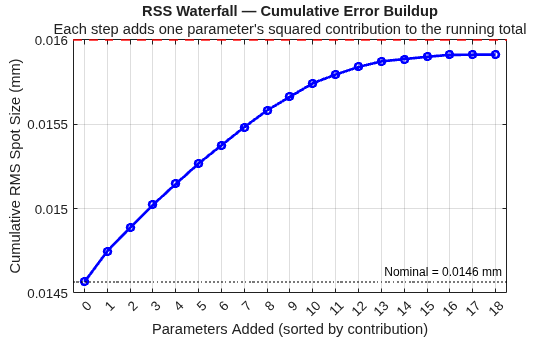

光線のトレース、偏波解析の実行、スポット ダイアグラムの計算、ならびに収差、レンズ歪み、および像面湾曲の解析により、光学システムを評価できます。その後、結果を可視化できます。さらに、Optimization Toolbox™ で入手できる最適化ツールを使用して、光学システムと光学コーティングを最適化できます。

光学システム デザイナー アプリは、光学および光学システム設計のための対話型インターフェイスを提供します。このアプリを使用して、カスタム光学システムの設計、ZMX ファイルからインポートした光学システムのシミュレーション、トレースされた光線、ならびにスポット ダイアグラム、収差、歪み、像面湾曲、およびその他の解析結果の対話的な可視化を行うことができます。

Optical Design and Simulation Library for Image Processing Toolbox の使用を開始するには、Get Started with Optical Design and Simulationを参照してください。

Optical Design and Simulation Library for Image Processing Toolbox は、アドオン エクスプローラーからインストールできます。アドオンのインストールの詳細については、アドオンの入手と管理を参照してください。

Double Gauss lens system visualized in 2-D (top) and 3-D (bottom) using the Optical Design and Simulation Library.
