OpticalSystemViewer2D

Customize 2-D visualization of optical system

Since R2026a

Description

Add-On Required: This feature requires the Optical Design and Simulation Library for Image Processing Toolbox add-on.

An OpticalSystemViewer2D represents a 2-D visualization of an optical system. . You can customize the visualization by using the object functions of the OpticalSystemViewer2D object.

Creation

Create an OpticalSystemViewer2D object by using the view2d function to visualize an optical system in 2-D.

Properties

Optical System

Rays — Rays in visualization

array of Rays2D objects

Rays in the visualization, specified as an array of Rays2D objects.

FieldPoints — Field points in visualization

"on" (default) | on/off logical value

Field points in visualization, specified as an array of Rays2D objects, specified as "on", "off", matlab.lang.OnOffSwitchState.on or matlab.lang.OnOffSwitchState.off, or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to a logical on or true, and "off" is equivalent to a logical off or false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

By default, the object displays the field points of the optical system opsys in the visualization. If you specify FieldPoints as "off", matlab.lang.OnOffSwitchState.off, or as a numeric or logical 0 (true), the object does not display the field points in the visualization.

For more information about field points, see Create Field Points.

ParaxialInfo — Paraxial information display

"off" (default) | on/off logical value

Paraxial information display, specified as "on" or "off", matlab.lang.OnOffSwitchState.on or matlab.lang.OnOffSwitchState.off, or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to a logical on or true, and "off" is equivalent to a logical off or false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

If you specify ParaxialInfo as "on", matlab.lang.OnOffSwitchState.on, or as a numeric or logical 1 (true), the object displays the paraxial information in the visualization.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Label

Title — Title of visualization

"Optical System" (default) | string scalar

Title of the visualization, represented as a string scalar.

Data Types: string

Labels — Type of labels

"none" (default) | "component" | "surface" | "both"

Type of labels, specified as one of these options.

• "component" — The visualization displays labels for only the components in the optical system.

• "surface" — The visualization displays labels for each individual surface in the optical system.

• "none" — The visualization does not display any labels in the optical system.

• "both" — The visualization displays labels for each individual surface and each component in the optical system.

Data Types: char | string

Appearance

ZLim — Z-axis limits

2-element numeric vector

Z-axis limits, specified as a 2-element numeric vector of the form [zmin zmax]. zmin and zmax are the lower and upper limits of the z-axis, respectively. The default value is adjusted to fit the optical system.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

YLim — Y-axis limits

2-element numeric vector

Y-axis limits, specified as a 2-element numeric vector of the form [ymin ymax]. ymin and ymax are the lower and upper limits of the y-axis, respectively. The default value is adjusted to fit the optical system.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

ZLim — Z-axis limits

2-element numeric vector

Z-axis limits, specified as a 2-element numeric vector of the form [zmin zmax]. zmin and zmax are the lower and upper limits of the z-axis, respectively. The default value is adjusted to fit the optical system.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

ZLimMode — Selection mode for Z-axis limit

"auto" (default) | "manual"

Selection mode for the Z-axis limit, specified as one of these values:

• "auto" — Enable automatic limit selection, which is based on the total span of the plotted data.

• "manual" — Manually specify the axis limits. To specify the axis limits, set the YLim or ZLim property.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

YLimMode — Selection mode for Y-axis limit

"auto" (default) | "manual"

Selection mode for the Y-axis limit, specified as one of these values:

• "auto" — Enable automatic limit selection, which is based on the total span of the plotted data.

• "manual" — Manually specify the axis limits. To specify the axis limits, set the YLim or ZLim property.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Position

OuterPosition — Chart size and location, including margins

4-element numeric vector

Chart size and location, including the margins, specified as a 4-element numeric vector of the form [left bottom width height]. The values are in the units specified by the Units property.

• left — Distance from the left edge of the parent container to the outer-left margin of the chart.

• bottom — Distance from the bottom edge of the parent container to the outer-bottom margin of the chart.

• width — Width of chart, including the margins.

• height — Height of chart, including the margins.

InnerPosition — Chart size and location, excluding margins

4-element numeric vector

Chart size and location, excluding the margins, specified as a 4-element numeric vector of the form [left bottom width height]. The values are in the units specified by the Units property.

• left — Distance from the left edge of the parent container to the inner-left edge of the chart, past the margins.

• bottom — Distance from the bottom edge of the parent container to the inner-bottom edge of the chart, past the margins.

• width — Width of the chart, excluding the margins.

• height — Height of the chart, excluding the margins.

Position — Chart size and location, excluding margins

4-element numeric vector

Chart size and location, excluding the margins, specified as a 4-element numeric vector of the form [left bottom width height]. This property is equivalent to the InnerPosition property.

PositionConstraint — Position to hold constant

"outerposition" (default) | "innerposition"

Position property to hold constant when adding, removing, or changing decorations, specified as one of these values.

• "outerposition" — The OuterPosition property remains constant when you add, remove, or change decorations such as a title or an axis label. If any changes require positional adjustments, MATLAB^® adjusts the InnerPosition property.

• "innerposition" — The InnerPosition property remains constant when you add, remove, or change decorations such as a title or an axis label. If any changes require positional adjustments, MATLAB adjusts the OuterPosition property.

Units — Position units

"normalized" (default) | "inches" | "centimeters" | "characters" | "points" | "pixels"

Position units, specified as one of these values.

Units	Description
"normalized"	Normalized with respect to the parent container. The lower-left corner of the container maps to (0,0), and the upper-right corner maps to (1,1).
"inches"	Inches.
"centimeters"	Centimeters.
"characters"	Based on the default font of the graphics root object. Character width is the width of the letter x. Character height is the distance between the baselines of two lines of text.
"points"	Typography points. One point equals 1/72 inch.
"pixels"	Pixels. On Windows® and Macintosh systems, the size of a pixel is 1/96 inch. This size is independent of your system resolution. On Linux® systems, the size of a pixel is determined by your system resolution.

To change the position of the chart in specific units, set the Units property before specifying the Position property. If you specify the Units and Position properties in a single command using name-value arguments, be sure to specify Units before Position.

Layout — Layout options

empty LayoutOptions array (default) | GridLayoutOptions object

Layout options, specified as a GridLayoutOptions object. This property specifies layout options when the parent container is a GridLayout object. You can place the chart in the desired row and column of the parent grid by setting the Row and Column properties on the GridLayoutOptions object.

For example, this code places the chart object osv into the third row and fifth column of a grid layout.

osv.Layout.Row = 3;
osv.Layout.Column = 5;

Visibility

Visible — State of visibility

"on" (default) | on/off logical value

State of visibility, specified as "on" or "off", matlab.lang.OnOffSwitchState.on or matlab.lang.OnOffSwitchState.off, or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to a logical on or true, and "off" is equivalent to a logical off or false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

If you specify Visible as "on", matlab.lang.OnOffSwitchState.on, or as a numeric or logical 1 (true), the object displays the chart. Otherwise, the object hides the chart without deleting it. You still can access the properties of the chart when it is not visible.

Parent/Child

Parent — Parent UI container

Figure object | Panel object | Tab object | GridLayout object

Parent UI container, specified as a Figure, Panel, Tab, or GridLayout object. By default, the object creates a new Figure object. You can create these UI containers using their respective creation functions.

• Figure object — uifigure

• Panel object — uipanel

• Tab object — uitab

• GridLayout object — uigridlayout

HandleVisibility — Visibility of chart object handle

"on" (default) | "off" | "callback"

Visibility of the chart object handle, specified as "on", "off", or "callback". This property determines the visibility of the chart object handle in the list of children of its parent object..

• "on" — Chart object handle is always visible.

• "off" — Chart object handle is invisible at all times. You can use this option to prevent unintended changes to the chart by another function by temporarily hiding the handle. To do so, for the duration of the execution of that function, set HandleVisibility to "off".

• "callback" — Chart object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line. This option blocks access to the object in the Command Window, but it allows callback functions to access the object.

Object Functions

addRays	Add traced rays to visualization of optical system
removeRays	Remove traced rays from visualization of optical system

Examples

Visualize Optical System in 2-D

Create a simple optical system.

opsys = opticalSystem;
addRefractiveSurface(opsys,Radius=9,Material=[1.74 25.4],DistanceToNext=3)
addRefractiveSurface(opsys,Radius=-9,DistanceToNext=10)
addImagePlane(opsys)
focus(opsys);

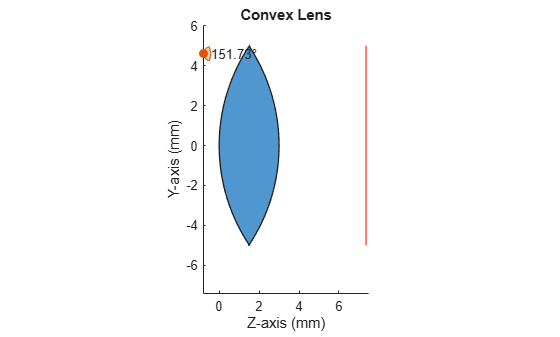

Visualize the optical system in 2-D.

osv2d = view2d(opsys,Title="Convex Lens")

osv2d =
  OpticalSystemViewer2D with properties:

            Title: "Convex Lens"
    OpticalSystem: [1×1 opticalSystem]
           Labels: "none"
      FieldPoints: "on"
             Rays: [0×0 optics.ui.Rays2D]
           Parent: [1×1 Figure]

  Show all properties

Trace rays in the optical system to add to the visualization. Observe that rays contains three ray bundles.

rays = traceRays(opsys)

rays=1×3 RayBundle array with properties:
    FieldPoint
    Wavelength
    Sampling
    RayData

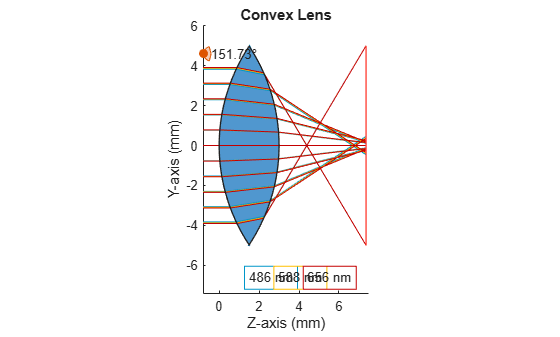

Add the rays to the visualization. Each ray bundle is represented by a different color in the visualization.

addRays(osv2d,rays)

Remove the third ray bundle in the visualization.

removeRays(osv2d,3)

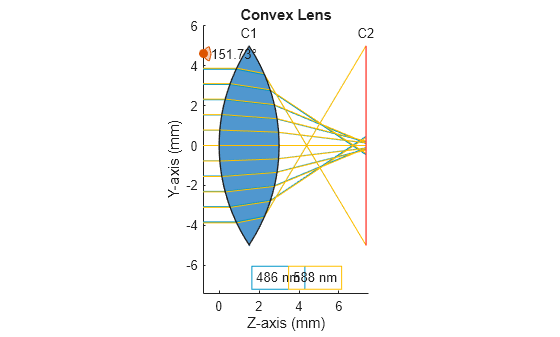

Add component labels to the visualization. The lens and image plane components are labeled as C1 and C2 in the visualization.

osv2d.Labels = "component";

Version History

Introduced in R2026a
