To Workspace

Log data to workspace from Simulink model

•

Libraries:
Simulink / Sinks
DSP System Toolbox / Sinks
HDL Coder / Sinks

Description

The To Workspace block logs the data connected to its input port to a workspace from a Simulink^® model. Typically, logged data is returned in the base workspace. When you simulate a model programmatically inside a function, logged data is returned in the workspace for the function. During simulation, logged data streams to the Simulation Data Inspector. Logged data is written to the workspace when the simulation pauses or stops.

You can use the To Workspace block to log data for a signal, a bus, or an array of buses. The To Workspace block supports logging scalar and multidimensional data, including data for variable-size signals.

You can configure the name of the variable that stores the data the To Workspace block logs, and you can specify the format for the logged data. You can also control which values the To Workspace block logs by specifying block or model parameters. For more information, see Specify Signal Values to Log.

Access Logged Data

How simulation results are returned to the workspace depends on how you simulate and configure the model. Simulation results are returned in a single Simulink.SimulationOutput object in any of these situations:

• You enable the Single simulation output parameter.

  By default, the Single simulation output parameter is enabled when you create a new model. You can enable the parameter using the Configuration Parameters dialog box. On the Modeling tab, under Settings, click Model Settings. Then, in the Configuration Parameters dialog box, select Data Import/Export and select Single simulation output.

• You run a set of simulations using the Multiple Simulations pane.

• You simulate the model programmatically using one or more Simulink.SimulationInput objects.

  You can configure simulations using SimulationInput objects when you run simulations using the sim, parsim, and batchsim functions.

• You simulate the model using a sim function syntax that returns results as a single simulation output.

  For more information, see sim.

When simulation results are returned in a single output, the SimulationOutput object contains a variable for each To Workspace block in the model. To access the data logged by a To Workspace block:

• Use a dot with the variable name specified using the Variable name parameter of the block. By default, models are configured to return a single simulation output using the variable name out, and the To Workspace block saves data to a variable named simout.

  toWksData = out.simout;

• Use the get function with the name of the variable that contains the logged data.

  toWksData = get(out,simout);

In the model, the To Workspace block indicates how to access the data in the workspace. By default, the block shows out.simout. The block appearance updates when you:

• Specify a different value for the Variable name parameter on the block.

• Specify a different variable name for the single simulation output.

• Clear the Single simulation output configuration parameter.

Examples

Log Data to Workspace

The To Workspace block logs simulation data to the workspace.

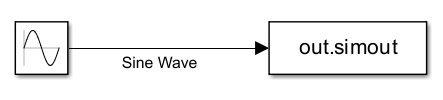

For example, simulate the SineToWorkspace model.

mdl = "SineToWorkspace";
out = sim(mdl);

Simulation results from the model are returned in a single Simulink.SimulationOutput object named out. To access results saved by the To Workspace block, use dot notation.

toWksData = out.simout

  timeseries

  Common Properties:
            Name: 'Sine Wave'
            Time: [51x1 double]
        TimeInfo: tsdata.timemetadata
            Data: [51x1 double]
        DataInfo: tsdata.datametadata

Extended Examples

Output Simulation Data with Blocks

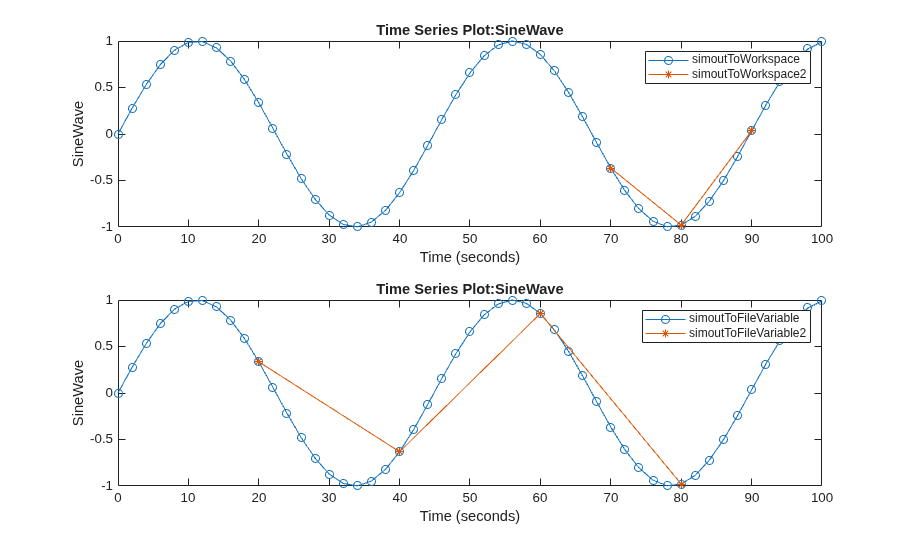

How To Workspace and To File blocks write data to the workspace and to a file respectively.

• Open Script

Bounded Variable-Size Signal Basic Operations

Generate bounded variable-size signals and illustrates some of the operations using those signals. In this example, you generate variable-size signals using the Selector block and the Switch block. The signals are used in math operations, bus creation, bus selection, matrix concatenation and to implement a discrete filter equation.

• Open Model

Ports

Input

Port_1 — Data to log to workspace

scalar | vector | matrix | array | bus

Input port that receives data to log to workspace. The To Workspace block supports logging real and complex data of any built-in data type or user-defined data types such as buses, enumerations, and fixed-point data.

Tips

Logging fixed-point data requires a license for Fixed-Point Designer™.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | string | fixed point | enumerated | bus | image
Complex Number Support: Yes

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Variable name — Name of variable for saved data

simout (default) | string | character vector

Specify a name for the variable that contains the logged data. By default, the To Workspace block saves logged data in a variable called simout. When a model contains multiple To Workspace blocks, the Variable name parameter value for each block must be unique.

For information about naming MATLAB^® variables, see Variable Names.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	VariableName
Values:	"simout" (default) | valid MATLAB variable name
Data Types:	character vector | string

Example: set_param(gcb,"VariableName","myName")

Limit data points to last — Number of samples to log

inf (default) | scalar | vector

When you want to save or analyze only the data from the end of a simulation, specify the number of samples you want to log as a positive whole number greater than zero. By default, the To Workspace block logs data for the entire simulation, and the value for the Limit data points to last parameter is inf.

For more information about controlling which samples are logged during simulation, see Specify Signal Values to Log.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	MaxDataPoints
Values:	"inf" (default) | positive integer
Data Types:	character vector | string

Example: set_param(gcb,"MaxDataPoints","20")

Decimation — Decimation factor

1 (default) | positive integer

Specify a decimation factor to reduce the effective sample rate for the logged data. For a decimation factor, n, the To Workspace block logs every n^th sample value. For example, when you specify the Decimation value as 2, the To Workspace block logs every other data point.

For more information about controlling which samples are logged during simulation, see Specify Signal Values to Log.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	Decimation
Values:	"1" (default) | positive integer
Data Types:	character vector | string

Example: set_param(gcb,"Decimation","2")

Save format — Format for data logged to workspace

Timeseries (default) | Structure With Time | Structure | Array

Specify the format for the data logged to the workspace. To log data for a bus or array of buses input, use Timeseries format.

Save Format Value	Workspace Data Format	Simulation Workflow Support
Timeseries	Nonbus input logged as a timeseries object. Bus input logged as a structure of timeseries objects. The hierarchy and names for fields in the structure matches the hierarchy and names specified in the Simulink.Bus object that defines the bus. Array of buses input logged as an array of structures of timeseries objects.	Supported: Normal mode simulation Accelerator mode simulation Rapid accelerator mode simulation (since R2022a) External mode simulation that uses XCP communication provided StreamToWks is set to 'on' and MATFileLogging is set to 'off' Not supported: External mode simulation that uses TCP/IP or serial communication Software-in-the-loop (SIL) simulation Processor-in-the-loop (PIL) simulation Code generation for Simulink Coder™ targets
Structure With Time	Nonbus input logged as a structure that contains these fields: time — Column vector of simulation time hits for which input value was logged. signals — Structure with sample values that contains the fields: values — Array of sample values. dimensions — Sample dimensions. label — Name of signal line in model. blockName — Name of the To Workspace block.	Always supported: Normal mode simulation. External mode simulation that uses XCP communication provided StreamToWks is set to 'on' and MATFileLogging is set to 'off' Supported except when the To Workspace block is in a referenced model: Accelerator mode simulation Rapid accelerator mode simulation External mode simulation that uses TCP/IP or serial communication Supported if MAT-file logging (Simulink Coder) is enabled for generated code, except when the To Workspace block is in a referenced model: Software-in-the-loop (SIL) simulation Processor-in-the-loop (PIL) simulation Code generation for Simulink Coder targets
Structure	Nonbus input logged as a structure that matches the Structure With Time format, but the time field of the structure is empty.
Array	Sample values for nonbus input saved as N-dimensional array, where N is one greater than the dimensions of the input. For example: Scalar signal data is logged as a column vector. Vector signal data is logged as a matrix. Matrix signal data is logged as a 3-D array. The structure of the values in the array depends on the dimensions of the input signal data: For scalar and vector signals, each sample value is a row in the output array. The first dimension of the array aligns with time such that simout(1,:) returns the first logged signal value. For matrix signals, the third dimension of the output array aligns with time such that simout(:,:,1) returns the first logged signal value. For N-dimensional signals, the last dimension aligns with time, such that the number of elements in the last dimension is equal to the number of samples logged from simulation. The output array contains only signal values and does not contain time data.

Tips

• To log data as frame-based instead of sample-based:

  • Configure the Save format parameter to log data using the Structure format or the Array format.

  • Specify the Save 2-D signals as parameter as 2-D array (concatenate along first dimension)

• When you want to load the logged data using a From Workspace block, consider using the Timeseries or Structure With Time formats. When you log data using the Array format, you need to incorporate the sample time values into the array before loading the data.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	SaveFormat
Values:	"Timeseries" (default) | "Structure with Time" | "Structure" | "Array"
Data Types:	character vector | string

Example: set_param(gcb,"SaveFormat","Structure")

Save 2-D signals as — Arrangement of 2-D sample values in logged data

3-D array (concatenate along third dimension) (default) | 2-D array (concatenate along first dimension)

Specify whether to log 2-D input data as a 3-D array or a 2-D array.

Logging as a 3-D array is well suited for sample-based input data. Samples are concatenated along the third dimension, allowing easy access of 2-dimensional sample data.

Logging as a 2-D array is well suited for frame-based input data. Samples are concatenated along the first dimension, which in effect removes the frame buffering from the first dimension.

Input Data Dimensions	Save 2-D Signal As...	Workspace Data Dimensions
M-by-N	2-D array (concatenate along first dimension)	K-by-N matrix, where K is equal to M times the number of samples logged from simulation. For example, logging ten samples of a 2-by-4 matrix input creates a 20-by-4 matrix.
	3-D array (concatenate along first dimension)	M-by-N-by-K array, where K is equal to the number of samples logged from simulation. For example, logging ten samples of a 2-by-4 matrix input creates a 2-by-4-by-10 array.

Dependencies

To enable this parameter, set the Save format to Array or Structure.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	Save2DSignal
Values:	"3-D array (concatenate along third dimension)" (default) | "2-D array (concatenate along first dimension)"
Data Types:	character vector | string

Example: set_param(gcb,"Save2DSignal","2-D array (concatenate along first dimension)")

Log fixed-point data as a fi object — Data type for logged fixed-point data

on (default) | off

Specify how to log fixed-point input data.

The To Workspace block always logs fixed-point input data as a fi (Fixed-Point Designer) object when the Save format parameter is specified as Timeseries. To log fixed-point data as a fi object when the Save format parameter is not specified as Timeseries, select the Log fixed-point data as a fi object parameter and run the simulation in normal or accelerator mode.

When you clear the Log fixed-point data as a fi object parameter or run the simulation in rapid accelerator mode, fixed-point input data is logged as double.

To log input data of type int64 as int64 or type uint64 as uint64, select the Log fixed-point data as a fi object parameter. When you clear the Log fixed-point data as a fi object parameter, input data of type int64 or uint64 is logged as double.

Using the To Workspace block to log fixed-point data requires a license for Fixed-Point Designer.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	FixptAsFi
Values:	"on" (default) | "off"
Data Types:	character vector | string

Example: set_param(gcb,"FixptAtFi","off")

Sample time — Sampling interval and optional time offset

-1 (default) | scalar

Specify when the block logs the input value during simulation. By default, the sample time is inherited (-1). For continuous sample time, specify the value as 0. To use a discrete sample time, specify the Sample time parameter as a scalar. For more information, see Specify Sample Time.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	SampleTime
Values:	"-1" (default) | scalar
Data Types:	character vector | string

Example: set_param(gcb,"SampleTime","0")

Block Characteristics

Data Types	Boolean | bus | double | enumerated | fixed point | half | integer | single | string
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	yes
Zero-Crossing Detection	no

Tips

• You can convert data logged using the To Workspace block to Dataset format. Converting the data can make post-processing easier if you use other logging techniques, such as signal logging, that use the Dataset format. For more information, see Convert timeseries Object to Dataset Object.

• When you call a function that simulates a model, data logged in simulation is returned to the function workspace. To return data logged from a simulation in a function to the base workspace, use the assignin function. For example, this function called myfunc simulates the model myModel, which includes a To Workspace block that logs data to the variable simout and sends the data logged by the To Workspace block to the base workspace.

  function myfunc
      out = sim("myModel");
      toWksData = get(out,"simout");
      assignin("base","toWksData",toWksData);
  end


Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Not recommended for production code.

To generate code that logs the input to the To Workspace block to a MAT file, enable the MAT-file logging parameter. For more information, see MAT-file logging (Simulink Coder).

Code generation is not supported for:

• String data types.

• Blocks inside referenced models.

• Blocks that log data using the Timeseries format. For more information, see Save format.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

Architecture	Description
No HDL	Do not generate HDL code for this block.

HDL Block Properties

PreserveUpstreamLogic

Control the removal of unconnected logic. The default is off, which means unconnected logic is not preserved in HDL code. For more details, see PreserveUpstreamLogic (HDL Coder).

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a

R2023b: Log unbounded variable-size signals

In normal and accelerator mode simulations, you can log an unbounded variable-size signal using the To Workspace block. Logging is not supported for nonvirtual buses that contain unbounded variable-size signals.

R2023a: Log nonvirtual buses that contain variable-size signals

In normal and accelerator mode simulation, the To Workspace block supports logging:

• Nonvirtual buses that contain variable-size signals directly or in nested buses

• Buses with nested nonvirtual buses that contain variable-size signals

In normal mode simulations only, the To Workspace block supports logging:

• Arrays of buses with nonvirtual buses that contain variable-size signals

R2022a: Log data to the Simulation Data Inspector as well as the workspace

Data is automatically logged to the Simulation Data Inspector as well as the workspace. The Simulation Data Inspector automatically retains results from each simulation. Because data logged using the To Workspace block streams to the Simulation Data Inspector, this data is also retained.

In previous releases, data logged using the To Workspace block only logged to the workspace and was overwritten for each simulation unless you changed the logging variable names or manually saved the results.

In most cases, you do not need to make any changes to your code. Logging large amounts of data or running many simulations can produce large amounts of data that fill up disk space. To learn how to control the amount of data retained in the Simulation Data Inspector, see Limit the Size of Logged Data.

R2022a: Log int64 and uint64 data using built-in data types

Log int64 and uint64 data using the built-in data types.

In previous releases, the To Workspace block logged int64 and uint64 data as a fi object when a license for Fixed-Point Designer was available and as double when the license was not available.

R2022a: Log signals with string and half data types

The To Workspace block supports logging signals with string and half data types.

R2022a: Log arrays of buses

The To Workspace block supports logging an array of buses.

R2022a: Log data using the Timeseries format in rapid accelerator simulations

Previously, only normal mode simulation or accelerator mode simulation could be used to log data in Timeseries format.

R2022a: Log data using the Timeseries format for To Workspace blocks inside for-each subsystems

You can use the Timeseries format to log data in a To Workspace block inside for-each subsystems.
