Time Scope

Display and analyze signals generated during simulation and log signal data to MATLAB

expand all in page
  • Time Scope block

Libraries:
DSP System Toolbox / Sinks
DSP System Toolbox HDL Support / Sinks

Description

The Simulink® Scope block and DSP System Toolbox™ Time Scope block display time domain signals.

The two blocks have identical functionality, but different default settings. The Time Scope is optimized for discrete time processing. The Scope is optimized for general time-domain simulation. For a side-by-side comparison, see Simulink Scope Block Versus DSP System Toolbox Time Scope Block (Simulink).

Scope Tab

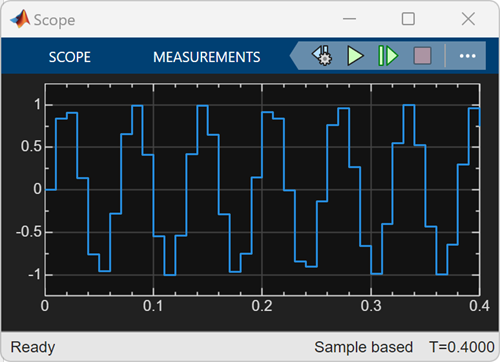

This screenshot highlights the important aspects of the scope window.

Scope display features:

  • Simulation control — Run and debug models from a Scope window using Run, Step Forward, and Step Backward toolbar buttons.

  • Multiple signals — Plot multiple signals on the same display using multiple input ports.

  • Multiple displays — Display signals on multiple subplots. All the y-axes of the subplots have a common time range on the x-axis. Control the layout of the subplots using the Display Grid parameter in the Scope tab of the toolstrip.

  • Modify parameters — Modify scope parameter values before and during a simulation.

  • Axis autoscaling — Autoscale axes during or at the end of a simulation. Margins are drawn at the top and bottom of the axes.

  • Display data after simulation — Scope data is saved during a simulation. If a scope is closed at the start of a simulation, when you open the scope after a simulation, the scope displays simulation results for attached input signals.

    Note

    If you have a high sample rate or long simulation time, you may run into issues with memory or system performance because the scope saves data internally. To limit the amount of data saved for scope visualization, use the Limit data points to last property.

  • Scope window management –– The scope container enables you to dock multiple scopes of the Simulink model into a single window. The container provides a convenient interface from which you can visualize the signals and manage the settings of the scopes.

Measurements Tab

This screenshot highlights the important aspects of the measurements window.

Here is a list of all the measurements the Time Scope block supports:

  • Triggers — Set triggers to sync repeating signals and pause the display when events occur.

  • Cursor Measurements — Measure signal values using vertical and horizontal cursors.

  • Signal Statistics — Display the maximum, minimum, peak-to-peak difference, mean, median, and RMS values of a selected signal.

  • Peak Finder — Find maxima, showing the x-axis values at which they occur.

  • Bilevel Measurements — Measure transitions, overshoots, undershoots, and cycles.

You must have a Simscape™ or DSP System Toolbox license to use the Peak Finder, Bilevel Measurements, and Signal Statistics.

For information on controlling a scope programmatically, see Control Scope Blocks Programmatically (Simulink).

Examples

expand all

This example uses:

Open Model

This example shows how to display complex-valued signals in the Time Scope block.

By default, when the input is a complex-valued signal, Time Scope plots the real and imaginary portions on the same axes. These real and imaginary portions appear as different-colored lines on the same axes within the same active display.

To separate the real and imaginary portions of the input, change the scope to plot magnitude and phase.

  1. In the Scope tab of the Time Scope toolstrip, click Settings.

  2. Under Display, select Plot as magnitude-phase.

The top subplot shows the magnitude of the input signal. The bottom subplot shows the signal phase in degrees.

This example uses:

Open Script

In this example, the size of the input signal to the Time Scope block changes as the simulation progresses.

open_system("ex_timescope_varsize")

When the simulation time is less than 5 seconds, Time Scope plots the signal connected to the third input port of the Switch block, which has signal dimensions 1 by 2. After 5 seconds, Time Scope plots the signal connected to the first input port of the Switch block, which has signal dimensions 1 by 3.

sim("ex_timescope_varsize")
open_system("ex_timescope_varsize/Time Scope")

As you can see in the figure, the third line on the display, colored red, appears only after 5 seconds.

This example uses:

Open Model

This example shows how to use the Time Scope to display an enumerated input signal.

open_system("ex_timescope_slenum")

In this example, Simulink® imports the variable x , from the MATLAB® workspace. This variable is created when the model loads because the commands that construct it reside in the model Preload function. To view these commands,

  1. On the Simulink toolbar, on the Modeling tab, in the Setup section, in the drop-down, select Model Properties.

  2. In the Model Properties dialog box, select the Callbacks tab. The following lines of MATLAB® code appear.

if ~exist('BasicColors','class')
    Simulink.defineIntEnumType('BasicColors', ...
        {'Red', 'Yellow', 'Blue'}, ...
        [0;1;2], ...
        'Description', 'Basic colors', ...
        'DefaultValue', 'Blue', ...
        'AddClassNameToEnumNames', true);
end
x = [BasicColors(0), BasicColors(2), BasicColors(1)]

x =

  1×3 BasicColors enumeration array

    Red       Blue      Yellow

The Signal from Workspace block has a sample time of 3 seconds. Thus, the input signal changes to the next value in vector x every 3 seconds.

sim("ex_timescope_slenum")
open_system("ex_timescope_slenum/Time Scope")

Extended Examples

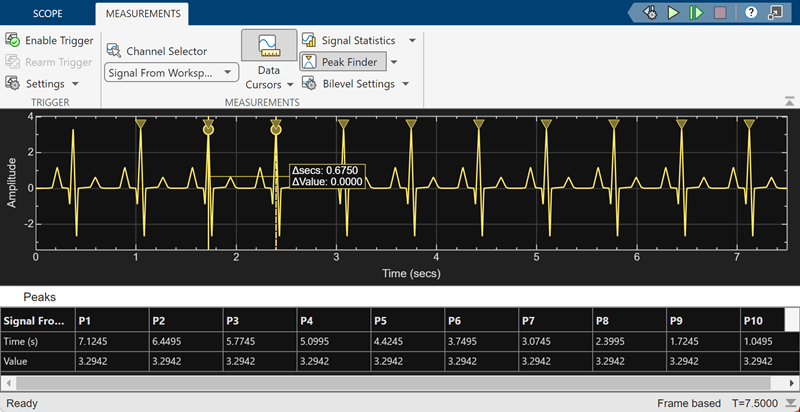

Use Peak Finder to Find Heart Rate from ECG Input

Use Peak Finder to Find Heart Rate from ECG Input

Use the Time Scope Peak Finder panel to measure the heart rate from an ECG.

Time Scope Measurements

Time Scope Measurements

Measure performance characteristics of a pulse width modulated sinusoid. The example contains a model, which you can modify to view the effects of parameter changes on rise time, fall time, overshoot, undershoot, pulse width, pulse period, and duty cycle measurements. The example also models a rising edge trigger and you can perform basic statistical operations (mean, median, RMS, maximum, minimum) and measure the frequency and period of the pulse period via cursors and peak finding.

Decrease Underrun

Decrease Underrun

Examine the Audio Device Writer block in a Simulink® model, determine underrun, and decrease underrun.

Limitations

  • Do not use scope blocks in a Library. If you place a scope block inside a library block with a locked link or in a locked library, Simulink displays an error when trying to open the scope window. To display internal data from a library block, add an output port to the library block, and then connect the port to a Scope block in your model.

  • If you step through a model, the scope only updates when the scope block runs. This means that the time shown in the status bar may not match the model time.

  • When connected to a constant signal, a scope block may plot a single point.

  • The scope shows gaps in the display when the signal value is NaN.

  • When you visualize multiple frame-based signals in the scope, some samples of signals with a frame size of 1 might not be displayed. To visualize these signals, move the signals with frame size of 1 to a separate scope.

  • Scope displays have limitations in Rapid Accelerator mode. See Behavior of Scopes and Viewers with Rapid Accelerator Mode (Simulink)

  • When the Scope is in a ForEach subsystem, the scope only displays the last index.

Ports

Input

expand all

Connect the signals you want to visualize. You can have up to 96 input ports. Input signals can have these characteristics:

  • Type — Continuous (sample-based) or discrete (sample-based and frame-based).

  • Data type — Any data type that Simulink supports. See Data Types Supported by Simulink (Simulink).

    This block accepts fixed-point input, but converts it to double for display.

  • Dimension — Scalar, one dimensional (vector), two dimensional (matrix), or multidimensional (array). Display multiple channels within one signal depending on the dimension. See Signal Dimensions (Simulink) and Determine Signal Dimensions (Simulink).

Input Limitations

  • When the input is a constant signal, the scope plots a single point.

  • The scope shows gaps in the display when the signal value is NaN.

  • When you visualize multiple frame-based signals in the scope, some samples of signals with a frame size of 1 might not be displayed. To visualize these signals, move the signals with frame size of 1 to a separate scope.

Bus Support

You can connect nonvirtual bus and arrays of bus signals to a scope. To display the bus signals, use normal or accelerator simulation mode. The scope displays each bus element signal in the order the elements appear in the bus, from the top to the bottom. Nested bus elements are flattened.

To log nonvirtual bus signals with a scope, set the Save format parameter to Dataset. You can use any Save format to log virtual bus signals.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus
Complex Number Support: Yes

Parameters

expand all

For information about how to configure the Scope and use the toolstrip, see Configure Time Scope Block.

Scope Tab

Scope tab of the Scope block and the Time Scope block.

Settings > General

Select this parameter to open the scope when simulation starts.

Programmatic Use

See OpenAtSimulationStart (Simulink).

Select this parameter to display the block path in addition to the block name.

Specify the number of input ports on the scope as a positive integer in the range [1 96].

Programmatic Use

See NumInputPorts (Simulink).

Specify the dimensions of the display grid as a two-element numeric vector with each element greater than 0 and less than or equal to 16.

Programmatic Use

See LayoutDimensions (Simulink).

Specify whether the block performs sample- or frame-based processing.

  • Elements as channels (sample based) –– Process each element of the input as an independent channel.

  • Columns as channels (frame based) –– Process each column of the input as an independent channel. Frame-based processing is available only with discrete input signals.

When you change the setting of the Input processing parameter, the scope clears the signal data and the measurements data (if any). Rerun the simulation to plot the signal data with the new setting. (since R2025a)

Note

Frame-based processing requires a DSP System Toolbox license. For more information, see Sample- and Frame-Based Concepts.

Programmatic Use

See FrameBasedProcessing (Simulink).

  • Auto –– If Title and Y-axis label properties are not specified, maximize all plots.

  • On –– Maximize all plots. Values in Title and Y-axis label are hidden.

  • Off –– Do not maximize plots.

Programmatic Use

See MaximizeAxes (Simulink).

Settings > Time

Specify the time interval between updates of the scope display. This property does not apply to floating scopes and scope viewers. For a more detailed explanation of sample time with the scope, see Sample Time with Scope Blocks (Simulink).

Programmatic Use

See SampleTime (Simulink).

Specify the length of the x-axis to display as one of these:

  • Auto — Difference between the simulation start and stop times.

    The block calculates the beginning and end times of the time range using the Time display offset and Time span parameters. For example, if you set the Time display offset to 10 and the Time span to 20, the scope sets the time range from 10 to 30.

  • One frame period — Use the frame period of the input signal to the Time Scope block. This option is available only when you set the Input processing parameter to Columns as channels (frame based).

  • <user-defined> — Enter any value less than the total simulation time.

Programmatic Use

See TimeSpan (Simulink).

Specify how to display data beyond the visible x-axis range.

You can see the effects of this option only when plotting is slow with large models or small step sizes.

  • Wrap — Draw a full screen of data from left to right, clear the screen, and then restart drawing the data from the left.

  • Scroll — Move data to the left as new data is drawn on the right. This mode is graphically intensive and can affect run-time performance.

Programmatic Use

See TimeSpanOverrunAction (Simulink).

Specify the x-axis units as one of these options:

  • Metric (based on Time Span) — Display time units based on the length of Time span.

  • Seconds — Display time in seconds.

  • None — Do not display time units.

Programmatic Use

See TimeUnits (Simulink).

Offset the x-axis by a specified time value, specified as a real number or a vector of real numbers.

For input signals with multiple channels, you can enter a scalar or vector:

  • Scalar — Offset all channels of an input signal by the same time value.

  • Vector — Independently offset the channels.

Programmatic Use

See TimeDisplayOffset (Simulink).

Specify how the x-axis (time) and tick labels display:

  • All — Display x-axis labels on all y-axes.

  • None — Do not display labels. Selecting None also clears the Show time-axis label parameter.

  • Bottom displays only — Display x-axis label on the bottom y-axis.

Dependencies

To enable this parameter:

  • Select Show time-axis label.

  • Set Maximize axes to Off.

Programmatic Use

See TimeAxisLabels (Simulink).

Select this parameter to show the time offset on the status bar.

Select this parameter to show the x-axis label for the active display.

Dependencies

To enable this parameter, set T-axis and ticks labels to All or Bottom displays only.

Programmatic Use

See ShowTimeAxisLabel (Simulink).

Settings > Axes Scaling

Specify the y-axis scaling mode as one of these:

  • Manual — Manually scale the y-axis range.

  • Auto — Scale the y-axis range during and after simulation. Selecting this option displays the Y-axis limits do not shrink parameter. If you want the y-axis range to increase and decrease with the maximum value of a signal, set Scale Y-axis limits to Auto and clear the Y axis limits do not shrink parameter.

  • After N Updates — Scale y-axis after the number of time steps specified in the Number of updates parameter (10 by default). Scaling occurs only once during each run.

Programmatic Use

See AxesScaling (Simulink).

Select this parameter to allow y-axis range limits to increase during simulation.

Dependencies

To use this parameter, set Scale Y-axis limits to Auto.

Set this property to delay auto scaling the y-axis.

Dependencies

To use this parameter, set Scale Y-axis limits to After N Updates.

Programmatic Use

See AxesScalingNumUpdates (Simulink).

When you select this parameter, the scope scales the y-axis limits only when the simulation stops. When you clear this parameter, the scope scales the y-axis limits continuously.

Specify the percentage of the y-axis range used for plotting data. If you set this parameter to 100, the plotted data uses the entire y-axis range.

Specify where to align plotted data along the y-axis data range when Y-axis data range (%) is set to less than 100 percent.

  • Top — Align signals with the maximum values of the y-axis range.

  • Center — Center signals between the minimum and maximum values.

  • Bottom — Align signals with the minimum values of the y-axis range.

Scale x-axis range to fit all signal values. If Scale Y-axis limits is set to Auto, the data currently within the axes is scaled, not the entire signal in the data buffer.

Specify the percentage of the x-axis range to plot data on. For example, if you set this parameter to 100, plotted data uses the entire x-axis range.

Dependencies

To enable this parameter, select Scale X-axis limits.

Specify where to align plotted data along the x-axis data range when X-axis data range (%) is set to less than 100 percent.

  • Right — Align signals with the maximum values of the x-axis range.

  • Center — Center signals between the minimum and maximum values.

  • Left — Align signals with the minimum values of the x-axis range.

Dependencies

To enable this parameter, select Scale X-axis limits.

Settings > Logging

Select this property to limit data saved by the scope internally. When you select this property and set the Input processing parameter to:

  • Elements as channels (sample based) –– The scope saves the last n data points to a MATLAB® variable specified in Variable name. In this setting, the name of this property is Limit data points to last.

  • Columns as channels (frame based) –– The scope saves the last n data frames to a MATLAB variable specified in Variable name. In this setting, the name of this property is Limit frames to last.

n is the scalar value you specify in the Max points parameter.

When you select this parameter, the scope can plot signals for less than the entire time range of a simulation, for example, if the sample time is small. If the scope plots only a portion of the signal, consider increasing the number of data points to save.

When you clear this property, the scope saves all the data. You can visualize the entire data in the scope after the simulation finishes. For simulations with Stop Time set to inf, consider selecting this property.

Note

If you do not select this property and you have a high sample rate or long simulation time, you can run into issues with memory or system performance.

Programmatic Use

See DataLoggingLimitDataPoints (Simulink).

Specify the maximum number of data points n to save as a positive integer. The scope saves the last n data points to a MATLAB variable specified in Variable name.

Dependencies

To enable this parameter, select the Limit data points to last or the Limit frames to last parameter.

Programmatic Use

See DataLoggingMaxPoints (Simulink).

Select this property to plot and log (save) scope data every Nth data point or frame, where N is the decimation factor you specify in the Decimation value parameter.

When you select this property and specify a scalar value in the Decimation value parameter, the scope limits the data values plotted and saved to a MATLAB variable specified in Variable name.

When you set the Input processing parameter to:

  • Elements as channels (sample based) –– The scope plots and logs data every Nth data point. The name of this property is Decimation.

  • Columns as channels (frame based) –– The scope plots and logs data every Nth frame. The name of this property is Decimate frames.

When you clear this property, the scope saves all the scope data.

Programmatic Use

See DataLoggingDecimateData (Simulink) and DataLoggingDecimation (Simulink).

Specify the scope to save or log data every Nth data point or frame, where N is the value you specify in this parameter.

A value of 1 buffers all the data values.

Dependencies

To enable this parameter, select Decimation or Decimate frames.

Programmatic Use

See DataLoggingDecimateData (Simulink) and DataLoggingDecimation (Simulink).

Select this parameter to enable logging and to save the logged data to the MATLAB workspace. When you select this parameter, the scope enables the Variable name and Save format parameters as well. This parameter does not apply to floating scopes and scope viewers.

For an example of saving signals to the MATLAB Workspace using a Scope block, see Save Simulation Data Using Scope Block (Simulink).

Programmatic Use

See DataLogging (Simulink).

Specify a variable name for saving scope data in the MATLAB workspace. This parameter does not apply to floating scopes and scope viewers.

Dependencies

To enable this parameter, select Log data to workspace.

Programmatic Use

See DataLoggingVariableName (Simulink).

Select the MATLAB variable format for saving data to the MATLAB workspace. This parameter does not apply to floating scopes and scope viewers.

  • Dataset — Save data as a Dataset (Simulink) object, by default a timeseries object.

  • Structure With Time — Save data as a structure with associated time information.

  • Structure — Save data as a structure.

  • Array — Save data as an array with associated time information. This format does not support variable-size data.

Dependencies

To enable this parameter, select Log data to workspace.

Programmatic Use

See DataLoggingSaveFormat (Simulink).

Settings > Axes Style

Specify the type of the plot as one of these:

  • Auto –– The plot type is a line graph for continuous signals, a stair-step graph for discrete signals, and a stem graph for Simulink message signals.

  • Line –– Line graph.

  • Stairs –– Stair-step graph. A stair-step graph is made up of only horizontal and vertical lines. Each horizontal line represents the signal value for a discrete sample period and is connected to two vertical lines. Each vertical line represents the change in the signal value occurring at a specific sample time.

  • Stem –– Stem graph displayed as circles at the input value with vertical lines to the x-axis.

Select the background color for the scope display.

Select the axes, grid, and label color for individual displays.

Select the background color for the scope window.

Select this parameter to preserve colors when copying the scope display to the clipboard. When you do not select this parameter, the scope changes the color of the scope to be printer friendly (white background, visible lines). To preserve the existing colors on the scope while copying, select this parameter.

Settings > Display Properties

Select the display which updates based on the settings in the Display Properties > Line Style, Y-axis, and Display.

Specify the desired display using a positive integer that corresponds to the column-wise placement index. For layouts with multiple columns and rows, display numbers are mapped down and then across.

Dependencies

To enable this parameter, set the display grid to have more than one display, that is, set Display grid under Settings > General to a two-element numeric vector with at least one of the values greater than 1.

Programmatic Use

See ActiveDisplay (Simulink).

Note

All the Line Style properties affect only the active display that you select through the Active Display parameter.

Settings > Line Style

Select the active line for setting line style properties.

Select the line style for the active line that you select using the Line parameter.

Specify the line width for the active line that you select using the Line parameter.

Specify a data point marker for the active line that you select using the Line parameter. This parameter is similar to the 'Marker' property for plots. You can choose any of the marker symbols from the drop-down list.

Specify the line color for the active line that you select using the Line parameter.

Tunable: Yes

Show or hide a signal on the plot.

Select this parameter to display signal on the plot. If you clear this parameter, the signal you select is no longer visible.

Note

All the Y-axis properties affect only the active display that you select through the Active Display parameter.

Settings > Y-axis

Specify the text to display on the y-axis. To display signal units, add (%<SignalUnits>) to the label. At the beginning of a simulation, Simulink replaces (%SignalUnits) with the units associated with the signals.

Example: For a velocity signal with units of m/s, enter Velocity (%<SignalUnits>).

Dependencies

If you select the Plot as magnitude-phase parameter under Display settings, this parameter does not apply. The y-axes are labeled Magnitude and Phase.

Programmatic Use

See YLabel (Simulink).

Specify the y-axis limits as a two-element numeric vector.

Tunable: Yes

Dependencies

If you select Plot as magnitude-phase, this property only applies to the magnitude plot. The y-axis limits of the phase plot are always [-180 180].

Programmatic Use

See YLimits (Simulink).

Note

All the Display properties affect only the active display that you select through the Active Display parameter.

Settings > Display

Specify the title for the display. The default value %<SignalLabel> uses the input signal name for the title.

Programmatic Use

See Title (Simulink).

Select this parameter to display the signal legend. The names listed in the legend are the signal names from the model. For signals with multiple channels, the scope appends a channel index after the signal name. Continuous signals have straight lines before their names, and discrete signals have step-shaped lines.

From the legend, you can control which signals are visible. This control is equivalent to changing the visibility in the Line Style properties. In the scope legend, click a signal name to hide the signal in the scope. To show the signal, click the signal name again. To show only one signal, right-click the signal name, which hides all other signals. To show all signals, press Esc.

Note

The legend only shows the first 20 signals. Any additional signals cannot be controlled from the legend.

Programmatic Use

See ShowLegend (Simulink).

Select this parameter to show internal grid lines.

Programmatic Use

See ShowGrid (Simulink).

Select this parameter to split the display into magnitude and phase plots.

  • On — Display magnitude and phase plots. If the signal is real, the scope plots the absolute value of the signal for the magnitude. The phase is 0 degrees for positive values and 180 degrees for negative values. This feature is useful for complex-valued input signals. If the input is a real-valued signal, selecting this parameter returns the absolute value of the signal for the magnitude.

  • Off — Display signal plot. If the signal is complex, the scope plots the real and imaginary parts on the same y-axis.

Programmatic Use

See PlotAsMagnitudePhase (Simulink).

Display Grid

Specify the layout of the displays. Opens a grid picker similar to the scope layout. The layout can have a maximum of 16 rows and 16 columns. Using the grid picker, you can select a layout of size up to 5-by-5. To select a layout of size greater than 5-by-5:

  • Set Display grid under Settings > General in the Scope tab of the toolstrip to a two-element numeric vector with each element greater than 0 and less than or equal to 16. For example, setting Display grid to [2 1] changes the layout to 2-by-1.

  • Use the LayoutDimensions property of the TimeScopeConfiguration (Simulink) object.

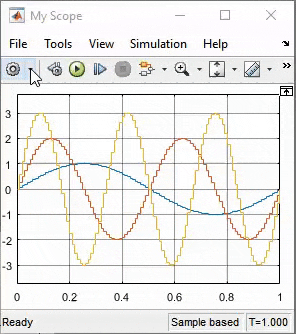

Animated GIF of changing the layout from one display to two displays

If the number of displays is equal to the number of ports, signals from each port appear on separate displays. If the number of displays is less than the number of ports, signals from additional ports appear on the last display. For layouts with multiple columns and rows, ports are mapped down then across. If the number of displays is greater than the number of ports, the scope creates empty tiles.

Programmatic Use

See LayoutDimensions (Simulink).

Dock

Click Dock or Dock Scope in the Scope tab to add the currently active scope to the scope container. Click Dock All Scopes to add all the opened scopes in the current model to the scope container.

For more information on the scope container, see Scope Window Management.

Click Undock in the Home tab of the scope container to remove the currently active scope from the container into a separate stand-alone window. Click Undock All to remove all scopes from the container into separate stand-alone windows.

For more information on the scope container, see Scope Window Management.

Dependencies

This parameter is available only on the Home tab of the scope container.

Select this parameter to add the newly opened scopes (which have not been opened before in the current session of MATLAB) automatically to the existing scope container.

For more information on the scope container, see Scope Window Management.

Dependencies

This parameter is available only on the Home tab of the scope container. To access this parameter, click the drop down arrow of Dock All under the Home tab of the scope container.

Measurements Tab

The Measurements tab contains the settings for all the signal measurements that the scope supports. The measurement panels appear at the bottom of the scope window. To open a measurement panel, you must first enable the corresponding measurement in the Measurements tab.

Measurements tab of the Scope block and the Time Scope block.

For more information on the measurements, see these pages:

  • Triggers — Set triggers to sync repeating signals and pause the display when events occur.

  • Cursor Measurements — Measure signal values using vertical and horizontal cursors.

  • Signal Statistics — Display the maximum, minimum, peak-to-peak difference, mean, median, and RMS values of a selected signal.

  • Peak Finder — Find maxima, showing the x-axis values at which they occur.

  • Bilevel Measurements — Measure transitions, overshoots, undershoots, and cycles.

Block Characteristics

Data Types

Boolean | busa | double | enumerated | fixed point | half | integer | single

Direct Feedthrough

no

Multidimensional Signals

yes

Variable-Size Signals

yes

Zero-Crossing Detection

no

a Virtual bus not supported. Nonvirtual bus supported only in normal and accelerator mode simulation. Data logging for nonvirtual bus supported only in the dataset format.

More About

expand all

Tips

If you run your simulation for a long time, you may run into out-of-memory issues because the scope saves data. To limit the amount of data saved for scope visualization, use the Limit data points to last property.

Extended Capabilities

expand all

Version History

Introduced in R2015b

expand all

See Also

Blocks

Objects

Topics
