# Trigonometric Function

Specified trigonometric function on input

• Library:

HDL Coder / Math Operations

## Description

The Trigonometric Function block performs common trigonometric functions and outputs the result in rad or rev.

### Supported Functions

You can select one of these functions from the Function parameter list.

FunctionDescriptionMathematical Expression MATLAB® Equivalent
`sin`

Sine of the input

`sin(u)`

`sin`
`cos`

Cosine of the input

`cos(u)`

`cos`
`tan`

Tangent of the input

`tan(u)`

`tan`
`asin`

Inverse sine of the input

`asin(u)`

`asin`
`acos`

Inverse cosine of the input

`acos(u)`

`acos`
`atan`

Inverse tangent of the input

`atan(u)`

`atan`
`atan2`

Four-quadrant inverse tangent of the input

`atan2(u)`

`atan2`
`sinh`

Hyperbolic sine of the input

`sinh(u)`

`sinh`
`cosh`

Hyperbolic cosine of the input

`cosh(u)`

`cosh`
`tanh`

Hyperbolic tangent of the input

`tanh(u)`

`tanh`
`asinh`

Inverse hyperbolic sine of the input

`asinh(u)`

`asinh`
`acosh`

Inverse hyperbolic cosine of the input

`acosh(u)`

`acosh`
`atanh`

Inverse hyperbolic tangent of the input

`atanh(u)`

`atanh`

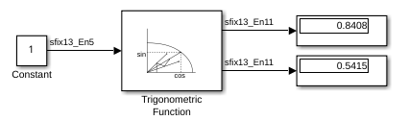

`sincos`

Sine of the input; cosine of the input

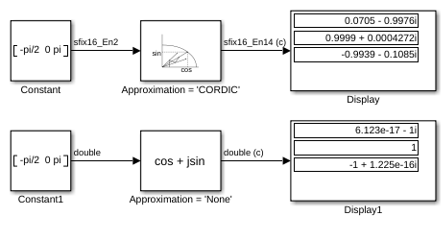

`cos + jsin`

Complex exponential of the input

### CORDIC Approximation Method

If you use the CORDIC approximation method (see More About), the block input has further requirements.

When you set Function to `sin`, `cos`, `sincos`, or `cos + jsin` and set the Approximation method to `CORDIC`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [–2π, 2π) rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0, 2π) rad.

When you set Function to `atan2` and the Approximation method to `CORDIC`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• When you use signed fixed-point types, the word length must be `126` or less.

• When you use unsigned fixed-point types, the word length must be `125` or less.

This table summarizes what happens for an invalid input.

Block UsageEffect of Invalid Input
Simulation modesAn error appears.
Generated codeUndefined behavior occurs. Avoid relying on undefined behavior for generated code.

### Lookup Approximation Method

When you set Function to `sin`, `cos`, `sincos`, or ```cos + jsin``` and set the Approximation method to `Lookup`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [-2ᴨ,2ᴨ] rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0,2ᴨ) rad.

• When you set Function to `atan2` and the Approximation method to `Lookup`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• The number of data points are limited by:

• ```smallEnoughNumDataPoints = 2(inputFractionLen-2)+1```

• ```bigEnoughFractionLen = log2(numberOfDataPoints - 1)+2```

where:

• smallEnoughNumDataPoints is the maximum number of data points represented by specified input fraction length, inputFractionLen.

• bigEnoughFractionLen is the minimum fraction length needed to represent specified number of data points, numberOfDataPoints.

## Ports

### Input

expand all

Input specified as a scalar, vector, or matrix. The block accepts input signals of the following data types:

FunctionsInput Data Types
• `sin`

• `cos`

• `sincos`

• `cos + jsin`

• `atan2`

• Floating point

• Fixed point (only when Approximation method is `CORDIC`)

• `tan`

• `asin`

• `acos`

• `atan`

• `sinh`

• `cosh`

• `tanh`

• `asinh`

• `acosh`

• `atanh`

• Floating point

#### Dependencies

• When you set Function to `atan2`, the block shows two input ports. The first input (Port_1) is the y-axis or imaginary part of the function argument. The second input (Port_2) is the x-axis or real part of the function argument.

• You can use floating-point input signals when you set Approximation method to `None`, `CORDIC`, or `Lookup`. However, the block output data type depends on which of these approximation method options you choose.

Input Data TypeApproximation MethodOutput Data Type

Floating point

`None`

Depends on your selection for Output signal type. Options are `auto` (same data type as input), `real`, or `complex`.

Floating point

`CORDIC`

Same as input. Output signal type is not available when you use the CORDIC approximation method to compute the block output.

Floating point

`Lookup`

Same as input. Output signal type is not available when you use the Lookup approximation method to compute the block output.

For CORDIC and Lookup approximations:

• Input must be real for the `sin`, `cos`, `sincos`, `cos + jsin`, and `atan2` functions.

• Output is real for the `sin`, `cos`, `sincos`, and `atan2` functions.

• Output is complex for the `cos + jsin` function.

#### Limitations

Complex input signals are supported for all functions in this block except `atan2`.

You can use fixed-point input signals only when Approximation method is set to `CORDIC` or `Lookup`. The CORDIC and Lookup approximations are available for the `sin`, `cos`, `sincos`, ```cos + jsin```, and `atan2` functions.

CORDIC approximation fixed-point type propagations:

Input Data TypeFunctionOutput Data Type

Fixed point, signed or unsigned

`sin`, `cos`, `sincos`, and ```cos + jsin```

`fixdt````(1, WL, WL - 2)``` where `WL` is the input word length

This fixed-point type provides the best precision for the CORDIC algorithm.

Fixed point, signed

`atan2`

`fixdt````(1, WL, WL – 3)```

Fixed point, unsigned

`atan2`

`fixdt````(1, WL, WL – 2)```

Lookup approximation fixed-point type propagations:

Input Data TypeFunctionOutput Data Type

Fixed point, signed

`sin`, `cos`, `sincos`, ```cos + jsin```, `atan2`

`fixdt````(1, WL, FL)```

Fixed point, unsigned

`sin`, `cos`, `sincos`, ```cos + jsin```, `atan2`

`fixdt````(1, WL - 1, FL)```

When you set Function to `sin`, `cos`, `sincos`, or `cos + jsin` and set the Approximation method to `CORDIC`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [–2π, 2π) rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0, 2π) rad.

When you set Function to `atan2` and the Approximation method to `CORDIC`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• When you use signed fixed-point types, the word length must be `126` or less.

• When you use unsigned fixed-point types, the word length must be `125` or less.

When you set Function to `sin`, `cos`, `sincos`, or `cos + jsin` and set the Approximation method to `Lookup`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [-2ᴨ,2ᴨ] rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0,2ᴨ) rad.

• When you set Function to `atan2` and the Approximation method to `Lookup`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• The number of data points are limited by:

• ```smallEnoughNumDataPoints = 2(inputFractionLen-2)+1```

• ```bigEnoughFractionLen = log2(numberOfDataPoints - 1)+2```

where:

• smallEnoughNumDataPoints is the maximum number of data points represented by specified input fraction length, inputFractionLen.

• bigEnoughFractionLen is the minimum fraction length needed to represent specified number of data points, numberOfDataPoints.

Data Types: `half` | `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `fixed point`

Input the x-axis or real part of the function argument for `atan2`. When you set Function to `atan2`, the block shows two input ports. The first input (Port_1) is the y-axis or imaginary part of the function argument. The second input (Port_2) is the x-axis or real part of the function argument. (See Port Location After Rotating or Flipping for a description of the port order for various block orientations.)

#### Dependencies

To enable this port, set Function to `atan2`.

#### Limitations

• Fixed-point input signals are supported only when you set Approximation method to `CORDIC` or `Lookup`.

• When you set Function to `atan2` and Approximation method to `CORDIC`:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• When you use signed fixed-point types, the word length must be `126` or less.

• When you use unsigned fixed-point types, the word length must be `125` or less.

• When you set Function to `sin`, `cos`, `sincos`, or ```cos + jsin``` and set the Approximation method to `Lookup`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [-2ᴨ,2ᴨ] rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0,2ᴨ) rad.

• When you set Function to `atan2` and the Approximation method to `Lookup`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• The number of data points are limited by:

• ```smallEnoughNumDataPoints = 2(inputFractionLen - 2)+1```

• ```bigEnoughFractinoLen = log2(numberOfDataPoints - 1)+2```

where:

• smallEnoughNumDataPoints is the maximum number of data points represented by specified input fraction length, inputFractionLen.

• bigEnoughFractinoLen is the minimum fraction length needed to represent specified number of data points, numberOfDataPoints.

Data Types: `half` | `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `fixed point`

### Output

expand all

Result of applying the specified trigonometric function to one or more inputs in rad. Each function supports:

• Scalar operations

• Element-wise vector and matrix operations

Data Types: `half` | `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `fixed point`

Sine of the input signal, in rad and rev.

#### Dependencies

To enable this port, set Function to `sincos`.

#### Limitations

Fixed-point input signals are supported only when you set Approximation method to `CORDIC` or `Lookup`.

Data Types: `half` | `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `fixed point`

Cosine of the input signal, in rad and rev.

#### Dependencies

To enable this port, set Function to `sincos`.

#### Limitations

Fixed-point input signals are supported only when you set Approximation method to `CORDIC` or `Lookup`.

Data Types: `half` | `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `fixed point`

## Parameters

expand all

Specify the trigonometric function. The name of the function on the block icon changes to match your selection.

#### Limitations

When you set Function to `sin`, `cos`, `sincos`, or `cos + jsin` and set the Approximation method to `CORDIC`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [–2π, 2π) rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0, 2π) rad.

When you set Function to `atan2` and the Approximation method to `CORDIC`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• When you use signed fixed-point types, the word length must be `126` or less.

• When you use unsigned fixed-point types, the word length must be `125` or less.

#### Programmatic Use

 Block Parameter: `Operator` Type: character vector Values: ```'sin' | 'cos' | 'tan' | 'asin' | 'acos' | 'atan' | 'atan2' | 'sinh' | 'cosh' | 'tanh' | 'asinh' | 'acosh' | 'atanh' | 'sincos' | 'cos + jsin'``` Default: `'sin'`

Specify the type of approximation for computing output.

Approximation MethodData Types SupportedWhen to Use This Method
`None` (default)

Floating point

You want to use the default Taylor series algorithm.

`CORDIC`

Floating point and fixed point

You want a fast, approximate iterative calculation.

`Lookup`

Floating point and fixed point (double and single)

You want a fast, approximate lookup table implementation.

#### Dependencies

To enable this parameter, set Function to `sin`, `cos`, `sincos`, ```cos + jsin```, or `atan2`.

To use fixed-point input signals, you must set Approximation method to `CORDIC` or `Lookup`.

#### Limitations

When you set Function to `sin`, `cos`, `sincos`, or `cos + jsin` and set the Approximation method to `CORDIC`, the block has these limitations:

• When you use signed fixed-point types, the input angle must fall within the range [–2π, 2π) rad.

• When you use unsigned fixed-point types, the input angle must fall within the range [0, 2π) rad.

When you set Function to `atan2` and the Approximation method to `CORDIC`, the block has these limitations:

• Inputs must be the same size, or at least one value must be a scalar value.

• Both inputs must have the same data type.

• When you use signed fixed-point types, the word length must be `126` or less.

• When you use unsigned fixed-point types, the word length must be `125` or less.

#### Programmatic Use

 Block Parameter: `ApproximationMethod` Type: character vector Values: `'None' | 'CORDIC' | 'Lookup'` Default: `'None'`

Specify the number of iterations to perform the CORDIC algorithm. The default value is 11.

• When the block input uses a floating-point data type, the number of iterations can be a positive integer.

• When the block input is a fixed-point data type, the number of iterations cannot exceed the word length.

For example, if the block input is `fixdt(1,16,15)`, the word length is 16. In this case, the number of iterations cannot exceed 16.

#### Dependencies

To enable this parameter, you must set the Function and Approximation method parameters as follows:

• Set Function to `sin`, `cos`, `sincos`, ```cos + jsin```, or `atan2`.

• Set Approximation method to `CORDIC`.

#### Programmatic Use

 Block Parameter: `NumberOfIterations` Type: character vector Values: positive integer, less than or equal to word length of fixed-point input Default: `'11'`

Specify the angle unit for lookup method as `radian` or `revolution`.

#### Dependencies

To enable this parameter:

• Set Function to `sin`, `cos`, `sincos`, ```cos + jsin```, or `atan2`.

• Set to `Lookup`.

#### Programmatic Use

 Block Parameter: `AngleUnit` Type: character vector Values: `'radian' | 'revolution'` Default: `'radian'`

Specify the number of data points for lookup table as a scalar real number.

#### Dependencies

To enable this parameter:

• Set Function to `sin`, `cos`, `sincos`, ```cos + jsin```, or `atan2`.

• Set to `Lookup`.

#### Programmatic Use

 Block Parameter: `NumberOfDataPoints` Type: character vector Values: scalar Default: `'16'`

Specify the output signal type of the Trigonometric Function block as `auto`, `real`, or `complex`.

FunctionInput Signal TypeOutput Signal Type
AutoRealComplex
Any selection for the Function parameter realrealrealcomplex
complexcomplexerrorcomplex

#### Dependencies

Setting Approximation method to `CORDIC` disables this parameter.

Note

When Function is `atan2`, complex input signals are not supported for simulation or code generation.

#### Programmatic Use

 Block Parameter: `OutputSignalType` Type: character vector Values: `'auto' | 'real' | 'complex'` Default: `'auto'`

For `acos` and `asin`, select this check box to remove the protection against out-of-range inputs, which reduces redundancy.

• When you clear this check box, the protection is enabled. The block saturates out-of-range inputs to `1` or `-1` before any operation is performed. Generated code contains code to check for out-of-range input.

• When you select this check box, the protection is removed. The block performs all operations on the input value without any changes. Generated code does not contain code to check for the out-of-range input.

Enabling this check box can eliminate redundancy if the input is already in range.

#### Dependencies

Setting Function to `acos` and `asin` enables this parameter.

#### Programmatic Use

 Block Parameter: `RemoveProtectionAgainstOutOfRangeInput` Type: character vector Values: `'off' | 'on'` Default: `'off'`

Specify the sample time as a value other than -1. For more information, see Specify Sample Time.

#### Dependencies

This parameter is not visible unless it is explicitly set to a value other than `-1`. To learn more, see Blocks for Which Sample Time Is Not Recommended.

#### Programmatic Use

 Block Parameter: `SampleTime` Type: character vector Values: scalar or vector Default: `'-1'`

## Block Characteristics

 Data Types `double` | `fixed point[a]` | `half` | `integer[a]` | `single` Direct Feedthrough `yes` Multidimensional Signals `yes` Variable-Size Signals `yes` Zero-Crossing Detection `no` [a] This block supports fixed-point and base integer data types for 'Approximation method' CORDIC.

expand all

## References

[1] Volder, Jack E., “The CORDIC Trigonometric Computing Technique.” IRE Transactions on Electronic Computers EC-8 (1959); 330–334.

[2] Andraka, Ray “A Survey of CORDIC Algorithm for FPGA Based Computers.” Proceedings of the 1998 ACM/SIGDA Sixth International Symposium on Field Programmable Gate Arrays. Feb. 22–24 (1998): 191–200.

[3] Walther, J.S., “A Unified Algorithm for Elementary Functions,” Proceedings of the Spring Joint Computer Conference, May 18-20, 1971: 379–386.

[4] Schelin, Charles W., “Calculator Function Approximation,” The American Mathematical Monthly 90, no. 5 (1983): 317–325.

## Extended Capabilities

### Functions

Introduced before R2006a
