Transmit Signal Data Between Components Linked to Behavior Models

A System Composer™ architecture model represents a system that you can simulate by adding Simulink^® behaviors to components. First, you assign interfaces to ports on the components. Then, you can design these interfaces so that when they propagate to the linked Simulink behavior model, information is exchanged between components as you expect.

• You can use System Composer interfaces with Simulink buses, and use System Composer data interfaces and data elements with Simulink component behaviors.

• You can also link Simulink behaviors to System Composer components using port elements and value types.

Using System Composer Interfaces with Simulink Buses

System Composer interfaces relate to Simulink dictionary data types. The table provides information about each artifact and how to work with them in Simulink.

Compare System Composer and Simulink Interfaces

System Composer	Simulink	More Information
Data interface	Virtual or nonvirtual bus	Group Signals or Messages into Virtual Buses
Data element	Bus element	Simplify Subsystem and Model Interfaces with Bus Element Ports
Port element	Bus element	Simplify Subsystem and Model Interfaces with Bus Element Ports
Value type	Value type	Specify Common Set of Signal Properties as Value Type

For information about how to use physical interfaces, see Implement Component Behavior Using Simscape.

For information about how to use service interfaces, see Service Interfaces Overview.

Create Interfaces in Architecture Models

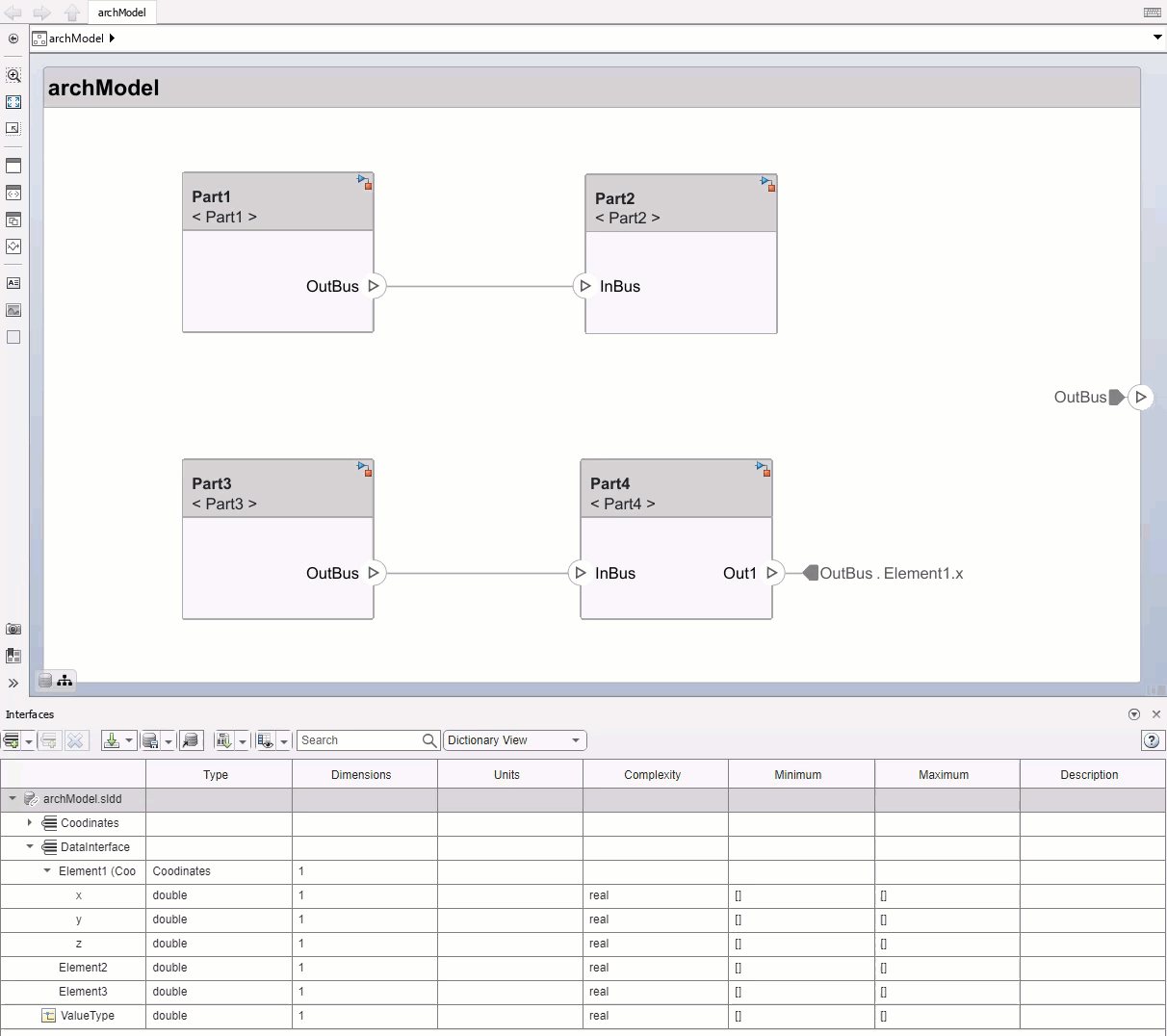

To prepare your system for Simulink component behaviors, create data interfaces in an architecture model and assign the data interfaces to ports. A data interface defines the kind of information that flows through a port. You can assign the same interface to multiple ports. A data interface can be composite, meaning that it can include data elements that describe the properties of an interface signal. For more information about data interfaces, see Define Port Interfaces Between Components.

Link Simulink Component Behaviors and Design Buses

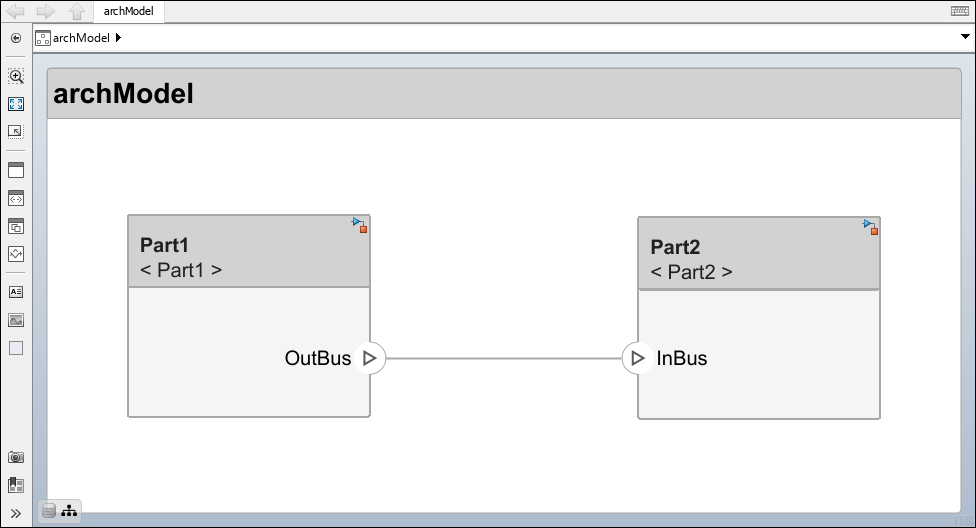

To link Simulink behaviors to components Part1 and Part2, right-click each component and select Create behavior and then Simulink Behavior. For more information about Simulink behaviors, see Implement Component Behavior Using Simulink.

After linking empty Simulink models, you can populate the models.

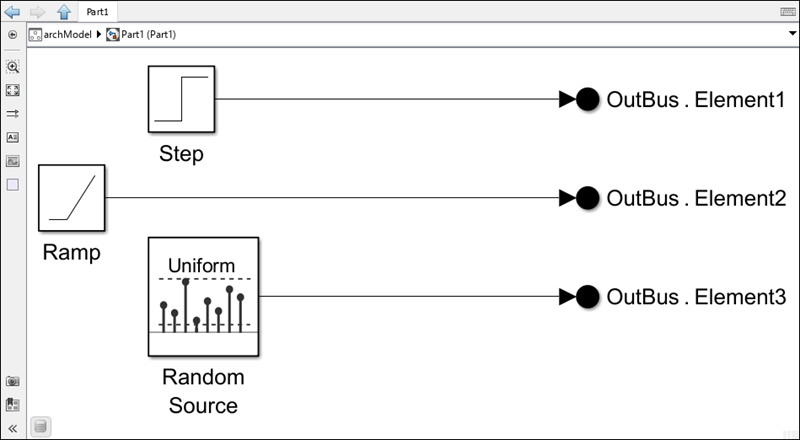

For the Simulink model Part1, create three source blocks. Then, use Out Bus Element blocks to pass the values onto the OutBus port. For more information on using Out Bus Element blocks, see Connect Multiple Output Signals to One Port.

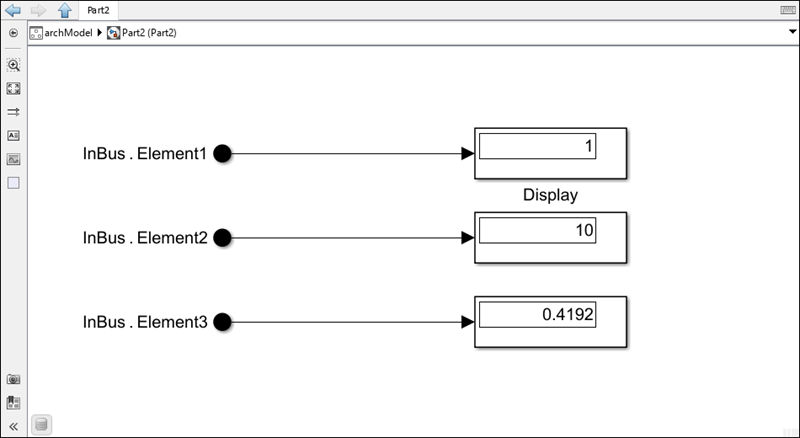

You can use System Composer architectures to connect two components and use interfaces on ports to transfer the values to the Part2 component. The Part2 Simulink behavior model contains In Bus Element blocks. After simulating the model, the values propagate the Display blocks.

Link Simulink Behavior to Port Elements and Value Types

When ports are typed by port elements or value types, you can also use Inport and Outport blocks in Simulink to propagate the values.

In this example, the OutBus port on the Part3 component and the InBus port on the Part4 component are typed by a value type. The Out1 port on the Part4 component is typed by a data interface, with the architecture port chevron showing OutBus.Element1.x, which is one of many nested data elements.

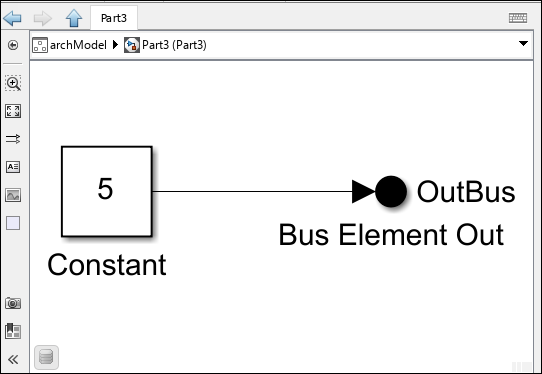

The Part3 component links to a Simulink behavior that defines a Constant block to propagate the value 5 to the value type assigned to the port.

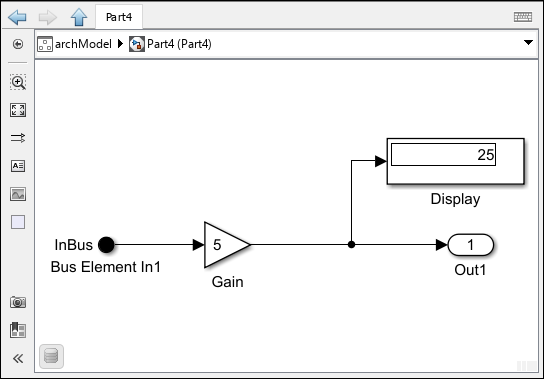

When Part3 connected to Part4 executes, the Gain block with a value of 5 outputs the final value of 25 assigned to the port element on Out1.

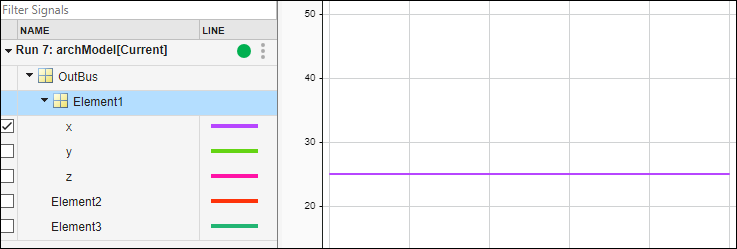

From the Simulation tab, access the Simulation Data Inspector. Visualize the signal for the x coordinate to see a value of 25 from the simulation for the OutBus.Element1.x port element.
