robotPlatform

Create robot platform in scenario

expand all in page

    Description

    The robotPlatform object represents a robot platform in a given robot scenario. Use the platform to define and track the trajectory of an object in the scenario. To simulate sensor readings for the platform, mount sensors such as the gpsSensor, insSensor, and robotLidarPointCloudGenerator System object™ to the platform as robotSensor objects. Add a body mesh to the platform for visualization using the updateMesh object function.

    Creation

    Syntax

    platform = robotPlatform(name,scenario)
    platform = robotPlatform(___,Name=Value)

    Description

    platform = robotPlatform(name,scenario) creates a platform with a specified name name and adds it to the scenario, specified as a robotScenario object. Specify the name argument as a string scalar. The name argument sets the Name property.

    example

    platform = robotPlatform(___,Name=Value) specifies options using one or more name-value pair arguments. You can specify properties as name-value pair arguments as well.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: StartTime=10 sets the initial time of the platform trajectory to 10 seconds.

    Trajectory for robot platform base motion, specified as a waypointTrajectory object. By default, the platform is assumed to be stationary and at the scenario origin. To move the platform at each simulation step of the scenario, use the move object function.

    Note

    The robotPlatform object must specify the same ReferenceFrame property as specified in the waypointTrajectory object.

    Initial robot platform base position, specified as a vector of the form [x y z]. Only specify this name-value pair if not specifying the BaseTrajectory property.

    Data Types: single | double

    Initial velocity of robot platform base, specified as a vector of the form [vx vy vz]. Only specify this name-value pair if not specifying the BaseTrajectory property.

    Data Types: single | double

    Initial acceleration of robot platform base, specified as a vector of the form [ax ay az]. Only specify this name-value pair if not specifying the BaseTrajectory property.

    Data Types: single | double

    Initial robot platform base orientation, specified as a vector of the form [w x y z], representing a quaternion. Only specify this name-value pair if not specifying the BaseTrajectory property.

    Data Types: single | double

    Initial angular velocity of robot platform base, specified as a vector of the form [wx wy wz]. The magnitude of the vector defines the angular speed in radians per second. The xyz-coordinates define the axis of clockwise rotation. Only specify this name-value pair if not specifying the BaseTrajectory property.

    Data Types: single | double

    Reference frame for computing robot platform motion, specified as "ENU" or "NED", which matches any reference frame in the robotScenario. All platform motion is computed relative to this inertial frame.

    Data Types: string

    Rigid body tree robot platform, specified as a rigidBodyTree object.

    Initial time of the robot platform trajectory, specified as a scalar in seconds.

    Data Types: single | double

    Properties

    expand all

    Identifier for the robot platform, specified as a string scalar or character vector. The name must be unique within the scenario.

    Data Types: char | string

    Trajectory for the robot platform base motion, specified as a waypointTrajectory object. By default, the object assumes the base of the platform is stationary and at the scenario origin. When specified as a waypointTrajectory object, base of the platform is moved along the trajectory during the scenario simulation. To move the platform at each simulation step of the scenario, use the move object function.

    Note

    The robotPlatform object must specify the same ReferenceFrame property as specified in the waypointTrajectory object.

    Reference frame for computing robot platform motion, specified as "ENU" or "NED", which matches any reference frame in the robotScenario. The object computes all platform motion relative to this inertial frame.

    Data Types: char | string

    Rigid body tree robot platform, specified as a rigidBodyTree object.

    Robot platform base body mesh, specified as an extendedObjectMesh object. The body mesh describes the 3-D model of the platform for visualization purposes. The body mesh is used to generate 3-D point cloud. The default mesh is a cuboid of the form [xlength ylength zlength] in meters.

    Robot platform base body mesh color when displayed in the scenario, specified as an RGB triplet.

    Data Types: single | double

    Transform between robot platform base body and mesh frames, specified as a 4-by-4 homogeneous transformation matrix that maps points in the platform mesh frame to points in the body frame.

    Data Types: single | double

    Sensors mount on robot platform, specified as an array of robotSensor objects.

    Object Functions

    moveMove robot platform in scenario
    readRead robot platform motion vector
    updateMeshUpdate robot platform body mesh

    Examples

    collapse all

    Open Live Script

    Create a robot scenario.

    scenario = robotScenario(UpdateRate=100,StopTime=1);

    Add the ground plane and a box as meshes.

    addMesh(scenario,"Plane",Size=[3 3],Color=[0.7 0.7 0.7]);
addMesh(scenario,"Box",Size=[0.5 0.5 0.5],Position=[0 0 0.25], ...
        Color=[0 1 0])

    Create a waypoint trajectory for the robot platform using an ENU reference frame.

    waypoint = [0 -1 0; 1 0 0; -1 1 0; 0 -1 0];
toa = linspace(0,1,length(waypoint));
traj = waypointTrajectory("Waypoints",waypoint, ...
                          "TimeOfArrival",toa, ...
                          "ReferenceFrame","ENU");

    Create a rigidBodyTree object of the TurtleBot 3 Waffle Pi robot with loadrobot.

    robotRBT = loadrobot("robotisTurtleBot3WafflePi");

    Create a robot platform with trajectory.

    platform = robotPlatform("TurtleBot",scenario, ...
                         BaseTrajectory=traj);

    Set up platform mesh with the rigidBodyTree object.

    updateMesh(platform,"RigidBodyTree",Object=robotRBT)

    Create an INS sensor object and attach the sensor to the platform.

    ins = robotSensor("INS",platform,insSensor("RollAccuracy",0), ...
                  UpdateRate=scenario.UpdateRate);

    Visualize the scenario.

    [ax,plotFrames] = show3D(scenario);
axis equal
hold on

    In a loop, step through the trajectory to output the position, orientation, velocity, acceleration, and angular velocity.

    count = 1;
while ~isDone(traj)
    [Position(count,:),Orientation(count,:),Velocity(count,:), ...
     Acceleration(count,:),AngularVelocity(count,:)] = traj();
    count = count+1;
end

    Create a line plot for the trajectory. First create the plot with plot3, then manually modify the data source properties of the plot. This improves the performance of the plotting.

    trajPlot = plot3(nan,nan,nan,"Color",[1 1 1],"LineWidth",2);
trajPlot.XDataSource = "Position(:,1)";
trajPlot.YDataSource = "Position(:,2)";
trajPlot.ZDataSource = "Position(:,3)";

    Set up the simulation. Then, iterate through the positions and show the scene each time the INS sensor updates. Advance the scene, move the robot platform, and update the sensors.

    setup(scenario)
for idx = 1:count-1
    % Read sensor readings.
    [isUpdated,insTimestamp(idx,1),sensorReadings(idx)] = read(ins);
    if isUpdated
        % Use fast update to move platform visualization frames.
        show3D(scenario,FastUpdate=true,Parent=ax);
        % Refresh all plot data and visualize.
        refreshdata
        drawnow limitrate
    end
    % Advance scenario simulation time.
    advance(scenario);
    % Update all sensors in the scene.
    updateSensors(scenario)
end
hold off

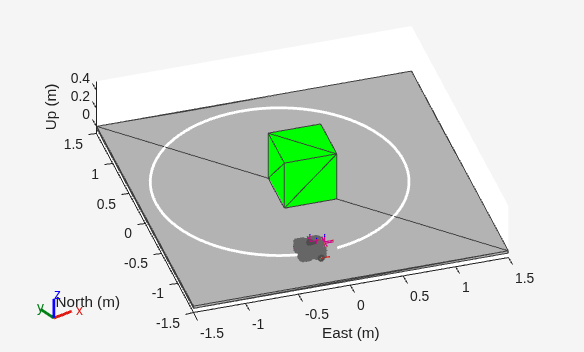

    {"String":"Figure contains an axes object. The axes object contains 28 objects of type patch, line.","Tex":[],"LaTex":[]}
