# nlhw

Estimate Hammerstein-Wiener model

## Syntax

``sys = nlhw(data,Orders)``
``sys = nlhw(data,Orders,InputNonlinearity,OutputNonlinearity)``
``sys = nlhw(data,LinModel)``
``sys = nlhw(data,LinModel,InputNonlinearity,OutputNonlinearity)``
``sys = nlhw(data,sys0)``
``sys = nlhw(___,Options)``

## Description

### Estimate Hammerstein-Wiener Model

example

````sys = nlhw(data,Orders)` creates and estimates a Hammerstein-Wiener model using the estimation data, model orders and delays, and default piecewise linear functions as input and output nonlinearity estimators. `data` can be in the form of a `timetable`, a comma-separated pair of numeric matrices, or a data object.```

example

````sys = nlhw(data,Orders,InputNonlinearity,OutputNonlinearity)` specifies `InputNL` and `OutputNL` as the input and output nonlinearity estimators, respectively.```

### Specify Linear Model

example

````sys = nlhw(data,LinModel)` uses a linear model to specify the linear block coefficients, and default piecewise linear functions for the input and output nonlinearity estimators.```

example

````sys = nlhw(data,LinModel,InputNonlinearity,OutputNonlinearity)` specifies `InputNonlinearity` and `OutputNonlinearity` as the input and output nonlinearity estimators, respectively.```

### Refine Existing Model

example

````sys = nlhw(data,sys0)` refines or estimates the parameters of a Hammerstein-Wiener model, `sys0`, using the estimation data. Use this syntax to: Update the parameters of a previously estimated model to improve the fit to the estimation data. In this case, the estimation algorithm uses the parameters of `sys0` as initial guesses.Estimate the parameters of a model previously created using the `idnlhw` constructor. Prior to estimation, you can configure the model properties using dot notation. ```

### Specify Options

example

````sys = nlhw(___,Options)` specifies additional model estimation options using the option set `Options` that you create using `nlhwOptions`. Use `Options` with any of the previous syntaxes.```

## Examples

collapse all

```load iddata3 m1 = nlhw(z3,[4 2 1]);```

```load twotankdata; z = iddata(y,u,0.2,'Name','Two tank system'); z1 = z(1:1000);```

Create a saturation object with lower limit of 0 and upper limit of 5.

`InputNL = idSaturation('LinearInterval',[0 5]);`

Estimate model with no output nonlinearity.

`m = nlhw(z1,[2 3 0],InputNL,[]);`

Generating a custom network nonlinearity requires the definition of a user-defined unit function.

Define the unit function and save it as `gaussunit.m`.

```function [f,g,a] = gaussunit(x) % Custom unit function nonlinearity. % % Copyright 2015 The MathWorks, Inc. f = exp(-x.*x); if nargout>1 g = -2*x.*f; a = 0.2; end ```

Create a custom network nonlinearity using the `gaussunit` function.

```H = @gaussunit; CNet = idCustomNetwork(H); ```

```load twotankdata; z = iddata(y,u,0.2,'Name','Two tank system'); z1 = z(1:1000); ```

Estimate a Hammerstein-Wiener model using the custom network.

```m = nlhw(z1,[5 1 3],CNet,[]); ```

Estimate linear OE model.

```load throttledata.mat Tr = getTrend(ThrottleData); Tr.OutputOffset = 15; DetrendedData = detrend(ThrottleData, Tr); opt = oeOptions('Focus','simulation'); LinearModel = oe(DetrendedData,[1 2 1],opt);```

Estimate Hammerstein-Wiener model using OE model as its linear component and saturation as its output nonlinearity.

`sys = nlhw(ThrottleData,LinearModel,[],idSaturation);`

`load iddata1`

Construct a Hammerstein-Wiener model using `idnlhw` to define the model properties `B` and `F`.

```sys0 = idnlhw([2,2,0],[],'idWaveletNetwork'); sys0.B{1} = [0.8,1]; sys0.F{1} = [1,-1.2,0.5];```

Estimate the model.

`sys = nlhw(z1,sys0);`

Estimate a Hammerstein-Wiener model using `nlhw` to define the model properties `B` and `F`.

`sys2 = nlhw(z1,[2,2,0],[],'idWaveletNetwork','B',{[0.8,1]},'F',{[1,-1.2,0.5]});`

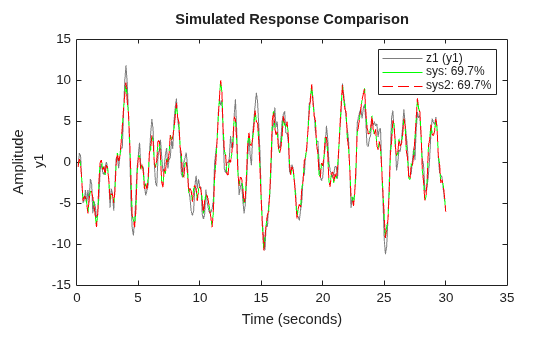

Compare the two estimated models to see that they are equivalent.

`compare(z1,sys,'g',sys2,'r--');`

Estimate a Hammerstein-Wiener Model.

```load iddata3 sys = nlhw(z3,[4 2 1],'idSigmoidNetwork','idWaveletNetwork');```

Refine the model, `sys`.

`sys = nlhw(z3,sys);`

Create estimation option set for `nlhw` to view estimation progress, use the Levenberg-Marquardt search method, and set the maximum iteration steps to `50`.

```opt = nlhwOptions; opt.Display = 'on'; opt.SearchMethod = 'lm'; opt.SearchOptions.MaxIterations = 50;```

Load data and estimate the model.

```load iddata3 sys = nlhw(z3,[4 2 1],idSigmoidNetwork,idPiecewiseLinear,opt);```

## Input Arguments

collapse all

Uniformly sampled estimation data, specified as described in the following sections.

#### Timetable

Specify `data` as a `timetable` that uses a regularly spaced time vector. `tt` contains variables representing input and output channels. For multiexperiment data, `tt` is a cell array of timetables of length `Ne`, where `Ne` is the number of experiments

The software determines the number of input and output channels to use for estimation from the dimensions of the order in `Orders`. The input/output channel selection depends on whether the `'InputName'` and `'OutputName'` name-value arguments are specified.

• If `'InputName'` and `'OutputName'` are not specified, then the software uses the first Nu variables of `tt` as inputs and the next Ny variables of `tt` as outputs.

• If `'InputName'` and `'OutputName'` are specified, then the software uses the specified variables. The number of specified input and output names must be consistent with Nu and Ny.

• For functions that can estimate a time series model, where there are no inputs, `'InputName'` does not need to be specified.

#### Comma-Separated Matrix pair

Specify `data` as a comma-separated pair of real-valued matrices that contain uniformly sampled input and output time-domain signal values. For multiexperiment data, use a cell array of matrices. When you specify matrix-based data, the software assumes a sample time of 1 second. You can change the sample time after estimation by setting the property `sys.Ts`.

• For SISO systems, specify `data` as a pair of Ns-by-1 real-valued matrices that contain uniformly sampled input and output time-domain signal values. Here, Ns is the number of samples.

• For MIMO systems, specify `u`,`y` as an input/output matrix pair with the following dimensions:

• `u`Ns-by-Nu, where Nu is the number of inputs.

• `y`Ns-by-Ny, where Ny is the number of outputs.

• For multiexperiment data, specify `u`,`y` as a pair of 1-by-Ne cell arrays, where Ne is the number of experiments. The sample times of all the experiments must match.

#### Data Object

An estimation data object, specified as a time-domain `iddata` object that contains uniformly sampled input and output values. By default, the software sets the sample time of the model to the sample time of the estimation data.

For multiexperiment data, the sample times and intersample behavior of all the experiments must match.

For more information about working with estimation data types, see Data Domains and Data Types in System Identification Toolbox.

Order and delays of the linear subsystem transfer function, specified as a `[nb nf nk]` vector.

Dimensions of `Orders`:

• For a SISO transfer function, `Orders` is a vector with 3 positive integers.

`nb` is the number of zeros plus 1, `nf` is the number of poles, and `nk` is the input delay.

• For a MIMO transfer function with `nu` inputs and `ny` outputs, `Orders` is a vector of matrices.

`nb`, `nf`, and `nk` are `ny`-by-`nu` matrices whose i-jth entry specifies the orders and delay of the transfer function from the jth input to the ith output.

Input nonlinearity estimator, specified as a column array containing one or more of the following strings or mapping objects. Note that `idGaussianProcess`, which can be used as an output nonlinearity estimator, cannot be used as an input nonlinearity estimator.

 `'idPiecewiseLinear'` or `idPiecewiseLinear` object Piecewise linear function `'idSigmoidNetwork'` or `idSigmoidNetwork` object Sigmoid network `'idWaveletNetwork'` or `idWaveletNetwork` object Wavelet network `'idSaturation'` or `idSaturation` object Saturation `'idDeadZone'` or `idDeadZone` object Dead zone `'idPolynomial1D'` or `idPolynomial1D` object One-dimensional polynomial `idCustomNetwork` object Custom network — Similar to `idSigmoidNetwork`, but with a user-defined replacement for the sigmoid function. `'idUnitGain'` or `[]` or `idUnitGain` object Unit gain. Effectively eliminates nonlinearity block.

Specifying a character vector, for example `'idSigmoidNetwork'`, creates a mapping object with default settings. Alternatively, you can specify nonlinearity estimator properties in two other ways:

• Create the nonlinearity function using arguments to modify default properties.

`InputNL = idSigmoidNetwork(15)`
• Create a default nonlinearity function first and then use dot notation to modify properties.

```InputNL = idSigmoidNetwork; InputNL.NumberOfUnits = 15```

For `nu` input channels, you can specify nonlinear estimators individually for each input channel by setting `InputNL` to an `nu`-by-1 array of nonlinearity estimators. To specify the same nonlinearity for all inputs, specify a single input nonlinearity estimator.

Output nonlinearity estimator, specified as a column array containing one or more of the following strings or mapping objects.

 `'idPiecewiseLinear'` or `idPiecewiseLinear` object Piecewise linear function `'idSigmoidNetwork'` or `idSigmoidNetwork` object Sigmoid network `'idWaveletNetwork'` or `idWaveletNetwork` object Wavelet network `'idSaturation'` or `idSaturation` object Saturation `'idDeadZone'` or `idDeadZone` object Dead zone `'idPolynomial1D'` or `idPolynomial1D` object One-dimensional polynomial `'idGaussianProcess'` or `idGaussianProcess` object Gaussian process regression model (requires Statistics and Machine Learning Toolbox™) `idCustomNetwork` object Custom network — Similar to `idSigmoidNetwork`, but with a user-defined replacement for the sigmoid function. `'idUnitGain'` or `[]` or `idUnitGain` object Unit gain. Effectively eliminates nonlinearity block.

Specifying a character vector, for example `'idSigmoidNetwork'`, creates a mapping object with default settings. Alternatively, you can specify nonlinearity estimator properties in two other ways:

• Create the nonlinearity function using arguments to modify default properties.

`NL = idSigmoidNetwork(15)`
• Create a default nonlinearity function first and then use dot notation to modify properties.

```outputNL = idSigmoidNetwork; OutputNL.NumberOfUnits = 15```

For `ny` output channels, you can specify nonlinear estimators individually for each output channel by setting `OutputNL` to an `ny`-by-1 array of nonlinearity estimators. To specify the same nonlinearity for all outputs, specify a single output nonlinearity estimator.

Discrete-time linear model used to specify the linear subsystem, specified as one of the following:

Typically, you estimate the model using `oe`, `n4sid`, or `tfest`.

Hammerstein-Wiener model, specified as an `idnlhw` object. `sys0` can be:

• A model previously created using `idnlhw` to specify model properties.

• A model previously estimated using `nlhw`, that you want to update using a new estimation data set.

You can also refine `sys0` using the original estimation data set. If the previous estimation stopped when the numerical search was stuck at a local minima of the cost function, use `init` to first randomize the parameters of `sys0`. See `sys0.Report.Termination` for search stopping conditions. Using `init` does not guarantee a better solution on further refinement.

Estimation options for Hammerstein-Wiener model identification, specified as an `nlhwOptions` option set. Available options include:

• Search options

• Normalization options

• Regularization options

## Output Arguments

collapse all

Estimated Hammerstein-Wiener model, returned as an `idnlhw` object. The model is estimated using the specified model orders, input and output nonlinearity estimators, and estimation options.

Information about the estimation results and options used is stored in the `Report` property of the model. `Report` has the following fields:

Report FieldDescription
`Status`

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation.

`Method`

Estimation command used.

`Fit`

Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:

FieldDescription
`FitPercent`

Normalized root mean squared error (NRMSE) measure of how well the response of the model fits the estimation data, expressed as the percentage fitpercent = 100(1-NRMSE).

`LossFcn`

Value of the loss function when the estimation completes.

`MSE`

Mean squared error (MSE) measure of how well the response of the model fits the estimation data.

`FPE`

Final prediction error for the model.

`AIC`

Raw Akaike Information Criteria (AIC) measure of model quality.

`AICc`

Small-sample-size corrected AIC.

`nAIC`

Normalized AIC.

`BIC`

Bayesian Information Criteria (BIC).

`Parameters`

Estimated values of model parameters.

`OptionsUsed`

Option set used for estimation. If no custom options were configured, this is a set of default options. See `nlhwOptions` for more information.

`RandState`

State of the random number stream at the start of estimation. Empty, `[]`, if randomization was not used during estimation. For more information, see `rng`.

`DataUsed`

Attributes of the data used for estimation, returned as a structure with the following fields.

FieldDescription
`Name`

Name of the data set.

`Type`

Data type.

`Length`

Number of data samples.

`Ts`

Sample time.

`InterSample`

Input intersample behavior, returned as one of the following values:

• `'zoh'` — Zero-order hold maintains a piecewise-constant input signal between samples.

• `'foh'` — First-order hold maintains a piecewise-linear input signal between samples.

• `'bl'` — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

`InputOffset`

Offset removed from time-domain input data during estimation. For nonlinear models, it is `[]`.

`OutputOffset`

Offset removed from time-domain output data during estimation. For nonlinear models, it is `[]`.

`Termination`

Termination conditions for the iterative search used for prediction error minimization, returned as a structure with the following fields:

FieldDescription
`WhyStop`

Reason for terminating the numerical search.

`Iterations`

Number of search iterations performed by the estimation algorithm.

`FirstOrderOptimality`

$\infty$-norm of the gradient search vector when the search algorithm terminates.

`FcnCount`

Number of times the objective function was called.

`UpdateNorm`

Norm of the gradient search vector in the last iteration. Omitted when the search method is `'lsqnonlin'` or `'fmincon'`.

`LastImprovement`

Criterion improvement in the last iteration, expressed as a percentage. Omitted when the search method is `'lsqnonlin'` or `'fmincon'`.

`Algorithm`

Algorithm used by `'lsqnonlin'` or `'fmincon'` search method. Omitted when other search methods are used.

For estimation methods that do not require numerical search optimization, the `Termination` field is omitted.
