lidarPointCloudGenerator

Generate lidar point cloud data for driving scenario or RoadRunner Scenario using ray tracing

Description

The lidarPointCloudGenerator System object™ generates detections from a lidar sensor mounted on an ego vehicle. All detections are referenced to the coordinate system of the ego vehicle or the vehicle-mounted sensor. You can use the lidarPointCloudGenerator object in a scenario containing actors and trajectories, which you can create by using a drivingScenario object. You can use the addSensors object function of the drivingScenario object to register the lidar as a sensor with the driving scenario. Then, you can call the lidar sensor object without any input arguments during the simulation. For more information, see Syntax Description For No Actor Pose Inputs.

You can also use the lidarPointCloudGenerator object with vehicle actors in RoadRunner Scenario simulation. First you must create a SensorSimulation object to interface sensors with RoadRunner Scenario, and then register the sensor model using the addSensors object function before simulation.

You can then call the object without any input arguments during the RoadRunner Scenario simulation.

The lidar sensor model created with lidarPointCloudGenerator uses hardware accelerated ray tracing to produce a highly realistic and accurate representation of objects in the point cloud. Ray tracing allows for precise modeling of the interactions between light rays emitted by the lidar sensor and the surfaces of objects in the scene. Additionally, ray tracing considers factors such as surface texture and angles, which enhances the realism and accuracy of the output point cloud data. The sensor model can also add random noise to the detections.

To generate lidar point clouds:

1. Create the lidarPointCloudGenerator object and set its properties.

2. Call the object with or without arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

lidar = lidarPointCloudGenerator

lidar = lidarPointCloudGenerator(Name,Value)

Description

lidar = lidarPointCloudGenerator creates a lidarPointCloudGenerator object with default property values to generate a point cloud for a lidar sensor.

lidar = lidarPointCloudGenerator(Name,Value) sets properties using one or more name-value pairs. For example, lidarPointCloudGenerator('DetectionCoordinates','Sensor Cartesian','MaxRange',200) creates a lidar point cloud generator that reports detections in the sensor Cartesian coordinate system and has a maximum detection range of 200 meters. Enclose each property name in quotes.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

SensorLocation — Sensor location

[1.5 0] (default) | [x y] vector

Location of the lidar sensor center, specified as a [x y] vector. The SensorLocation and Height properties define the coordinates of the lidar sensor with respect to the ego vehicle coordinate system. The default value corresponds to a lidar sensor mounted on a sedan, at the center of the roof's front edge. Units are in meters.

Example: [4 0.1]

Data Types: double

SensorIndex — Unique sensor identifier

1 (default) | positive integer

Unique sensor identifier, specified as a positive integer. This property distinguishes detections that come from different sensors in a multisensor system.

Example: 5

Data Types: double

UpdateInterval — Required time interval between sensor updates

0.1 (default) | positive real scalar

Required time interval between sensor updates, specified as a positive real scalar. The drivingScenario object calls the lidar point cloud generator at regular time intervals. lidarPointCloudGenerator object generates new detections at intervals defined by the UpdateInterval property. The value of the UpdateInterval property must be an integer multiple of the simulation time interval. Updates requested from the sensor between update intervals contain no detections. Units are in seconds.

Example: 5

Data Types: double

Height — Sensor height above ground plane

1.6 (default) | positive real scalar

Sensor height above the vehicle ground plane, specified as a positive real scalar. The default value corresponds to a lidar sensor mounted on a sedan, at the center of the roof's front edge. Units are in meters.

Example: 1.5

Data Types: double

Yaw — Yaw angle of lidar sensor

0 (default) | real scalar

Yaw angle of the lidar sensor, specified as a real scalar. The yaw angle is the angle between the center line of the ego vehicle and the downrange axis of the lidar sensor. A positive yaw angle corresponds to a clockwise rotation when looking in the positive direction of the z-axis of the ego vehicle coordinate system. Units are in degrees.

Example: -4

Data Types: double

Pitch — Pitch angle of lidar sensor

0 (default) | real scalar

Pitch angle of the lidar sensor, specified as a real scalar. The pitch angle is the angle between the downrange axis of the lidar sensor and the x-y plane of the ego vehicle coordinate system. A positive pitch angle corresponds to a clockwise rotation when looking in the positive direction of the y-axis of the ego vehicle coordinate system. Units are in degrees.

Example: 3

Data Types: double

Roll — Roll angle of lidar sensor

0 (default) | real scalar

Roll angle of the lidar sensor, specified as a real scalar. The roll angle is the angle of rotation of the downrange axis of the lidar sensor around the x-axis of the ego vehicle coordinate system. A positive roll angle corresponds to a clockwise rotation when looking in the positive direction of the x-axis of the coordinate system. Units are in degrees.

Example: -4

Data Types: double

MaxRange — Maximum detection range

120 (default) | positive real scalar

Maximum detection range, specified as a positive real scalar. The sensor cannot detect roads and actors beyond this range. Units are in meters.

Example: 200

Data Types: double

RangeAccuracy — Accuracy of range measurements

0.002 (default) | positive real scalar

Accuracy of range measurements, specified as a positive real scalar. Units are in meters.

Example: 0.01

Data Types: single | double

AzimuthResolution — Azimuth resolution of lidar

0.16 (default) | positive real scalar

Azimuth resolution of the lidar, specified as a positive real scalar. The azimuth resolution defines the minimum separation in azimuth angle at which the lidar can distinguish two targets. Units are in degrees.

Example: 0.5

Data Types: single | double

ElevationResolution — Elevation resolution of lidar

1.25 (default) | positive real scalar

Elevation resolution of the lidar, specified as a positive real scalar. The elevation resolution defines the minimum separation in elevation angle at which the lidar can distinguish two targets. Units are in degrees.

Example: 0.5

Data Types: single | double

AzimuthLimits — Azimuth limits of lidar

[-180 180] (default) | 1-by-2 real-valued vector

Azimuth limits of lidar, specified as a 1-by-2 real-valued vector of the form [min, max]. Units are in degrees.

Example: [-100 50]

Data Types: single | double

ElevationLimits — Elevation limits of lidar

[-20 20] (default) | 1-by-2 real-valued vector

Elevation limits of lidar, specified as a 1-by-2 real-valued vector of the form [min, max]. Units are in degrees.

Example: [-10 10]

Data Types: single | double

HasNoise — Enable adding noise to lidar sensor measurements

true (default) | false

Enable adding noise to lidar sensor measurements, specified as true or false. Set this property to true to add noise to the sensor measurements. Otherwise, the measurements have no noise.

Data Types: logical

HasOrganizedOutput — Output organized point cloud

true (default) | false

Output the generated data as an organized point cloud, specified as true or false. Set this property to true to output an organized point cloud. Otherwise, the output is unorganized.

Data Types: logical

HasEgoVehicle — Include ego vehicle in point cloud

true (default) | false

Include ego vehicle in the generated point cloud, specified as true or false. Set this property to true to include the ego vehicle in the output. Otherwise, the output point cloud has no ego vehicle.

Data Types: logical

HasRoadsInputPort — Include road mesh data in generated point cloud

true (default) | false

Include road mesh data in the generated point cloud, specified as true or false. Set this property to true to generate point cloud data from the input road mesh, rdMesh. Otherwise, the output point cloud has no road mesh data and you cannot specify rdMesh.

The HasRoadsInputPort property is always true if you register the sensor with the scenario using the addSensors function.

Data Types: logical

EgoVehicleActorID — ActorID of ego vehicle

1 (default) | positive integer

ActorID of ego vehicle, specified as a positive integer scalar. ActorID is the unique identifier for an actor.

Example: 4

Data Types: single | double

DetectionCoordinates — Coordinate system of reported detections

'Ego Cartesian' (default) | 'Sensor Cartesian'

Coordinate system of reported detections, specified as one of these values:

• 'Ego Cartesian' — Detections are reported in the ego vehicle Cartesian coordinate system.

• 'Sensor Cartesian' — Detections are reported in the sensor Cartesian coordinate system.

Data Types: char | string

ActorProfiles — Actor profiles

structure | array of structures

Actor profiles, specified as a structure or as an array of structures. Each structure contains the physical and radar characteristics of an actor.

• If ActorProfiles is a single structure, all actors passed into the lidarPointCloudGenerator object use this profile.

• If ActorProfiles is an array, each actor passed into the object must have a unique actor profile.

To generate an array of structures for your driving scenario, use the actorProfiles function. The table shows the valid structure fields. If you do not specify a field, the fields are set to their default values. If no actors are passed into the object, then the ActorID field is not included.

Field	Description
ActorID	Scenario-defined actor identifier, specified as a positive integer.
ClassID	Classification identifier, specified as a nonnegative integer. 0 represents an object of an unknown or unassigned class.
Length	Length of actor, specified as a positive real-valued scalar. Units are in meters.
Width	Width of actor, specified as a positive real-valued scalar. Units are in meters.
Height	Height of actor, specified as a positive real-valued scalar. Units are in meters.
OriginOffset	Offset of actor's rotational center from its geometric center, specified as a real-valued vector of the form [x, y, z]. The rotational center, or origin, is located at the bottom center of the actor. For vehicles, the rotational center is the point on the ground beneath the center of the rear axle. Units are in meters.
MeshVertices	Mesh vertices of actor, specified as an n-by-3 real-valued matrix of vertices. Each row in the matrix defines a point in 3-D space.
MeshFaces	Mesh faces of actor, specified as an m-by-3 matrix of integers. Each row of MeshFaces represents a triangle defined by the vertex IDs, which are the row numbers of vertices.
RCSPattern	Radar cross-section (RCS) pattern of actor, specified as a numel(RCSElevationAngles)-by-numel(RCSAzimuthAngles) real-valued matrix. Units are in decibels per square meter.
RCSAzimuthAngles	Azimuth angles corresponding to rows of RCSPattern, specified as a vector of values in the range [–180, 180]. Units are in degrees.
RCSElevationAngles	Elevation angles corresponding to rows of RCSPattern, specified as a vector of values in the range [–90, 90]. Units are in degrees.

For full definitions of the structure fields, see the actor and vehicle functions.

Usage

Syntax

[ptCloud,isValidTime] = lidar()

[ptCloud,isValidTime,clusters] = lidar()

ptCloud = lidar(actors,rdMesh,simTime)

[ptCloud,isValidTime] = lidar(actors,rdMesh,simTime)

[ptCloud,isValidTime,clusters] = lidar(actors,rdMesh,simTime)

[___] = lidar(actors,simTime)

Description

No Actor Pose Inputs

[ptCloud,isValidTime] = lidar() generates a lidar point cloud, ptCloud and returns isValidTime, which indicates whether the point cloud is generated at the current simulation time without any input arguments. Use this syntax after you add the sensors to the driving scenario using the addSensors function. This syntax provides significant performance improvements over syntaxes with input arguments. For more information on performance improvements, see Improved Simulation Performance Using New Syntax Without Actor Pose Inputs.

[ptCloud,isValidTime,clusters] = lidar() additionally returns clusters, which contains the classification data of the generated point cloud.

Manually Input Actor Poses

ptCloud = lidar(actors,rdMesh,simTime) creates a statistical sensor model to generate a lidar point cloud, ptCloud, from sensor measurements taken of actors, actors, at the current simulation time, simTime. An extendedObjectMesh object, rdMesh, contains road data around the ego vehicle.

[ptCloud,isValidTime] = lidar(actors,rdMesh,simTime) additionally returns isValidTime, which indicates whether the point cloud is generated at the specified simulation time.

[ptCloud,isValidTime,clusters] = lidar(actors,rdMesh,simTime) additionally returns clusters, which contains the classification data of the generated point cloud.

[___] = lidar(actors,simTime) excludes road mesh data from the generated point cloud by disabling specification of the rdMesh input. Using this syntax, you can return any of the outputs described in the previous syntaxes.

To exclude road mesh data, set the HasRoadsInputPort property to false.

Input Arguments

actors — Scenario actor poses

structure | structure array

Scenario actor poses, specified as a structure or structure array. Each structure corresponds to an actor. You can generate this structure using the actorPoses function. You can also create these structures manually. The table shows the properties that the object uses to generate detections. All other actor properties are ignored.

Field	Description
ActorID	Scenario-defined actor identifier, specified as a positive integer.
In R2024b: FrontAxlePosition	Front-axle position of the vehicle, specified as a three-element row vector in the form [x y z]. Units are in meters. Note If the driving scenario does not contain a front-axle trajectory for at least one vehicle, then the ActorPoses structure does not contain this field.
Position	Position of actor, specified as a real-valued vector of the form [x y z]. Units are in meters.
Velocity	Velocity (v) of actor in the x- y-, and z-directions, specified as a real-valued vector of the form [vx vy vz]. Units are in meters per second.
Roll	Roll angle of actor, specified as a real-valued scalar. Units are in degrees.
Pitch	Pitch angle of actor, specified as a real-valued scalar. Units are in degrees.
Yaw	Yaw angle of actor, specified as a real-valued scalar. Units are in degrees.
AngularVelocity	Angular velocity (ω) of actor in the x-, y-, and z-directions, specified as a real-valued vector of the form [ωx ωy ωz]. Units are in degrees per second.

For full definitions of the structure fields, see the actor and vehicle functions.

Data Types: struct

rdMesh — Mesh representation of roads near to actor

extendedObjectMesh object

Mesh representation of roads near to the actor, specified as an extendedObjectMesh object.

simTime — Current simulation time

positive real scalar

Current simulation time, specified as a positive real scalar. The drivingScenario object calls the lidar point cloud generator at regular time intervals to generate new point clouds at intervals defined by the UpdateInterval property. The value of the UpdateInterval property must be an integer multiple of the simulation time interval. Updates requested from the sensor between update intervals do not generate a point cloud. Units are in seconds.

Example: 10.5

Data Types: double

Output Arguments

ptCloud — Point cloud data

pointCloud object

Point cloud data, returned as a pointCloud object.

isValidTime — Valid time to generate point cloud

0 | 1

Valid time to generate point cloud, returned as 0 or 1. isValidTime is 0 when updates are requested at times that are between update intervals specified by UpdateInterval.

Data Types: logical

clusters — Classification data of generated point cloud

N-by-2 vector

Classification data of the generated point cloud, returned as an N-by-2 vector. The vector defines the IDs of the target from which the point cloud was generated. N is equal to the Count property of the pointCloud object. The vector contains ActorID in the first column and ClassID in the second column.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Specific to lidarPointCloudGenerator

isLocked

Determine if System object is in use

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Generate Lidar Point Cloud Data of Multiple Actors

Generate lidar point cloud data for a driving scenario with multiple actors by using the lidarPointCloudGenerator System object. Create the driving scenario by using drivingScenario object. It contains an ego-vehicle, pedestrian and two other vehicles.

Create and plot a driving scenario with multiple vehicles

Create a driving scenario.

scenario = drivingScenario;

Add a straight road to the driving scenario. The road has one lane in each direction.

roadCenters = [0 0 0; 70 0 0];
laneSpecification = lanespec([1 1]);
road(scenario,roadCenters,'Lanes',laneSpecification);

Add an ego vehicle to the driving scenario.

egoVehicle = vehicle(scenario,'ClassID',1,'Mesh',driving.scenario.carMesh);
waypoints = [1 -2 0; 35 -2 0];
smoothTrajectory(egoVehicle,waypoints,10);

Add a truck, pedestrian, and bicycle to the driving scenario and plot the scenario.

truck = vehicle(scenario,'ClassID',2,'Length', 8.2,'Width',2.5,'Height',3.5, ...
    'Mesh',driving.scenario.truckMesh);
waypoints = [70 1.7 0; 20 1.9 0];
smoothTrajectory(truck,waypoints,15);

pedestrian = actor(scenario,'ClassID',4,'Length',0.24,'Width',0.45,'Height',1.7, ...
    'Mesh',driving.scenario.pedestrianMesh);
waypoints = [23 -4 0; 10.4 -4 0];
smoothTrajectory(pedestrian,waypoints,1.5);

bicycle = actor(scenario,'ClassID',3,'Length',1.7,'Width',0.45,'Height',1.7, ...
    'Mesh',driving.scenario.bicycleMesh);
waypoints = [12.7 -3.3 0; 49.3 -3.3 0];
smoothTrajectory(bicycle,waypoints,5);

plot(scenario,'Meshes','on')

Generate and plot lidar point cloud data

Create a lidarPointCloudGenerator System object.

lidar = lidarPointCloudGenerator;

Add actor profiles and the ego vehicle actor ID from the driving scenario to the System object.

lidar.ActorProfiles = actorProfiles(scenario);
lidar.EgoVehicleActorID = egoVehicle.ActorID;

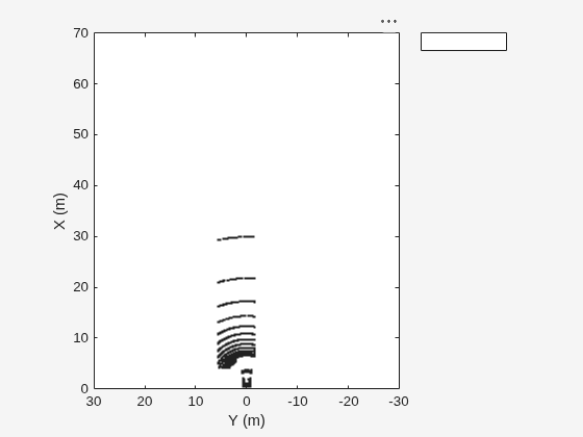

Plot the point cloud data.

bep = birdsEyePlot('Xlimits',[0 70],'YLimits',[-30 30]);
plotter = pointCloudPlotter(bep);
legend('off');
while advance(scenario)
    tgts = targetPoses(egoVehicle);
    rdmesh = roadMesh(egoVehicle);
    [ptCloud,isValidTime] = lidar(tgts,rdmesh,scenario.SimulationTime);
    if isValidTime
        plotPointCloud(plotter,ptCloud);
    end
end

Add Sensors to Driving Scenario and Obtain Measurements Without Actor Pose Inputs

In this example, you will add sensors to a driving scenario using the addSensors function. Then, you obtain sensor measurements without providing any ground-truth actor pose inputs and visualize them.

Set Up Driving Scenario and Bird's-Eye-Plot

Create a driving scenario with an ego vehicle and two target vehicles. One target vehicle is in the front and the other is to the left of the ego-vehicle.

[scenario, egovehicle] = helperCreateDrivingScenario;

Configure a lidar sensor to be mounted at the center of the roof's front edge of the ego vehicle.

lidarSensor = lidarPointCloudGenerator(SensorIndex=1,SensorLocation=[1.5 0],ActorProfiles=actorProfiles(scenario));

Create a bird's-eye-plot to visualize the driving scenario.

[pcPlotter, lmPlotter, olPlotter, bepAxes] = helperCreateBEP;

Add Sensors and Simulate Driving Scenario

Add the lidar sensor to the driving scenario using the addSensors function. You can add sensors to any vehicle in the driving scenario using the addSensors function by specifying the actor ID of the desired vehicle. For this example, specify the ego-vehicle actor ID.

addSensors(scenario,lidarSensor,egovehicle.ActorID);

Simulate the driving scenario. Note that you are not providing any ground-truth actor pose inputs when you call lidarSensor object. The sensor automatically returns the point cloud based on the sensor parameters and actors within the sensor range.

legend(bepAxes,'show')
lookaheadDistance = 0:0.5:60;

while advance(scenario)

    lb = laneBoundaries(egovehicle,'XDistance',lookaheadDistance,'LocationType','inner');
    [lmv,lmf] = laneMarkingVertices(egovehicle);

    % Obtain lidar point cloud without any actor pose inputs
    [ptCloud,isValidTime] = lidarSensor();

    if isValidTime
        % Plot point cloud, vehicle outlines and lane markings
        plotPointCloud(pcPlotter,ptCloud);

        [objposition,objyaw,objlength,objwidth,objoriginOffset,color] = targetOutlines(egovehicle);
        plotOutline(olPlotter,objposition,objyaw,objlength,objwidth, ...
            OriginOffset=objoriginOffset,Color=color)

        plotLaneMarking(lmPlotter,lmv,lmf)
    end
end

Helper Functions

helperCreateDrivingScenario creates a driving scenario by specifying the road and vehicle properties.

function [scenario, egovehicle] = helperCreateDrivingScenario
scenario = drivingScenario;
roadCenters = [-120 30 0;-60 0 0;0 0 0; 60 0 0; 120 30 0; 180 60 0];
lspc = lanespec(3);
road(scenario,roadCenters,Lanes=lspc);

% Create an ego vehicle that travels in the center lane at a velocity of 30 m/s.
egovehicle = vehicle(scenario,ClassID=1,Mesh=driving.scenario.carMesh);
egopath = [1.5 0 0; 60 0 0; 111 25 0];
egospeed = 30;
smoothTrajectory(egovehicle,egopath,egospeed);

% Add a target vehicle that travels ahead of the ego vehicle at 30.5 m/s in the right lane, and changes lanes close to the ego vehicle.
ftargetcar = vehicle(scenario,ClassID=1,Mesh=driving.scenario.carMesh);
ftargetpath = [8 2; 60 -3.2; 120 33];
ftargetspeed = 40;
smoothTrajectory(ftargetcar,ftargetpath,ftargetspeed);

% Add a second target vehicle that travels in the left lane at 32m/s.
ltargetcar = vehicle(scenario,ClassID=1,Mesh=driving.scenario.truckMesh);
ltargetpath = [-5.0 3.5 0; 60 3.5 0; 111 28.5 0];
ltargetspeed = 30;
smoothTrajectory(ltargetcar,ltargetpath,ltargetspeed);
end

helperCreateBEP creates a bird's-eye-plot for visualing the driving scenario simulation.

function [pcPlotter, lmPlotter, olPlotter,bepAxes] = helperCreateBEP()
figureName = "BEP";
Figure = findobj('Type','Figure',Name=figureName);
if isempty(Figure)
    screenSize = double(get(groot,'ScreenSize'));
    Figure = figure(Name=figureName);
    Figure.Position = [screenSize(3)*0.17 screenSize(4)*0.15 screenSize(3)*0.4 screenSize(4)*0.6];
    Figure.NumberTitle = 'off';
    Figure.MenuBar = 'none';
    Figure.ToolBar = 'none';
end
clf(Figure);
bepAxes = axes(Figure);
grid(bepAxes,'on');
legend(bepAxes,'hide');

bep = birdsEyePlot(Parent=bepAxes,XLim=[-20 60],YLim=[-35 35]);
pcPlotter = pointCloudPlotter(bep,DisplayName='Lidar Point Cloud');
lmPlotter = laneMarkingPlotter(bep,DisplayName="Lane markings");
olPlotter = outlinePlotter(bep);

end

Version History

Introduced in R2020a

R2023b: Improved Simulation Performance Using New Syntax Without Actor Pose Inputs

You can now create a lidarPointCloudGenerator system object with sensor properties and then get the point cloud measurements without any manual actor pose inputs. First, you can now use the addSensors object function of the drivingScenario object to register the lidarPointCloudGenerator object as a sensor with the driving scenario. You can then call the lidar sensor object without any inputs.

For a driving scenario with 100 vehicles represented by a cuboid mesh or driving.scenario.carMesh, calling the lidar sensor object without input provides a performance improvement by at least 50% in comparison with using actor pose inputs. For a driving scenario with 100 vehicles represented by more complex meshes, performance improvements up to 80% has been observed.

% Create driving scenario with 100 vehicles for performance testing
scenario = drivingScenario;
scenario.SampleTime = 0.1;
road(scenario, [-100 0 0; 900 0 0],50);

% Toggle mesh to be cuboid and car mesh
mesh = driving.scenario.carMesh;
% mesh = extendedObjectMesh('cuboid');

% Create 100 vehicles including the ego
for i = 1:100
    v = vehicle(scenario,'Mesh',mesh,"ClassID",1);
    v.Position = [10*i -5+10*mod(i,2) 0];
end

ego = scenario.Actors(1);
ego.Velocity = [0 0 0];
ego.Position = [100 0 0];
trajectory(ego, [100 0 0; 200 0 0],10)
