detectORBFeatures

Detect ORB keypoints

Syntax

points = detectORBFeatures(I)

points = detectORBFeatures(I,Name,Value)

Description

points = detectORBFeatures(I) returns an ORBPoints object that contains information about ORB keypoints. The ORB keypoints are detected from the input image by using the Oriented FAST and rotated BRIEF (ORB) feature detection method.

points = detectORBFeatures(I,Name,Value) specifies options using one or more name-value arguments.

Examples

Detect ORB Keypoints in Grayscale Image

Read an image into the workspace.

I = imread('businessCard.png');

Convert the image into a grayscale image.

I = im2gray(I);

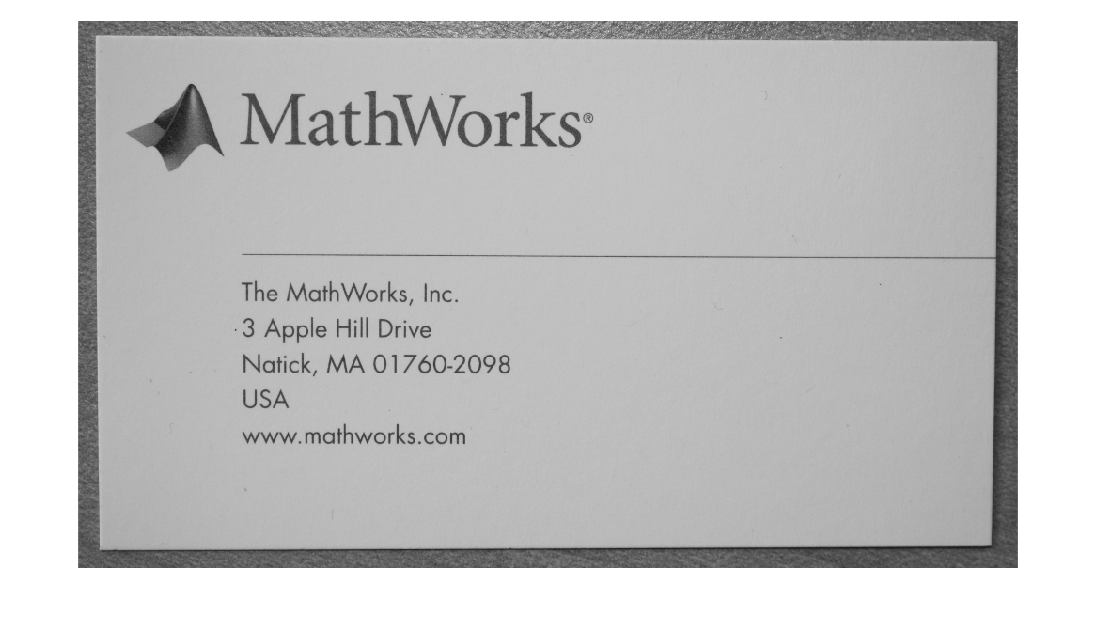

Display the grayscale image.

figure
imshow(I)

Detect and store ORB keypoints.

points = detectORBFeatures(I);

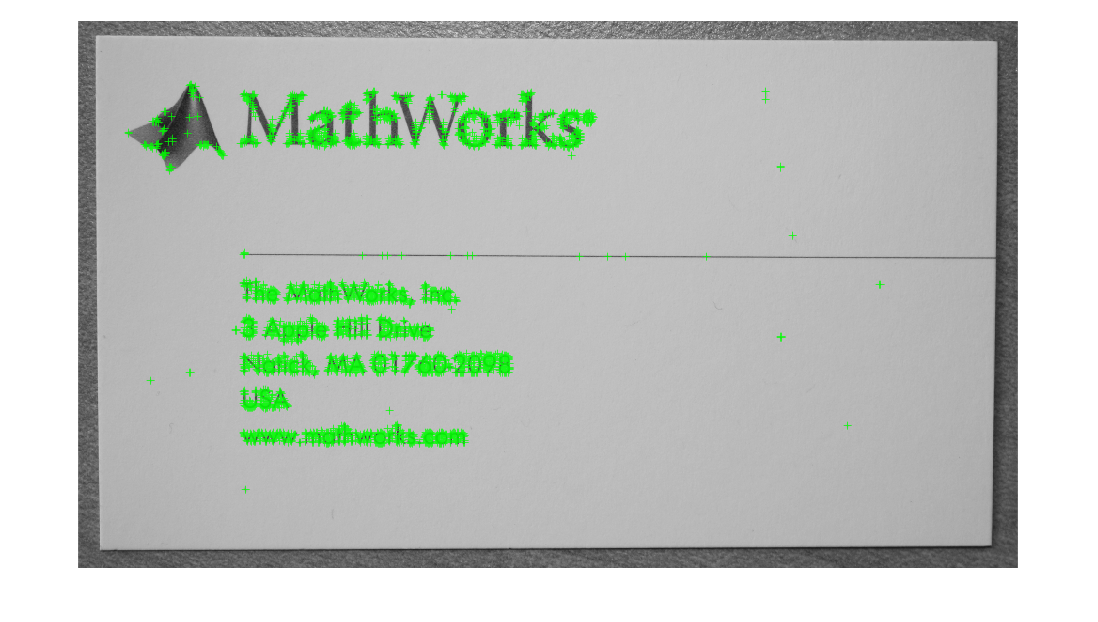

Display the grayscale image and plot the detected ORB keypoints. Suppress the display of circles around the detected keypoints. The ORB keypoints are detected in regions with high intensity variance.

figure
imshow(I)
hold on
plot(points,'ShowScale',false)
hold off

Detect ORB Keypoints In Binary Shape Image

Read a binary image into the workspace.

I = imread('star.png');

Display the image.

figure
imshow(I)

Detect and store ORB keypoints. Specify the scale factor for image decomposition as 1.01 and the number of decomposition levels as 3.

points = detectORBFeatures(I,'ScaleFactor',1.01,'NumLevels',3);

Display the image and plot the detected ORB keypoints. The inflection points in the binary shape image are detected as the ORB keypoints.

figure
imshow(I)
hold on
plot(points)
hold off

Input Arguments

I — Input image

M-by-N grayscale or binary image

Input image, specified as an M-by-N grayscale or binary image. The input image must be real and nonsparse.

Data Types: single | double | int16 | uint8 | uint16 | logical

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: detectORBFeatures(I,'NumLevels',4)

ScaleFactor — Scale factor for image decomposition

1.2 (default) | scalar greater than 1

Scale factor for image decomposition, specified as the comma-separated pair consisting of 'ScaleFactor' and a scalar greater than 1. The scale value at each level of decomposition is ScaleFactor^(level-1), where level is any value in the range [0, Numlevels-1]. Given the input image of size M-by-N, the image size at each level of decomposition is $$\begin{array}{l}{M}_{level}=\frac{M}{ScaleFacto{r}^{(level-1)}}\\ N_{level}=\frac{N}{ScaleFacto{r}^{(level-1)}}\end{array}$$.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint64 | uint32

NumLevels — Number of decomposition levels

8 (default) | scalar greater than or equal to 1

Number of decomposition levels, specified as the comma-separated pair consisting of 'NumLevels' and a scalar greater than or equal to 1. Increase this value to extract keypoints from the image at more levels of decomposition.

The number of decomposition levels for extracting keypoints is limited by the image size at that level. The image size at a level of decomposition must be at least 63-by-63 for detecting keypoints. The maximum level of decomposition is calculated as

$$leve{l}_{\max }\text{ = floor}\left(\frac{\log \left(\min \left(M,N\right)\right)-\log \left(63\right)}{\log \left(\text{ScaleFactor}\right)}\right)+1$$

If either the default value or the specified value of 'NumLevels' is greater than level_max, the function modifies NumLevels to level_max and returns a warning.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint64 | uint32

ROI — Region of interest

[1 1 M N] (default) | four-element vector

Region of interest for keypoint detection, specified as the comma-separated pair consisting of 'ROI' and a vector of the format [x y width height]. The first two elements represent the location of the upper left corner of the region of interest. The last two elements represent the width and the height of the region of interest. The width and height of the region of interest must each be a value greater than or equal to 63.

Output Arguments

points — ORB keypoints

ORBPoints object

ORB keypoints, returned as an ORBPoints object. The object contains information about keypoints detected in the input image.

Algorithms

The function detects keypoints from the input image by using the ORB feature detection method in [1].

References

[1] Rublee, E., V. Rabaud, K. Konolige, and G. Bradski. "ORB: An Efficient Alternative to SIFT or SURF." In Proceedings of the 2011 International Conference on Computer Vision, 2564–2571. Barcelona, Spain: IEEE, 2011.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019a
