cwt

Continuous 1-D wavelet transform

Syntax

wt = cwt(x)

wt = cwt(x,wname)

[wt,f] = cwt(___,fs)

[wt,period] = cwt(___,ts)

[wt,f,coi] = cwt(___)

[wt,period,coi] = cwt(___,ts)

[___,coi,fb] = cwt(___)

[___,fb,scalingcfs] = cwt(___)

[___] = cwt(___,Name=Value)

cwt(___)

Description

wt = cwt(x) returns the continuous wavelet transform (CWT) of x. The CWT is obtained using the analytic Morse wavelet with the symmetry parameter, gamma ($$\gamma$$), equal to 3 and the time-bandwidth product equal to 60. cwt uses 10 voices per octave. The minimum and maximum scales are determined automatically based on the energy spread of the wavelet in frequency and time.

The cwt function uses L1 normalization. With L1 normalization, if you have equal amplitude oscillatory components in your data at different scales, they will have equal magnitude in the CWT. Using L1 normalization shows a more accurate representation of the signal. See L1 Norm for CWT and Continuous Wavelet Transform of Two Complex Exponentials.

wt = cwt(x,wname) uses the analytic wavelet specified by wname to compute the CWT.

[wt,f] = cwt(___,fs) specifies the sampling frequency, fs, in hertz, and returns the scale-to-frequency conversions f in hertz. If you do not specify a sampling frequency, cwt returns f in cycles per sample.

[wt,period] = cwt(___,ts) specifies the sampling period, ts, as a positive duration scalar. cwt uses ts to compute the scale-to-period conversions, period. period is an array of durations with the same Format property as ts.

[wt,f,coi] = cwt(___) returns the cone of influence, coi, in cycles per sample. Specify a sampling frequency, fs, in hertz, to return the cone of influence in hertz.

[wt,period,coi] = cwt(___,ts) returns the cone of influence, coi, as an array of durations with the same Format property as ts.

[___,coi,fb] = cwt(___) returns the filter bank used in the CWT. See cwtfilterbank.

[___,fb,scalingcfs] = cwt(___) returns the scaling coefficients for the wavelet transform.

[___] = cwt(___,Name=Value) specifies one or more additional name-value arguments. For example, wt = cwt(x,TimeBandwidth=40,VoicesPerOctave=20) specifies a time-bandwidth product of 40 and 20 voices per octave.

cwt(___) with no output arguments plots the CWT scalogram. The scalogram is the absolute value of the CWT plotted as a function of time and frequency. Frequency is plotted on a logarithmic scale. The cone of influence showing where edge effects become significant is also plotted. Gray regions outside the dashed white line delineate regions where edge effects are significant. If the input signal is complex-valued, the positive (counterclockwise) and negative (clockwise) components are plotted in separate scalograms.

If you do not specify a sampling frequency or sampling period, the frequencies are plotted in cycles per sample. If you specify a sampling frequency, the frequencies are in hertz. If you specify a sampling period, the scalogram is plotted as a function of time and periods. If the input signal is a timetable, the scalogram is plotted as a function of time and frequency in hertz and uses the RowTimes as the basis for the time axis.

To see the time, frequency, and magnitude of a scalogram point, enable data tips in the figure axes toolbar and click the desired point in the scalogram.

Note

Before plotting, cwt clears (clf) the current figure. To plot the scalogram in a subplot, use a plotting function. See Plot CWT Scalogram in Subplot.

Examples

Continuous Wavelet Transform Using Default Values

Obtain the continuous wavelet transform of a speech sample using default values.

load mtlb;
w = cwt(mtlb);

Continuous Wavelet Transform Using Specified Wavelet

Load a speech sample.

load mtlb

Loading the file mtlb.mat brings the speech signal, mtlb, and the sample rate, Fs, into the workspace. Display the scalogram of the speech sample obtained using the bump wavelet.

load mtlb
cwt(mtlb,"bump",Fs)

Compare with the scalogram obtained using the default Morse wavelet.

cwt(mtlb,Fs)

Continuous Wavelet Transform of Earthquake Data

Obtain the CWT of the Kobe earthquake data. The data are seismograph (vertical acceleration, nm/sq.sec) measurements recorded at Tasmania University, Hobart, Australia on 16 January 1995 beginning at 20:56:51 (GMT) and continuing for 51 minutes. The sampling frequency is 1 Hz.

load kobe

Plot the earthquake data.

plot((1:numel(kobe))./60,kobe)
xlabel("Time (mins)")
ylabel("Vertical Acceleration (nm/s^2)")
title("Kobe Earthquake Data")
grid on
axis tight

Obtain the CWT, frequencies, and cone of influence.

[wt,f,coi] = cwt(kobe,1);

View the scalogram, including the cone of influence.

cwt(kobe,1)

Obtain the CWT, time periods, and cone of influence by specifying a sampling period instead of a sampling frequency.

[wt,periods,coi] = cwt(kobe,minutes(1/60));

View the scalogram generated when specifying a sampling period.

cwt(kobe,minutes(1/60))

Continuous Wavelet Transform of Two Complex Exponentials

Create two complex exponentials, of different amplitudes, with frequencies of 32 and 64 Hz. The data is sampled at 1000 Hz. The two complex exponentials have disjoint support in time.

Fs = 1e3;
t = 0:1/Fs:1;
z = exp(1i*2*pi*32*t).*(t>=0.1 & t<0.3)+2*exp(-1i*2*pi*64*t).*(t>0.7);

Add complex white Gaussian noise with a standard deviation of 0.05.

wgnNoise = 0.05/sqrt(2)*randn(size(t))+1i*0.05/sqrt(2)*randn(size(t));
z = z+wgnNoise;

Obtain and plot the cwt using a Morse wavelet.

cwt(z,Fs)

Note the magnitudes of the complex exponential components in the colorbar are essentially their amplitudes even though they are at different scales. This is a direct result of the L1 normalization. You can verify this by executing this script and exploring each subplot with a data cursor.

Sinusoid and Wavelet Coefficient Amplitudes

This example shows that the amplitudes of oscillatory components in a signal agree with the amplitudes of the corresponding wavelet coefficients.

Create a signal composed of two sinusoids with disjoint support in time. One sinusoid has a frequency of 32 Hz and amplitude equal to 1. The other sinusoid has a frequency of 64 Hz and amplitude equal to 2. The signal is sampled for one second at 1000 Hz. Plot the signal.

frq1 = 32;
amp1 = 1;
frq2 = 64;
amp2 = 2;

Fs = 1e3;
t = 0:1/Fs:1;
x = amp1*sin(2*pi*frq1*t).*(t>=0.1 & t<0.3)+...
    amp2*sin(2*pi*frq2*t).*(t>0.6 & t<0.9);

plot(t,x)
grid on
xlabel("Time (sec)")
ylabel("Amplitude")
title("Signal")

Create a CWT filter bank that can be applied to the signal. Since the signal component frequencies are known, set the frequency limits of the filter bank to a narrow range that includes the known frequencies. To confirm the range, plot the magnitude frequency responses for the filter bank.

fb = cwtfilterbank(SignalLength=numel(x),SamplingFrequency=Fs,...
    FrequencyLimits=[20 100]);
freqz(fb)

Use cwt and the filter bank to plot the scalogram of the signal.

cwt(x,FilterBank=fb)

Use a data cursor to confirm that the amplitudes of the wavelet coefficients are essentially equal to the amplitudes of the sinusoidal components. Your results should be similar to the ones in the following figure.

Using CWT Filter Bank on Multiple Time Series

This example shows how using a CWT filter bank can improve computational efficiency when taking the CWT of multiple time series.

Create a 100-by-1024 matrix x. Create a CWT filter bank appropriate for signals with 1024 samples.

x = randn(100,1024);
fb = cwtfilterbank;

Use cwt with default settings to obtain the CWT of a signal with 1024 samples. Create a 3-D array that can contain the CWT coefficients of 100 signals, each of which has 1024 samples.

cfs = cwt(x(1,:));
res = zeros(100,size(cfs,1),size(cfs,2));

Use the cwt function and take the CWT of each row of the matrix x. Display the elapsed time.

tic
for k=1:100
    res(k,:,:) = cwt(x(k,:));
end
toc

Elapsed time is 0.928160 seconds.

Now use the wt object function of the filter bank to take the CWT of each row of x. Display the elapsed time.

tic
for k=1:100
    res(k,:,:) = wt(fb,x(k,:));
end
toc

Elapsed time is 0.393524 seconds.

CUDA Code from CWT

This example shows how to generate a MEX file to perform the continuous wavelet transform (CWT) using generated CUDA® code.

First, ensure that you have a CUDA-enabled GPU and the NVCC compiler. See The GPU Environment Check and Setup App (GPU Coder) to ensure you have the proper configuration.

Create a GPU coder configuration object.

cfg = coder.gpuConfig("mex");

Generate a signal of 100,000 samples at 1,000 Hz. The signal consists of two cosine waves with disjoint time supports.

t = 0:.001:(1e5*0.001)-0.001;
x = cos(2*pi*32*t).*(t > 10 & t<=50)+ ...
    cos(2*pi*64*t).*(t >= 60 & t < 90)+ ...
    0.2*randn(size(t));

Cast the signal to use single precision. GPU calculations are often more efficiently done in single precision. You can however also generate code for double precision if your NVIDIA® GPU supports it.

x = single(x);

Generate the GPU MEX file and a code generation report. To allow generation of the MEX file, you must specify the properties (class, size, and complexity) of the three input parameters:

• coder.typeof(single(0),[1 1e5]) specifies a row vector of length 100,000 containing real single values.

• coder.typeof('c',[1 inf]) specifies a character array of arbitrary length.

• coder.typeof(0) specifies a real double value.

sig = coder.typeof(single(0),[1 1e5]);
wav = coder.typeof('c',[1 inf]);
sfrq = coder.typeof(0);
codegen cwt -config cfg -args {sig,wav,sfrq} -report

Code generation successful: View report

The -report flag is optional. Using -report generates a code generation report. In the Summary tab of the report, you can find a GPU code metrics link, which provides detailed information such as the number of CUDA kernels generated and how much memory was allocated.

Run the MEX file on the data and plot the scalogram. Confirm the plot is consistent with the two disjoint cosine waves.

[cfs,f] = cwt_mex(x,'morse',1e3);
image("XData",t,"YData",f,"CData",abs(cfs),"CDataMapping","scaled")
set(gca,"YScale","log")
axis tight
xlabel("Time (Seconds)")
ylabel("Frequency (Hz)")
title("Scalogram of Two-Tone Signal")

Run the CWT command above without appending the _mex. Confirm the MATLAB® and the GPU MEX scalograms are identical.

[cfs2,f2] = cwt(x,'morse',1e3);
max(abs(cfs2(:)-cfs(:)))

ans = single
    7.3380e-07

Change Default Frequency Axis Labels

This example shows how to change the default frequency axis labels for the CWT when you obtain a plot with no output arguments.

Create two sine waves with frequencies of 32 and 64 Hz. The data is sampled at 1000 Hz. The two sine waves have disjoint support in time. Add white Gaussian noise with a standard deviation of 0.05. Obtain and plot the CWT using the default Morse wavelet.

Fs = 1e3;
t = 0:1/Fs:1;
x = cos(2*pi*32*t).*(t>=0.1 & t<0.3)+sin(2*pi*64*t).*(t>0.7);
wgnNoise = 0.05*randn(size(t));
x = x+wgnNoise;
cwt(x,1000)

The plot uses a logarithmic frequency axis because frequencies in the CWT are logarithmic. In MATLAB, logarithmic axes are in powers of 10 (decades). You can use cwtfreqbounds to determine what the minimum and maximum wavelet bandpass frequencies are for a given signal length, sampling frequency, and wavelet.

[minf,maxf] = cwtfreqbounds(numel(x),1000);

You see that by default MATLAB has placed frequency ticks at 10 and 100 because those are the powers of 10 between the minimum and maximum frequencies. If you wish to add more frequency axis ticks, you can obtain a logarithmically spaced set of frequencies between the minimum and maximum frequencies using the following.

numfreq = 10;
freq = logspace(log10(minf),log10(maxf),numfreq);

Next, get the handle to the current axes and replace the frequency axis ticks and labels with the following.

AX = gca;
AX.YTickLabelMode = "auto";
AX.YTick = freq;

In the CWT, frequencies are computed in powers of two. To create the frequency ticks and tick labels in powers of two, you can do the following.

newplot
cwt(x,1000)
AX = gca;
freq = 2.^(round(log2(minf)):round(log2(maxf)));
AX.YTickLabelMode = "auto";
AX.YTick = freq;

Change Scalogram Coloration

This example shows how to scale scalogram values by maximum absolute value at each level for plotting.

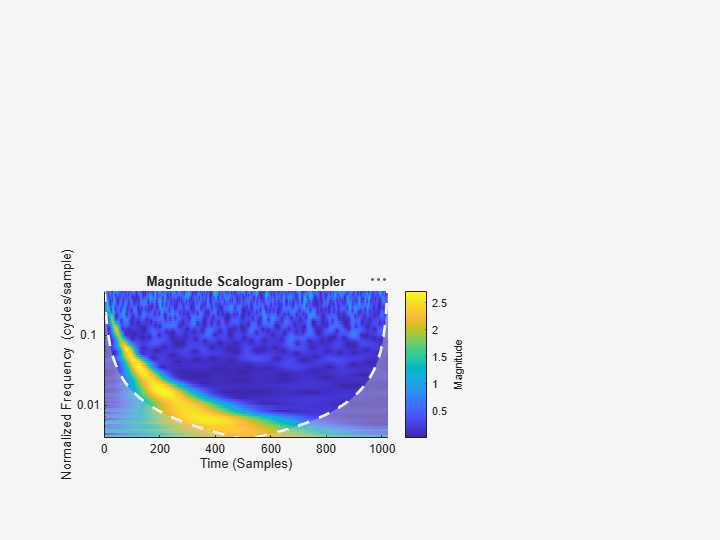

Load in a signal and display the default scalogram. Change the colormap to pink(240).

load noisdopp
cwt(noisdopp)
colormap(pink(240))

Take the CWT of the signal and obtain the wavelet coefficients and frequencies.

[cfs,frq] = cwt(noisdopp);

To efficiently find the maximum value of the coefficients at each frequency (level), first transpose the absolute value of the coefficients. Find the minimum value at every level. At each level, subtract the level's minimum value.

tmp1 = abs(cfs);
t1 = size(tmp1,2);
tmp1 = tmp1';
minv = min(tmp1);
tmp1 = (tmp1-minv(ones(1,t1),:));

Find the maximum value at every level of tmp1. For each level, divide every value by the maximum value at that level. Multiply the result by the number of colors in the colormap. Set equal to 1 all zero entries. Transpose the result.

maxv = max(tmp1);
maxvArray = maxv(ones(1,t1),:);
indx = maxvArray<eps;
tmp1 = 240*(tmp1./maxvArray);
tmp2 = 1+fix(tmp1);
tmp2(indx) = 1;
tmp2 = tmp2';

Display the result. The scalogram values are now scaled by the maximum absolute value at each level. Frequencies are displayed on a linear scale.

t = 0:length(noisdopp)-1;
pcolor(t,frq,tmp2)
shading interp
xlabel("Time (Samples)")
ylabel("Normalized Frequency (cycles/sample)")
title("Scalogram Scaled By Level")
colormap(pink(240))
colorbar

Changing the Time-bandwidth Product

This example shows that increasing the time-bandwidth product $$P^2$$ of the Morse wavelet creates a wavelet with more oscillations under its envelope. Increasing $$P^2$$ narrows the wavelet in frequency.

Create two filter banks. One filter bank has the default TimeBandwidth value of 60. The second filter bank has a TimeBandwidth value of 10. The SignalLength for both filter banks is 4096 samples.

sigLen = 4096;
fb60 = cwtfilterbank(SignalLength=sigLen);
fb10 = cwtfilterbank(SignalLength=sigLen,TimeBandwidth=10);

Obtain the time-domain wavelets for the filter banks.

[psi60,t] = wavelets(fb60);
[psi10,~] = wavelets(fb10);

Use the scales function to find the mother wavelet for each filter bank.

sca60 = scales(fb60);
sca10 = scales(fb10);
[~,idx60] = min(abs(sca60-1));
[~,idx10] = min(abs(sca10-1));
m60 = psi60(idx60,:);
m10 = psi10(idx10,:);

Since the time-bandwidth product is larger for the fb60 filter bank, verify the m60 wavelet has more oscillations under its envelope than the m10 wavelet.

subplot(2,1,1)
plot(t,abs(m60))
grid on
hold on
plot(t,real(m60))
plot(t,imag(m60))
hold off
xlim([-30 30])
legend("abs(m60)","real(m60)","imag(m60)")
title("TimeBandwidth = 60")
subplot(2,1,2)
plot(t,abs(m10))
grid on
hold on
plot(t,real(m10))
plot(t,imag(m10))
hold off
xlim([-30 30])
legend("abs(m10)","real(m10)","imag(m10)")
title("TimeBandwidth = 10")

Align the peaks of the m60 and m10 magnitude frequency responses. Verify the frequency response of the m60 wavelet is narrower than the frequency response for the m10 wavelet.

cf60 = centerFrequencies(fb60);
cf10 = centerFrequencies(fb10);

m60cFreq = cf60(idx60);
m10cFreq = cf10(idx10);

freqShift = 2*pi*(m60cFreq-m10cFreq);
x10 = m10.*exp(1j*freqShift*(-sigLen/2:sigLen/2-1));

figure
plot([abs(fft(m60)).' abs(fft(x10)).'])
grid on
legend("Time-bandwidth = 60","Time-bandwidth = 10")
title("Magnitude Frequency Responses")

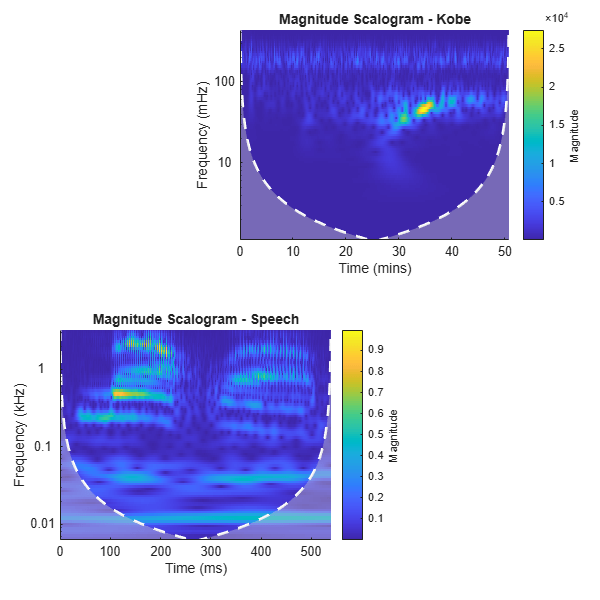

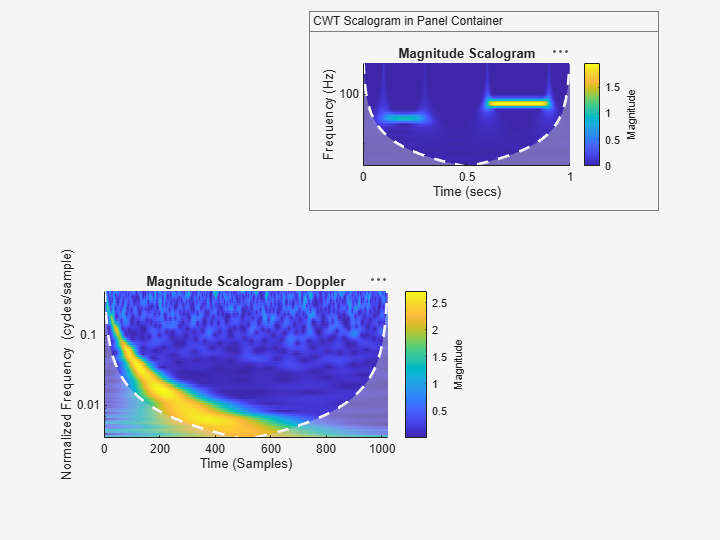

Plot CWT Scalogram in Subplot

This example shows how to plot the CWT scalogram in a figure subplot.

Load the speech sample. The data is sampled at 7418 Hz. Plot the default CWT scalogram.

load mtlb
cwt(mtlb,Fs)

Obtain the continuous wavelet transform of the signal, and the frequencies of the CWT.

[cfs,frq] = cwt(mtlb,Fs);

The cwt function sets the time and frequency axes in the scalogram. Create a vector representing the sample times.

tms = (0:numel(mtlb)-1)/Fs;

In a new figure, plot the original signal in the upper subplot and the scalogram in the lower subplot. Plot the frequencies on a logarithmic scale.

figure
subplot(2,1,1)
plot(tms,mtlb)
axis tight
title("Signal and Scalogram")
xlabel("Time (s)")
ylabel("Amplitude")
subplot(2,1,2)
surface(tms,frq,abs(cfs))
axis tight
shading flat
xlabel("Time (s)")
ylabel("Frequency (Hz)")
set(gca,"yscale","log")

Input Arguments

x — Input signal

vector | timetable

Input signal, specified as a vector or a single-variable regularly sampled timetable. The input x must have at least four samples.

Data Types: single | double
Complex Number Support: Yes

wname — Analytic wavelet

"morse" (default) | "amor" | "bump"

Analytic wavelet used to compute the CWT. Valid options for wname are "morse", "amor", and "bump", which specify the Morse, Morlet (Gabor), and bump wavelet, respectively.

The default Morse wavelet has symmetry parameter gamma ($$\gamma$$) equal to 3 and time-bandwidth product equal to 60.

Data Types: char | string

fs — Sampling frequency

positive scalar

Sampling frequency in hertz, specified as a positive scalar. If you specify fs, then you cannot specify ts. If x is a timetable, you cannot specify fs. fs is determined from the RowTimes of the timetable.

Data Types: single | double

ts — Sampling period

scalar duration

Sampling period, also known as the time duration, specified as a scalar duration. Valid durations are years, days, hours, minutes, and seconds. You cannot use calendar durations. If you specify ts, then you cannot specify fs. If x is a timetable, you cannot specify ts. ts is determined from the RowTimes of the timetable when you set the PeriodLimits name-value argument.

Example: wt = cwt(x,hours(12))

Data Types: duration

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: wt = cwt(x,"bump",VoicesPerOctave=10) returns the CWT of x using the bump wavelet and 10 voices per octave.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: wt = cwt(x,"ExtendSignal",true,"FrequencyLimits",[0.1 0.2]) extends the input signal symmetrically and specifies frequency limits of 0.1 to 0.2 samples per cycle.

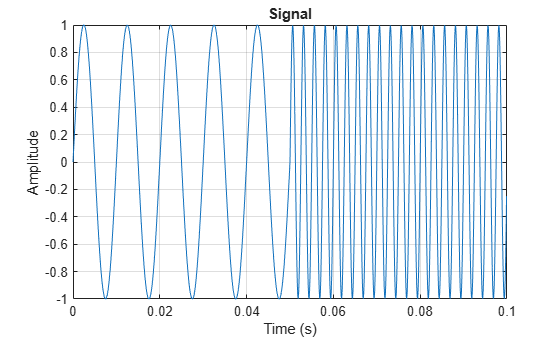

ExtendSignal — Extend input signal symmetrically

true or 1 (default) | false or 0

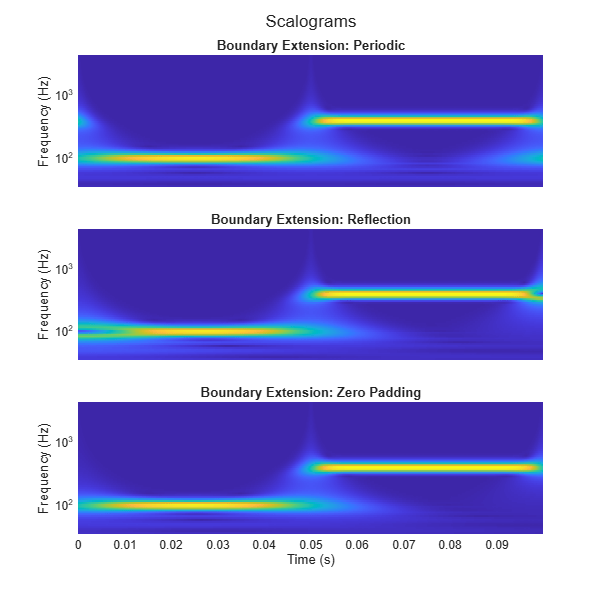

Option to extend the input signal symmetrically by reflection, specified as one of these:

• 1 (true) — Extend symmetrically

• 0 (false) — Do not extend symmetrically

If ExtendSignal is false, the signal is extended periodically. Extending the signal symmetrically can mitigate boundary effects.

Note

If you want to invert the CWT using icwt with scaling coefficients and approximate synthesis filters, set ExtendSignal to false.

Data Types: logical

FrequencyLimits — Frequency limits

two-element scalar vector

Frequency limits to use in the CWT, specified as a two-element vector with positive strictly increasing entries.

• The first element specifies the lowest peak passband frequency and must be greater than or equal to the product of the wavelet peak frequency in hertz and two time standard deviations divided by the signal length.

• The second element specifies the highest peak passband frequency and must be less than or equal to the Nyquist frequency.

• The base-2 logarithm of the ratio of the upper frequency limit, freqMax, to the lower frequency limit, freqMin, must be greater than or equal to 1/NV, where NV is the number of voices per octave:

  log2(freqMax/freqMin) ≥ 1/NV.

For complex-valued signals, (-1) × flimits is used for the anti-analytic part, where flimits is the vector specified by FrequencyLimits.

Note

If you specify frequency limits outside the permissible range, cwt truncates the limits to the minimum and maximum valid values. Use cwtfreqbounds to determine frequency limits for different parameterizations of the CWT.

Example: wt = cwt(x,1000,VoicesPerOctave=10,FrequencyLimits=[80 90])

Data Types: double

PeriodLimits — Period limits

two-element duration array

Period limits to use in the CWT, specified as a two-element duration array with strictly increasing positive entries.

• The first element must be greater than or equal to 2 × ts, where ts is the sampling period.

• The maximum period cannot exceed the signal length divided by the product of two time standard deviations of the wavelet and the wavelet peak frequency.

• The base-2 logarithm of the ratio of the minimum period, minP, to the maximum period, maxP, must be less than or equal to -1/NV, where NV is the number of voices per octave:

  log2(pMin/pMax) ≤ -1/NV.

For complex-valued signals, (-1) × plimits is used for the anti-analytic part, where plimits is the vector specified by PeriodLimits.

Note

If you specify period limits outside the permissible range, cwt truncates the limits to the minimum and maximum valid values. Use cwtfreqbounds to determine period limits for different parameterizations of the wavelet transform.

Example: wt = cwt(x,seconds(0.1),VoicesPerOctave=10,PeriodLimits=[seconds(0.2) seconds(3)])

Data Types: duration

VoicesPerOctave — Number of voices per octave

10 (default) | integer from 1 to 48

Number of voices per octave to use for the CWT, specified as an integer from 1 to 48. The CWT scales are discretized using the specified number of voices per octave. The energy spread of the wavelet in frequency and time automatically determines the minimum and maximum scales.

TimeBandwidth — Time-bandwidth product of the Morse wavelet

60 (default) | scalar greater than or equal to 3 and less than or equal to 120

Time-bandwidth product of the Morse wavelet, specified as a scalar greater than or equal to 3 and less than or equal to 120. The symmetry parameter, gamma ($$\gamma$$), is fixed at 3. Wavelets with larger time-bandwidth products have larger spreads in time and narrower spreads in frequency. The standard deviation of the Morse wavelet in time is approximately sqrt(TimeBandwidth/2). The standard deviation of the Morse wavelet in frequency is approximately 1/2 × sqrt(2/TimeBandwidth).

If you specify TimeBandwidth, you cannot specify WaveletParameters. To specify both the symmetry and time-bandwidth product, use WaveletParameters instead.

In the notation of Morse Wavelets, TimeBandwidth is P².

WaveletParameters — Symmetry and time-bandwidth product of the Morse wavelet

[3,60] (default) | two-element vector of scalars

Symmetry and time-bandwidth product of the Morse wavelet, specified as a two-element vector of scalars. The first element is the symmetry, $$\gamma$$, which must be greater than or equal to 1. The second element is the time-bandwidth product, which must be greater than or equal to $$\gamma$$. The ratio of the time-bandwidth product to $$\gamma$$ cannot exceed 40.

When $$\gamma$$ is equal to 3, the Morse wavelet is perfectly symmetric in the frequency domain and the skewness is 0. When $$\gamma$$ is greater than 3, the skewness is positive. When $$\gamma$$ is less than 3, the skewness is negative.

For more information, see Morse Wavelets.

If you specify WaveletParameters, you cannot specify TimeBandwidth.

FilterBank — CWT filter bank

cwtfilterbank object

CWT filter bank to use to compute the CWT, specified as a cwtfilterbank object. If you set FilterBank, you cannot specify any other options. All options for the computation of the CWT are defined as properties of the filter bank. For more information, see cwtfilterbank.

If x is a timetable, the sampling frequency or sampling period in fb must agree with the sampling frequency or sampling period determined by the RowTimes of the timetable.

Example: wt = cwt(x,FilterBank=cfb)

Output Arguments

wt — Continuous wavelet transform

matrix

Continuous wavelet transform, returned as a matrix of complex values. By default, cwt uses the analytic Morse (3,60) wavelet, where 3 is the symmetry and 60 is the time-bandwidth product. cwt uses 10 voices per octave.

• If x is real-valued, wt is an Na-by-N matrix, where Na is the number of scales, and N is the number of samples in x.

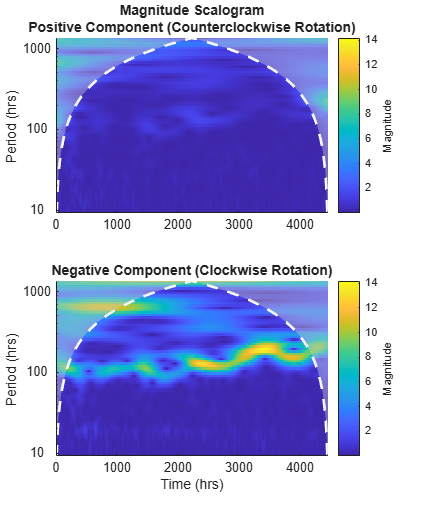

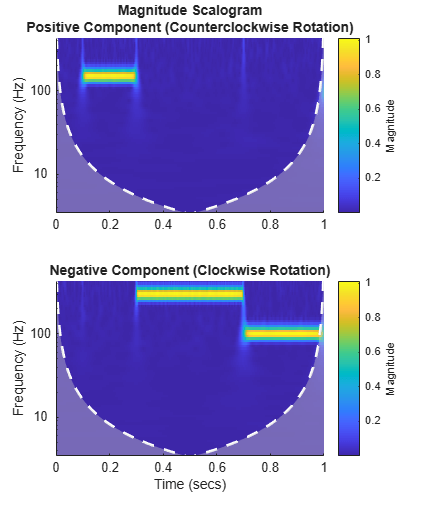

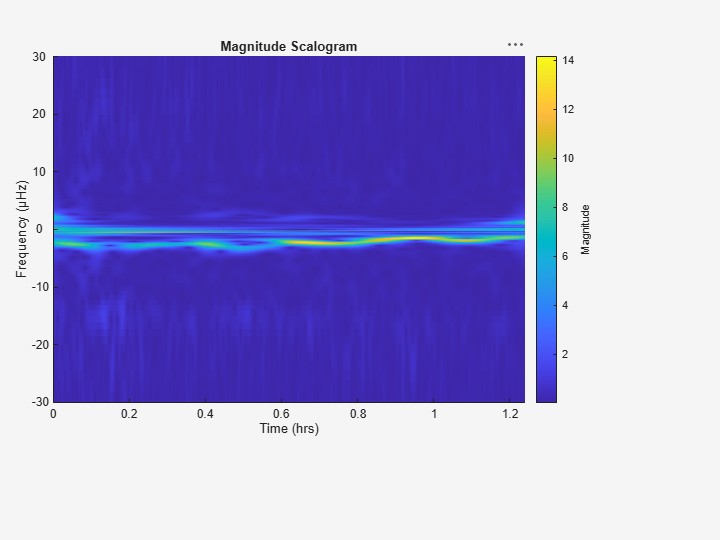

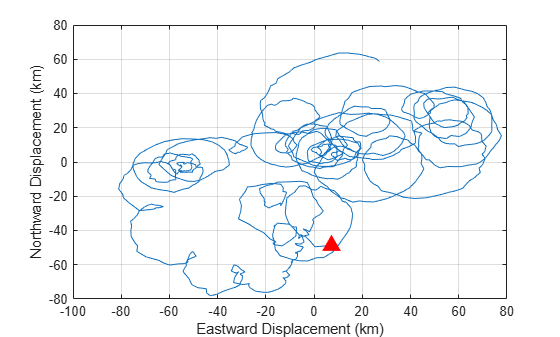

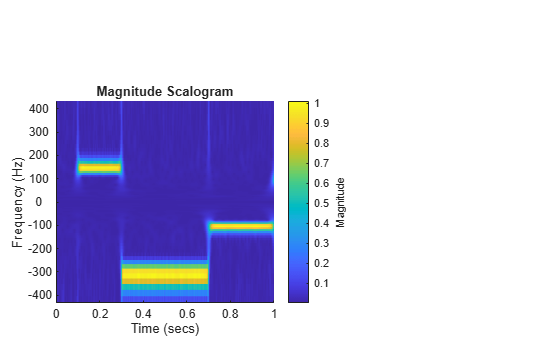

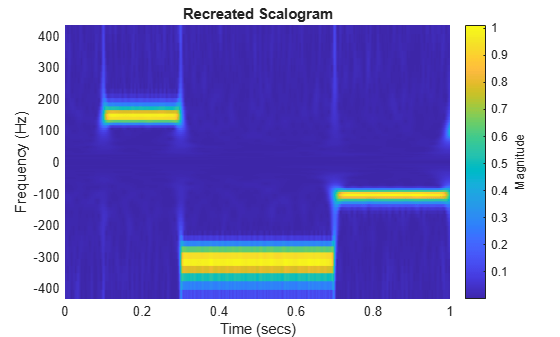

• If x is complex-valued, wt is a 3-D matrix, where the first page is the CWT for the positive scales (analytic part or counterclockwise component) and the second page is the CWT for the negative scales (anti-analytic part or clockwise component).

The minimum and maximum scales are determined automatically based on the energy spread of the wavelet in frequency and time. See Algorithms for information on how the scales are determined.

Data Types: single | double

f — Scale-to-frequency conversions

vector

Scale-to-frequency conversions of the CWT, returned as a vector. If you specify a sampling frequency, fs, then f is in hertz. If you do not specify fs, cwt returns f in cycles per sample. If the input x is complex, the scale-to-frequency conversions apply to both pages of wt.

period — Scale-to-period conversions

array

Scale-to-period conversions, returned as an array of durations with the same Format property as ts. Each row corresponds to a period. If the input x is complex, the scale-to-period conversions apply to both pages of wt.

coi — Cone of influence

array of real numbers | array of durations

Cone of influence for the CWT. If you specify a sampling frequency, fs, the cone of influence is in hertz. If you specify a scalar duration, ts, the cone of influence is an array of durations with the same Format property as ts. If the input x is complex, the cone of influence applies to both pages of wt.

The cone of influence indicates where edge effects occur in the CWT. Due to the edge effects, give less credence to areas that are outside or overlap the cone of influence. For additional information, see Boundary Effects and the Cone of Influence.

fb — CWT filter bank

cwtfilterbank object

CWT filter bank used in the CWT, returned as a cwtfilterbank object. See cwtfilterbank.

scalingcfs — Scaling coefficients

real- or complex-valued vector

Scaling coefficients for the CWT, returned as a real- or complex-valued vector. The length of scalingcfs is equal to the length of the input x.

More About

Analytic Wavelets

Analytic wavelets are complex-valued wavelets whose Fourier transform vanish for negative frequencies. Analytic wavelets are a good choice when doing time-frequency analysis with the CWT. Because the wavelet coefficients are complex-valued, the coefficients provide phase and amplitude information of the signal being analyzed. Analytic wavelets are well suited for studying how the frequency content in real world nonstationary signals evolves as a function of time.

Analytic wavelets are almost exclusively based on rapidly decreasing functions. If $$\psi (t)$$ is an analytic rapidly decreasing function in time, then its Fourier transform $$\widehat{\psi }(\omega )$$ is a rapidly decreasing function in frequency and is small outside of some interval $$\alpha <\omega <\beta$$ where $$0<\alpha <\beta$$. Orthogonal and biorthogonal wavelets are typically designed to have compact support in time. Wavelets with compact support in time have relatively poorer energy concentration in frequency than wavelets which rapidly decrease in time. Most orthogonal and biorthogonal wavelets are not symmetric in the Fourier domain.

If your goal is to obtain a joint time-frequency representation of your signal, we recommend you use cwt or cwtfilterbank. Both functions support the following analytic wavelets:

• Morse Wavelet Family (default)

• Analytic Morlet (Gabor) Wavelet

• Bump Wavelet

For more information regarding Morse wavelets, see Morse Wavelets. In the Fourier domain, in terms of angular frequency:

• The analytic Morlet is defined as



  where is the indicator function of the interval [0,∞).

• The bump wavelet is defined as



  where ϵ = 2.2204×10^-16.

If you want to do time-frequency analysis using orthogonal or biorthogonal wavelets, we recommend modwpt.

When using wavelets for time-frequency analysis, you usually convert scales to frequencies or periods to interpret results. cwt and cwtfilterbank do the conversion. You can obtain the corresponding scales associated by using scales on the optional cwt output argument fb.

For guidance on how to choose the wavelet that is right for your application, see Choose a Wavelet.

Tips

• The syntax for the old cwt function continues to work but is no longer recommended. Use the current version of cwt. Both the old and current versions use the same function name. The inputs to the function determine automatically which version is used. See cwt function syntax has changed.

• When performing multiple CWTs, for example inside a for-loop, the recommended workflow is to first create a cwtfilterbank object and then use the wt object function. This workflow minimizes overhead and maximizes performance. See Using CWT Filter Bank on Multiple Time Series.

Algorithms

Minimum Scale

For the analytic wavelets supported by the cwt function, the Fourier transforms are real valued and equivalent to the magnitude frequency response (see Analytic Wavelets). The wavelet filters the cwt function uses are normalized so that the peak magnitudes for all passbands are approximately equal to 2. This is so that a unit-magnitude oscillation in the data shows up with a scalogram magnitude equal to 1.

Let $$\widehat{\psi }(\omega )$$ denote the mother wavelet in the Fourier domain. For a fixed real-valued scalar c between 0 and 1, there exists a frequency ξ such that

$$\widehat{\psi }(\xi )=2c.$$

The minimum scale $$s_0$$ is $$\xi /\pi$$.

By default, the cwt function sets the fraction of the peak magnitude at the Nyquist frequency at 50% (c equals 0.5) for the Morse wavelet and 10% (c equals 0.1) for the analytic Morlet and bump wavelets. You can change the fraction by changing the frequency or period limits to use in the CWT. For more information, see cwtfreqbounds and, in particular, the Cutoff name-value argument. See also the cwtfilterbank object function scales.

Maximum Scale

The cwt function uses the energy spread of the wavelet in time to determine the maximum scale.

To determine the maximum scale, the cwt function first obtains $${\sigma }_t$$, the time standard deviation of the wavelet. If a wavelet has a time standard deviation of $${\sigma }_t$$, then dilating that wavelet by $$s$$ gives a standard deviation of $$s{\sigma }_t$$.

The maximum scale is the value $$s$$ such that $$2s{\sigma }_t=N$$, where N is the signal length. The cwt function constrains the largest scale to be that value so that two time standard deviations of the wavelet span the data length. This ensures that at the largest scale, the wavelet oscillates and that cwt uses a valid wavelet.

Analytic expressions for time standard deviation of the Morse wavelet exist. For the bump and analytic Morlet wavelets, the cwt function estimates the standard deviation of the mother wavelet in time by obtaining its inverse Fourier transform, normalizing it to be a valid probability density function, and then obtaining the square root of the second central moment.

Scales and Voices Per Octave

Wavelet transform scales are powers of 2 and are denoted by $$s_0{\left(2^{\frac{1}{NV}}\right)}^j$$. NV is the number of voices per octave, and j ranges from 0 to the largest scale. For a specific small scale, $$s_0$$:

$$s_0{\left(2^{\frac{1}{NV}}\right)}^j\le \frac{N}{2{\sigma }_t}$$

Converting to base-2 logarithm:

$$j{\log }_2\left(2^{\frac{1}{NV}}\right)\le {\log }_2\left(\frac{N}{2{\sigma }_t{s}_0}\right)$$

$$j\le NV{\log }_2\left(\frac{N}{2{\sigma }_t{s}_0}\right)$$

Therefore, the maximum scale is

$$s_0{\left(2^{\frac{1}{NV}}\right)}^{floor\left(NV{\log }_2\left(\frac{N}{2{\sigma }_t{s}_0}\right)\right)}$$

L1 Norm for CWT

In integral form, the CWT preserves energy. However, when you implement the CWT numerically, energy is not preserved. In this case, regardless of the normalization you use, the CWT is not an orthonormal transform. The cwt function uses L1 normalization.

Wavelet transforms commonly use L2 normalization of the wavelet. For the L2 norm, dilating a signal by 1/s, where s is greater than 0, is defined as follows:

$${\Vert x\left(\frac{t}{s}\right)\Vert }_2^2=s{\Vert x\left(t\right)\Vert }_2^2$$

The energy is now s times the original energy. When included in the Fourier transform, multiplying by $$\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\sqrt{s}$}\right.$$ produces different weights being applied to different scales, so that the peaks at higher frequencies are reduced more than the peaks at lower frequencies.

In many applications, L1 normalization is better. The L1 norm definition does not include squaring the value, so the preserving factor is 1/s instead of $$\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\sqrt{s}$}\right.$$. Instead of high-frequency amplitudes being reduced as in the L2 norm, for L1 normalization, all frequency amplitudes are normalized to the same value. Therefore, using the L1 norm shows a more accurate representation of the signal. See example Continuous Wavelet Transform of Two Complex Exponentials.

References

[1] Lilly, J. M., and S. C. Olhede. “Generalized Morse Wavelets as a Superfamily of Analytic Wavelets.” IEEE Transactions on Signal Processing 60, no. 11 (November 2012): 6036–6041. https://doi.org/10.1109/TSP.2012.2210890.

[2] Lilly, J.M., and S.C. Olhede. “Higher-Order Properties of Analytic Wavelets.” IEEE Transactions on Signal Processing 57, no. 1 (January 2009): 146–160. https://doi.org/10.1109/TSP.2008.2007607.

[3] Lilly, J. M. jLab: A data analysis package for MATLAB^®, version 1.6.2. 2016. http://www.jmlilly.net/jmlsoft.html.

[4] Lilly, Jonathan M. “Element Analysis: A Wavelet-Based Method for Analysing Time-Localized Events in Noisy Time Series.” Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences 473, no. 2200 (April 30, 2017): 20160776. https://doi.org/10.1098/rspa.2016.0776.

Extended Capabilities

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• Single- and double-precision input signal are supported. The precision must be set at compile time.

• Timetable input signal is not supported.

• Only analytic Morse ('morse') and Morlet ('amor') wavelets are supported.

• The following input arguments are not supported: Sampling period (ts), PeriodLimits name-value pair, NumOctave name-value pair, and FilterBank name-value pair.

• Scaling coefficient output and filter bank output are not supported.

• Plotting is not supported.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The cwt function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2016b

R2020a: cwt supports GPU acceleration

The cwt function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

R2020a: GPU Code Generation: Single-precision support

You can generate CUDA^® code from the cwt function that supports single-precision input data. You must have MATLAB Coder™ and GPU Coder™ to generate CUDA code.

R2018a: 'NumOctaves' name-value argument will be removed

The NumOctaves name-value argument will be removed in a future release. Use either:

• Name-value argument FrequencyLimits to modify the frequency range of the CWT.

• Name-value argument PeriodLimits to modify the period range of the CWT.

See cwtfreqbounds for additional information.

R2016b: cwt function syntax has changed

This release provides an updated version of the continuous wavelet transform, cwt. With the new and simplified syntax, you can easily choose wavelets best suited for continuous wavelet analysis, frequency or period ranges, and voices per octave. Default values for wavelet and scaling are provided so they need not be specified.

The syntax for the old cwt function continues to work but is no longer recommended. Use the updated version of cwt. Both the old and updated versions use the same function name. The inputs to the function determine automatically which version is used.

Functionality	Use This Instead	Compatibility Considerations
Old cwt	Updated cwt	Update all instances of cwt to use the updated cwt syntax.
