パワートレイン

R2026b
推進、ドライブトレイン、およびトランスミッション

パワートレイン システムには、推進、ドライブトレイン、およびトランスミッションの各サブシステムが含まれます。ドライブトレイン サブシステムを構成するには、Limited Slip Differential ブロックまたは Open Differential ブロックを使用します。推進ブロックには、Mapped Motor ブロック、Mapped Compression-Ignition (CI) Engine ブロック、および Mapped Spark-Ignition (SI) Engine ブロックが含まれます。トランスミッション サブシステムには、Ideal Fixed Gear Transmission ブロックを使用できます。

ブロック

Active Differential blockActive DifferentialSpur or planetary active differential gear
Limited Slip Differential blockLimited Slip DifferentialLimited differential as a planetary bevel gear
Open Differential blockOpen Differential遊星かさ歯車としてのデファレンシャル
Rotational Inertia blockRotational Inertia理想的な機械回転慣性
Split Torsional Compliance blockSplit Torsional ComplianceSplit torsional coupler
Torsional Compliance blockTorsional Compliance並列バネ-ダンパー
Mapped Motor blockMapped MotorMapped motor and drive electronics operating in torque-control mode
Mapped CI Engine blockMapped CI EngineCompression-ignition engine model using lookup tables
Mapped SI Engine blockMapped SI EngineSpark-ignition engine model using lookup tables
Simple Engine blockSimple Engineルックアップ テーブルを使用した簡易エンジン モデル
Ideal Fixed Gear Transmission blockIdeal Fixed Gear TransmissionIdeal fixed gear transmission without clutch or synchronization
Transfer Case blockTransfer CaseDifferential as a planetary bevel gear
Two-Way Connection blockTwo-Way Connectionサブシステム用の双方向の接続端子
Gearbox blockGearboxIdeal rotational gearbox

トピック

  • Engine Calibration Maps

    The Mapped CI Engine and Mapped SI Engine blocks models use calibration maps developed with the Model-Based Calibration Toolbox™ and measured engine performance data.

  • Resize Mapped Motor

    Resize mapped motors using the Virtual Vehicle Composer app.

注目の例

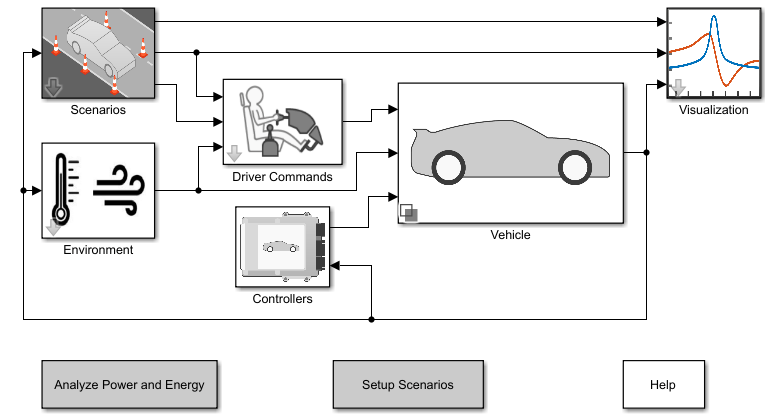

Deploy Virtual Vehicle Composer Model to Speedgoat Real-Time Target Machine

Deploy Virtual Vehicle Composer Model to Speedgoat Real-Time Target Machine

Deploy a VVC model to a Speedgoat Real-Time Target Machine.

(Powertrain Blockset)

Calibrate Mapped CI Engine Using Data

Calibrate Mapped CI Engine Using Data

Use the Virtual Vehicle Composer to calibrate mapped CI engines from imported data.

Calibrate Mapped SI Engine Using Data

Calibrate Mapped SI Engine Using Data

Use the Virtual Vehicle Composer to calibrate mapped SI engines from imported data.

Calibrate Mapped Electric Motors Using Data

Calibrate Mapped Electric Motors Using Data

Use the Virtual Vehicle Composer to calibrate mapped electric motors from imported data.

Calibrate Mapped DC-to-DC Converters Using Data

Calibrate Mapped DC-to-DC Converters Using Data

Use the Virtual Vehicle Composer to calibrate mapped DC-to-DC converters from imported data.

(Powertrain Blockset)

Read and Write Block Parameters to Excel

Read and Write Block Parameters to Excel

Read data and write Mapped SI Engine block parameters to an Excel® data file.
