Generate Scenario from Actor Track Data and GPS Data

This example uses:

Open Live Script

This example shows how to generate a scenario containing actor trajectories by using data extracted from actor track data and Global Positioning System (GPS) data.

Generating scenarios from recorded sensor data enables you create scenarios mimicking real-world actor behaviors, such as front vehicle cut-in for adaptive cruise control ACC. These scenarios, generated from real-world sensor data, can improve the test coverage of automated driving systems. As unlike manual scenario creation, they are scalable and less prone to human error. This example shows how to automatically create a scenario from recorded sensor data.

In this example you:

  • Reconstruct an ego-vehicle trajectory from the GPS data

  • Extract the non-ego actor trajectories from the track data

  • Export trajectories in a road network, imported from the OpenStreetMap® (OSM) web service

  • Build scenario with roads, ego vehicle, and non-ego actors

  • Export scenario to ASAM OpenSCENARIO

Load Sensor Data

This example requires the Scenario Builder for Automated Driving Toolbox™ support package. Check if the support package is installed and, if it is not installed, install it using the Get and Manage Add-Ons.

checkIfScenarioBuilderIsInstalled

Download a ZIP file containing a subset of sensor data from the PandaSet data set, and then unzip the file. This file contains GPS data, an actor track data, and camera information. In this example, you use the camera data for visual validation of the generated scenario.

dataFolder = tempdir;
dataFilename = "PandasetSeq90_94.zip";
url = "https://ssd.mathworks.com/supportfiles/driving/data/" + dataFilename;
filePath = fullfile(dataFolder,dataFilename);
if ~isfile(filePath)
    websave(filePath,url);
end
unzip(filePath,dataFolder)
dataset = fullfile(dataFolder,"PandasetSeq90_94");
data = load(fullfile(dataset,"sensorData.mat"));

The GPS data is a table with these columns:

  • timeStamp — Timestamps, in seconds, at which the GPS data was collected.

  • latitude — Latitude coordinate values of the ego vehicle. Units are in degrees.

  • longitude — Longitude coordinate values of the ego vehicle. Units are in degrees.

  • altitude — Altitude coordinate values of the ego vehicle. Units are in meters.

Extract GPS data from the recorded GPS readings and load them in the workspace.

gpsTimestamps = data.GPS.timeStamp;
latitude = data.GPS.latitude;
longitude = data.GPS.longitude;
% Set altitude to 0 as the scene does not contain height information.
altitude = zeros(size(data.GPS.altitude));

Create a GPSData object by using the recordedSensorData function to store the loaded GPS data.

gpsData = recordedSensorData("gps",gpsTimestamps,latitude,longitude,altitude)
gpsData =
  GPSData with properties:

          Name: ''

    NumSamples: 400
      Duration: 39.8997
    SampleRate: 10.0251
    SampleTime: 0.1000
    Timestamps: [400×1 double]

      Latitude: [400×1 double]
     Longitude: [400×1 double]
      Altitude: [400×1 double]

    Attributes: []

Obtain the geographic bounding box coordinates from the GPS data by using the getMapROI function.

mapStruct = getMapROI(gpsData.Latitude,gpsData.Longitude);

The map file required for importing roads of the specified area is downloaded from the OpenStreetMap® (OSM) website. OpenStreetMap provides access to worldwide, crowd-sourced, map data. The data is licensed under the Open Data Commons Open Database License (ODbL). For more information on the ODbL, see the Open Data Commons Open Database License site.

url = mapStruct.osmUrl;
filename = "drive_map.osm";
websave(filename,url,weboptions(ContentType="xml"));

Extract the geographic reference coordinates to use specify local origin of the road network.

[~,localOrigin] = roadprops("OpenStreetMap",filename);

The actor track data is a table with these columns:

  • timeStamp — Timestamps, in seconds, at which the track was updated.

  • Positions — 3D positions of the actors in meters.

  • Dimension — Dimensions of the actors in meters.

  • Orientation — Orientations of the actors in degrees.

You can generate actor track list by processing raw camera or lidar sensor data. For more information on how to generate actor track list from camera data, see the Extract Vehicle Track List from Recorded Camera Data for Scenario Generation example. For more information on how to generate track list from lidar data, see the Extract Vehicle Track List from Recorded Lidar Data for Scenario Generation example.

Extract the actor track data and load them into the workspace to create an ActorTrackData object by using the recordedSensorData function.

actorTimes = data.ActorTracks.timeStamp;
trackIDs = data.ActorTracks.TrackIDs;
actorPos = data.ActorTracks.Positions;
actorDims = data.ActorTracks.Dimension;
actorOrient = data.ActorTracks.Orientation;
trackData = recordedSensorData("actorTrack",actorTimes,trackIDs,actorPos,Dimension=actorDims,Orientation=actorOrient)
trackData =
  ActorTrackData with properties:

                Name: ''

          NumSamples: 400
            Duration: 39.8997
          SampleRate: 10.0251
          SampleTime: 0.1000
          Timestamps: [400×1 double]

             TrackID: {400×1 cell}
            Category: []
            Position: {400×1 cell}
           Dimension: {400×1 cell}
         Orientation: {400×1 cell}
            Velocity: []
               Speed: []
                 Age: []

          Attributes: []

      UniqueTrackIDs: [20×1 string]
    UniqueCategories: []

Extract the camera data recorded from a forward-facing monocular camera mounted on the ego vehicle.

The camera data is a table with two columns:

  • timeStamp — Time, in seconds, at which the image data was captured.

  • fileName — Filenames of the images in the data set.

Extract the image file names from the camera data.

imageFileNames = strcat(fullfile(dataset,"Camera"),filesep,data.Camera.fileName);

Extract camera intrinsic parameters and create a monoCamera object.

focalLength = [data.Intrinsics.fx,data.Intrinsics.fy];
principlePoint = [data.Intrinsics.cx,data.Intrinsics.cy];
imageSize = size(imread(imageFileNames{1}),1:2);
intrinsics = cameraIntrinsics(focalLength,principlePoint,imageSize);

camTimestamps = data.Camera.timeStamp;
cameraParams = monoCamera(intrinsics,data.CameraHeight);

Create a CameraData object by using the recordedSensorData function. Ensure that camTimestamps and imageFileNames have one-to-one correspondence.

cameraData = recordedSensorData("camera",camTimestamps,imageFileNames,Name="FrontCamera",SensorParameters=cameraParams)
cameraData =
  CameraData with properties:

                Name: "FrontCamera"

          NumSamples: 400
            Duration: 39.8997
          SampleRate: 10.0251
          SampleTime: 0.1000
          Timestamps: [400×1 double]

              Frames: [400×1 string]
    SensorParameters: [1×1 monoCamera]

          Attributes: []

Preprocess Sensor Data

To effectively generate scenarios from recorded sensor data, you must synchronize them with reference to common timestamps. Synchronize GPS data and camera data with reference to actor track data by using the synchronize object function. For more information, see the Synchronize GPS, Camera, and Actor Track Data for Scenario Generation example.

synchronize(gpsData,trackData)
synchronize(cameraData,trackData)

Normalize the actor track data to ensure that its timestamps start from zero, and use its reference time to normalize the GPS data and camera data, by using the normalizeTimestamps object function.

refTime = normalizeTimestamps(trackData);
normalizeTimestamps(gpsData,refTime);
normalizeTimestamps(cameraData,refTime);

Create Ego Trajectory

Extract ego vehicle trajectory from GPS coordinates by using the trajectory object function. Specify LocalOrigin as the geographic reference coordinates, which represents the origin of the road network imported from the OpenStreetMap® (OSM).

egoTrajectory = trajectory(gpsData,"LocalOrigin",localOrigin)
egoTrajectory =
  Trajectory with properties:

               Name: ''

         NumSamples: 400
           Duration: 39.8997
         SampleRate: 10.0251
         SampleTime: 0.1000
         Timestamps: [400×1 double]

           Position: [400×3 double]
        Orientation: [400×3 double]
           Velocity: [400×3 double]
             Course: [400×1 double]
        GroundSpeed: [400×1 double]
       Acceleration: [400×3 double]
    AngularVelocity: [400×3 double]

        LocalOrigin: [37.3728 -122.0525 0]
         TimeOrigin: 0

         Attributes: []

Raw GPS data often contains noise. Smooth the trajectory by using the smooth object function.

smooth(egoTrajectory);

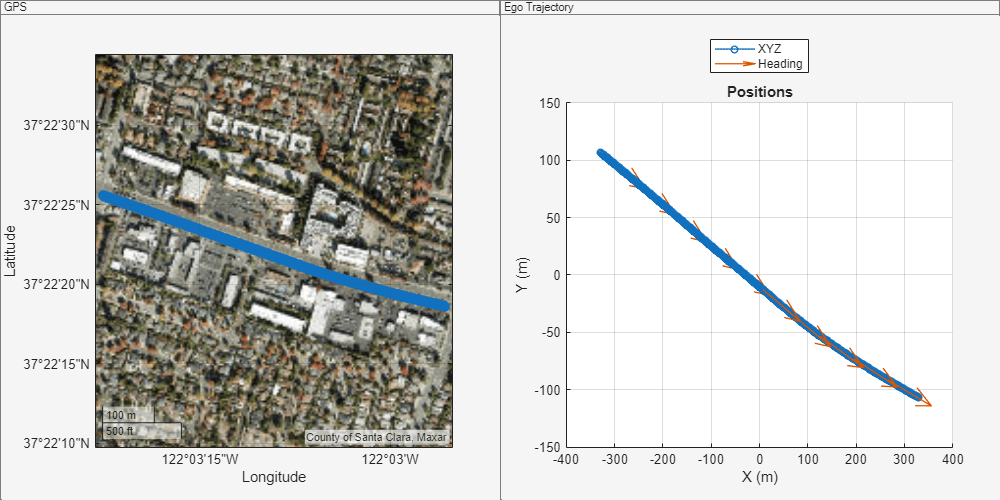

Visualize the GPS data overlaid on a satellite map and the extracted ego vehicle trajectory.

f = figure(Position=[500 500 1000 500]);
gpsPanel = uipanel(Parent=f,Position=[0 0 0.5 1],Title="GPS");
plot(gpsData,Parent=gpsPanel,Basemap="satellite")
trajPanel = uipanel(Parent=f,Position=[0.5 0 0.5 1],Title="Ego Trajectory");
plot(egoTrajectory,ShowHeading=true,Parent=trajPanel)

If GPS data suffers from inaccuracies in position and orientation, then you must improve your ego vehicle localization to generate an accurate ego trajectory. For more information, see the Ego Vehicle Localization Using GPS and IMU Fusion for Scenario Generation example.

Extract Non-Ego Actor Trajectories

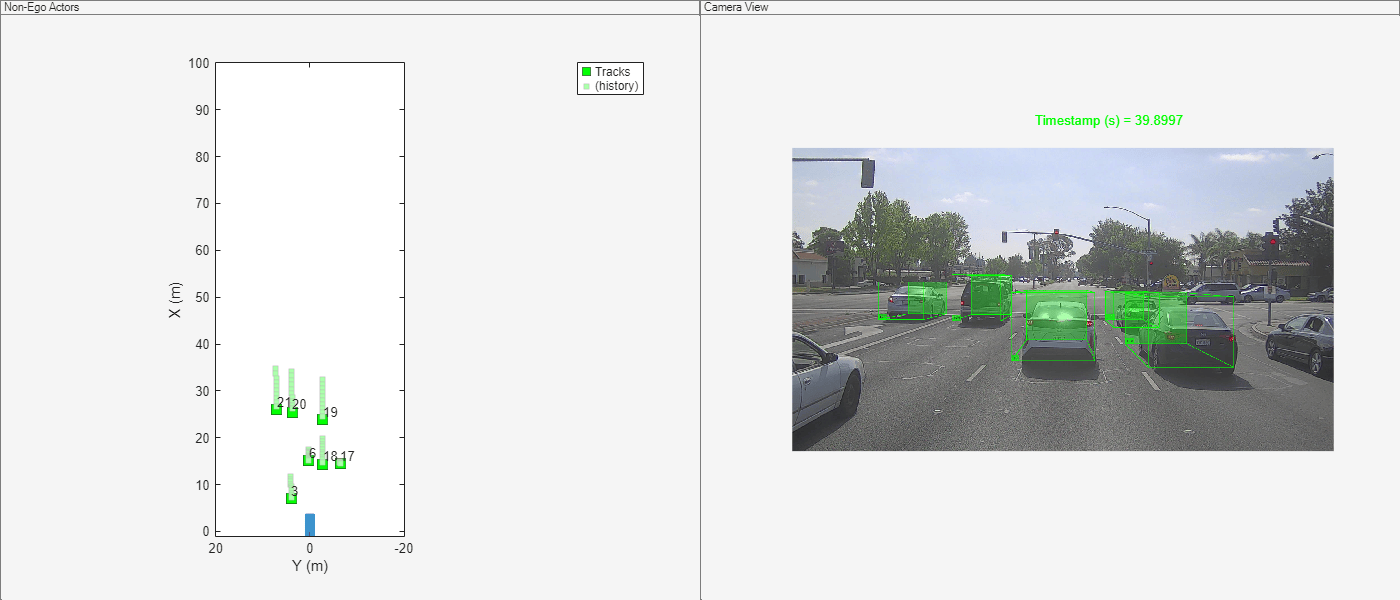

Visualize the actor track data and camera images by using the play object function of the CameraData object and the plot object function of the ActorTrackData object, respectively. Overlay track data on images and update the bird's eye plot.

% Setup the plotters.
[bep,axCam] = helperSetupCamAndBEPPlotters(trackData);
play(cameraData,Parent=axCam,PlotFcn=@(ax,img,i,cam)helperPlotActors(ax,img,i,cam,bep,trackData))

Extract actor properties such as entry time, exit time, and dimension from the track list data by using the actorprops function. The function transoms the non-ego actor information from vehicle coordinates to the world coordinates by using the ego trajectory. Data from the sensors is often noisy which results in inaccurate waypoints. Remove noise from the non-ego actor waypoints by using the helperSmoothWaypoints helper function.

nonEgoActorInfo = actorprops(trackData,egoTrajectory,SmoothWaypoints=@helperSmoothWaypoints,SaveAs="none");

Display the first five entries of nonEgoActorInfo.

nonEgoActorInfo(1:5,:)
ans=5×14 table
    Age    TrackID    ClassID    EntryTime    ExitTime           Dimension                    Mesh                 Time           Waypoints          Speed            Roll             Pitch             Yaw         IsStationary
    ___    _______    _______    _________    ________    _______________________    ______________________    _____________    _____________    _____________    _____________    _____________    _____________    ____________

    34      "10"         1        7.8995        11.2      4.924    2.011    1.843    1×1 extendedObjectMesh    {34×1 double}    {34×3 double}    {34×1 double}    {34×1 double}    {34×1 double}    {34×1 double}       true
    34      "11"         1        8.1995        11.5      5.021    1.912    1.513    1×1 extendedObjectMesh    {34×1 double}    {34×3 double}    {34×1 double}    {34×1 double}    {34×1 double}    {34×1 double}       true
    34      "12"         1        8.5994        11.9      5.021    1.988    1.602    1×1 extendedObjectMesh    {34×1 double}    {34×3 double}    {34×1 double}    {34×1 double}    {34×1 double}    {34×1 double}       true
    34      "13"         1        9.9998        13.3      4.786     1.99    1.512    1×1 extendedObjectMesh    {34×1 double}    {34×3 double}    {34×1 double}    {34×1 double}    {34×1 double}    {34×1 double}       true
    34      "14"         1          10.3        13.6      4.677    1.894    1.493    1×1 extendedObjectMesh    {34×1 double}    {34×3 double}    {34×1 double}    {34×1 double}    {34×1 double}    {34×1 double}       true

Build scenario with Roads, Ego, and Non-Ego actors

Export the ego vehicle trajectory to the drivingScenario object by using the exportToDrivingScenario object function.

scenario = exportToDrivingScenario(egoTrajectory,"RoadNetworkSource","OpenStreetMap",FileName=filename);

Export the non-ego actors trajectories to the scenario.

for i = 1:size(nonEgoActorInfo,1)
    orient = deg2rad([nonEgoActorInfo.Yaw{i,1},nonEgoActorInfo.Roll{i,1},nonEgoActorInfo.Pitch{i,1}]);
    traj = recordedSensorData("trajectory",nonEgoActorInfo.Time{i,1},nonEgoActorInfo.Waypoints{i,1},Orientation=orient);
    smooth(traj,Method="rloess",SmoothingFactor=0.2)
    exportToDrivingScenario(traj,scenario,Name=nonEgoActorInfo.TrackID(i,:),SetupSimulation=false);
end

Visualize the generated scenario and compare it with the recorded camera data by using the helperViewScenario helper function.

helperViewScenario(scenario,cameraData)

Export Scenario to ASAM OpenSCENARIO

Export the generated scenario to the ASAM OpenSCENARIO 1.0 file format by using the export function.

fileName = "example_scenario.xosc";
export(scenario,"OpenSCENARIO XML",fileName);

You can view the exported scenario in external simulators such as ESMINI.
