hornPotter
Description
The hornPotter
object creates a Potter horn antenna. The Potter
horn antenna is a dual-mode, conical horn antenna with discontinuity. These antennas are used
in wireless applications where properties like low cross polarization level, low side lobe
level, and beam symmetry are required. Potter horns are widely used in satellite
communications for frequency reuse.
Creation
Description

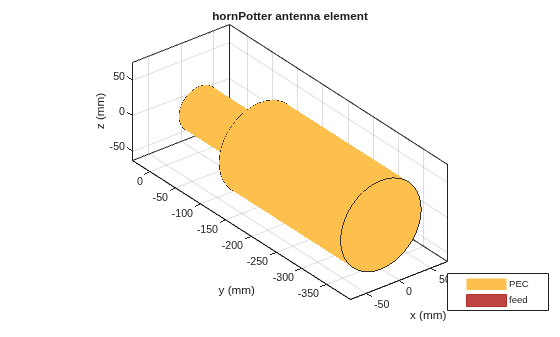

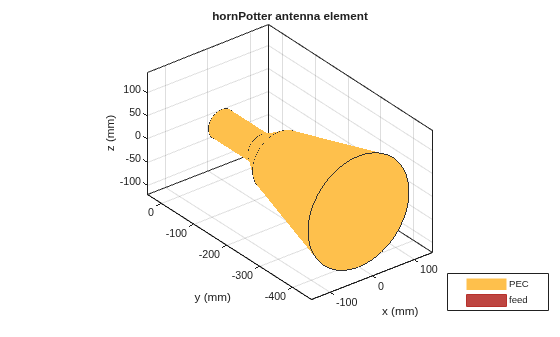

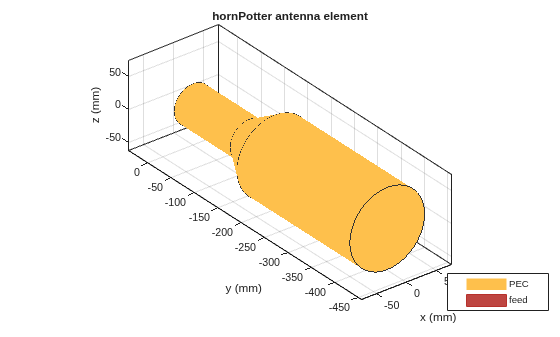

creates a default Potter
horn antenna with tapered transition. The default dimensions are chosen for an operating
frequency of 3.8 GHz.ant
= hornPotter
sets Properties using one or more
name-value pairs. For example, ant
= hornPotter(Name,Value)hornPotter('ConeHeight',0.05)
creates
a Potter horn antenna with the cone height of 50 mm.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |

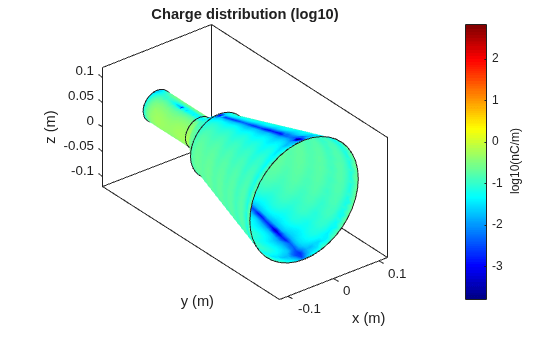

charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |

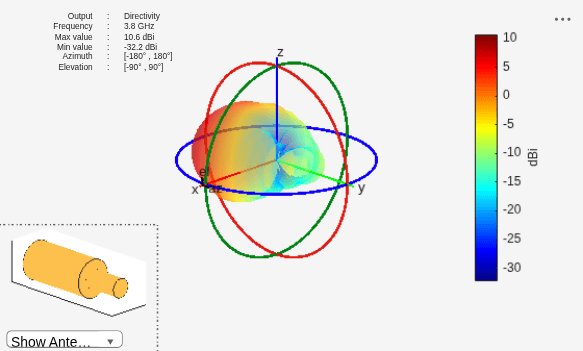

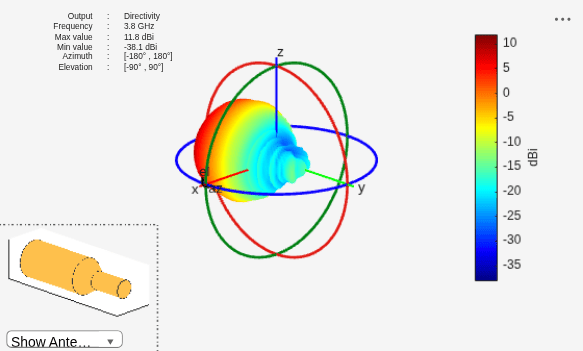

pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
Examples
More About
References
[1] Ahmed, Zobaer, Asif Zaman, and Lutfa Akter. “Parametric Analysis of Pickett Potter Horn Antenna.” In 2015 IEEE International Conference on Telecommunications and Photonics (ICTP), 1–4. Dhaka, Bangladesh: IEEE, 2015. https://doi.org/10.1109/ICTP.2015.7427926.
[2] Gohil, Shweta K, and Usha Neelakantan. “A Wideband Dual Mode Horn Antenna with Tapered Discontinuity.” In International Research Journal of Engineering and Technology (IRJET), 02:913–16, 2015.
Version History
Introduced in R2021a
