Modeling System Architecture of Keyless Entry System

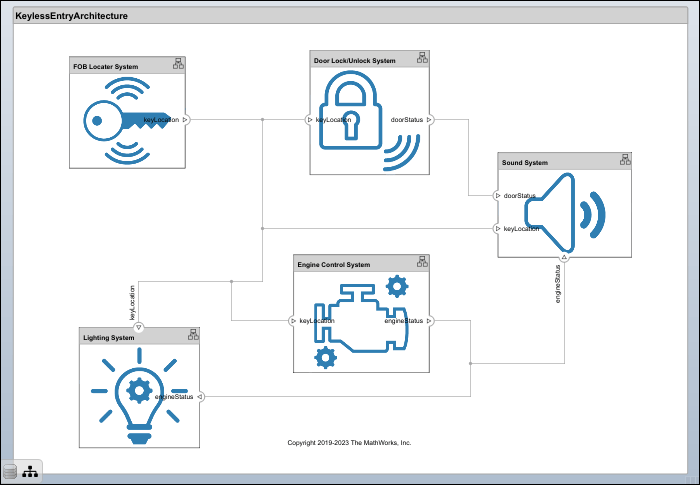

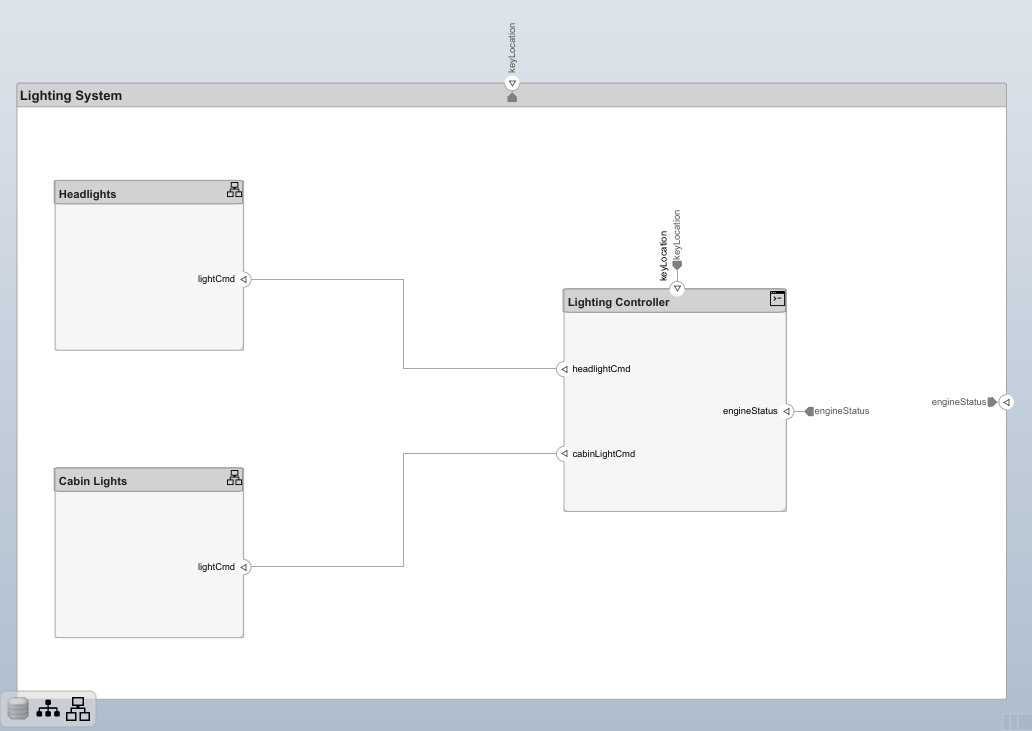

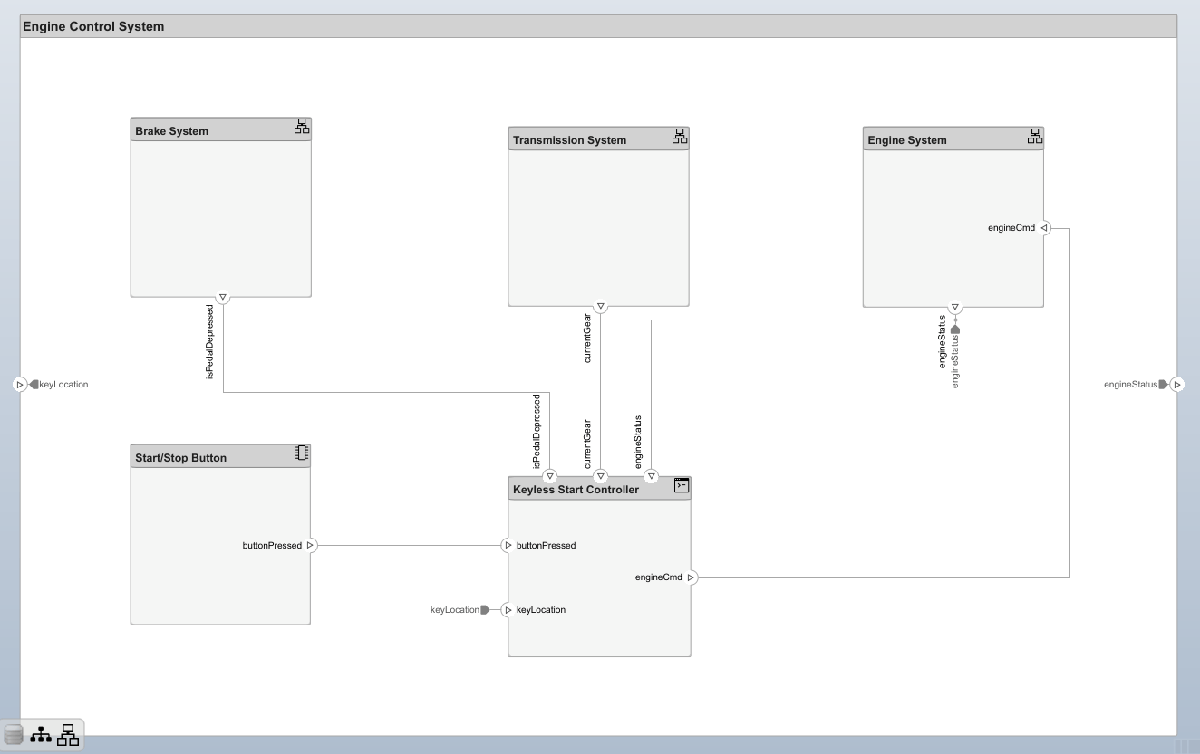

This example shows how to set up the architecture for a keyless entry system for a vehicle. You also learn how to create different architecture views for different stakeholder concerns.
Open the project.
Opening the Architecture Views

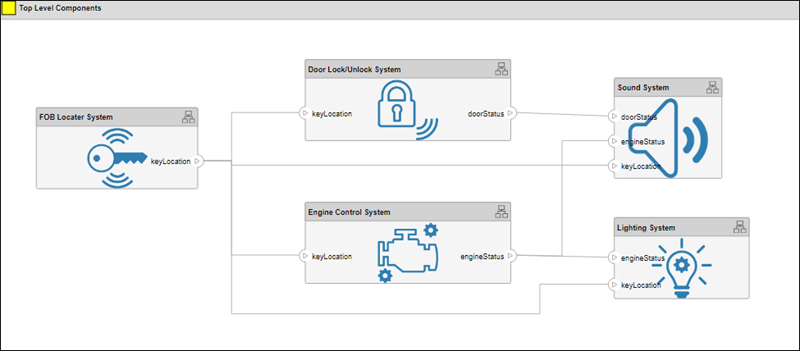

You can create, view, and edit architecture views in the Architecture Views editor. To launch the editor, select the Architecture Views button from the Modeling tab in the toolstrip. Select from one of the existing views for the model. The model has these views:

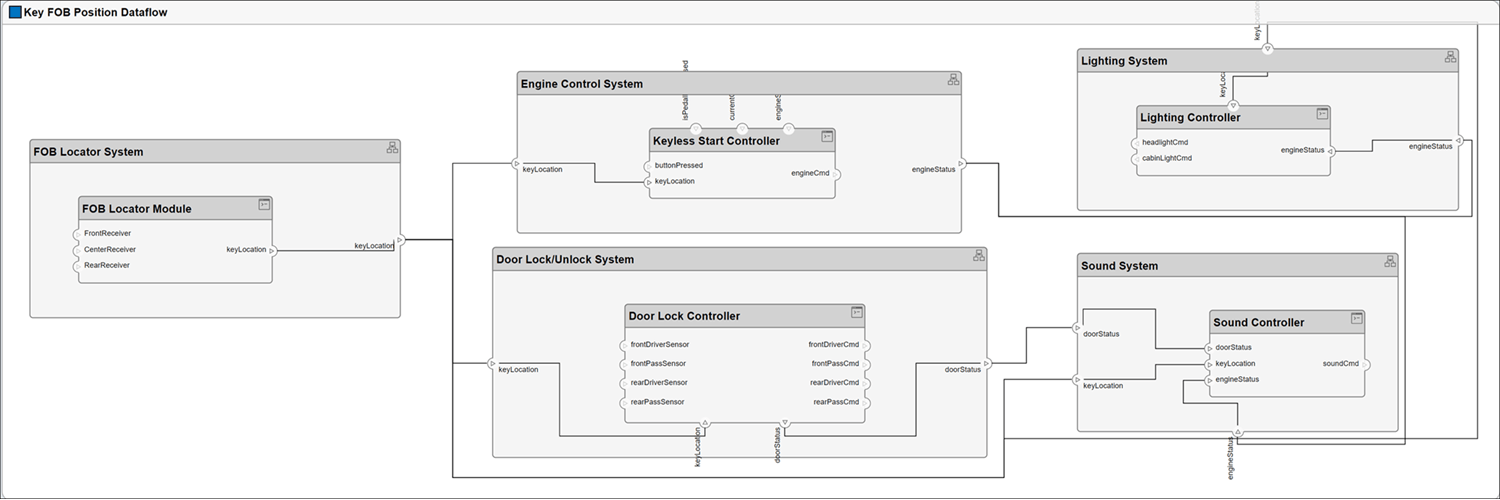

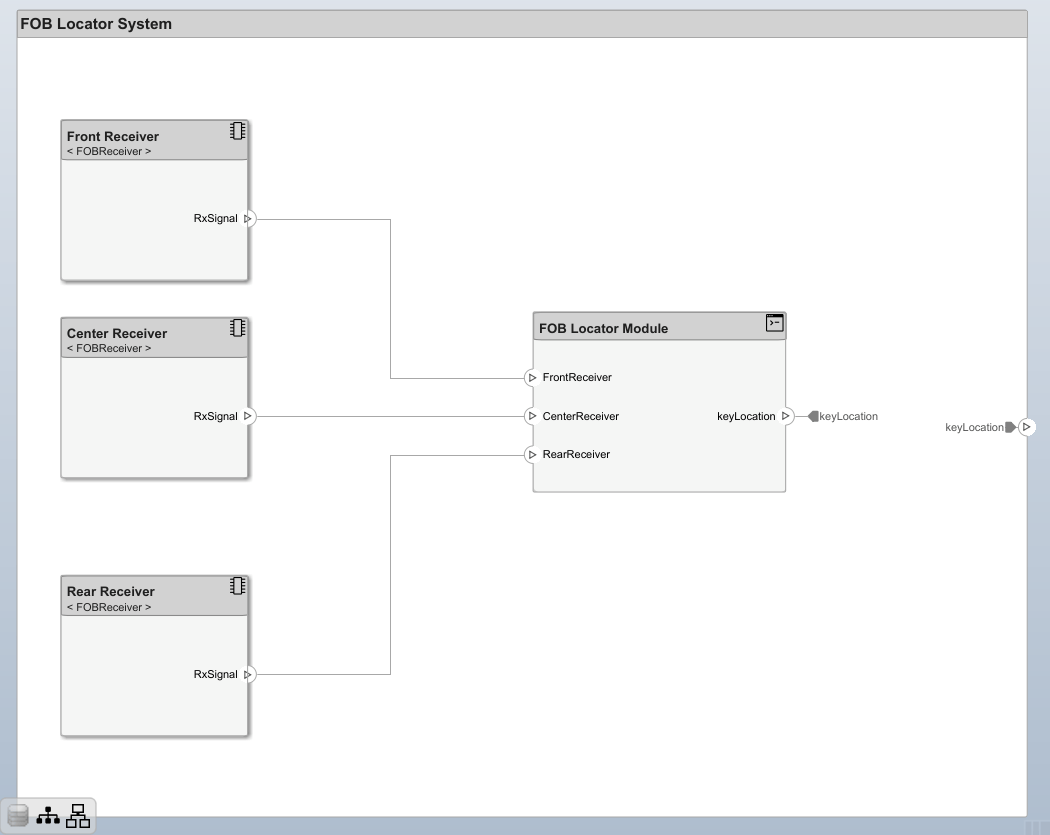

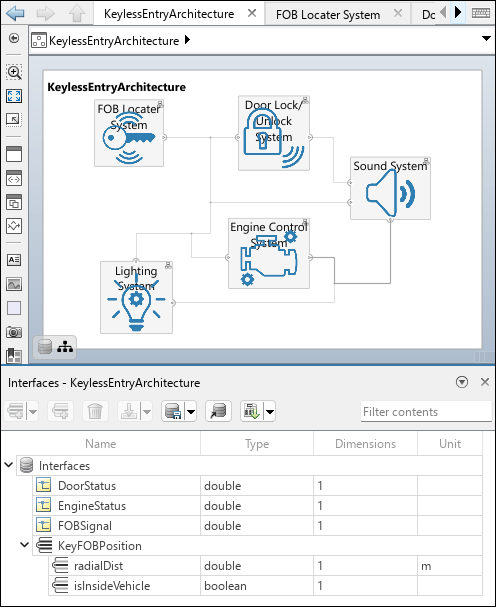

Key FOB Position Dataflow — An operational view of the components in the model that are making use of the KeyFOBPosition interface.

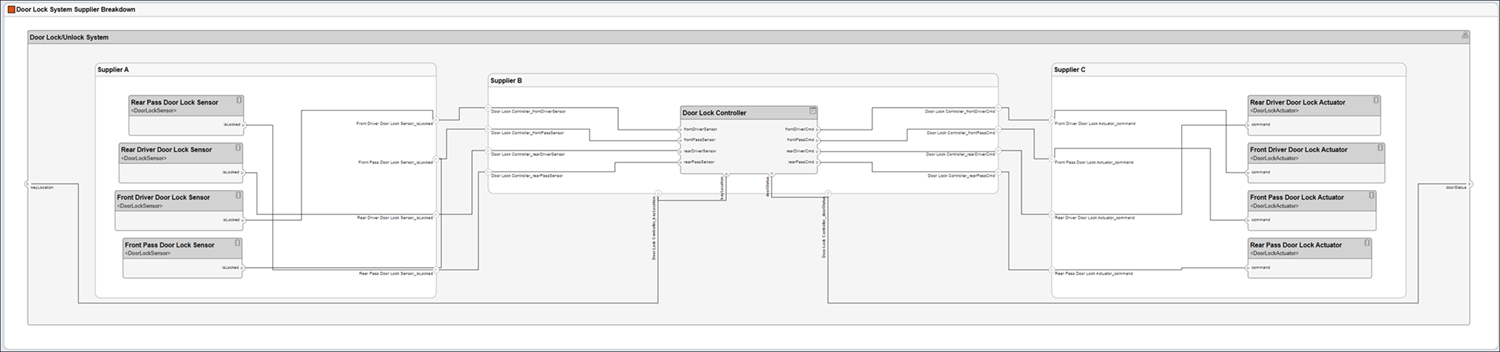

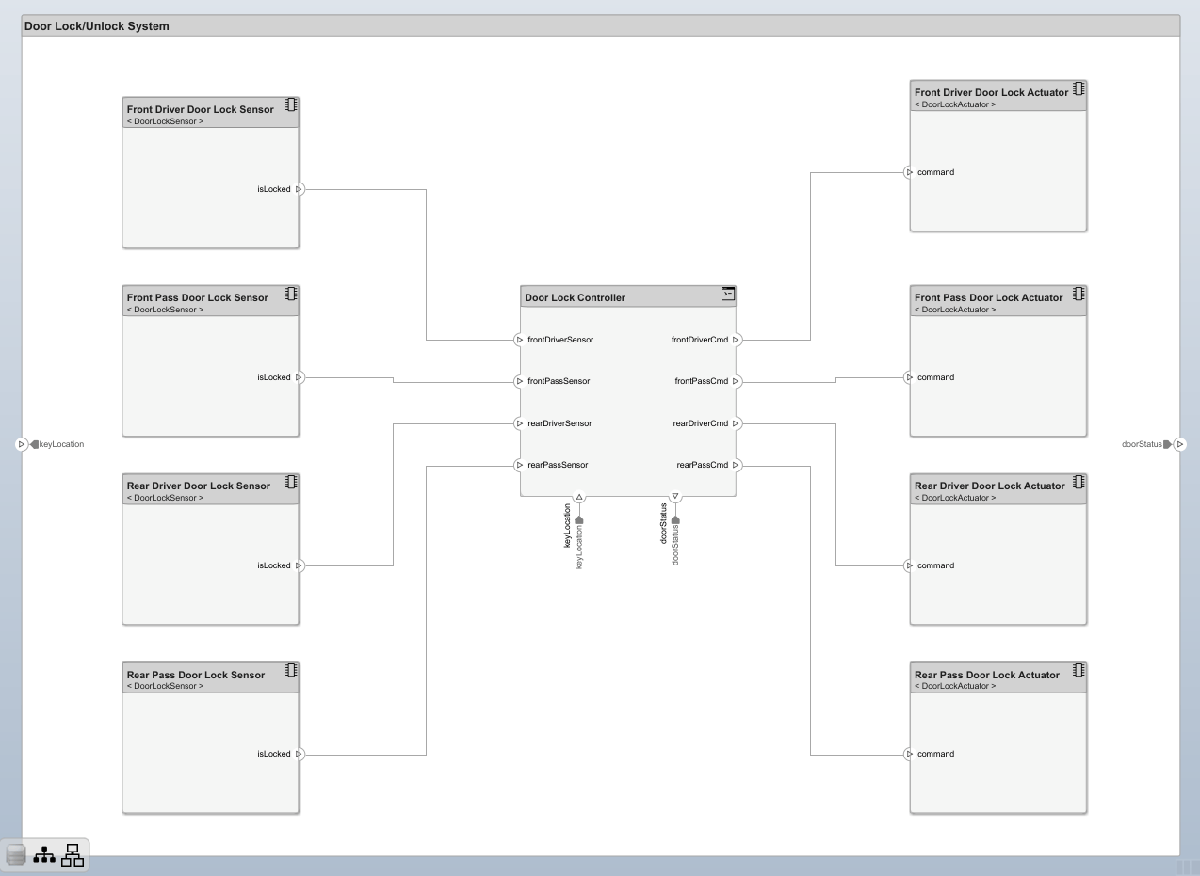

Door Lock System Supplier Breakdown — A functional view of the components in the door lock system grouped by which supplier is providing the given components.

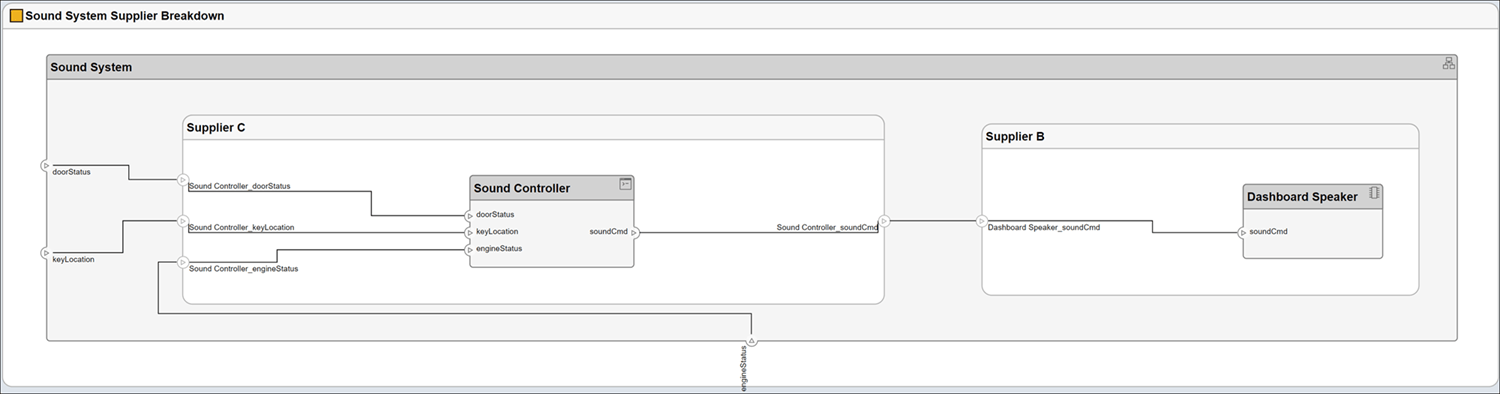

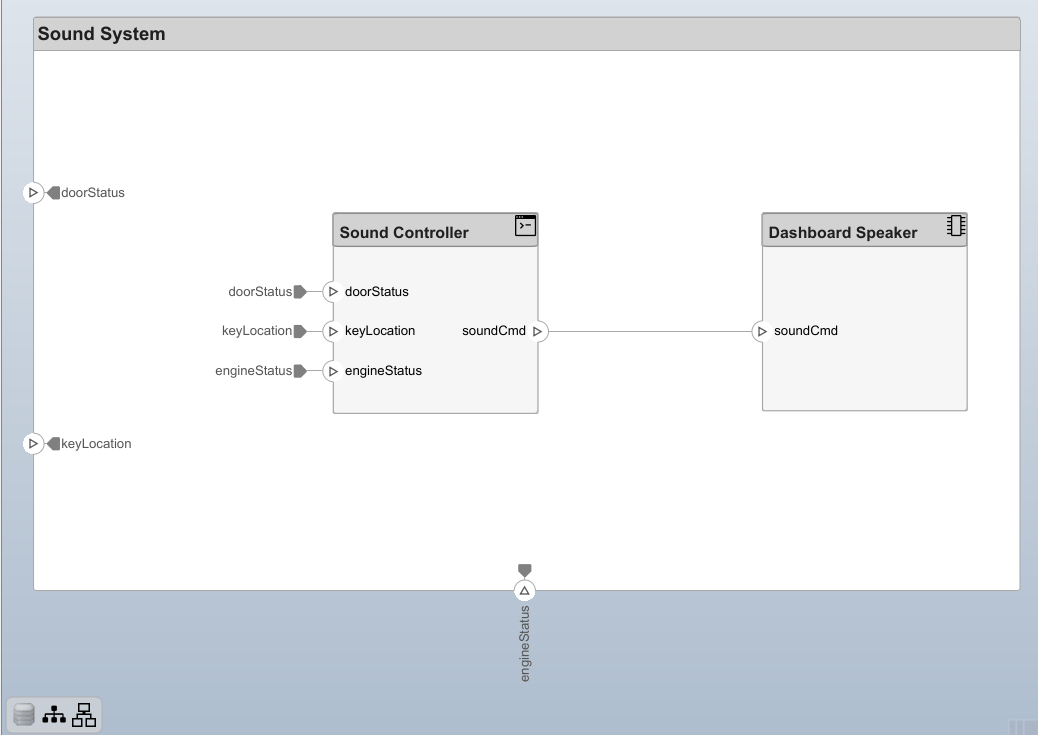

Sound System Supplier Breakdown — A functional view of the components in the sound system grouped by which supplier is providing the given components.

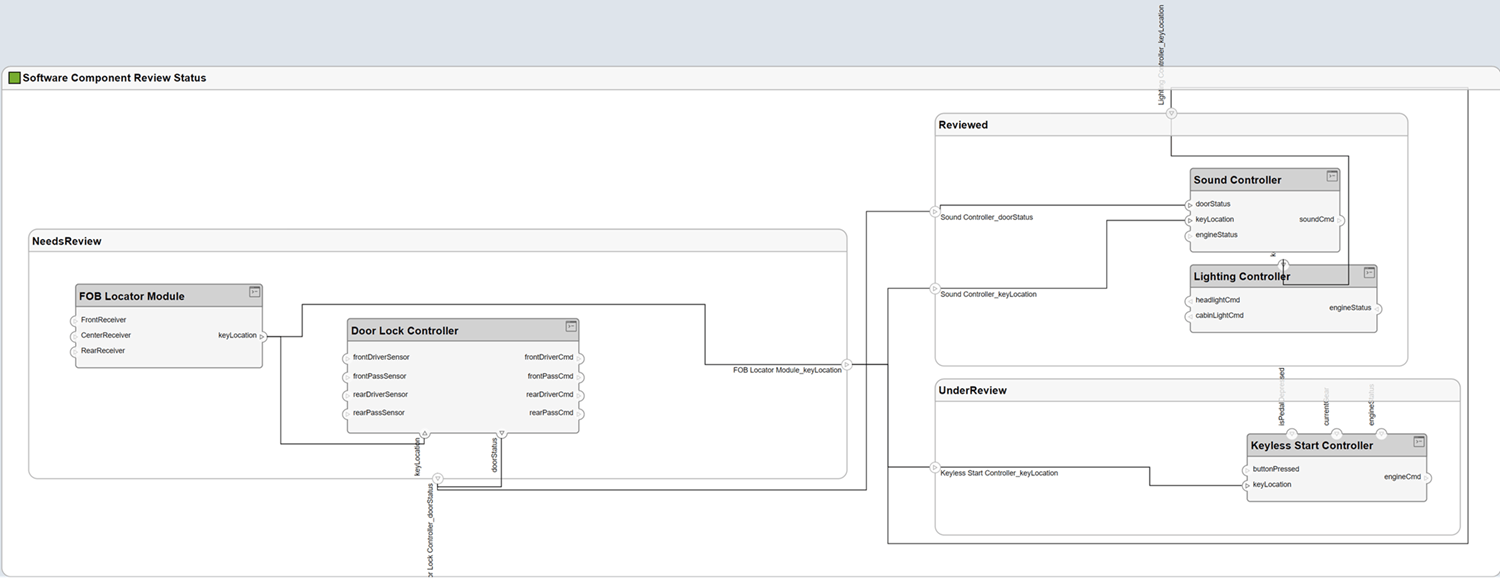

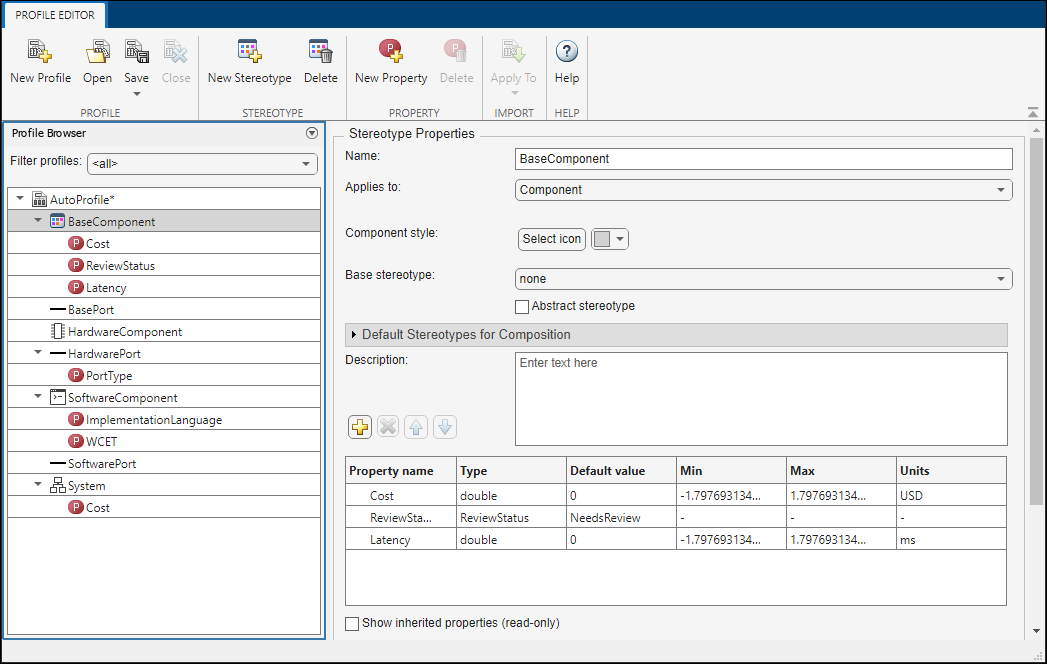

Software Component Review Status — A physical view of the components in the model with the SoftwareComponent stereotype applied grouped by the value of the
