histfit

Histogram with a distribution fit

Syntax

histfit(data)

histfit(data,nbins)

histfit(data,nbins,dist)

histfit(ax,___)

h = histfit(___)

Description

histfit(data) plots a histogram of values in data using the number of bins equal to the square root of the number of elements in data and fits a normal density function.

histfit(data,nbins) plots a histogram using nbins bins and fits a normal density function.

histfit(data,nbins,dist) plots a histogram with nbins bins and fits a density function from the distribution specified by dist.

histfit(ax,___) uses the plot axes specified by the Axes object ax. Specify ax as the first input argument followed by any of the input argument combinations in the previous syntaxes.

h = histfit(___) returns a vector of handles h, where h(1) is the handle to the histogram and h(2) is the handle to the density curve.

Examples

Histogram with a Normal Distribution Fit

Generate a sample of size 100 from a normal distribution with mean 10 and variance 1.

rng default; % For reproducibility
r = normrnd(10,1,100,1);

Construct a histogram with a normal distribution fit.

histfit(r)

histfit uses fitdist to fit a distribution to data. Use fitdist to obtain parameters used in fitting.

pd = fitdist(r,'Normal')

pd =
  NormalDistribution

  Normal distribution
       mu = 10.1231   [9.89244, 10.3537]
    sigma =  1.1624   [1.02059, 1.35033]

The intervals next to the parameter estimates are the 95% confidence intervals for the distribution parameters.

Histogram for a Given Number of Bins

Generate a sample of size 100 from a normal distribution with mean 10 and variance 1.

rng default; % For reproducibility
r = normrnd(10,1,100,1);

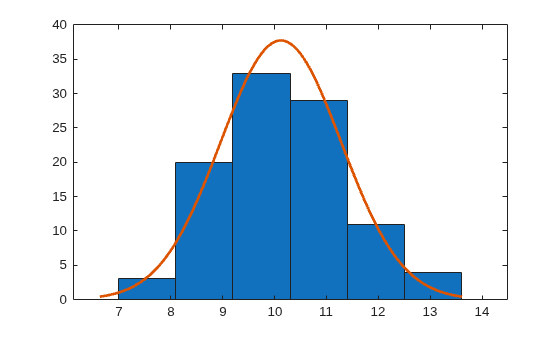

Construct a histogram using six bins with a normal distribution fit.

histfit(r,6)

Histogram with a Specified Distribution Fit

Generate a sample of size 100 from a beta distribution with parameters (3,10).

rng default;  % For reproducibility
b = betarnd(3,10,100,1);

Construct a histogram using 10 bins with a beta distribution fit.

histfit(b,10,'beta')

Histogram with a Kernel Smoothing Function Fit

Generate a sample of size 100 from a beta distribution with parameters (3,10).

rng default;  % For reproducibility
b = betarnd(3,10,[100,1]);

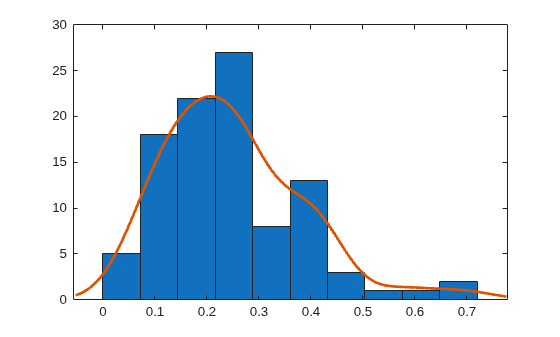

Construct a histogram using 10 bins with a smoothing function fit.

histfit(b,10,'kernel')

Specify Axes for Histogram with Distribution Fit

Generate a sample of size 100 from a normal distribution with mean 3 and variance 1.

rng('default') % For reproducibility
r = normrnd(3,1,100,1);

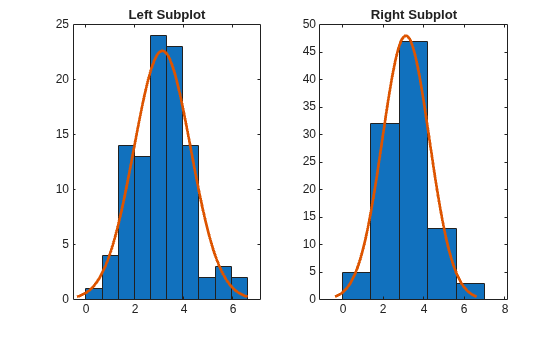

Create a figure with two subplots and return the Axes objects as ax1 and ax2. Create a histogram with a normal distribution fit in each set of axes by referring to the corresponding Axes object. In the left subplot, plot a histogram with 10 bins. In the right subplot, plot a histogram with 5 bins. Add a title to each plot by passing the corresponding Axes object to the title function.

ax1 = subplot(1,2,1); % Left subplot
histfit(ax1,r,10,'normal')
title(ax1,'Left Subplot')

ax2 = subplot(1,2,2); % Right subplot
histfit(ax2,r,5,'normal')
title(ax2,'Right Subplot')

Handle for a Histogram with a Distribution Fit

Generate a sample of size 100 from a normal distribution with mean 10 and variance 1.

rng default % for reproducibility
r = normrnd(10,1,100,1);

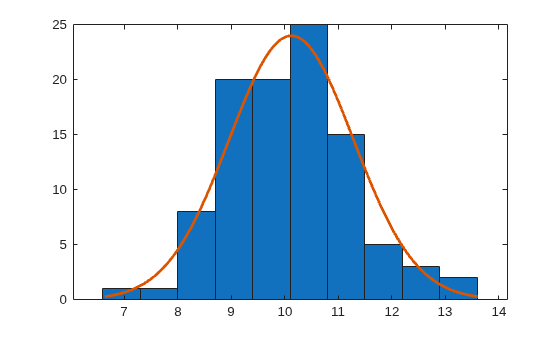

Construct a histogram with a normal distribution fit.

h = histfit(r,10,'normal')

h =
  2x1 graphics array:

  Bar
  Line

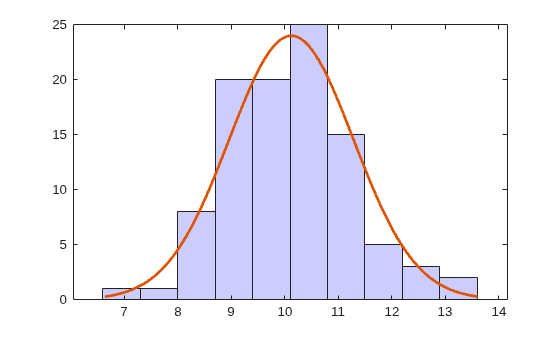

Change the bar colors of the histogram.

h(1).FaceColor = [.8 .8 1];

Change the color of the density curve.

h(2).Color = [.2 .2 .2];

Input Arguments

data — Input data

vector

Input data, specified as a vector.

Example: data = [1.5 2.5 4.6 1.2 3.4]

Example: data = [1.5 2.5 4.6 1.2 3.4]'

Data Types: double | single

nbins — Number of bins

positive integer | [ ]

Number of bins for the histogram, specified as a positive integer. Default value is the square root of the number of elements in data, rounded up. Use [ ] for the default number of bins when fitting a distribution.

Example: y = histfit(x,8)

Example: y = histfit(x,10,'gamma')

Example: y = histfit(x,[ ],'weibull')

Data Types: double | single

dist — Distribution to fit

'normal' (default) | character vector | string scalar

Distribution to fit to the histogram, specified as a character vector or string scalar. The following table shows the supported distributions.

dist	Description
'beta'	Beta
'birnbaumsaunders'	Birnbaum-Saunders
'burr'	Burr Type XII
'exponential'	Exponential
'extreme value' or 'ev'	Extreme value
'gamma'	Gamma
'generalized extreme value' or 'gev'	Generalized extreme value
'generalized pareto' or 'gp'	Generalized Pareto (threshold 0)
'inversegaussian'	Inverse Gaussian
'logistic'	Logistic
'loglogistic'	Loglogistic
'lognormal'	Lognormal
'nakagami'	Nakagami
'negative binomial' or 'nbin'	Negative binomial
'normal'	Normal
'poisson'	Poisson
'rayleigh'	Rayleigh
'rician'	Rician
'tlocationscale'	t location-scale
'weibull' or 'wbl'	Weibull
'kernel'	Nonparametric kernel-smoothing distribution. The density is evaluated at 100 equally spaced points that cover the range of the data in data. It works best with continuously distributed samples.

ax — Axes for plot

Axes object

Axes for the plot, specified as an Axes object. If you do not specify ax, then histfit creates the plot using the current axes. For more information on creating an Axes object, see axes.

Output Arguments

h — Handles for the plot

plot handle

Handles for the plot, returned as a vector, where h(1) is the handle to the histogram, and h(2) is the handle to the density curve. histfit normalizes the density to match the total area under the curve with that of the histogram.

Algorithms

histfit uses fitdist to fit a distribution to data. Use fitdist to obtain parameters used in fitting.

Version History

Introduced before R2006a
