Polynomial Trajectory

Generate polynomial trajectories through waypoints

•

Libraries:
Robotics System Toolbox / Utilities

Description

The Polynomial Trajectory block generates trajectories to travel through waypoints at the given time points using either cubic, quintic, or B-spline polynomials. The block outputs positions, velocities, and accelerations for achieving this trajectory based on the Time input. For B-spline polynomials, the waypoints actually define the control points for the convex hull of the B-spline instead of the actual waypoints, but the first and last waypoint are still met.

The initial and final values are held constant outside the time period defined in Time points.

Examples

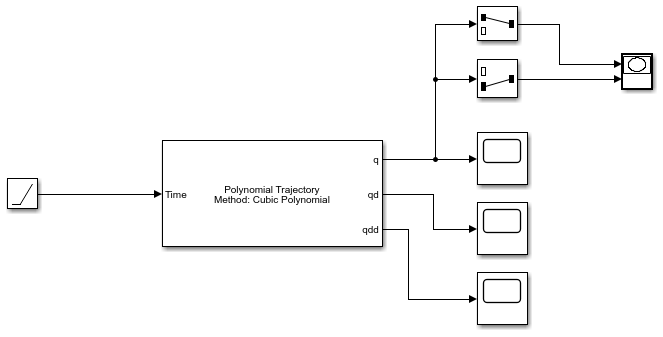

Generate Cubic Polynomial Trajectory

Generate a cubic polynomial trajectory using the Polynomial Trajectory block in Simulink^®.

• Open Live Script

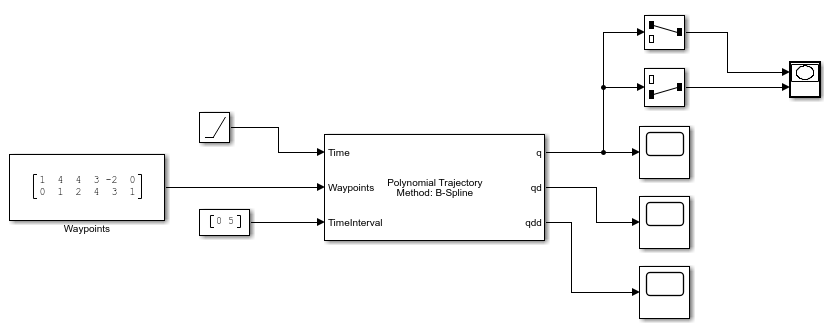

Generate B-Spline Trajectory

Generate a B-spline trajectory using the Polynomial Trajectory block in Simulink.

• Open Live Script

Ports

Input

Time — Time point along trajectory

scalar | vector

Time point along the trajectory, specified as a scalar or vector. In general, when specified as a scalar, this value is synced with simulation time and is used to specify the time point for sampling the trajectory. The block outputs a vector of the trajectory variables at that instant in time. If the time is specified as a vector, the block outputs a matrix with each column corresponding to each element of the vector.

Data Types: single | double

Waypoints — Waypoint positions along trajectory

n-by-p matrix

Positions of waypoints of the trajectory at given time points, specified as an n-by-p matrix, where n is the dimension of the trajectory and p is the number of waypoints. If you specify the Method as B-spline, these waypoints actually define the control points for the convex hull of the B-spline, but the first and last waypoint are still met.

Dependencies

To enable this input, set Waypoint Source to External.

TimePoints — Time points for waypoints of trajectory

p-element vector

Time points for waypoints of trajectory, specified as a p-element vector.

Dependencies

To enable this input, set Waypoint Source to External.

VelBC — Velocity boundary conditions for waypoints

n-by-p matrix

Velocity boundary conditions for waypoints, specified as an n-by-p matrix. Each row corresponds to the velocity at each of the p waypoints for the respective variable in the trajectory.

Dependencies

To enable this input, set Method to Cubic Polynomial or Quintic Polynomial and Parameter Source to External.

AccelBC — Acceleration boundary conditions for trajectory

n-by-p matrix

Acceleration boundary conditions for waypoints, specified as an n-by-p matrix. Each row corresponds to the acceleration at each of the p waypoints for the respective variable in the trajectory.

Dependencies

To enable this parameter, set Method to Quintic Polynomial and Parameter Source to External.

Output

q — Position of trajectory

scalar | vector | matrix

Position of the trajectory, specified as a scalar, vector, or matrix. If you specify a scalar for the Time input with an n-dimensional trajectory, the output is a vector with n elements. If you specify a vector of m elements for the Time input, the output is an n-by-m matrix.

Data Types: single | double

qd — Velocity of trajectory

scalar | vector | matrix

Velocity of the trajectory, specified as a scalar, vector, or matrix. If you specify a scalar for the Time input with an n-dimensional trajectory, the output is a vector with n elements. If you specify a vector of m elements for the Time input, the output is an n-by-m matrix.

Data Types: single | double

qdd — Acceleration of trajectory

scalar | vector | matrix

Acceleration of the trajectory, specified as a scalar, vector, or matrix. If you specify a scalar for the Time input with an n-dimensional trajectory, the output is a vector with n elements. If you specify a vector of m elements for the Time input, the output is an n-by-m matrix.

Data Types: single | double

Parameters

Waypoint source — Source for waypoints

Internal (default) | External

Specify External to specify the Waypoints and Time points parameters as block inputs instead of block parameters.

Waypoints — Waypoint positions along trajectory

n-by-p matrix

Positions of waypoints of the trajectory at given time points, specified as an n-by-p matrix, where n is the dimension of the trajectory and p is the number of waypoints. If you specify the Method as B-spline, these waypoints actually define the control points for the convex hull of the B-spline, but the first and last waypoint are still met.

Dependencies

To specify this parameter in the block mask, set Waypoint Source to Internal.

Time points — Time points for waypoints of trajectory

p-element vector

Time points for waypoints of trajectory, specified as a p-element vector, where p is the number of waypoints.

Dependencies

To specify this parameter in the block mask, set Waypoint Source to Internal.

Method — Method for trajectory generation

Cubic Polynomial (default) | Quintic Polynomial | B-Spline

Method for trajectory generation, specified as either Cubic Polynomial, Quintic Polynomial, or B-Spline.

Parameter source — Source for waypoints

Internal (default) | External

Specify External to specify the Velocity boundary conditions and Acceleration boundary conditions parameters as block inputs instead of block parameters.

Velocity boundary conditions — Velocity boundary conditions for waypoints

zeroes(2,5) (default) | n-by-p matrix

Velocity boundary conditions for waypoints, specified as an n-by-p matrix. Each row corresponds to the velocity at each of the p waypoints for the respective variable in the trajectory.

Dependencies

To enable this input, set Method to Cubic Polynomial or Quintic Polynomial.

Acceleration boundary conditions — Acceleration boundary conditions for trajectory

n-by-p matrix

Acceleration boundary conditions for waypoints, specified as an n-by-p matrix. Each row corresponds to the acceleration at each of the p waypoints for the respective variable in the trajectory.

Dependencies

To enable this parameter, set Method to Quintic Polynomial.

Simulate using — Type of simulation to run

Interpreted execution (default) | Code generation

• Interpreted execution — Simulate model using the MATLAB^® interpreter. This option shortens startup time but has a slower simulation speed than Code generation. In this mode, you can debug the source code of the block.

• Code generation — Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to Interpreted execution.

Tips

For better performance, consider these options:

• Minimize the number of waypoint or parameter changes.

• Set the Waypoint source parameter to Internal.

• Set the Simulate using parameter to Code generation. For more information, see Interpreted Execution vs. Code Generation (Simulink).

References

[1] Farin, Gerald E. Curves and Surfaces for Computer Aided Geometric Design: A Practical Guide. San Diego, CA: Academic Press, 1993.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2019a
