This example shows how to construct an automated parking valet system in Simulink® with Automated Driving Toolbox™. It closely follows the Automated Parking Valet MATLAB® example.
Automatically parking a car that is left in front of a parking lot is a challenging problem. The vehicle's automated systems are expected to take over and steer the vehicle to an available parking spot. This example focuses on planning a feasible path through the environment, generating a trajectory from this path, and using a feasible controller to execute the trajectory. Map creation and dynamic obstacle avoidance are excluded from this example.
Before simulation, the
helperSLCreateCostmap function is called within the
PreLoadFcn callback function of the model. For details on using callback functions, see Model Callbacks (Simulink). The

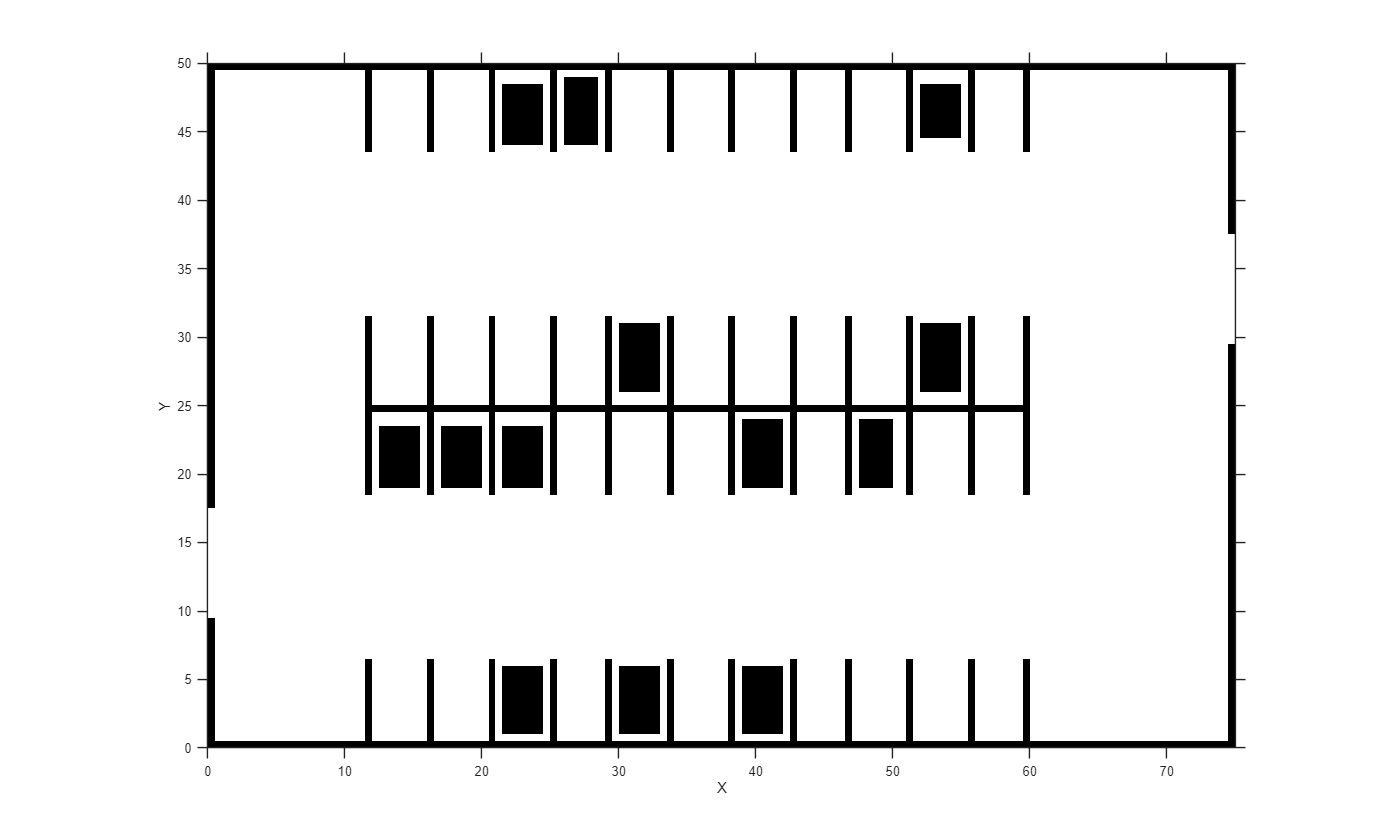

helperSLCreateCostmap function creates a static map of the parking lot that contains information about stationary obstacles, road markings, and parked cars. The map is represented as a
To use the
object in Simulink®, the
helperSLCreateUtilityStruct function converts the
into a struct array in the block's mask initialization. For more details, see Initialize Mask (Simulink).
The global route plan is described as a sequence of lane segments to traverse to reach a parking spot. Before simulation, the

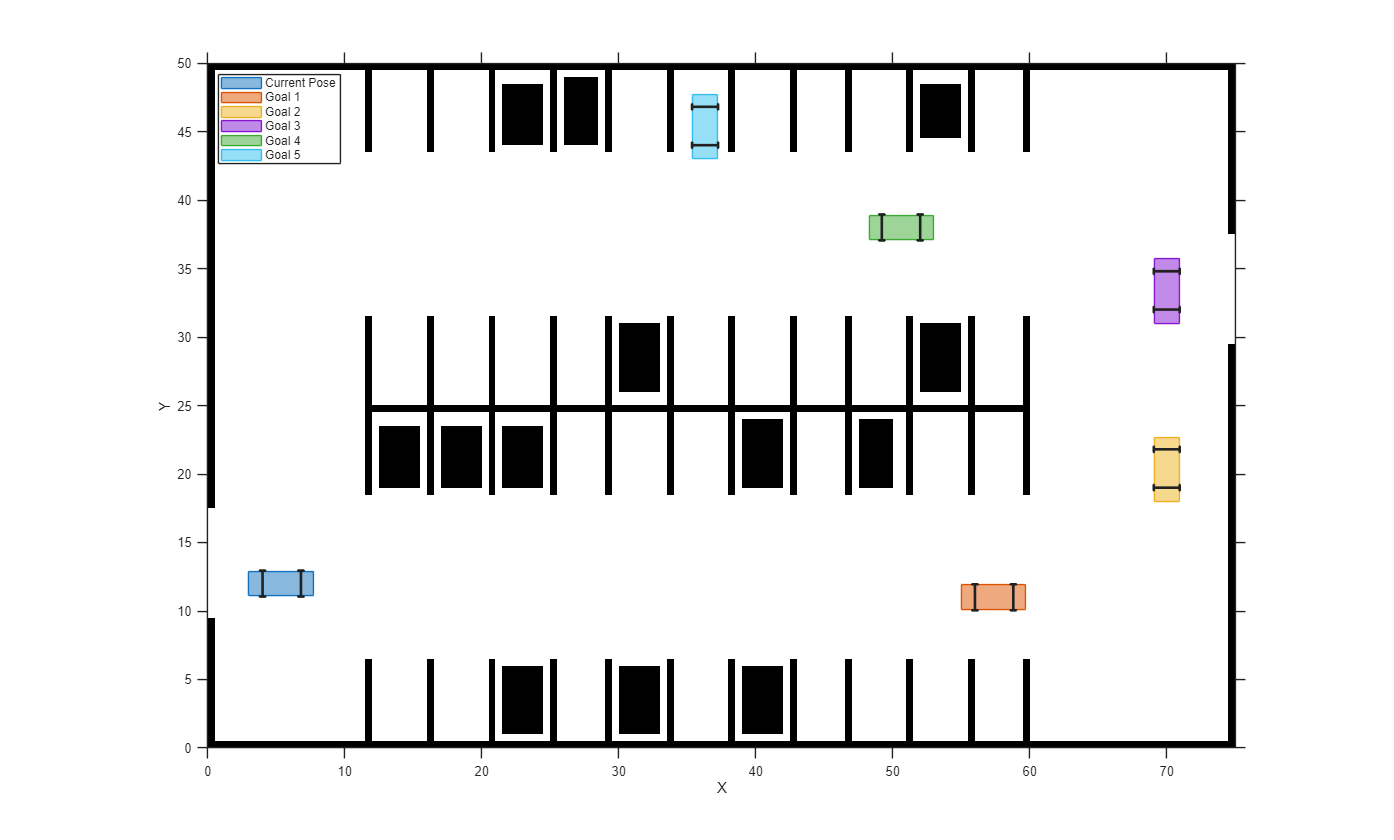

PreLoadFcn callback function of the model loads a route plan, which is stored as a table. The table specifies the start and end poses of the segment, as well as properties of the segment, such as the speed limit.
routePlan = 5×3 table StartPose EndPose Attributes ________________ ____________________ __________ 4 12 0 56 11 0 1×1 struct 56 11 0 70 19 90 1×1 struct 70 19 90 70 32 90 1×1 struct 70 32 90 52 38 180 1×1 struct 53 38 180 36.3 44 90 1×1 struct
The inputs and outputs of many blocks in this example are Simulink buses (
classes). In the
PreLoadFcn callback function of the model, the
helperSLCreateUtilityBus function creates these buses.
Planning is a hierarchical process, with each successive layer responsible for a more fine-grained task. The behavior layer  sits at the top of this stack. The Behavior Planner block triggers a sequence of navigation tasks based on the global route plan by providing an intermediate goal and configuration for the Motion Planning and Trajectory Generation blocks. Each path segment is navigated using these steps:
Motion Planning: Plan a feasible path through the environment map using the optimal rapidly exploring random tree (RRT*) algorithm (
Trajectory Generation: Smooth the reference path by fitting splines  to it using the Path Smoother Spline block. Then convert the smoothed path into a trajectory by generating a speed profile using the Velocity Profiler block.
Vehicle Control: The
HelperPathAnalyzer provides the reference signal for the Vehicle Controller subsystem that controls the steering and the velocity of the vehicle.
Goal Checking: Check if the vehicle has reached the final pose of the segment using

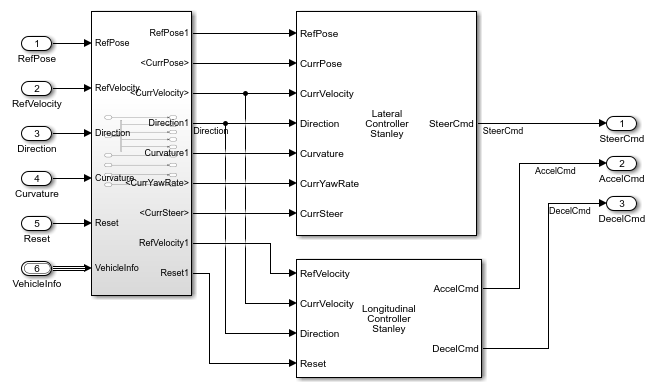

The Vehicle Controller subsystem contains a Lateral Controller Stanley block and a Longitudinal Controller Stanley block to regulate the pose and the velocity of the vehicle, respectively. To handle realistic vehicle dynamics , the Vehicle model parameter in the Lateral Controller Stanley block is set to
Dynamic bicycle model. With this configuration, additional inputs, such as the path curvature, the current yaw rate of the vehicle, and the current steering angle are required to compute the steering command. The Longitudinal Controller Stanley block uses a switching Proportional-Integral controller to calculate the acceleration and the deceleration commands that actuate the brake and throttle in the vehicle.

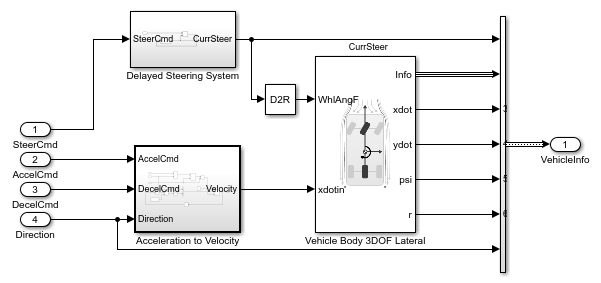

To demonstrate the performance, the vehicle controller is applied to the Vehicle Model block, which contains a simplified steering system  that is modeled as a first-order system and a Vehicle Body 3DOF (Vehicle Dynamics Blockset) block shared between Automated Driving Toolbox™ and Vehicle Dynamics Blockset™. Compared with the kinematic bicycle model used in the Automated Parking Valet MATLAB® example, this Vehicle Model block is more accurate because it considers the inertial effects, such as tire slip and steering servo actuation.

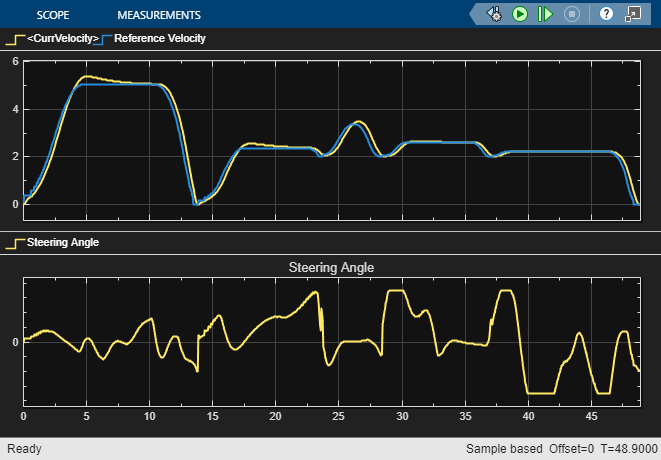

The Visualization block shows how the vehicle tracks the reference path. It also displays vehicle speed and steering command in a scope. The following images are the simulation results for this example:
Simulation stops at about 45 seconds, which is when the vehicle reaches the destination.
This example shows how to implement an automated parking valet in Simulink.
