Create V-dipole antenna
dipoleVee object is a planar V-dipole antenna in the
The width of the dipole is related to the circular cross-section by the equation
d is the diameter of equivalent cylindrical pole
r is the radius of equivalent cylindrical pole
For a given cylinder radius, use the
cylinder2strip utility function to calculate the equivalent width. The
V-dipole antenna is bent around the feed point. The default V-dipole is center-fed and
is in the xy- plane. The feed point of the V-dipole antenna coincides
with the origin.
half-wavelength V-dipole antenna.
dv = dipoleVee
a half-wavelength V-dipole antenna, with additional properties specified by
one or more name-value pair arguments.
dv = dipoleVee(Name,Value)
Name is the
property name and
Value is the corresponding value. You
can specify several name-value pair arguments in any order as
ValueN. Properties not specified retain their default
ArmLength — Length of two arms
[1 1] (default) | two-element vector
Length of two arms, specified as a two-element vector in meters. By default, the arm lengths are chosen for an operating frequency of 75 MHz.
Width — V-dipole arm width
0.1000 (default) | scalar
V-dipole arm width, specified as a scalar in meters.
Dipole width should be less than
Total Arm Length/5
and greater than
Total Arm Length/1001.
ArmElevation — Angle made by two arms about xy- plane
[45 45] (default) | two-element vector
Angle made by two arms about xy- plane, specified as a two-element vector in degrees.
Conductor — Type of metal material
'PEC' (default) |
Type of the metal used as a conductor, specified as a metal material
object. You can choose any metal from the
MetalCatalog or specify a metal of your choice. For more
metal. For more information on metal conductor meshing, see
m = metal('Copper');
m = metal('Copper'); ant.Conductor =
Load — Lumped elements
[1x1 lumpedElement] (default) | lumped element object
Lumped elements added to the antenna feed, specified as a lumped element
object. For more information, see
lumpedelement is the object for the load created
Tilt — Tilt angle of antenna
0 (default) | scalar | vector
Tilt angle of the antenna, specified as a scalar or vector with each element unit in degrees. For more information, see Rotate Antennas and Arrays.
ant.Tilt = 90
'TiltAxis',[0 1 0;0 1 1]
tilts the antenna at 90 degrees about the two axes defined by the
wireStack antenna object
only accepts the dot method to change its properties.
TiltAxis — Tilt axis of antenna
[1 0 0] (default) | three-element vector of Cartesian coordinates | two three-element vectors of Cartesian coordinates |
Tilt axis of the antenna, specified as:
Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the X-, Y-, and Z-axes.
Two points in space, each specified as three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points in space.
A string input describing simple rotations around one of the principal axes, 'X', 'Y', or 'Z'.
For more information, see Rotate Antennas and Arrays.
'TiltAxis',[0 1 0]
'TiltAxis',[0 0 0;0 1 0]
ant.TiltAxis = 'Z'
wireStack antenna object only accepts the dot method to change its
|Display antenna or array structure; display shape as filled patch|
|Display information about antenna or array|
|Axial ratio of antenna|
|Beamwidth of antenna|
|Charge distribution on metal or dielectric antenna or array surface|
|Current distribution on metal or dielectric antenna or array surface|
|Design prototype antenna or arrays for resonance around specified frequency|
|Radiation efficiency of antenna|
|Electric and magnetic fields of antennas; Embedded electric and magnetic fields of antenna element in arrays|
|Input impedance of antenna; scan impedance of array|
|Mesh properties of metal or dielectric antenna or array structure|
|Change mesh mode of antenna structure|
|Optimize antenna or array using SADEA optimizer|
|Radiation pattern and phase of antenna or array; Embedded pattern of antenna element in array|
|Azimuth pattern of antenna or array|
|Elevation pattern of antenna or array|
|Calculate and plot radar cross section (RCS) of platform, antenna, or array|
|Return loss of antenna; scan return loss of array|
|Calculate S-parameter for antenna and antenna array objects|
|Voltage standing wave ratio of antenna|

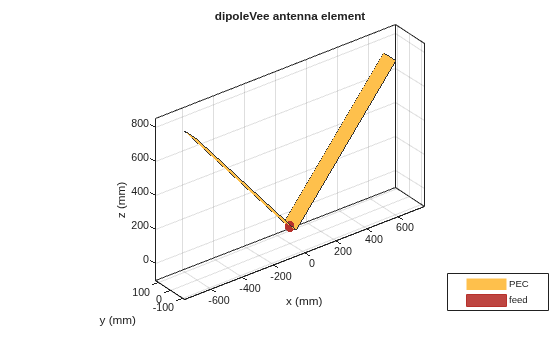

Create V-Dipole Antenna
Create and view a center-fed V-dipole that has 50 degree arm angles .
dv = dipoleVee('ArmElevation',[50 50])
dv = dipoleVee with properties: ArmLength: [1 1] ArmElevation: [50 50] Width: 0.1000 Conductor: [1x1 metal] Tilt: 0 TiltAxis: [1 0 0] Load: [1x1 lumpedElement]
Impedance of V-Dipole Antenna
Calculate the impedance of a V-dipole antenna over the frequency range of 50 MHz - 100 MHz.
dv = dipoleVee('ArmElevation',[50 50]); impedance(dv,linspace(50e6,100e6,51))
 Balanis, C.A. Antenna Theory: Analysis and Design. 3rd Ed. New York: Wiley, 2005.
 Volakis, John. Antenna Engineering Handbook. 4th Ed. New York: McGraw-Hill, 2007.
