segmentObjects
Syntax
Description
[___] = segmentObjects(___,
configures the segmentation using additional name-value arguments. For example,
Name=Value
)segmentObjects(detector,I,Threshold=0.9)
specifies the detection
threshold as 0.9
.
Note
This function requires the Computer Vision Toolbox™ Model for Mask R-CNN Instance Segmentation. You can install the Computer Vision Toolbox Model for Mask R-CNN Instance Segmentation from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons. To run this function, you will require the Deep Learning Toolbox™.
Examples
Segment Instances of Objects
Load a pretrained Mask R-CNN object detector.
detector = maskrcnn("resnet50-coco")
detector = maskrcnn with properties: ModelName: 'maskrcnn' ClassNames: {1×80 cell} InputSize: [800 1200 3] AnchorBoxes: [15×2 double]
Read a test image that includes objects that the network can detect, such as people.
I = imread("visionteam.jpg");
Segment instances of objects using the Mask R-CNN object detector.
[masks,labels,scores,boxes] = segmentObjects(detector,I,Threshold=0.95);
Overlay the detected object masks in blue on the test image. Display the bounding boxes in red and the object labels.
overlayedImage = insertObjectMask(I,masks);
imshow(overlayedImage)
showShape("rectangle",boxes,Label=labels,LineColor=[1 0 0])
Segment Instances of Objects in Image Datastore
Load a pretrained Mask R-CNN object detector.
detector = maskrcnn("resnet50-coco");
Create a datastore of test images.
imageFiles = fullfile(toolboxdir("vision"),"visiondata","visionteam*.jpg"); dsTest = imageDatastore(imageFiles);
Segment instances of objects using the Mask R-CNN object detector.
dsResults = segmentObjects(detector,dsTest);
Running Mask R-CNN network -------------------------- * Processed 2 images.

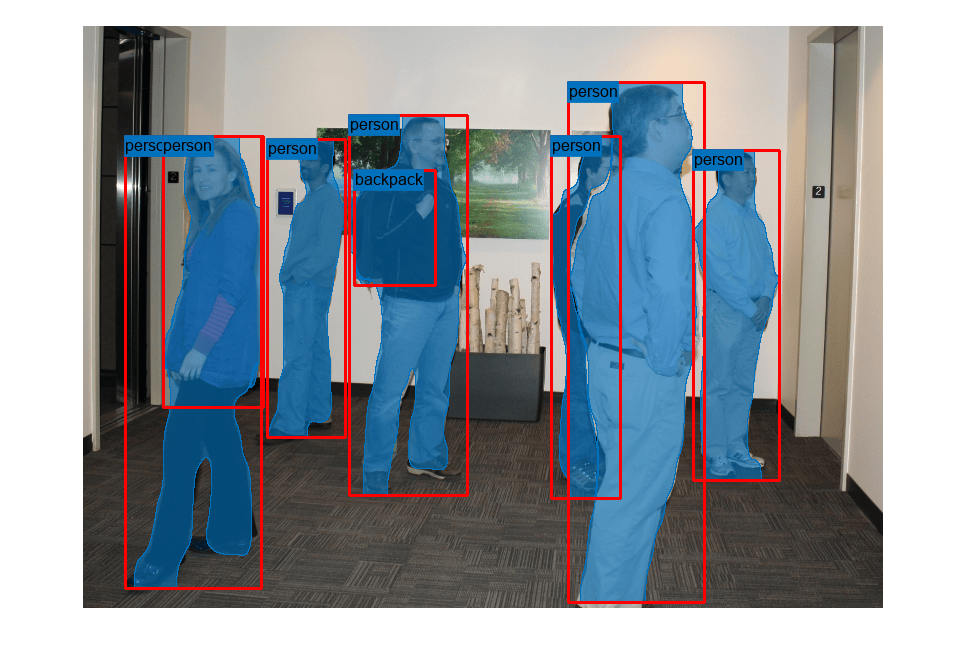

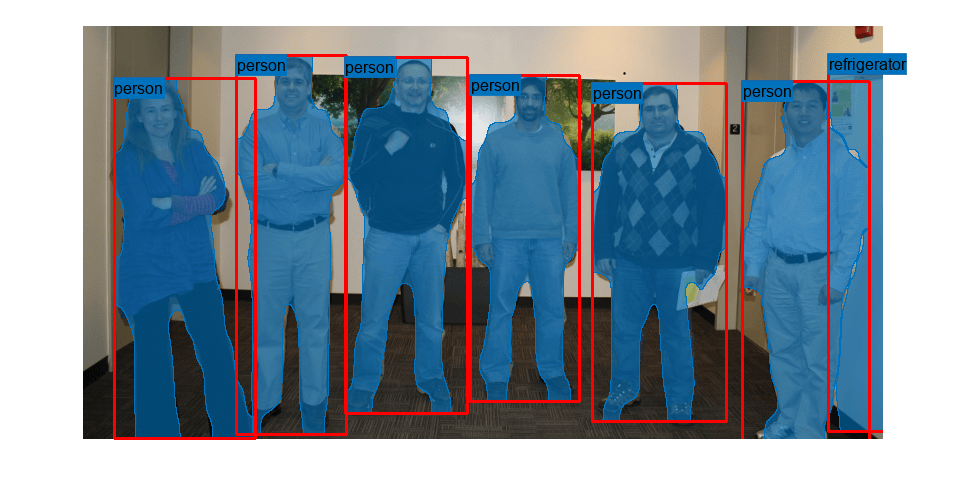

For each test image, display the instance segmentation results. Overlay the detected object masks in blue on the test image. Display the bounding boxes in red and the object labels.
while(hasdata(dsResults)) testImage = read(dsTest); results = read(dsResults); overlayedImage = insertObjectMask(testImage,results{1}); figure imshow(overlayedImage) showShape("rectangle",results{4},Label=results{2},LineColor=[1 0 0]) end
Input Arguments
detector
— Mask R-CNN object detector
maskrcnn
object
Mask R-CNN object detector, specified as a maskrcnn
object.
I
— Image or batch of images
numeric matrix | numeric array
Image or batch of images to segment, specified as one of these values.
Image Type | Data Format |
---|---|
Single grayscale image | 2-D matrix of size H-by-W |
Single color image | 3-D array of size H-by-W-by-3. |
Batch of B grayscale or color images | 4-D array of size H-by-W-by-C-by-B. The number of color channels C is 1 for grayscale images and 3 for color images. |
The height H and width W of each image must be greater than or equal to the input height h and width w of the network.
imds
— Datastore of images
datastore
Datastore of images, specified as a datastore such as an imageDatastore
or a CombinedDatastore
. If
calling the datastore with the read
function returns a cell array, then the image data must be in the
first cell.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: segmentObjects(detector,I,Threshold=0.9)
specifies the
detection threshold as 0.9
.
Threshold
— Detection threshold
0.7
(default) | numeric scalar
Detection threshold, specified as a numeric scalar in the range [0, 1]. The Mask R-CNN object detector does not return detections with scores less than the threshold value. Increase this value to reduce false positives.
NumStrongestRegions
— Maximum number of strongest region proposals
1000
(default) | positive integer | Inf
Maximum number of strongest region proposals, specified as a positive integer.
Reduce this value to speed up processing time at the cost of detection accuracy. To
use all region proposals, specify this value as Inf
.
SelectStrongest
— Select strongest bounding box
true
or 1
(default) | false
or 0
Select the strongest bounding box for each detected object, specified as a numeric
or logical 1
(true
) or 0
(false
).
true
— Return the strongest bounding box per object. To select these boxes, thesegmentObjects
function calls theselectStrongestBboxMulticlass
function, which uses nonmaximal suppression to eliminate overlapping bounding boxes based on their confidence scores.false
— Return all detected bounding boxes. You can then create your own custom operation to eliminate overlapping bounding boxes.
MinSize
— Minimum size of region
[1 1]
(default) | two-element numeric vector
Minimum size of a region containing an object, in pixels, specified as a
two-element numeric vector of the form [height
width]. By default, MinSize
is the smallest
object that the trained detector can detect. Specify this argument to reduce the
computation time.
MaxSize
— Maximum size of region
two-element numeric vector
Maximum size of a region containing an object, in pixels, specified as a two-element numeric vector of the form [height width].
To reduce computation time, set this value to the known maximum region size for
the objects being detected in the image. By default, MaxSize
is
set to the height and width of the input image, I
.
ExecutionEnvironment
— Hardware resource
"auto"
(default) | "gpu"
| "cpu"
Hardware resource for processing images with a network, specified as
"auto"
, "gpu"
, or "cpu"
.
ExecutionEnvironment | Description |
---|---|
"auto" | Use a GPU if available. Otherwise, use the CPU. The use of GPU requires Parallel Computing Toolbox™ and a CUDA® enabled NVIDIA® GPU. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox). |
"gpu" | Use the GPU. If a suitable GPU is not available, the function returns an error message. |
"cpu" | Use the CPU. |
MiniBatchSize
— Number of observations in each batch
positive integer
Number of observations that are returned in each batch. The default value is equal
to the ReadSize
property of datastore
imds
.
You can specify this argument only when you specify a datastore of images,
imds
.
WriteLocation
— Location to place writeable data
string scalar | character vector
Location to place writable data, specified as a string scalar or character vector.
The specified folder must have write permissions. If the folder already exists, the
segmentObjects
function creates a new folder and adds a suffix
to the folder name with the next available number. The default write location is
fullfile(pwd,"SegmentObjectResults")
where pwd
is the current working directory.
You can specify this argument only when you specify a datastore of images,
imds
.
Data Types: char
| string
NamePrefix
— Prefix added to written filenames
"segmentObj"
(default) | string scalar | character vector
Prefix added to written filenames, specified as a string scalar or character
vector. The files are named <NamePrefix>_<imageName>.mat
,
where imageName
is the name of the input image without its
extension.
You can specify this argument only when you specify a datastore of images,
imds
.
Data Types: char
| string
Verbose
— Enable progress display to screen
true
or 1
(default) | false
or 0
Enable progress display to screen, specified as a numeric or logical
1
(true
) or 0
(false
).
You can specify this argument only when you specify a datastore of images,
imds
.
Output Arguments
masks
— Object masks
H-by-W-by-M logical
array | B-by-1 cell array
Objects masks, returned as a logical array of size
H-by-W-by-M.
H and W are the height and width of the input
image I
. M is the number of objects detected in
the image. Each of the M channels contains the mask for a single
detected object.
When I
represents a batch of B images,
masks
is returned as a B-by-1 cell array. Each
element in the cell array indicates the masks for the corresponding input image in the
batch.
labels
— Object labels
M-by-1 categorical vector | B-by-1 cell array
Objects labels, returned as an M-by-1 categorical vector where
M is the number of detected objects in image
I
.
When I
represents a batch of B images, then
labels
is a B-by-1 cell array. Each element is
an M-by-1 categorical vector with the labels of the objects in the
corresponding image.
scores
— Detection scores
M-by-1 vector | B-by-1 cell array
Detection confidence scores, returned as an M-by-1 numeric
vector, where M is the number of detected objects in image
I
. A higher score indicates higher confidence in the
detection.
When I
represents a batch of B images, then
scores
is a B-by-1 cell array. Each element is
an M-by-1 numeric vector with the labels of the objects in the
corresponding image.
bboxes
— Location of detected objects
M-by-4 matrix | B-by-1 cell array
Location of detected objects within the input image, returned as an
M-by-4 matrix, where M is the number of detected
objects in image I
. Each row of bboxes
contains a four-element vector of the form [x
y
width
height]. This vector specifies the upper left corner and size of that
corresponding bounding box in pixels.
When I
represents a batch of B images, then
bboxes
is a B-by-1 cell array. Each element is
an M-by-4 numeric matrix with the bounding boxes of the objects in
the corresponding image.
dsResults
— Predicted instance segmentation
FileDatastore
object
Predicted instance segmentation results, returned as a FileDatastore
object. The datastore is set up so that calling the datastore
with the read
and readall
functions returns a cell array with four columns. This table
describes the format of each column.
data | boxes | labels | masks |
---|---|---|---|
RGB image that serves as a network input, returned as an H-by-W-by-3 numeric array. | Bounding boxes, returned as M-by-4 matrices, where M is the number of objects within the image. Each bounding box has the format [x y width height], where [x, y] represent the top-left coordinates of the bounding box. | Object class names, returned as an M-by-1 categorical vector. All categorical data returned by the datastore must contain the same categories. | Binary masks, returned as a logical array of size H-by-W-by-M. Each mask is the segmentation of one instance in the image. |
Version History
Introduced in R2021bR2022b: Supports datastores
The segmentObjects
function now supports specifying test images as
a datastore. New name-value arguments enable more options to configure the segmentation of
images in a datastore. When you specify test images as a datastore, the function returns all
instance segmentation results as a file datastore.
