closestPointsToSequence

Projects sequence of points onto path

Since R2022a

Syntax

pathPoints = closestPointsToSequence(refPath,points,initWindow)

[pathPoints,inWindow] = closestPointsToSequence(refPath,points,initWindow)

Description

pathPoints = closestPointsToSequence(refPath,points,initWindow) uses the closest point within a sequence of points, points, to be within the valid search window, initWindow. For each point in Points, the search window is centered at the previous point.

[pathPoints,inWindow] = closestPointsToSequence(refPath,points,initWindow) optionally returns a logical vector inWindow, specifying whether each point for the corresponding xy coordinate in points is projected within the search window.

Examples

Get Closest Points in Sliding Window for Intersections

[refPath,generator,f0,f1] = closestPointExampleSetup;

Define the plot helper functions.

mergeFcn = @(v1,v2)reshape([v1 v2 nan(size(v1,1),size(v2,2))]',[],1);
plotFcn = @(L1,L2,linespec)plot(mergeFcn(L1(:,1),L2(:,1:min(1,size(L2,2)))), ...
   mergeFcn(L1(:,2),L2(:,2:min(2,size(L2,2)))),linespec{:});
plotInterval = @(bounds,nPt,linespec)plotFcn(interpolate(...
    refPath,linspace(bounds(1),bounds(2),nPt)'),[],linespec);

Generate a trajectory which itself contains an intersection.

f2 = f1;
f2(1) = refPath.SegmentParameters(4,end) + 20;

Set the states such that it starts from rest and terminates with a positive velocity and no acceleration.

f0(2) = 0;                          % Initial lon. speed set to 0
f2(2) = 5;                          % Terminal lon. speed set to 5
deltaS = (f2(1)-f0(1));             % Longitudinal distance traveled
vAvgEstimate = (f2(2)-f0(2))/2;     % Rough average lon. velocity estimate
T2 = deltaS/vAvgEstimate;           % Ballpark travel duration

Generate the trajectory.

[fIntersecting,gIntersecting] = connect(generator,f0,f2,T2);
gXingPts = gIntersecting.Trajectory;

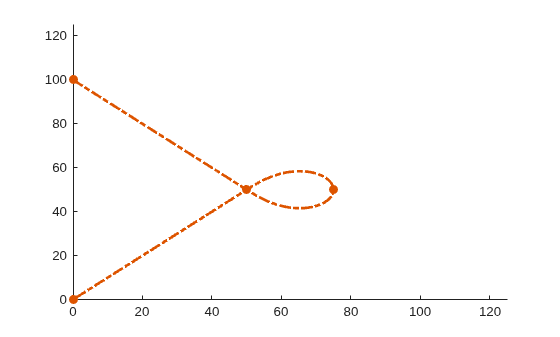

Plot the trajectory.

figure
show(refPath);
xlim([0 125])
ylim([0 125])
hold on

Find the closest points across trajectory.

closestPts = closestPoint(refPath,gXingPts);

Find closest points in window that spans the full trajectory length.

windowBuffer = 5;
fXingPts = fIntersecting.Trajectory;
fixedWindow = [min(fXingPts(:,1))-windowBuffer max(fXingPts(:,1))+windowBuffer];
closestPtsFullWindow = closestPoint(refPath,gXingPts,fixedWindow);

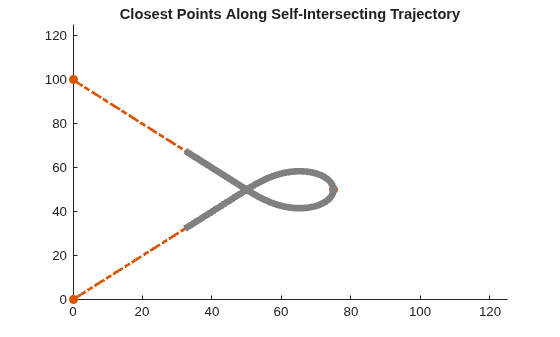

Plot the naive closest-points here.

title("Closest Points Along Self-Intersecting Trajectory")
plotInterval(fixedWindow,100,{"Color",[.5 .5 .5],"LineWidth",5});

Calculate a sliding window size based on the max global velocity. Note that this may not cover the trajectory depending on the shape of the reference path.

dsApprox = max(abs(gXingPts(:,5)))*generator.TimeResolution;
initialWindow = fXingPts(1)+[-1 1]*dsApprox;
[closestPtsSlidingWindow, inWindow] = closestPointsToSequence(refPath,gXingPts,initialWindow);

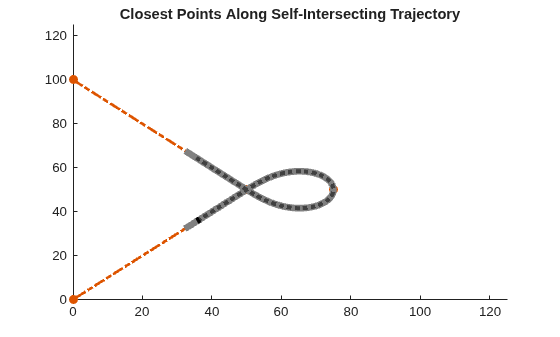

Calculate the region swept by the sliding window. Then plot the swept region.

sweptRegion = [closestPtsSlidingWindow(1,end)-dsApprox,closestPtsSlidingWindow(end-1,end)+dsApprox];
plotInterval(sweptRegion,100,{":","Color",[.25 .25 .25],"LineWidth",3});

finalWindow = [closestPtsSlidingWindow(end-1,end)-dsApprox,closestPtsSlidingWindow(end-1,end)+dsApprox];
plotInterval(finalWindow,100,{"k","LineWidth",5});

Display results.

plotFcn(gXingPts,[],{"k.-"});
plotFcn(gXingPts,closestPts,{"b","LineWidth",3});
plotFcn(gXingPts,closestPtsFullWindow,{"m","LineWidth",2})
plotFcn(gXingPts(inWindow,:),closestPtsSlidingWindow(inWindow,:),{"g"});
plotFcn(gXingPts(~inWindow,:),closestPtsSlidingWindow(~inWindow,:),{"r"});
legend({"Waypoints","ReferencePath","FixedWindow", ...
    "SlidingWindowSweptRegion","SlidingWindowFinalSpan", ...
    "Trajectory", "ClosestPoint","ClosestInsideFixedWindow", ...
    "ClosestInsideSlidingWindow"});

Input Arguments

refPath — Reference path

referencePathFrenet object

Reference path, specified as a referencePathFrenet object.

points — Global points

P-by-2 numeric matrix

Global points, specified as a P-by-2 numeric matrix with rows of the form [x y]. P is the number of points. Positions are in meters.

initWindow — Initial search window

two-element row vector

Initial search window, specified as a two-element row vector in the form [minimum_bound maximum_bound].

Output Arguments

pathPoints — Closest points on reference path

N-by-6 numeric matrix

Closest points on the reference path , returned as an N-by-6 numeric matrix with rows of form [x y theta kappa dkappa s], where:

• x y and theta — SE(2) state expressed in global coordinates, with x and y in meters and theta in radians

• kappa — Curvature, or inverse of the radius, in m-1

• dkappa — Derivative of curvature with respect to arc length in m-2

• s — Arc length, or distance along path from path origin, in meters

N is the number of points sampled along the reference path.

inWindow — Indicator of points being in search window

N-element logical column vector

Indication whether each point nearest to the corresponding xy coordinate in points, is projected within the search window, returned as an N-element logical column vector, where N is the number of points in points. Points being projected within the search window are true, or false if they lie at the end of a window.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2022a
