createMask
dicomContours
オブジェクトからのボリューム マスクの作成
説明
は、3 次元 logical マスク BW
= createMask(rtContours
,ROIindex
,Spatial
)BW
を返します。これは、dicomContours
オブジェクト rtContours
における、ROIindex
で指定された ROI のボクセル表現です。ROIindex
は、密化する rtContours
の輪郭を指定します。Spatial
は、3 次元データの位置、解像度、および方向を指定します。
例
dicomContours オブジェクトのマスクの作成
dicomInfo
および imref3d
を使用して、dicomContours
オブジェクトのマスクを作成します。
DICOM-RT 構造体セットのメタデータを読み取ります。
info = dicominfo('rtstruct.dcm');
dicomContours
オブジェクトを構築します。
rtContours = dicomContours(info);
すべての ROI 情報を table として表示します。
rtContours.ROIs
ans=2×5 table
Number Name ContourData GeometricType Color
______ _________________ ___________ _____________ ____________
1 {'Body_Contour' } {90×1 cell} {90×1 cell} {3×1 double}
2 {'Tumor_Contour'} {21×1 cell} {21×1 cell} {3×1 double}
plotContours
を使用して、すべての ROI の輪郭をプロットします。このオブジェクト関数はワールド座標の輪郭をプロットします。このプロットを使用して、内部に密化マスクを作成する imref3d
オブジェクトのワールド座標の限界範囲を定義します。

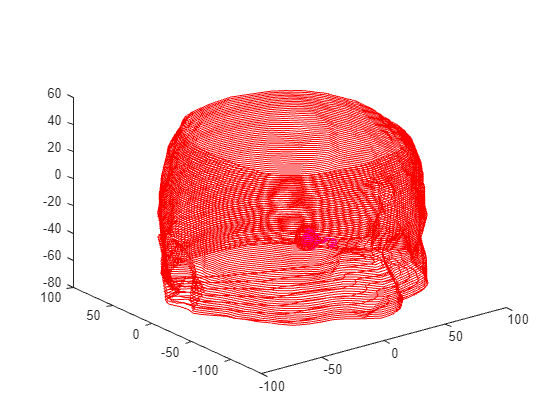

plotContour(rtContours)
イメージが輪郭と同じスペースに収まるよう、plotContours
からのプロットと同じワールド座標範囲で imref3d
オブジェクトを作成します。
referenceInfo = imref3d([128,128,50],xlim,ylim,zlim);
rtContours
の 1 番目の輪郭 ('Body_Contour'
) の 3 次元 logical マスクを作成します。imref3d オブジェクトを指定します。
contourIndex = 1; rtMask = createMask(rtContours, contourIndex, referenceInfo);

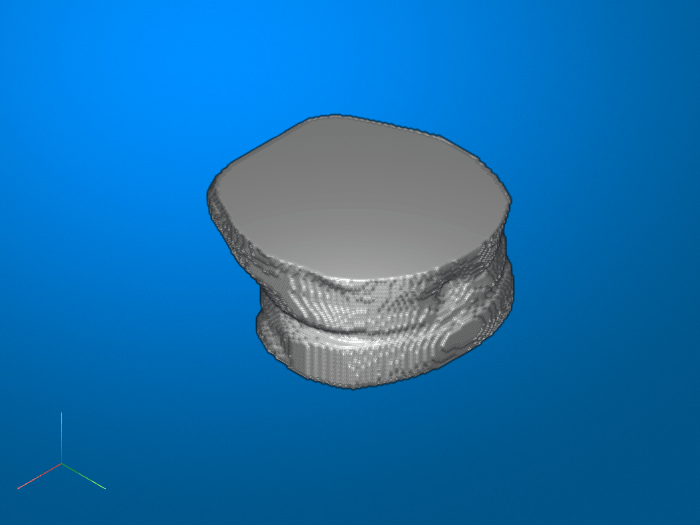

ボリューム ビューアーを使用して、このマスクを表示します。
volshow(rtMask);
入力引数
rtContours
— DICOM 輪郭
dicomContours
オブジェクト
DICOM 輪郭。dicomContours
オブジェクトとして指定します。
データ型: dicomContours
ROIindex
— DICOM 輪郭オブジェクト内の ROI
整数 | char
配列 | string
スカラー
DICOM 輪郭オブジェクト内の ROI。dicomContours
オブジェクトに含まれる ROI table 内の数値または名前として指定します。
ROI 識別子 | 型 | 例 |
---|---|---|
Number | rtContours オブジェクトに含まれる ROI table 内の行を識別する整数。Number は ROI table の 1 列目です。 | rtMask = createMask(rtContours,1, spatialInfo) |
Name | rtContours オブジェクトに含まれる ROI table 内の ROI を識別する名前。char 配列または string スカラーとして指定します。Name は ROI table の 2 列目です。 | rtMask = createMask(rtContours,'Body_Contour',spatialInfo) |
データ型: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| char
| string
Spatial
— 空間参照情報
構造体 | imref3d
オブジェクト
空間参照情報。dicomreadVolume
によって返される Spatial
構造体または imref3d
オブジェクトとして指定します。空間参照情報は、3 次元座標データの位置、解像度、および方向を提供します。
データ型: struct
| imref3d
出力引数
BW
— logical マスク
3 次元 logical 配列
logical マスク。3 次元 logical 配列として返されます。
バージョン履歴
参考
dicomContours
| addContour
| dicominfo
| dicomreadVolume
| imref3d
| plotContour
| deleteContour
| convertToInfo
