dsp.VariableBandwidthFIRFilter

Variable bandwidth FIR filter

Description

The dsp.VariableBandwidthFIRFilter object filters each channel of the input using FIR filter implementations. It does so while having the capability of tuning the bandwidth.

To filter each channel of the input:

  1. Create the dsp.VariableBandwidthFIRFilter object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects? (MATLAB).

Creation

Description

vbw = dsp.VariableBandwidthFIRFilter returns a System object™, vbw, which independently filters each channel of the input over successive calls to the object. The filter’s cutoff frequency may be tuned during the filtering operation. The variable bandwidth FIR filter is designed using the window method.

example

vbw = dsp.VariableBandwidthFIRFilter(Name,Value) returns a variable bandwidth FIR filter System object, vbw, with each property set to the specified value. You can specify additional name-value pair arguments in any order as (Name1,Value1,...,NameN,ValueN).

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects (MATLAB).

Input sample rate, specified as a positive scalar in Hz. This property is non-tunable.

Data Types: double | single

Specify the type of the filter as one of 'Lowpass' | 'Highpass' | 'Bandpass' | 'Bandstop'. This property is non-tunable.

Specify the order of the FIR filter as a positive integer scalar. This property is non-tunable.

Data Types: double | single

Specify the window function used to design the FIR filter as one of 'Hann' | 'Hamming' | 'Chebyshev' | 'Kaiser'. This property is non-tunable.

Specify the Kaiser window parameter as a real scalar. This property is non-tunable.

Dependencies

This property applies when you set the 'Window' property to 'Kaiser'.

Data Types: double | single

Specify the filter cutoff frequency in Hz as a real, positive scalar, smaller than the SampleRate/2.

Tunable: Yes

Dependencies

This property applies if you set the FilterType property to 'Lowpass' or 'Highpass'.

Data Types: double | single

Specify the filter center frequency in Hz as a real, positive scalar, smaller than SampleRate/2.

Tunable: Yes

Dependencies

This property applies when you set the FilterType property to 'Bandpass' or 'Bandstop'.

Data Types: double | single

Specify the filter bandwidth in Hertz as a real, positive scalar, smaller than SampleRate/2.

Tunable: Yes

Dependencies

This property applies if you set the FilterType property to 'Bandpass' or 'Bandstop'.

Data Types: double | single

Specify the Chebyshev window attenuation as a real, positive scalar in decibels (dB). This property is non-tunable.

Dependencies

This property applies if you set the Window property to 'Chebyshev'.

Data Types: double | single

Usage

Description

example

y = vbw(x) filters the input signal x using the variable bandwidth FIR filter to produce the output y. The variable bandwidth FIR filter object operates on each channel, which means the object filters every column of the input signal independently over successive calls to the algorithm.

Input Arguments

expand all

Data input, specified as a vector or a matrix. This object also accepts variable-size inputs. Once the object is locked, you can change the size of each input channel, but you cannot change the number of channels.

Data Types: double | single
Complex Number Support: Yes

Output Arguments

expand all

Filtered output, returned as a vector or a matrix. The size, data type, and complexity of the output signal matches that of the input signal.

Data Types: double | single
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

freqzFrequency response of filter
fvtoolVisualize frequency response of DSP filters
impzImpulse response of discrete-time filter System object
infoInformation about filter System object
coeffsFilter coefficients
costEstimate cost for implementing filter System objects
grpdelayGroup delay response of discrete-time filter System object
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

expand all

Note: This example runs only in R2016b or later. If you are using an earlier release, replace each call to the function with the equivalent step syntax. For example, myObject(x) becomes step(myObject,x).

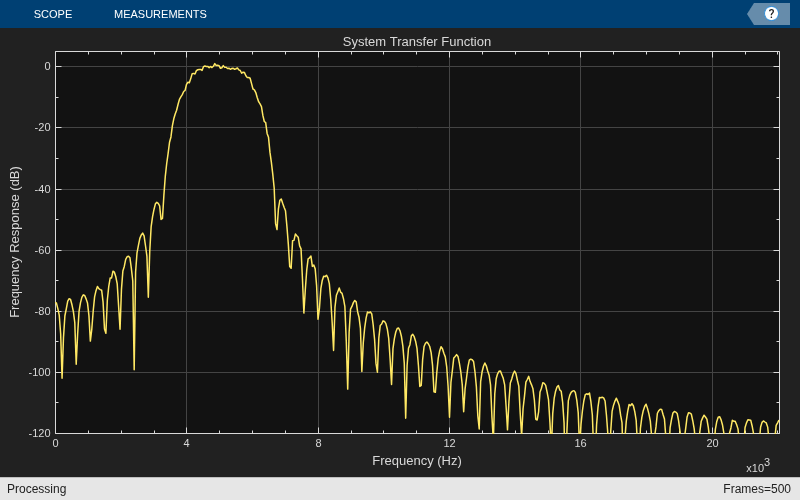

This example shows you how to tune the center frequency and the bandwidth of the FIR filter.

Fs = 44100; % Input sample rate
% Define a bandpass variable bandwidth FIR filter:
vbw = dsp.VariableBandwidthFIRFilter('FilterType','Bandpass',...
    'FilterOrder',100,...
    'SampleRate',Fs,...
    'CenterFrequency',1e4,...
    'Bandwidth',4e3);
tfe = dsp.TransferFunctionEstimator('FrequencyRange','onesided');
aplot = dsp.ArrayPlot('PlotType','Line',...
    'XOffset',0,...
    'YLimits',[-120 5], ...
    'SampleIncrement', 44100/1024,...
    'YLabel','Frequency Response (dB)',...
    'XLabel','Frequency (Hz)',...
    'Title','System Transfer Function');
FrameLength = 1024;
sine = dsp.SineWave('SamplesPerFrame',FrameLength);
for i=1:500
    % Generate input
    x = sine() + randn(FrameLength,1);
    % Pass input through the filter
    y = vbw(x);
    % Transfer function estimation
    h = tfe(x,y);
    % Plot transfer function
    aplot(20*log10(abs(h)))
    % Tune bandwidth and center frequency of the FIR filter
    if (i==250)
        vbw.CenterFrequency = 5000;
        vbw.Bandwidth = 2000;
    end
end

Algorithms

expand all

References

[1] Jarske, P.,Y. Neuvo, and S. K. Mitra, "A simple approach to the design of linear phase FIR digital filters with variable characteristics." Signal Processing. Vol. 14, Issue 4, June 1988, pp. 313-326.

Extended Capabilities

Introduced in R2014a
