# Barker Code Generator

Generate bipolar Barker Code

• Library:
• Communications Toolbox

Communications Toolbox / Comm Sources / Sequence Generators

## Description

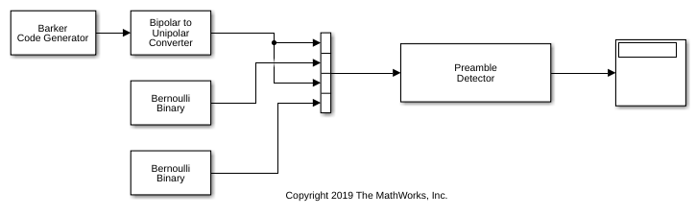

The Barker Code Generator block generates a bipolar Barker code. The short length and low correlation sidelobes make Barker codes useful for frame synchronization in digital communications systems. For more information, see Barker Codes.

## Ports

### Output

expand all

Barker code frame, returned as a column vector. If the frame length exceeds the Barker code length, the block fills the frame by repeating the Barker code.

#### Dependencies

Set the data type of the output with the Output data type parameter.

## Parameters

expand all

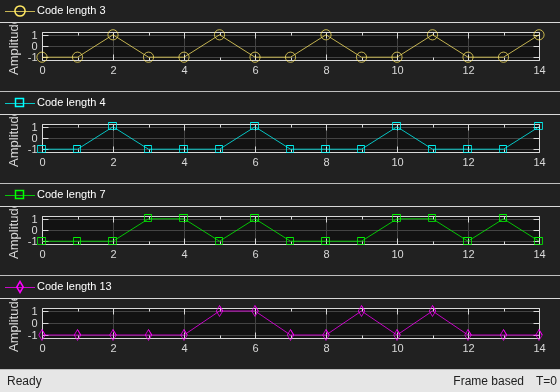

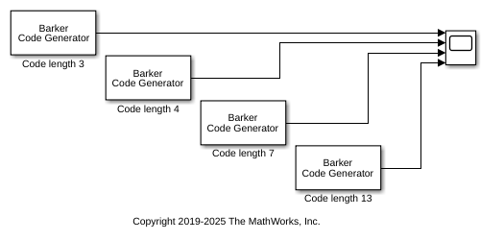

Length of the generated code, specified as `1`, `2`, `3`, `4`, `5`, `7`, `11`, or `13`. For more information, see Barker Codes.

Example: `2` outputs the Barker code [–1;1].

Data Types: `double`

Positive scalars specify the time in seconds between each sample of the output signal. If you set the Sample time to `-1`, the output signal inherits the sample time from downstream. For information on the relationship between the Sample time and Samples per frame parameters, see Sample Timing.

Samples per output frame, specified as a positive integer. If Samples per frame is M, the block outputs a frame containing M samples comprised of length N Barker code sequences. N is the length of the generated code, which is set by the Code length parameter. When M is not an integer multiple of N, consecutive frames maintain continuity of the Barker code across frame boundaries.

For information on the relationship between Sample time and Samples per frame, see Sample Timing.

Data Types: `double`

Output data type, specified as `double` or `int8`.

Data Types: `char` | `string`

Type of simulation to run, specified as `Code generation` or `Interpreted execution`.

• `Code generation` –– Simulate the model by using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations unless the model changes. This option requires additional startup time, but the speed of the subsequent simulations is faster than `Interpreted execution`.

• `Interpreted execution` –– Simulate the model by using the MATLAB® interpreter. This option requires less startup time than the `Code generation` method, but the speed of subsequent simulations is slower. In this mode, you can debug the source code of the block.

## Block Characteristics

 Data Types `double` | `integer` Multidimensional Signals `no` Variable-Size Signals `no`

expand all

## Compatibility Considerations

expand all

Behavior changed in R2020a

## Extended Capabilities

### Objects

Introduced before R2006a
