# predict

Predict responses for new observations from kernel incremental learning model

## Syntax

``label = predict(Mdl,X)``
``[label,score] = predict(Mdl,X)``

## Description

example

````label = predict(Mdl,X)` returns the predicted responses (or labels) `label` of the observations in the predictor data `X` from the incremental learning model `Mdl`.```

example

````[label,score] = predict(Mdl,X)` also returns classification scores for all classes when `Mdl` is an incremental learning model for classification.```

## Examples

collapse all

Create an incremental learning model by converting a traditionally trained kernel model, and predict responses using both models.

Load the 2015 NYC housing data set. For more details on the data, see NYC Open Data.

`load NYCHousing2015`

Extract the response variable `SALEPRICE` from the table. For numerical stability, scale `SALEPRICE` by `1e6`.

```Y = NYCHousing2015.SALEPRICE/1e6; NYCHousing2015.SALEPRICE = [];```

To reduce computational cost for this example, remove the `NEIGHBORHOOD` column, which contains a categorical variable with 254 categories.

`NYCHousing2015.NEIGHBORHOOD = [];`

Create dummy variable matrices from the other categorical predictors.

```catvars = ["BOROUGH","BUILDINGCLASSCATEGORY"]; dumvarstbl = varfun(@(x)dummyvar(categorical(x)),NYCHousing2015, ... InputVariables=catvars); dumvarmat = table2array(dumvarstbl); NYCHousing2015(:,catvars) = [];```

Treat all other numeric variables in the table as predictors of sales price. Concatenate the matrix of dummy variables to the rest of the predictor data.

```idxnum = varfun(@isnumeric,NYCHousing2015,OutputFormat="uniform"); X = [dumvarmat NYCHousing2015{:,idxnum}];```

Fit a kernel regression model to the entire data set.

`Mdl = fitrkernel(X,Y)`
```Mdl = RegressionKernel ResponseName: 'Y' Learner: 'svm' NumExpansionDimensions: 2048 KernelScale: 1 Lambda: 1.0935e-05 BoxConstraint: 1 Epsilon: 0.0549 Properties, Methods ```

`Mdl` is a `RegressionKernel` model object representing a traditionally trained kernel regression model.

Convert the traditionally trained kernel regression model to a model for incremental learning.

`IncrementalMdl = incrementalLearner(Mdl)`
```IncrementalMdl = incrementalRegressionKernel IsWarm: 1 Metrics: [1x2 table] ResponseTransform: 'none' NumExpansionDimensions: 2048 KernelScale: 1 Properties, Methods ```

`IncrementalMdl` is an `incrementalRegressionKernel` model object prepared for incremental learning.

The `incrementalLearner` function initializes the incremental learner by passing model parameters to it, along with other information `Mdl` extracted from the training data. `IncrementalMdl` is warm (`IsWarm` is `1`), which means that incremental learning functions can start tracking performance metrics.

An incremental learner created from converting a traditionally trained model can generate predictions without further processing.

Predict sales prices for all observations using both models.

```ttyfit = predict(Mdl,X); ilyfit = predict(IncrementalMdl,X); compareyfit = norm(ttyfit - ilyfit)```
```compareyfit = 0 ```

The difference between the fitted values generated by the models is 0.

To compute posterior class probabilities, specify a logistic regression incremental learner.

Load the human activity data set. Randomly shuffle the data.

```load humanactivity n = numel(actid); rng(10) % For reproducibility idx = randsample(n,n); X = feat(idx,:); Y = actid(idx);```

For details on the data set, enter `Description` at the command line.

Responses can be one of five classes: Sitting, Standing, Walking, Running, or Dancing. Dichotomize the response by identifying whether the subject is moving (`actid` > 2).

`Y = Y > 2;`

Create an incremental logistic regression model for binary classification. Prepare it for `predict` by fitting the model to the first 10 observations.

```Mdl = incrementalClassificationKernel(Learner="logistic"); initobs = 10; Mdl = fit(Mdl,X(1:initobs,:),Y(1:initobs));```

`Mdl` is an `incrementalClassificationKernel` model. All its properties are read-only.

Simulate a data stream, and perform the following actions on each incoming chunk of 50 observations:

1. Call `predict` to predict classification scores for the observations in the incoming chunk of data. The classification scores are posterior class probabilities for logistic regression learners.

2. Call `rocmetrics` to compute the area under the ROC curve (AUC) using the classification scores, and store the result.

3. Call `fit` to fit the model to the incoming chunk. Overwrite the previous incremental model with a new one fitted to the incoming observations.

```numObsPerChunk = 50; nchunk = floor((n - initobs)/numObsPerChunk); auc = zeros(nchunk,1); % Incremental learning for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1 + initobs); iend = min(n,numObsPerChunk*j + initobs); idx = ibegin:iend; [~,posteriorProb] = predict(Mdl,X(idx,:)); mdlROC = rocmetrics(Y(idx),posteriorProb,Mdl.ClassNames); auc(j) = mdlROC.AUC(2); Mdl = fit(Mdl,X(idx,:),Y(idx)); end```

`Mdl` is an `incrementalClassificationKernel` model object trained on all the data in the stream.

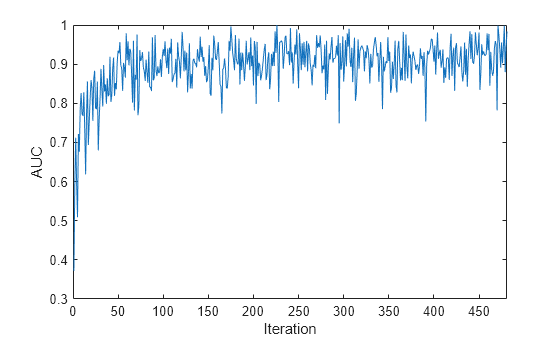

Plot the AUC for the incoming chunks of data.

```plot(auc) xlim([0 nchunk]) ylabel("AUC") xlabel("Iteration")```

The plot suggests that the classifier predicts moving subjects well during incremental learning.

## Input Arguments

collapse all

Incremental learning model, specified as an `incrementalClassificationKernel` or `incrementalRegressionKernel` model object. You can create `Mdl` directly or by converting a supported, traditionally trained machine learning model using the `incrementalLearner` function. For more details, see the corresponding reference page.

You must configure `Mdl` to predict labels for a batch of observations.

Batch of predictor data, specified as a floating-point matrix of n observations and `Mdl.NumPredictors` predictor variables.

Note

`predict` supports only floating-point input predictor data. If your input data includes categorical data, you must prepare an encoded version of the categorical data. Use `dummyvar` to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors. For more details, see Dummy Variables.

Data Types: `single` | `double`

## Output Arguments

collapse all

Predicted responses (labels), returned as a categorical or character array; floating-point, logical, or string vector; or cell array of character vectors with n rows. n is the number of observations in `X`, and `label(j)` is the predicted response for observation `j`.

• For classification problems, `label` has the same data type as the class names stored in `Mdl.ClassNames`. (The software treats string arrays as cell arrays of character vectors.)

• For regression problems, `label` is a floating-point vector.

Classification scores, returned as an n-by-2 floating-point matrix when `Mdl` is an `incrementalClassificationKernel` model. n is the number of observations in `X`. `score(j,k)` is the score for classifying observation `j` into class `k`. `Mdl.ClassNames` specifies the order of the classes.

If `Mdl.Learner` is `'svm'`, `predict` returns raw classification scores. If `Mdl.Learner` is `'logistic'`, classification scores are posterior probabilities.

collapse all

### Classification Score

For kernel incremental learning models for binary classification, the raw classification score for classifying the observation x, a row vector, into the positive class (second class in `Mdl.ClassNames`) is

`$f\left(x\right)={\beta }_{0}+T\left(x\right)\beta ,$`

where

• $T\left(·\right)$ is a transformation of an observation for feature expansion.

• β0 is the scalar bias.

• β is the column vector of coefficients.

The raw classification score for classifying x into the negative class (first class in `Mdl.ClassNames`) is –f(x). The software classifies observations into the class that yields the positive score.

If the kernel classification model consists of logistic regression learners, then the software applies the `"logit"` score transformation to the raw classification scores.

## Version History

Introduced in R2022a
