Autoregressive all-pole model parameters — Yule-Walker method


a = aryule(x,p)
[a,e] = aryule(x,p)
[a,e,rc] = aryule(x,p)


a = aryule(x,p) returns the normalized autoregressive (AR) parameters corresponding to a model of order p for the input array, x. If x is a vector, then the output array, a, is a row vector. If x is a matrix, then the parameters along the nth row of a model the nth column of x. a has p + 1 columns. p must be less than the number of elements (or rows) of x.

[a,e] = aryule(x,p) returns the estimated variance, e, of the white noise input.

[a,e,rc] = aryule(x,p) returns the reflection coefficients in rc.


collapse all

Use a vector of polynomial coefficients to generate an AR(4) process by filtering 1024 samples of white noise. Reset the random number generator for reproducible results. Use the Yule-Walker method to estimate the coefficients.

rng default

A = [1 -2.7607 3.8106 -2.6535 0.9238];

y = filter(1,A,0.2*randn(1024,1));

arcoeffs = aryule(y,4)
arcoeffs = 1×5

    1.0000   -2.7262    3.7296   -2.5753    0.8927

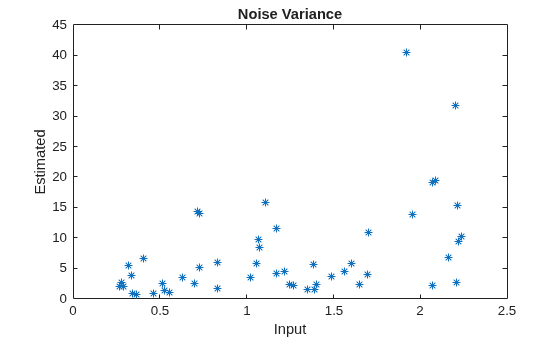

Generate 50 realizations of the process, changing each time the variance of the input noise. Compare the Yule-Walker-estimated variances to the actual values.

nrealiz = 50;

noisestdz = rand(1,nrealiz)+0.5;

randnoise = randn(1024,nrealiz);

for k = 1:nrealiz
    y = filter(1,A,noisestdz(k) * randnoise(:,k));
    [arcoeffs,noisevar(k)] = aryule(y,4);

title('Noise Variance')

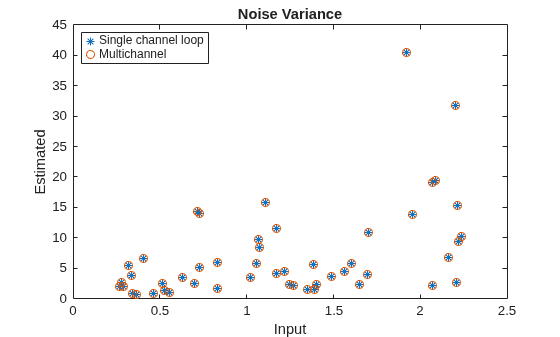

Repeat the procedure using aryule's multichannel syntax.

realiz = bsxfun(@times,noisestdz,randnoise);

Y = filter(1,A,realiz);

[coeffs,variances] = aryule(Y,4);

hold on

q = legend('Single channel loop','Multichannel');
q.Location = 'best';

Use a vector of polynomial coefficients to generate an AR(2) process by filtering 1024 samples of white noise. Reset the random number generator for reproducible results.

rng default

y = filter(1,[1 -0.75 0.5],0.2*randn(1024,1));

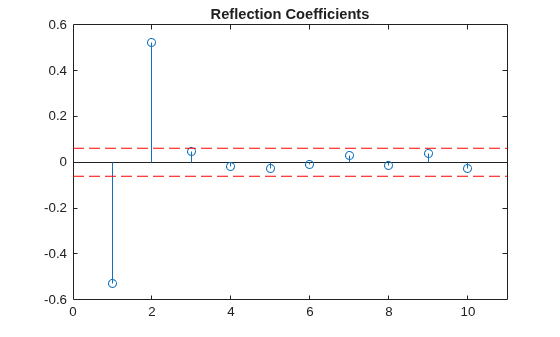

Use the Yule-Walker method to fit an AR(10) model to the process. Output and plot the reflection coefficients.

[ar_coeffs,NoiseVariance,reflect_coeffs] = aryule(y,10);

axis([-0.05 10.5 -1 1])
title('Reflection Coefficients by Lag')

The reflection coefficients decay to zero after lag 2, which indicates that an AR(10) model significantly overestimates the time dependence in the data.

More About

collapse all

AR(p) Model

In an AR model of order p, the current output is a linear combination of the past p outputs plus a white noise input. The weights on the p past outputs minimize the mean-square prediction error of the autoregression. If y(n) is the current value of the output and x(n) is a zero-mean white noise input, the AR(p) model is:


Reflection Coefficients

The reflection coefficients are the partial autocorrelation coefficients scaled by –1. The reflection coefficients indicate the time dependence between y(n) and y(n – k) after subtracting the prediction based on the intervening k – 1 time steps.


aryule uses the Levinson-Durbin recursion on the biased estimate of the sample autocorrelation sequence to compute the parameters.


[1] Hayes, Monson H. Statistical Digital Signal Processing and Modeling. New York: John Wiley & Sons, 1996.

Introduced before R2006a
