# ulinearize

Linearize Simulink model with Uncertain State Space block

## Syntax

``ulin = ulinearize(mdl,io)``
``ulin = ulinearize(mdl,io,op)``
``ulin = ulinearize(mdl,op,blockname)``
``ulin = ulinearize(___,'StateOrder',stateorder)``
``ulin = ulinearize(___,options)``

## Description

example

````ulin = ulinearize(mdl,io)` linearizes the Simulink® model `mdl`, at the operating point specified in the model, using the analysis points specified by `io`. If you omit `io`, then `ulinearize` uses the root-level input and output ports in `mdl`. The function returns a `uss` model object `ulin` that represents the uncertain model response at those analysis points. `ulin` contains all the uncertain elements referenced by Uncertain State Space blocks in the linearization path.```
````ulin = ulinearize(mdl,io,op)` linearizes the model at operating point specified by `op`. This operating point can be an `OperatingPoint` object, a simulation snapshot time, or a vector of simulation snapshot times.```
````ulin = ulinearize(mdl,op,blockname)` returns the uncertain linearization of the Uncertain State Space block with the path specified by `blockname`.```
````ulin = ulinearize(___,'StateOrder',stateorder)` specifies the order of the non-uncertain states in the returned `uss` model. Specify the state order by listing them in the cell array `stateorder`. You can use this syntax with any of the previous input-argument combinations.```
````ulin = ulinearize(___,options)` uses additional options when computing the linearization. Specify the options using `linearizeOptions` (Simulink Control Design). ```

## Examples

collapse all

Compute an uncertain linearization of a Simulink® model containing Uncertain State Space blocks. The `model rct_ulinearize_uss` has three such blocks, each of which references an uncertain `uss` model in its Uncertain system variable parameter:

• Unmodeled Plant Dynamics — references `input_unc`

• Uncertain Plant — references `plant`

• Uncertain Sensor — references `sensor`

Create these uncertain `uss` models.

```wt = makeweight(0.25,130,2.5); input_unc = ultidyn("input_unc",[1 1]); unc_pole = ureal("unc_pole",-5,"Range",[-10 -4]); plant = ss(unc_pole,5,1,0); sensor_pole = ureal("sensor_pole",-20,"Range",[-30 -10]); sensor = tf(1,[1/(-sensor_pole) 1]);```

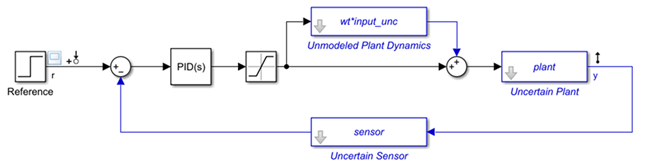

Open the model.

```mdl = "rct_ulinearize_uss"; open_system(mdl)```

The model also contains predefined linearization analysis points, an additive input point at the signal `r` and an output point at the signal `y`. Extract these points from the model in a linearization I/O object.

`io = getlinio(mdl);`

Compute the uncertain linearization of the model. If you do not specify a linearization operating point, `ulinearize` uses the current operating point of the model.

`ulin = ulinearize(mdl,io);`

The resulting `ulin` is a `uss` model object representing the uncertain response of the model from `r` to `y`. The `uss` model contains all the uncertain variables referenced in the three Uncertain State Space blocks.

`ulin`
```Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 5 states. The model uncertainty consists of the following blocks: input_unc: Uncertain 1x1 LTI, peak gain = 1, 1 occurrences sensor_pole: Uncertain real, nominal = -20, range = [-30,-10], 1 occurrences unc_pole: Uncertain real, nominal = -5, range = [-10,-4], 1 occurrences Type "ulin.NominalValue" to see the nominal value and "ulin.Uncertainty" to interact with the uncertain elements. ```

## Input Arguments

collapse all

Simulink model name, specified as a character vector or string. The model must be in the current working folder or on the MATLAB® path.

Analysis points for linearizing the model, specified as a linearization I/O object or a vector of linearization I/O objects that represent inputs, outputs, and loop openings for linearization: To create `io`:

• Define the inputs, outputs, and openings using the `linio` (Simulink Control Design) function.

• If the inputs, outputs, and openings are specified in the Simulink model, extract these points from the model using the `getlinio` (Simulink Control Design) function.

If you omit `io`, then `linearize` uses the root-level inports and outports of the model as analysis points.

For more information on specifying linearization inputs, outputs, and openings, see Specify Portion of Model to Linearize (Simulink Control Design).

Operating point for linearization, specified as one of the following:

• `OperatingPoint` object, created using:

• Array of `OperatingPoint` objects, specifying multiple operating points. To create an array of `OperatingPoint` objects, you can:

• Vector of positive scalars representing one or more simulation snapshot times. The software simulates `sys` and linearizes the model at the specified snapshot times.

Path to block to linearize, specified as a string or character vector.

State order in linearization results, specified as a cell array of block paths or state names. The order of the block paths and states in `stateorder` determines the order of the states in `usys`. Specify the state order as a cell array who cells contain the names of the blocks containing states in the model. For all blocks, you can enter block names as the full block path. For continuous blocks, you can alternatively enter block names as the user-defined unique state name.

You can specify block paths for any blocks in `mdl` that have states, or any named states in `mdl`. You do not have to specify every block and state from `mdl` in `stateorder`. The states you specify appear first in `usys`, followed by the remaining states in their default order.

Linearization algorithm options, specified as a `linearizeOptions` (Simulink Control Design) option set.

## Output Arguments

collapse all

Uncertain linearization result, returned as a `uss` model or an array of `uss` models (if you specify an array of operating points). `ulin` represents the uncertain model response at the specified operating point and analysis points. `ulin` contains all the uncertain elements referenced by Uncertain State Space blocks in the linearization path.

## Version History

Introduced in R2009b
