plot
ニューラル ネットワーク アーキテクチャのプロット
説明
plot(
は、層グラフ lgraph
)lgraph
のダイアグラムをプロットします。関数 plot
は、各層に名前でラベルを付け、すべての層の接続を表示します。
ヒント
対話形式でネットワークを可視化してネットワーク アーキテクチャを解析するには、deepNetworkDesigner(lgraph)
を使用します。詳細については、ディープ ネットワーク デザイナーを参照してください。
例
層グラフのプロット
層の配列から層グラフを作成します。'relu_1'
層を 'add'
層に接続します。
layers = [ imageInputLayer([32 32 3],'Name','input') convolution2dLayer(3,16,'Padding','same','Name','conv_1') batchNormalizationLayer('Name','BN_1') reluLayer('Name','relu_1') convolution2dLayer(3,16,'Padding','same','Stride',2,'Name','conv_2') batchNormalizationLayer('Name','BN_2') reluLayer('Name','relu_2') additionLayer(2,'Name','add')]; lgraph = layerGraph(layers); lgraph = connectLayers(lgraph,'relu_1','add/in2');

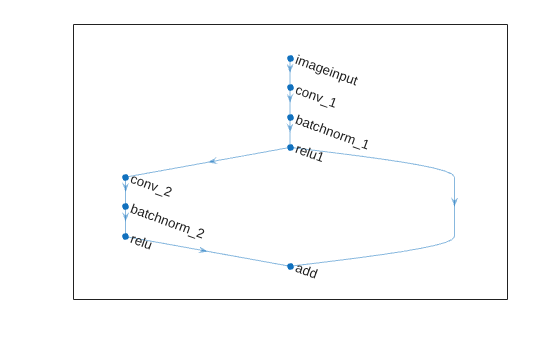

層グラフをプロットします。
figure plot(lgraph);
DAG ネットワークのプロット
事前学習済みの GoogLeNet 畳み込みニューラル ネットワークを DAGNetwork
オブジェクトとして読み込みます。Deep Learning Toolbox™ Model for GoogLeNet Network サポート パッケージがインストールされていない場合、ダウンロード用リンクが表示されます。
net = googlenet
net = DAGNetwork with properties: Layers: [144×1 nnet.cnn.layer.Layer] Connections: [170×2 table]
ネットワークをプロットします。
figure('Units','normalized','Position',[0.1 0.1 0.8 0.8]); plot(net)
系列ネットワークのプロット
事前学習済みの AlexNet 畳み込みニューラル ネットワークを SeriesNetwork
オブジェクトとして読み込みます。Deep Learning Toolbox™ Model "for AlexNet Network" サポート パッケージがインストールされていない場合、ダウンロード用リンクが表示されます。
net = alexnet
net = SeriesNetwork with properties: Layers: [25x1 nnet.cnn.layer.Layer] InputNames: {'data'} OutputNames: {'output'}
ネットワークをプロットします。
plot(net)
入力引数
lgraph
— 層グラフ
LayerGraph
オブジェクト
層グラフ。LayerGraph
オブジェクトとして指定します。層グラフを作成するには、layerGraph
を使用します。
net
— 深層学習ネットワーク
SeriesNetwork
オブジェクト | DAGNetwork
オブジェクト | dlnetwork
オブジェクト
深層学習ネットワーク。SeriesNetwork
オブジェクト、DAGNetwork
オブジェクト、または dlnetwork
オブジェクトとして指定します。
バージョン履歴
R2017b で導入
