Preprocess audio for VGGish feature extraction

Since R2021a



    features = vggishPreprocess(audioIn,fs) generates mel spectrograms from audioIn that can be fed to the VGGish pretrained network.

    features = vggishPreprocess(audioIn,fs,'OverlapPercentage',OP) specifies the overlap percentage between consecutive audio frames.

    For example, vggishPreprocess(audioIn,fs,'OverlapPercentage',75) applies a 75% overlap between consecutive frames used to generate the spectrograms.


    collapse all

    Read in an audio signal to extract feature embeddings from it.

    [audioIn,fs] = audioread("Ambiance-16-44p1-mono-12secs.wav");

    Plot and listen to the audio signal.

    t = (0:numel(audioIn)-1)/fs;
    xlabel("Time (s)")
    axis tight

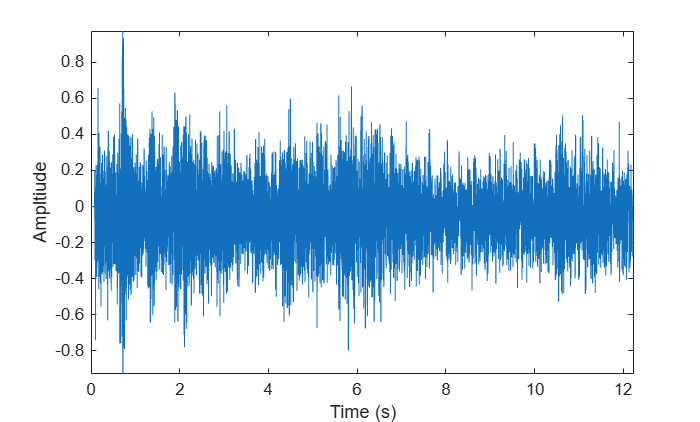

    Figure contains an axes object. The axes object with xlabel Time (s), ylabel Ampltiude contains an object of type line.


    VGGish requires you to preprocess the audio signal to match the input format used to train the network. The preprocesssing steps include resampling the audio signal and computing an array of mel spectrograms. To learn more about mel spectrograms, see melSpectrogram. Use vggishPreprocess to preprocess the signal and extract the mel spectrograms to be passed to VGGish. Visualize one of these spectrograms chosen at random.

    spectrograms = vggishPreprocess(audioIn,fs);
    arbitrarySpect = spectrograms(:,:,1,randi(size(spectrograms,4)));
    xlabel("Mel Band")
    title("Mel Spectrogram for VGGish")
    axis tight

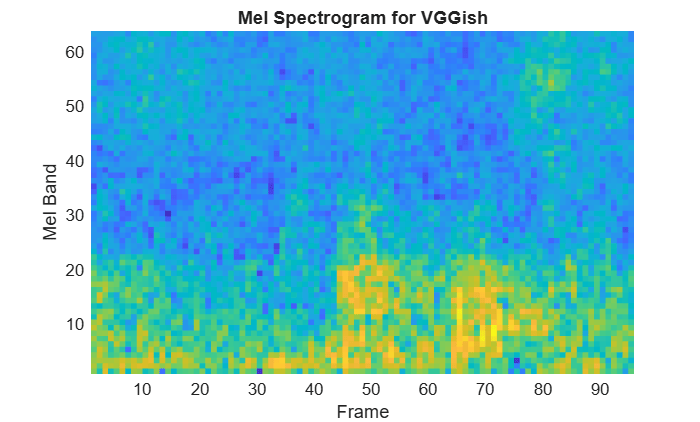

    Figure contains an axes object. The axes object with title Mel Spectrogram for VGGish, xlabel Mel Band, ylabel Frame contains an object of type surface.

    Create a VGGish neural network using the audioPretrainedNetwork function.

    net = audioPretrainedNetwork("vggish");

    Call predict with the network on the preprocessed mel spectrogram images to extract feature embeddings. The feature embeddings are returned as a numFrames-by-128 matrix, where numFrames is the number of individual spectrograms and 128 is the number of elements in each feature vector.

    features = predict(net,spectrograms);
    [numFrames,numFeatures] = size(features)
    numFrames = 24
    numFeatures = 128

    Visualize the VGGish feature embeddings.

    view([90 -90])
    title("VGGish Feature Embeddings")
    axis tight

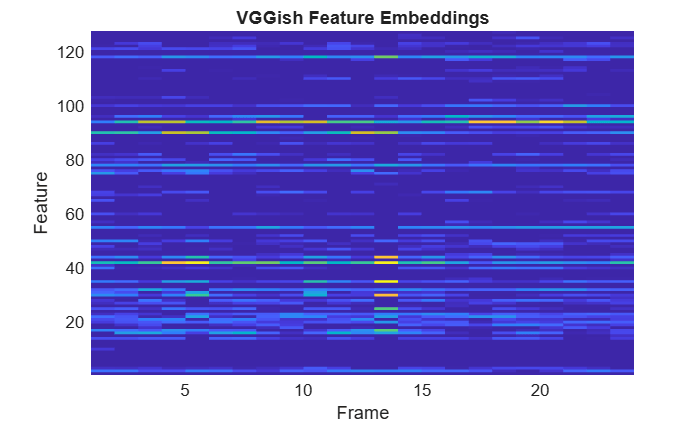

    Figure contains an axes object. The axes object with title VGGish Feature Embeddings, xlabel Feature, ylabel Frame contains an object of type surface.

    In this example, you transfer the learning in the VGGish regression model to an audio classification task.

    Download and unzip the environmental sound classification data set. This data set consists of recordings labeled as one of 10 different audio sound classes (ESC-10).

    downloadFolder = matlab.internal.examples.downloadSupportFile("audio","");
    dataLocation = fullfile(tempdir,"ESC-10");

    Create an audioDatastore object to manage the data and split it into train and validation sets. Call countEachLabel to display the distribution of sound classes and the number of unique labels.

    ads = audioDatastore(dataLocation,IncludeSubfolders=true,LabelSource="foldernames");
    labelTable = countEachLabel(ads)
    labelTable=10×2 table
            Label         Count
        ______________    _____
        chainsaw           40
        clock_tick         40
        crackling_fire     40
        crying_baby        40
        dog                40
        helicopter         40
        rain               40
        rooster            38
        sea_waves          40
        sneezing           40

    Determine the total number of classes and their names.

    numClasses = height(labelTable);
    classNames = unique(ads.Labels);

    Call splitEachLabel to split the data set into train and validation sets. Inspect the distribution of labels in the training and validation sets.

    [adsTrain, adsValidation] = splitEachLabel(ads,0.8);
    ans=10×2 table
            Label         Count
        ______________    _____
        chainsaw           32
        clock_tick         32
        crackling_fire     32
        crying_baby        32
        dog                32
        helicopter         32
        rain               32
        rooster            30
        sea_waves          32
        sneezing           32
    ans=10×2 table
            Label         Count
        ______________    _____
        chainsaw            8
        clock_tick          8
        crackling_fire      8
        crying_baby         8
        dog                 8
        helicopter          8
        rain                8
        rooster             8
        sea_waves           8
        sneezing            8

    The VGGish network expects audio to be preprocessed into log mel spectrograms. Use vggishPreprocess to extract the spectrograms from the train set. There are multiple spectrograms for each audio signal. Replicate the labels so that they are in one-to-one correspondence with the spectrograms.

    overlapPercentage = 75;
    trainFeatures = [];
    trainLabels = [];
    while hasdata(adsTrain)
        [audioIn,fileInfo] = read(adsTrain);
        features = vggishPreprocess(audioIn,fileInfo.SampleRate,OverlapPercentage=overlapPercentage);
        numSpectrograms = size(features,4);
        trainFeatures = cat(4,trainFeatures,features);
        trainLabels = cat(2,trainLabels,repelem(fileInfo.Label,numSpectrograms));

    Extract spectrograms from the validation set and replicate the labels.

    validationFeatures = [];
    validationLabels = [];
    segmentsPerFile = zeros(numel(adsValidation.Files), 1);
    idx = 1;
    while hasdata(adsValidation)
        [audioIn,fileInfo] = read(adsValidation);
        features = vggishPreprocess(audioIn,fileInfo.SampleRate,OverlapPercentage=overlapPercentage);
        numSpectrograms = size(features,4);
        validationFeatures = cat(4,validationFeatures,features);
        validationLabels = cat(2,validationLabels,repelem(fileInfo.Label,numSpectrograms));
        segmentsPerFile(idx) = numSpectrograms;
        idx = idx + 1;

    Load the VGGish model and using audioPretrainedNetwork.

    net = audioPretrainedNetwork("vggish");

    Use addLayers (Deep Learning Toolbox) to add a fullyConnectedLayer (Deep Learning Toolbox) and a softmaxLayer (Deep Learning Toolbox) to the network. Set the WeightLearnRateFactor and BiasLearnRateFactor of the new fully connected layer to 10 so that learning is faster in the new layer than in the transferred layers.

    net = addLayers(net,[ ...

    Use connectLayers (Deep Learning Toolbox) to append the fully connected and softmax layers to the network.

    net = connectLayers(net,"EmbeddingBatch","FCFinal");

    To define training options, use trainingOptions (Deep Learning Toolbox).

    miniBatchSize = 128;
    options = trainingOptions("adam", ...
        MaxEpochs=5, ...
        MiniBatchSize=miniBatchSize, ...
        Shuffle="every-epoch", ...
        ValidationData={validationFeatures,validationLabels'}, ...
        ValidationFrequency=50, ...
        LearnRateSchedule="piecewise", ...
        LearnRateDropFactor=0.5, ...
        LearnRateDropPeriod=2, ...
        OutputNetwork="best-validation-loss", ...
        Verbose=false, ...

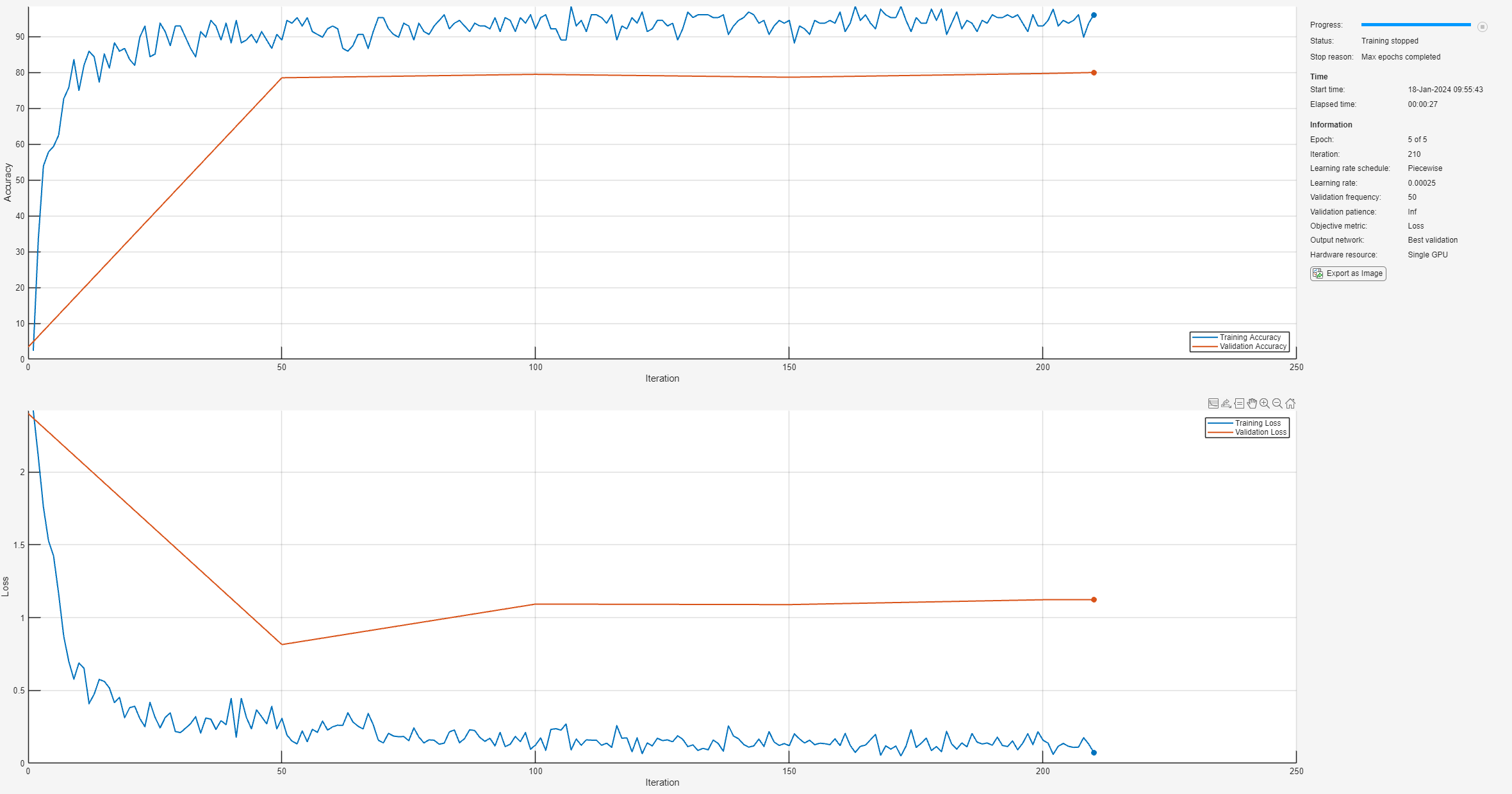

    To train the network, use trainnet.

    [trainedNet,netInfo] = trainnet(trainFeatures,trainLabels',net,"crossentropy",options);

    Each audio file was split into several segments to feed into the VGGish network. Combine the predictions for each file in the validation set using a majority-rule decision.

    scores = predict(trainedNet,validationFeatures);
    validationPredictions = scores2label(scores,classNames);
    idx = 1;
    validationPredictionsPerFile = categorical;
    for ii = 1:numel(adsValidation.Files)
        validationPredictionsPerFile(ii,1) = mode(validationPredictions(idx:idx+segmentsPerFile(ii)-1));
        idx = idx + segmentsPerFile(ii);

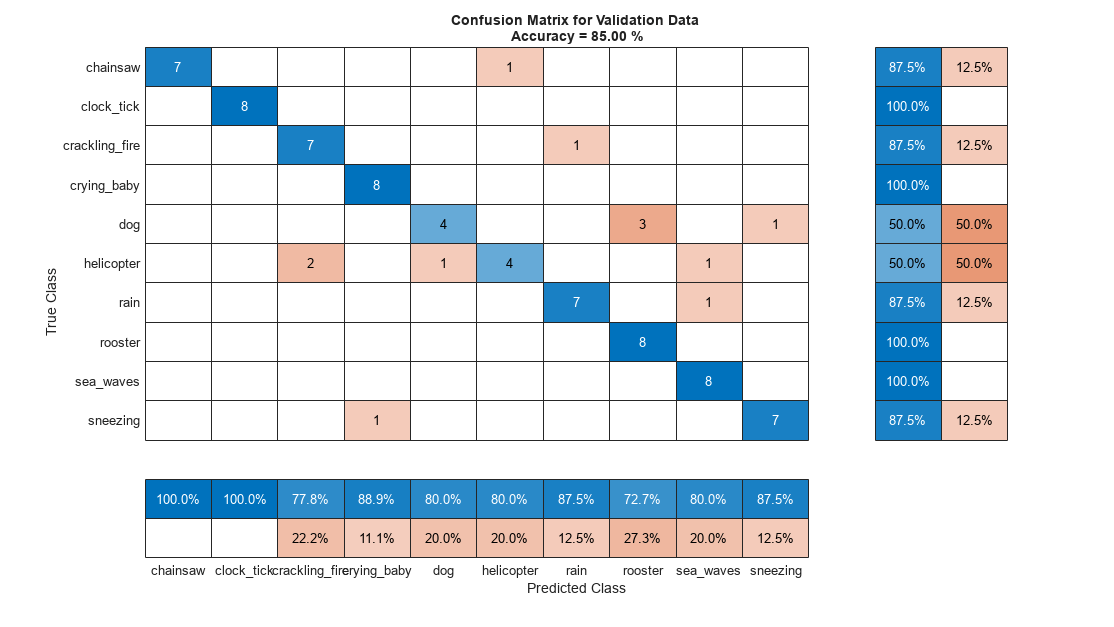

    Use confusionchart (Deep Learning Toolbox) to evaluate the performance of the network on the validation set.

    figure(Units="normalized",Position=[0.2 0.2 0.5 0.5]);
    confusionchart(adsValidation.Labels,validationPredictionsPerFile, ...
        Title=sprintf("Confusion Matrix for Validation Data \nAccuracy = %0.2f %%",mean(validationPredictionsPerFile==adsValidation.Labels)*100), ...
        ColumnSummary="column-normalized", ...

    MATLAB figure

    Input Arguments

    collapse all

    Input signal, specified as a column vector or matrix. If you specify a matrix, vggishPreprocess treats the columns of the matrix as individual audio channels.

    Data Types: single | double

    Sample rate of the input signal in Hz, specified as a positive scalar.

    Data Types: single | double

    Percentage overlap between consecutive mel spectrograms, specified as a scalar in the range [0,100).

    Data Types: single | double

    Output Arguments

    collapse all

    Mel spectrograms generated from audioIn, returned as a 96-by-64-by-1-by-K array, where:

    • 96 –– Represents the number of 25 ms frames in each mel spectrogram.

    • 64 –– Represents the number of mel bands spanning 125 Hz to 7.5 kHz.

    • K –– Represents the number of mel spectrograms and depends on the length of audioIn, the number of channels in audioIn, as well as OverlapPercentage.


      Each 96-by-64-by-1 patch represents a single mel spectrogram image. For multichannel inputs, mel spectrograms are stacked along the 4th dimension.

    Data Types: single


    [1] Gemmeke, Jort F., et al. “Audio Set: An Ontology and Human-Labeled Dataset for Audio Events.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 776–80. (Crossref),doi:10.1109/ICASSP.2017.7952261.

    [2] Hershey, Shawn, et al. “CNN Architectures for Large-Scale Audio Classification.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 131–35. (Crossref), doi:10.1109/ICASSP.2017.7952132.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2021a
