wpcoef
ウェーブレット パケット係数
説明
wpcoef
は、1 次元または 2 次元のウェーブレット パケット解析関数です。
例
ウェーブレット パケット係数の取得
1 次元信号を読み込みます。現在の拡張モードを保存します。
load noisdopp x = noisdopp; origMode = dwtmode('status','nodisp');
dwtmode
を使用して拡張モードをゼロ パディングに変更します。db1
ウェーブレットを使用して、信号のレベル 3 ウェーブレット パケット分解に対応するウェーブレット パケット ツリー オブジェクトを取得します。ツリーをプロットします。
dwtmode('zpd','nodisp') wpt = wpdec(x,3,"db1"); plot(wpt)

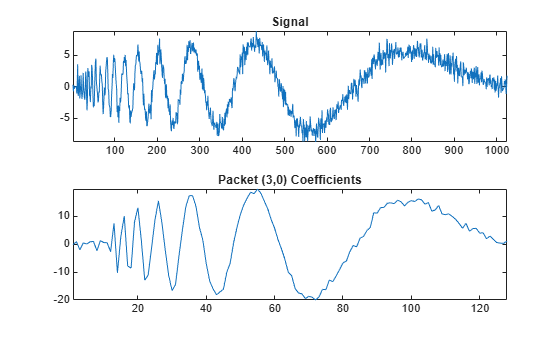

ノード (3,0) で係数を取得します。信号と係数をプロットします。
cfs = wpcoef(wpt,[3 0]); subplot(2,1,1) plot(x) title('Signal') axis tight subplot(2,1,2) plot(cfs) title('Packet (3,0) Coefficients') axis tight
イメージを読み込みます。sym4
ウェーブレットを使用して、イメージのレベル 1 ウェーブレット パケット分解に対応するウェーブレット パケット ツリーを取得します。
load woman2 t = wpdec2(X,1,'sym4');

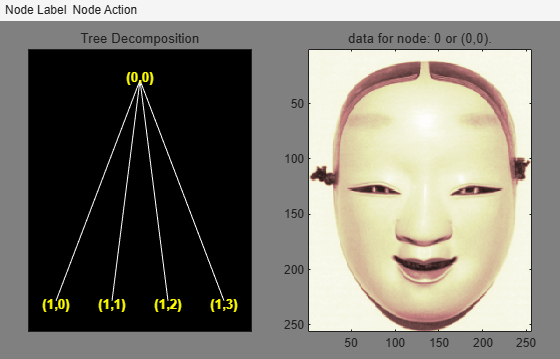

ツリーをプロットします。
plot(t)

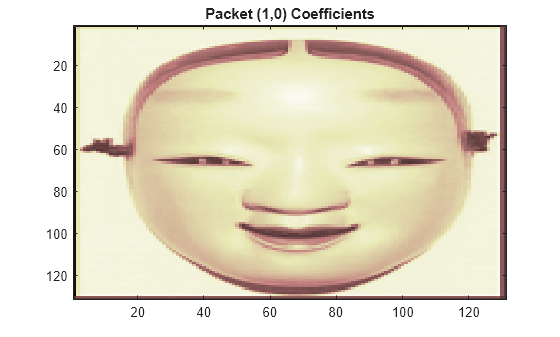

ノード (1,0) で係数を取得します。係数をプロットします。
cfs = wpcoef(t,[1 0]);
figure
imagesc(cfs)
title('Packet (1,0) Coefficients')
colormap(pink)
拡張モードを元の設定に戻します。
dwtmode(origMode,'nodisp')
入力引数
出力引数
x
— ノード係数
ベクトル | 行列
ノード係数。ベクトルまたは行列として返されます。
データ型: double
バージョン履歴
R2006a より前に導入
