plannerPRM

Create probabilistic roadmap path planner

    Description

    The probabilistic roadmap path planner constructs a roadmap without start and goal states. Use the plan function to find an obstacle-free path between the specified start and goal states. If the plan function does not find a connected path between the start and the goal states, it returns an empty path.

    Creation

    Description

    example

    planner = plannerPRM(stateSpace,stateVal) creates a PRM planner from a state space object, stateSpace, and a state validator object, stateVal. The state space of stateVal must be the same as stateSpace. stateSpace and stateVal also sets the StateSpace and StateValidator properties, respectively, of the planner.

    planner = plannerPRM(___,Name=Value) sets properties using one or more name-value pair arguments in addition to the input arguments in the previous syntax. You can specify the MaxNumNodes or MaxConnectionDistance properties as name-value pairs.

    Properties

    expand all

    State space for the planner, specified as a state space object. You can use state space objects such as stateSpaceSE2, stateSpaceDubins, and stateSpaceReedsShepp. You can also customize a state space object using the nav.StateSpace object.

    State validator for the planner, specified as a state validator object. You can use state validator objects such as validatorOccupancyMap and validatorVehicleCostmap. You can also customize a state validator object using the nav.StateValidator object.

    Maximum number of nodes in the graph, specified as a positive scalar. By increasing this value, the chance of finding a path increases while also increasing the computation time for the path planner.

    Maximum distance between two connected nodes, specified as a positive scalar in meters. Nodes with distance greater than this value will not be connected in the graph.

    Object Functions

    copyCreate deep copy of plannerPRM object
    graphDataRetrieve graph as digraph object
    planPlan path between start and goal states on roadmap

    Examples

    collapse all

    Create an occupancy map from an example map and set the map resolution as 10 cells/meter.

    map = load("exampleMaps.mat").simpleMap;
    map = occupancyMap(map,10);

    Create a state space and update the state space bounds to be the same as the map limits.

    ss = stateSpaceSE2;
    ss.StateBounds = [map.XWorldLimits; map.YWorldLimits; [-pi pi]];

    Create a state validator with stateSpaceSE2 using the map and set the validation distance.

    sv = validatorOccupancyMap(ss,Map=map);
    sv.ValidationDistance = 0.01;

    Create a plannerPRM object.

    planner = plannerPRM(ss,sv);

    Retrieve graph as a digraph object.

    graph = graphData(planner);

    Extract nodes and edges from graph.

    edges = table2array(graph.Edges);
    nodes = table2array(graph.Nodes);

    Specify the start and goal states.

    start = [0.5 0.5 0];
    goal = [2.5 0.2 0];

    Plot map and graph.

    show(sv.Map)
    hold on
    plot(nodes(:,1),nodes(:,2),"*","Color","b","LineWidth",2)
    for i = 1:size(edges,1)
        % Samples states at distance 0.02 meters.
        states = interpolate(ss,nodes(edges(i,1),:), ...
                             nodes(edges(i,2),:),0:0.02:1);
        plot(states(:,1),states(:,2),"Color","b")
    end
    plot(start(1),start(2),"*","Color","g","LineWidth",3)
    plot(goal(1),goal(2),"*","Color","r","LineWidth",3)

    Plan a path with default settings. Set the rng seed for repeatability.

    rng(100,"twister");
    [pthObj, solnInfo] = plan(planner,start,goal);

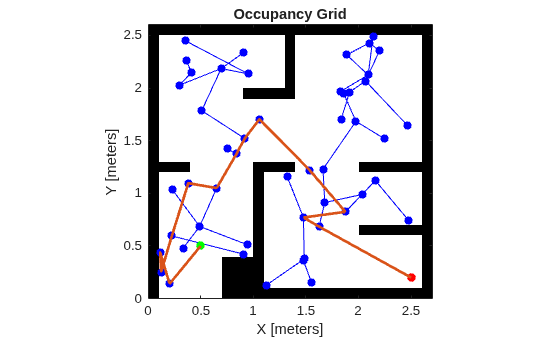

    Visualize the results.

    if solnInfo.IsPathFound
        interpolate(pthObj,1000);
        plot(pthObj.States(:,1),pthObj.States(:,2), ...
             "Color",[0.85 0.325 0.098],"LineWidth",2)
    else
        disp("Path not found")
    end
    hold off

    Figure contains an axes object. The axes object with title Occupancy Grid contains 103 objects of type image, line.

    Load a 3-D occupancy map of a city block into the workspace. Specify the threshold to consider cells as obstacle-free.

    mapData = load("dMapCityBlock.mat");
    omap = mapData.omap;
    omap.FreeThreshold = 0.5;

    Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.

    inflate(omap,1)

    Create an SE(3) state space object with bounds for state variables.

    ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);

    Create a 3-D occupancy map state validator using the created state space. Assign the occupancy map to the state validator object. Specify the sampling distance interval.

    sv = validatorOccupancyMap3D(ss, ...
         Map = omap, ...
         ValidationDistance = 0.1);

    Create a probabilistic roadmap path planner with increased maximum connection distance.

    planner = plannerPRM(ss,sv);

    Specify start and goal poses.

    start = [40 180 25 0.7 0.2 0 0.1];
    goal = [150 33 35 0.3 0 0.1 0.6];

    Configure the random number generator for repeatable result.

    rng(1,"twister");

    Plan the path.

    [pthObj,solnInfo] = plan(planner,start,goal);

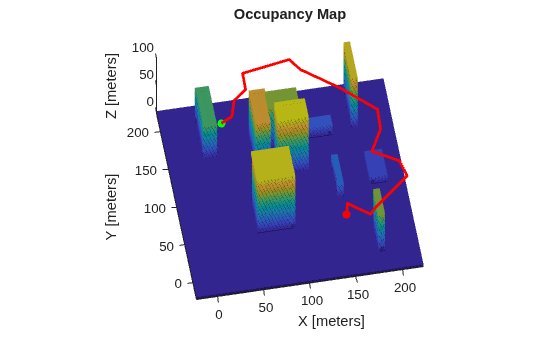

    Visualize the planned path.

    show(omap)
    axis equal
    view([-10 55])
    hold on
    % Start state
    scatter3(start(1,1),start(1,2),start(1,3),"g","filled")
    % Goal state
    scatter3(goal(1,1),goal(1,2),goal(1,3),"r","filled")
    % Path
    plot3(pthObj.States(:,1),pthObj.States(:,2),pthObj.States(:,3), ...
          "r-",LineWidth=2)

    References

    [1] L.E. Kavraki, P. Svestka, J.C. Latombe, M.H. Overmars, "Probabilistic roadmaps for path planning in high-dimensional configuration spaces," IEEE Transactions on Robotics and Automation, Vol. 12, No. 4, pp. 566-580, Aug 1996.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2022a
