graphData

Retrieve graph as digraph object

    Description

    example

    graph = graphData(planner) retrieves graph as a digraph object. The digraph object is created when the plannerPRM object is created with default or user specified values for the MaxNumNodes and MaxConnectionDistance properties.

    Examples

    collapse all

    Load an example map into the workspace, and use it to create an occupancy map with a resolution of 10 cells/meter.

    load("exampleMaps.mat","simpleMap");
    map = occupancyMap(simpleMap,10);

    Create a state space object and update the state space bounds to match the map limits.

    ss = stateSpaceSE2;
    ss.StateBounds = [map.XWorldLimits; map.YWorldLimits; [-pi pi]];

    Create a state validator for the occupancy map using the state space object and set the validation distance.

    sv = validatorOccupancyMap(ss,Map=map);
    sv.ValidationDistance = 0.01;

    Create a probabilistic roadmap path planner object.

    planner = plannerPRM(ss,sv);

    Retrieve the network graph as a digraph object.

    graph = graphData(planner);

    Extract the nodes and edges from the graph.

    edges = table2array(graph.Edges);
    nodes = table2array(graph.Nodes);

    Plot the map and graph.

    show(sv.Map)
    hold on
    plot(nodes(:,1),nodes(:,2),"*",Color=[0 0 1],LineWidth=2)
    for i = 1:size(edges,1)
        % Samples states at distance 0.02 meters.
        states = interpolate(ss,nodes(edges(i,1),:), ...
                             nodes(edges(i,2),:),0:0.02:1);
        plot(states(:,1),states(:,2),Color=[0 0 1])
    end

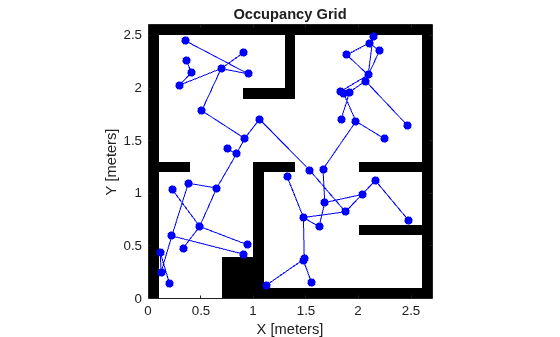

    Figure contains an axes object. The axes object with title Occupancy Grid contains 100 objects of type image, line.

    Input Arguments

    collapse all

    Path planner, specified as a plannerPRM object.

    Output Arguments

    collapse all

    Graph data, returned as a digraph object.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2022a
