abyss
説明
例

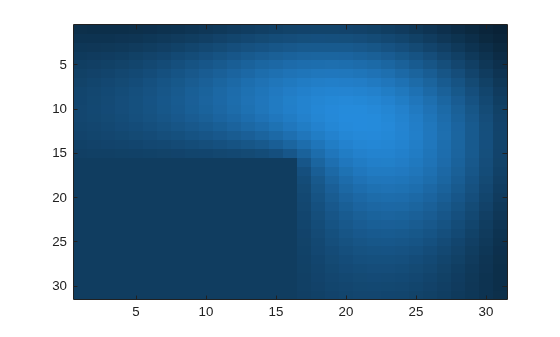

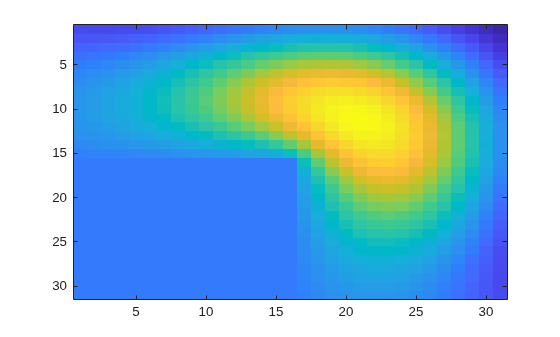

イメージ カラーマップの変更
色の数が異なるヒートマップ
既定では、ヒートマップ チャートは sky
カラーマップの 256 色のサンプリングを使用します。関数 heatmap
の名前と値の引数 Colormap
を指定して、カラーマップとサンプリングを変更できます。

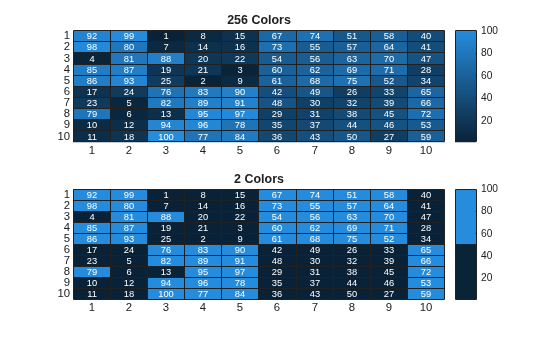

たとえば、2 行 1 列のタイル表示チャート レイアウトで 2 つのヒートマップ チャートを作成します。上のチャートでは abyss
カラーマップの 256 色を使用しており、下のチャートでは 2 色のみを使用しています。
tiledlayout(2,1) % Top chart with default number of colors nexttile cdata = magic(10); heatmap(cdata,Colormap=abyss) title("256 Colors") % Bottom chart with two colors nexttile heatmap(cdata,Colormap=abyss(2)) title("2 Colors")
入力引数
m
— 色数
256
(既定値) | 非負の整数
色数。非負の整数として指定します。m
の既定値は現在の Figure のカラーマップの色の数です。Figure が存在しない場合、既定値は 256
です。
データ型: single
| double
バージョン履歴
R2023b で導入
