# dsp.Channelizer

Polyphase FFT analysis filter bank

## Description

The `dsp.Channelizer` System object™ separates a broadband input signal into multiple narrow subbands using a fast Fourier transform (FFT)-based analysis filter bank. The filter bank uses a prototype lowpass filter and is implemented using a polyphase structure. You can specify the filter coefficients directly or through design parameters.

To separate a broadband signal into multiple narrow subbands:

1. Create the `dsp.Channelizer` object and set its properties.

2. Call the object with arguments, as if it were a function.

## Creation

### Syntax

``channelizer = dsp.Channelizer``
``channelizer = dsp.Channelizer(M)``
``channelizer = dsp.Channelizer(Name,Value)``

### Description

example

````channelizer = dsp.Channelizer` creates a polyphase FFT analysis filter bank System object that separates a broadband input signal into multiple narrowband output signals. This object implements the inverse operation of the `dsp.ChannelSynthesizer` System object.```

example

````channelizer = dsp.Channelizer(M)` creates an M-band polyphase FFT analysis filter bank, with the NumFrequencyBands property set to M. Example: channelizer = dsp.Channelize(16);```

example

````channelizer = dsp.Channelizer(Name,Value)` creates a polyphase FFT analysis filter bank with each specified property set to the specified value. Enclose each property name in single quotes.Example: channelizer = dsp.Channelizer('NumTapsPerBand',20,'StopbandAttenuation',140);```

## Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the `release` function unlocks them.

If a property is tunable, you can change its value at any time.

Number of frequency bands into which the object separates the input broadband signal, specified as a positive integer greater than 1. This property corresponds to the number of polyphase branches and the FFT length used in the filter bank.

Example: 16

Example: 64

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Filter design parameters or filter coefficients, specified as one of these options:

• `'Number of taps per band and stopband attenuation'` — Specify the filter design parameters through the `NumTapsPerBand` and Stopband attenuation (dB) properties.

• `'Coefficients'` — Specify the filter coefficients directly using the LowpassCoefficients property.

Number of filter coefficients each polyphase branch uses, specified as a positive integer. The number of polyphase branches matches the number of frequency bands. The total number of filter coefficients for the prototype lowpass filter is given by `NumFrequencyBands` × `NumTapsPerBand`. For a given stopband attenuation, increasing the number of taps per band narrows the transition width of the filter. As a result, there is more usable bandwidth for each frequency band at the expense of increased computation.

Example: 8

Example: 16

#### Dependencies

This property applies when you set `Specification` to `'Number of taps per band and stopband attenuation'`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Stopband attenuation of the lowpass filter, specified as a positive real scalar in dB. This value controls the maximum amount of aliasing from one frequency band to the next. When the stopband attenuation increases, the passband ripple decreases. For a given stopband attenuation, increasing the number of taps per band narrows the transition width of the filter. As a result, there is more usable bandwidth for each frequency band at the expense of increased computation.

Example: 80

#### Dependencies

This property applies when you set `Specification` to `'Number of taps per band and stopband attenuation'`.

Data Types: `single` | `double`

Coefficients of the prototype lowpass filter, specified as a row vector. There must be at least one coefficient per frequency band. If the length of the lowpass filter is less than the number of frequency bands, the object zero-pads the coefficients.

Tunable: Yes

#### Dependencies

This property applies when you set `Specification` to `'Coefficients'`.

Data Types: `single` | `double`

## Usage

### Syntax

``channOut = channelizer(input)``

### Description

example

````channOut = channelizer(input)` separates the broadband input signal into a number of narrow band signals contained in the columns of the channelizer output. ```

### Input Arguments

expand all

Data input, specified as a vector or a matrix. The number of rows in the input signal must be a multiple of the number of frequency bands of the filter bank. Each column of the input corresponds to a separate channel. If M is the number of frequency bands, and the input is an L-by-1 matrix, then the output signal has dimensions L/M-by-M. Each narrowband signal forms a column in the output. If the input has more than one channel, that is, it has dimensions L-by-N with N > 1, then the output has dimensions L/M-by-M-by-N.

This object supports variable-size input signals. You can change the input frame size (number of rows) even after calling the algorithm. However, the number of channels (number of columns) must remain constant.

Example: randn(64,4)

Data Types: `single` | `double`
Complex Number Support: Yes

### Output Arguments

expand all

Channelizer output, returned as a matrix or a 3-D array. If the input is an L-by-1 matrix, then the output signal has dimensions L/M-by-M, where M is the number of frequency bands. Each narrowband signal forms a column in the output. If the input has more than one channel, that is, it has dimensions L-by-N with N > 1, then the output has dimensions L/M-by-M-by-N.

Data Types: `single` | `double`
Complex Number Support: Yes

## Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named `obj`, use this syntax:

`release(obj)`

expand all

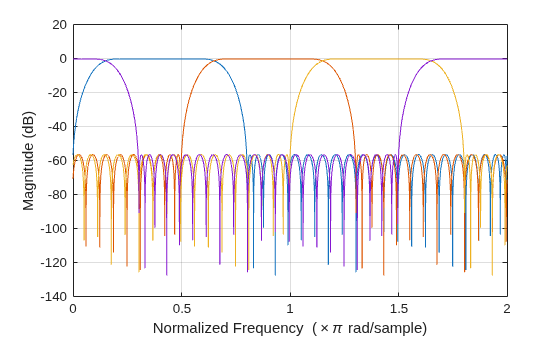

 `coeffs` Coefficients of prototype lowpass filter `tf` Return transfer function of overall prototype lowpass filter `polyphase` Return polyphase matrix `freqz` Frequency response of filters in channelizer `fvtool` Visualize the filters in the channelizer `bandedgeFrequencies` Compute the bandedge frequencies `centerFrequencies` Compute center frequencies `getFilters` Return matrix of channelizer FIR filters
 `step` Run System object algorithm `release` Release resources and allow changes to System object property values and input characteristics `reset` Reset internal states of System object

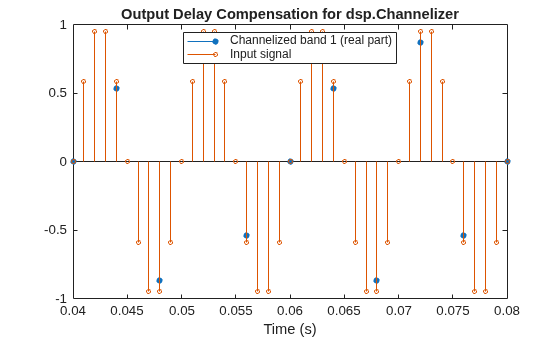

## Examples

expand all

The quadrature mirror filter bank (QMF) contains an analysis filter bank section and a synthesis filter bank section. `dsp.Channelizer` implements the analysis filter bank. `dsp.ChannelSynthesizer` implements the synthesis filter bank using the efficient polyphase implementation based on a prototype lowpass filter.

Initialization

Initialize the `dsp.Channelizer` and `dsp.ChannelSynthesizer` System objects. Each object is set up with 8 frequency bands, 8 polyphase branches in each filter, 12 coefficients per polyphase branch, and a stopband attenuation of 140 dB. Use a sine wave with multiple frequencies as the input signal. View the input spectrum and the output spectrum using a spectrum analyzer.

```offsets = [-40,-30,-20,10,15,25,35,-15]; sinewave = dsp.SineWave('ComplexOutput',true,'Frequency',... offsets+(-375:125:500),'SamplesPerFrame',800); channelizer = dsp.Channelizer('StopbandAttenuation',140); synthesizer = dsp.ChannelSynthesizer('StopbandAttenuation',140); spectrumAnalyzer = dsp.SpectrumAnalyzer('ShowLegend',true,'NumInputPorts',... 2,'ChannelNames',{'Input','Output'},'Title','Input and Output of QMF'); ```

Streaming

Use the channelizer to split the broadband input signal into multiple narrow bands. Then pass the multiple narrowband signals into the synthesizer, which merges these signals to form the broadband signal. Compare the spectra of the input and output signals. The input and output spectra match very closely.

```for i = 1:5000 x = sum(sinewave(),2); y = channelizer(x); v = synthesizer(y); spectrumAnalyzer(x,v) end ```
