Vision Processing for FPGA, Part 2: Workflow from a Frame-Based Algorithm to a Pixel-Streaming Implementation

From the series: Vision Processing for FPGA

Simulink® and Vision HDL Toolbox™ help you model hardware implementations of vision processing algorithms. Often these algorithms are written and tested in MATLAB®. Learn how to reuse your MATLAB work to test and check the results of the Simulink hardware implementation. Details include:

  • Using MATLAB, Automated Driving Toolbox™, and Computer Vision Toolbox™ to develop and test a lane detection algorithm
  • Passing data between MATLAB and Simulink using workspace variables

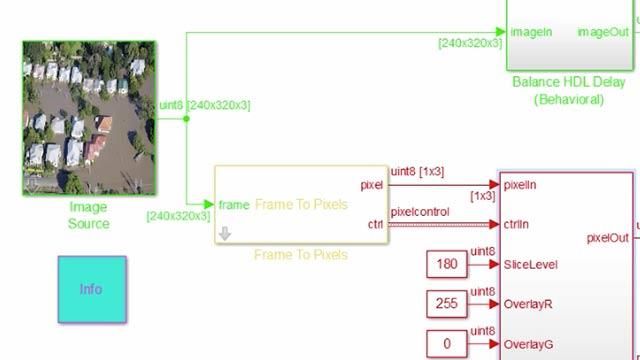

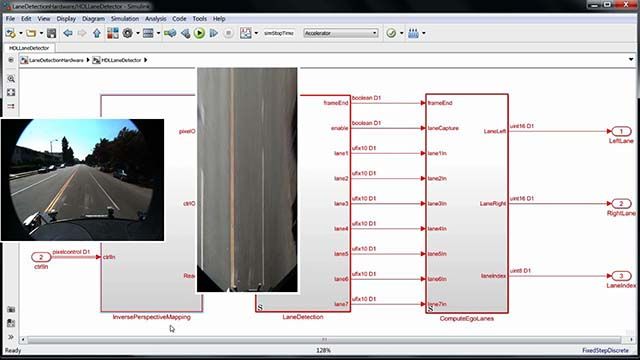

  • Converting the frame-based input to streaming pixels using the Frame-to-Pixels block, which automatically converts sample rates
  • Setting up and running the Simulink hardware implementation from the MATLAB script

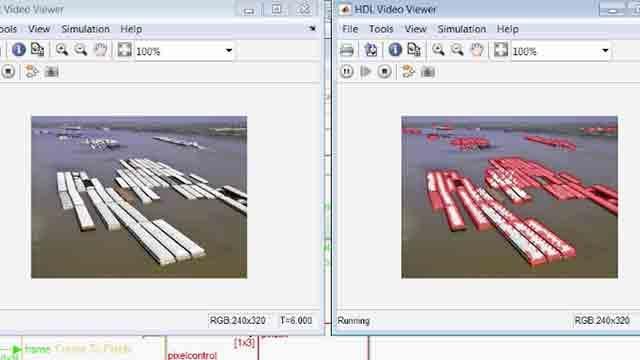

  • Comparing the results from the hardware implementation versus the reference algorithm
