Probability density function for Gaussian mixture distribution
Syntax
Description
Examples
Compute pdf Values
Create a gmdistribution
object and compute its pdf values.
Define the distribution parameters (means and covariances) of a two-component bivariate Gaussian mixture distribution.
mu = [1 2;-3 -5];
sigma = [1 1]; % shared diagonal covariance matrix
Create a gmdistribution
object by using the gmdistribution
function. By default, the function creates an equal proportion mixture.
gm = gmdistribution(mu,sigma)
gm = Gaussian mixture distribution with 2 components in 2 dimensions Component 1: Mixing proportion: 0.500000 Mean: 1 2 Component 2: Mixing proportion: 0.500000 Mean: -3 -5
Compute the pdf values of gm
.
X = [0 0;1 2;3 3;5 3]; pdf(gm,X)
ans = 4×1
0.0065
0.0796
0.0065
0.0000
Plot pdf
Create a gmdistribution
object and plot its pdf.
Define the distribution parameters (means, covariances, and mixing proportions) of two bivariate Gaussian mixture components.
p = [0.4 0.6]; % Mixing proportions mu = [1 2;-3 -5]; % Means sigma = cat(3,[2 .5],[1 1]) % Covariances 1-by-2-by-2 array
sigma = sigma(:,:,1) = 2.0000 0.5000 sigma(:,:,2) = 1 1
The cat
function concatenates the covariances along the third array dimension. The defined covariance matrices are diagonal matrices. sigma(1,:,i)
contains the diagonal elements of the covariance matrix of component i
.
Create a gmdistribution
object by using the gmdistribution
function.
gm = gmdistribution(mu,sigma)
gm = Gaussian mixture distribution with 2 components in 2 dimensions Component 1: Mixing proportion: 0.500000 Mean: 1 2 Component 2: Mixing proportion: 0.500000 Mean: -3 -5

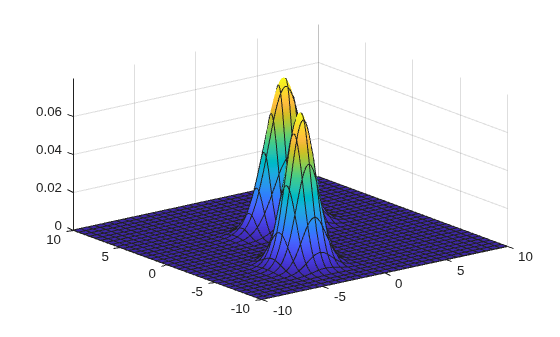

Plot the pdf of the Gaussian mixture distribution by using fsurf
.
gmPDF = @(x,y) arrayfun(@(x0,y0) pdf(gm,[x0 y0]),x,y); fsurf(gmPDF,[-10 10])
Input Arguments
gm
— Gaussian mixture distribution
gmdistribution
object
Gaussian mixture distribution, also called Gaussian mixture model (GMM), specified as a gmdistribution
object.
You can create a gmdistribution
object using gmdistribution
or fitgmdist
. Use the gmdistribution
function to create a
gmdistribution
object by specifying the distribution parameters.
Use the fitgmdist
function to fit a gmdistribution
model to data given a fixed number of components.
X
— Values at which to evaluate pdf
n-by-m numeric matrix
Values at which to evaluate the pdf, specified as an n-by-m numeric matrix, where n is the number of observations and m is the number of variables in each observation.
Data Types: single
| double
Output Arguments
y
— pdf values
n-by-1 numeric vector
pdf values of the Gaussian mixture distribution gm
,
evaluated at X
, returned as an
n-by-1 numeric vector, where n is the
number of observations in X
.
The pdf
function computes the pdf values by using the
likelihood of each component given each observation and the component probabilities.
where L(Cj|Oj) is the likelihood of component j
given
observation i
, and P(Cj) is the probability of component j
. The
pdf
function computes the likelihood term by using
the multivariate normal pdf of the j
th Gaussian mixture
component evaluated at observation i
. The component
probabilities are the mixing proportions of mixture components, the
ComponentProportion
property of
gm
.
Version History
Introduced in R2007b
