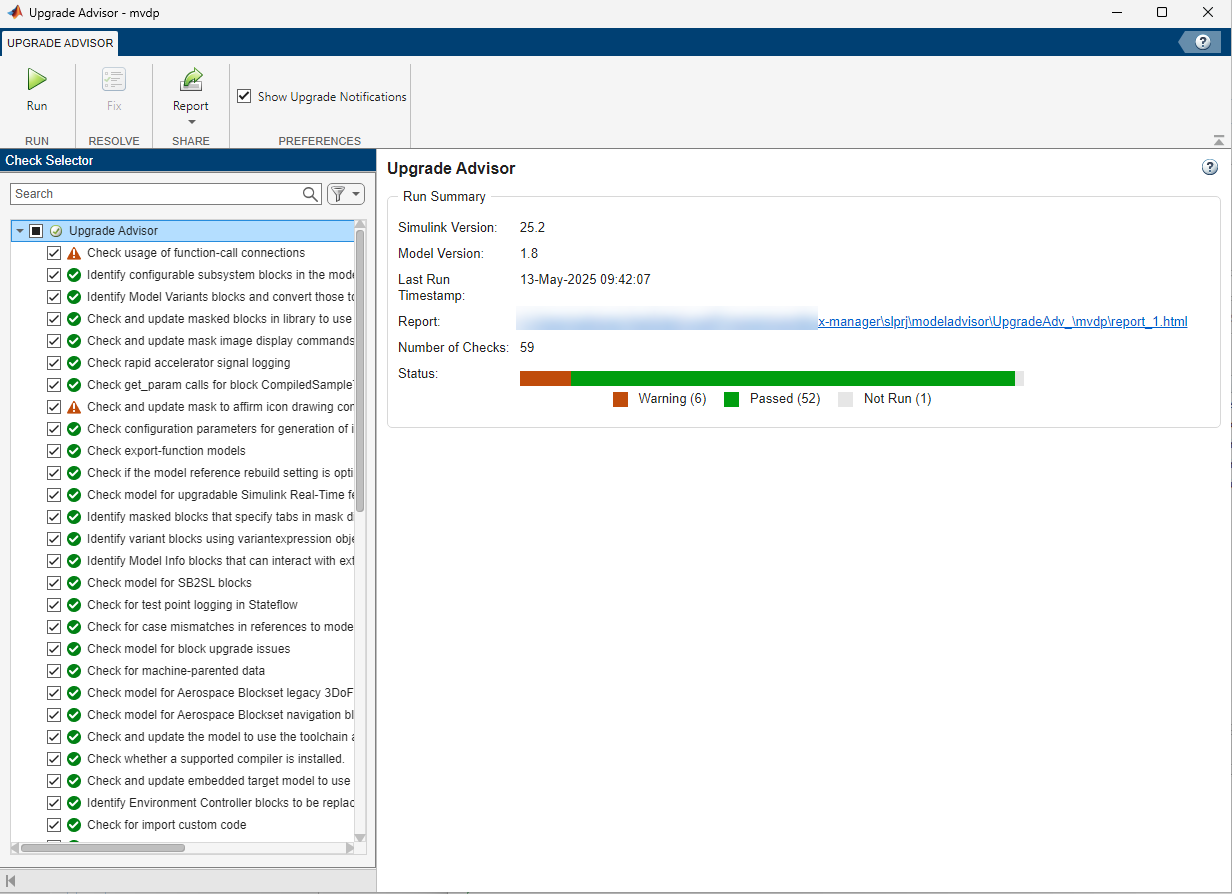

アップグレード アドバイザー
モデルの修正と現在のリリースへのアップグレード
説明
アップグレード アドバイザーは、Simulink® モデルを修正して現在のリリースにアップグレードするために使用します。
アップグレード アドバイザーは以下に役立ちます。
Simulink の動作の変更や改良によって機能しなくなったモデルを特定する。
Simulink の新しくリリースされた機能や設定を使用して拡張できるモデルを特定する。
自動アップグレードを実行するか、手動で修正する指示を提供することで、新しいテクノロジーへの移行やモデルの階層構造のアップグレードを行う。
モデルでのアップグレード アドバイザーの使用の詳細については、アップグレード アドバイザーを使用したモデルのアップグレードを参照してください。
アップグレード アドバイザー を開く
Simulink エディター: [モデル化] タブで [モデル アドバイザー] 、 [アップグレード アドバイザー] を選択します。
MATLAB® コマンド ウィンドウ:
upgradeadvisor("modelname")モデル アドバイザー: モデル アドバイザーで [アップグレード アドバイザー] をクリックします。
例
vdp モデル例を開きます。
openExample("vdp.slx");
個別のチェックを 1 つ実行するには、チェックを右クリックして [このチェックを実行] を選択します。あるいは、チェックを選択して右ペインのボタンを使用します。
vdpモデル例のアップグレード アドバイザーを開きます。openExample("vdp.slx"); upgradeadvisor("vdp")
あるいは、現在選択されているモデルのアップグレード アドバイザーを開くことができます。
upgradeadvisor(bdroot)
この例では、モデルを解析してアップグレードし、自動修正が利用可能な場合に適用する方法を示します。
1. モデルを読み込み、upgrader オブジェクトを作成します。この例では、モデル例を読み込んで開くために、モデルを含むプロジェクトを開きます。
openProject("ModelReferenceHierarchy"); upgrader = upgradeadvisor("sldemo_mdlref_depgraph.slx")
upgrader =
Upgrader with properties:
ChecksToSkip: {}
SkipLibraries: 0
SkipBlocksets: 1
OneLevelOnly: 0
ShowReport: 1
VerboseLogging: 0
EnableBackups: 1
RootModel: 'sldemo_mdlref_depgraph'
ReportFile: ''
Run "upgrade" on this Upgrader object to analyze and automatically upgrade your models.
2. ライブラリ リンクとモデル参照に従って、モデルに対して推奨されるアップグレードを解析します。
analyze(upgrader);
(1/-) Analyzing Model "sldemo_mdlref_depgraph" Updating Model Advisor cache... Model Advisor cache updated. For new customizations, to update the cache, use the Advisor.Manager.refresh_customizations method. (2/14) Analyzing Model "sldemo_mdlref_heat2cost" (3/14) Analyzing Model "sldemo_mdlref_house" (4/14) Analyzing Model "sldemo_mdlref_F2C" (5/14) Analyzing Model "sldemo_mdlref_outdoor_temp" (6/14) Analyzing Model "sldemo_mdlref_thermostat" (7/14) Analyzing Model "sldemo_mdlref_heater" (8/14) Analyzing Model "sldemo_mdlref_heat2cost" using compile time information (9/14) Analyzing Model "sldemo_mdlref_house" using compile time information (10/14) Analyzing Model "sldemo_mdlref_F2C" using compile time information (11/14) Analyzing Model "sldemo_mdlref_outdoor_temp" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Unable to find Simulink cache file "sldemo_mdlref_outdoor_temp.slxc". ### Unable to find Simulink cache file "sldemo_mdlref_F2C.slxc". ### Total of 2 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target (sldemo_mdlref_F2C.c) for model sldemo_mdlref_F2C was out of date. sldemo_mdlref_F2C.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_F2C ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C ### Invoking Target Language Compiler on sldemo_mdlref_F2C.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................... ### Writing header file sldemo_mdlref_F2C_types.h ### Writing header file sldemo_mdlref_F2C.h ### Writing header file rtwtypes.h ### Writing header file multiword_types.h . ### Writing source file sldemo_mdlref_F2C.c ### Writing header file sldemo_mdlref_F2C_private.h ### TLC code generation complete (took 1.949s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C/sldemo_mdlref_F2C.mk' ... ### Building 'sldemo_mdlref_F2C_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_F2C.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_F2C -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_F2C.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C/sldemo_mdlref_F2C.c" ### Creating static library ./sldemo_mdlref_F2C_rtwlib.a ... ar ruvs ./sldemo_mdlref_F2C_rtwlib.a sldemo_mdlref_F2C.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_F2C_rtwlib.a a - sldemo_mdlref_F2C.o ### Created: ./sldemo_mdlref_F2C_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_F2C ### Simulink cache artifacts for 'sldemo_mdlref_F2C' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_F2C.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ============================================================================================================ sldemo_mdlref_F2C Target (sldemo_mdlref_F2C.c) did not exist. Code generated and compiled. 0h 0m 10.802s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 11.65s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Total of 1 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_F2C Build Summary Model reference simulation targets: Model Build Reason Status Build Duration ===================================================================================================================== sldemo_mdlref_F2C Target (sldemo_mdlref_F2C_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 6.6466s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 7.0477s ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Total of 1 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. Build Summary 0 of 1 models built (1 models already up to date) Build duration: 0h 0m 1.3508s (12/14) Analyzing Model "sldemo_mdlref_thermostat" using compile time information (13/14) Analyzing Model "sldemo_mdlref_heater" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Unable to find Simulink cache file "sldemo_mdlref_heater.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Unable to find Simulink cache file "sldemo_mdlref_thermostat.slxc". ### Total of 3 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Checking for structural changes in sldemo_mdlref_F2C because the model reference rebuild option is set to 'If changes detected'. Structural changes cause the model reference code generation target to be rebuilt. ### Checking for structural changes in model reference code generation target for: sldemo_mdlref_F2C ### Generating code and artifacts to 'Model specific' folder structure ### Code for the model reference code generation target for model sldemo_mdlref_F2C is up to date because no functional changes were found in referenced model. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target (sldemo_mdlref_thermostat.c) for model sldemo_mdlref_thermostat was out of date. sldemo_mdlref_thermostat.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_thermostat ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat ### Invoking Target Language Compiler on sldemo_mdlref_thermostat.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................... ### Writing header file sldemo_mdlref_thermostat_types.h ### Writing header file sldemo_mdlref_thermostat.h ### Writing source file sldemo_mdlref_thermostat.c . ### Writing header file sldemo_mdlref_thermostat_private.h ### TLC code generation complete (took 1.315s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat/sldemo_mdlref_thermostat.mk' ... ### Building 'sldemo_mdlref_thermostat_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_thermostat.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_thermostat -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_thermostat.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat/sldemo_mdlref_thermostat.c" ### Creating static library ./sldemo_mdlref_thermostat_rtwlib.a ... ar ruvs ./sldemo_mdlref_thermostat_rtwlib.a sldemo_mdlref_thermostat.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_thermostat_rtwlib.a a - sldemo_mdlref_thermostat.o ### Created: ./sldemo_mdlref_thermostat_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_thermostat ### Simulink cache artifacts for 'sldemo_mdlref_thermostat' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_thermostat.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ========================================================================================================================== sldemo_mdlref_thermostat Target (sldemo_mdlref_thermostat.c) did not exist. Code generated and compiled. 0h 0m 4.1754s 1 of 2 models built (1 models already up to date) Build duration: 0h 0m 5.2765s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Total of 1 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_thermostat Build Summary Model reference simulation targets: Model Build Reason Status Build Duration =================================================================================================================================== sldemo_mdlref_thermostat Target (sldemo_mdlref_thermostat_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 4.3637s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 4.7505s ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Total of 1 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. Build Summary 0 of 1 models built (1 models already up to date) Build duration: 0h 0m 0.95762s (14/14) Analyzing Model "sldemo_mdlref_depgraph" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Unable to find Simulink cache file "sldemo_mdlref_depgraph.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heat2cost.slxc" because the file does not have the relevant build artifacts. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heater.slxc" because the file does not have the relevant build artifacts. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_thermostat.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_house.slxc" because the file does not have the relevant build artifacts. ### Unable to find Simulink cache file "sldemo_mdlref_outdoor_temp.slxc". ### Total of 7 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heat2cost'. ### Model reference code generation target (sldemo_mdlref_heat2cost.c) for model sldemo_mdlref_heat2cost was out of date. sldemo_mdlref_heat2cost.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_heat2cost ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost ### Invoking Target Language Compiler on sldemo_mdlref_heat2cost.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code .................................................. ### Writing header file sldemo_mdlref_heat2cost_types.h ### Writing header file sldemo_mdlref_heat2cost.h ### Writing source file sldemo_mdlref_heat2cost.c . ### Writing header file sldemo_mdlref_heat2cost_private.h ### TLC code generation complete (took 1.289s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost/sldemo_mdlref_heat2cost.mk' ... ### Building 'sldemo_mdlref_heat2cost_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_heat2cost.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=0 -DMODEL=sldemo_mdlref_heat2cost -DNUMST=1 -DNCSTATES=1 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_heat2cost.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost/sldemo_mdlref_heat2cost.c" ### Creating static library ./sldemo_mdlref_heat2cost_rtwlib.a ... ar ruvs ./sldemo_mdlref_heat2cost_rtwlib.a sldemo_mdlref_heat2cost.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_heat2cost_rtwlib.a a - sldemo_mdlref_heat2cost.o ### Created: ./sldemo_mdlref_heat2cost_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_heat2cost ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target for sldemo_mdlref_thermostat is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_house'. ### Model reference code generation target (sldemo_mdlref_house.c) for model sldemo_mdlref_house was out of date. sldemo_mdlref_house.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_house ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house ### Invoking Target Language Compiler on sldemo_mdlref_house.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................................... ### Writing header file sldemo_mdlref_house_types.h . ### Writing header file sldemo_mdlref_house.h ### Writing source file sldemo_mdlref_house.c ### Writing header file sldemo_mdlref_house_private.h ### TLC code generation complete (took 1.192s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house/sldemo_mdlref_house.mk' ... ### Building 'sldemo_mdlref_house_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_house.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=0 -DMODEL=sldemo_mdlref_house -DNUMST=1 -DNCSTATES=1 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_house.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house/sldemo_mdlref_house.c" ### Creating static library ./sldemo_mdlref_house_rtwlib.a ... ar ruvs ./sldemo_mdlref_house_rtwlib.a sldemo_mdlref_house.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_house_rtwlib.a a - sldemo_mdlref_house.o ### Created: ./sldemo_mdlref_house_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_house ### Checking status of model reference code generation target for model 'sldemo_mdlref_heater'. ### Model reference code generation target (sldemo_mdlref_heater.c) for model sldemo_mdlref_heater was out of date. sldemo_mdlref_heater.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_heater ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Invoking Target Language Compiler on sldemo_mdlref_heater.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ............................................ ### Writing header file sldemo_mdlref_heater_types.h ### Writing header file sldemo_mdlref_heater.h ### Writing source file sldemo_mdlref_heater.c ### Writing header file sldemo_mdlref_heater_private.h . ### TLC code generation complete (took 1.22s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater/sldemo_mdlref_heater.mk' ... ### Building 'sldemo_mdlref_heater_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_heater.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_heater -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_heater.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater/sldemo_mdlref_heater.c" ### Creating static library ./sldemo_mdlref_heater_rtwlib.a ... ar ruvs ./sldemo_mdlref_heater_rtwlib.a sldemo_mdlref_heater.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_heater_rtwlib.a a - sldemo_mdlref_heater.o ### Created: ./sldemo_mdlref_heater_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_heater ### Checking status of model reference code generation target for model 'sldemo_mdlref_outdoor_temp'. ### Model reference code generation target (sldemo_mdlref_outdoor_temp.c) for model sldemo_mdlref_outdoor_temp was out of date. sldemo_mdlref_outdoor_temp.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_outdoor_temp ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Invoking Target Language Compiler on sldemo_mdlref_outdoor_temp.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ............................................... ### Writing header file sldemo_mdlref_outdoor_temp_types.h ### Writing header file sldemo_mdlref_outdoor_temp.h . ### Writing header file model_reference_types.h ### Writing source file sldemo_mdlref_outdoor_temp.c ### Writing header file sldemo_mdlref_outdoor_temp_private.h ### TLC code generation complete (took 1.085s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp/sldemo_mdlref_outdoor_temp.mk' ... ### Building 'sldemo_mdlref_outdoor_temp_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_outdoor_temp.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_outdoor_temp -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2974004/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_outdoor_temp.o" "/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp/sldemo_mdlref_outdoor_temp.c" ### Creating static library ./sldemo_mdlref_outdoor_temp_rtwlib.a ... ar ruvs ./sldemo_mdlref_outdoor_temp_rtwlib.a sldemo_mdlref_outdoor_temp.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_outdoor_temp_rtwlib.a a - sldemo_mdlref_outdoor_temp.o ### Created: ./sldemo_mdlref_outdoor_temp_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_outdoor_temp ### Simulink cache artifacts for 'sldemo_mdlref_heat2cost' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_heat2cost.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_house' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_house.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_heater' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_heater.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_outdoor_temp' were created in '/tmp/Bdoc25a_2974004_3515615/tp4356f472/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_outdoor_temp.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ============================================================================================================================== sldemo_mdlref_heat2cost Target (sldemo_mdlref_heat2cost.c) did not exist. Code generated and compiled. 0h 0m 3.6634s sldemo_mdlref_house Target (sldemo_mdlref_house.c) did not exist. Code generated and compiled. 0h 0m 3.115s sldemo_mdlref_heater Target (sldemo_mdlref_heater.c) did not exist. Code generated and compiled. 0h 0m 4.4266s sldemo_mdlref_outdoor_temp Target (sldemo_mdlref_outdoor_temp.c) did not exist. Code generated and compiled. 0h 0m 3.1596s 4 of 6 models built (2 models already up to date) Build duration: 0h 0m 15.132s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_heat2cost ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Successfully updated the model reference simulation target for: sldemo_mdlref_house ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Successfully updated the model reference simulation target for: sldemo_mdlref_outdoor_temp Build Summary Model reference simulation targets: Model Build Reason Status Build Duration ======================================================================================================================================= sldemo_mdlref_heat2cost Target (sldemo_mdlref_heat2cost_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 4.1147s sldemo_mdlref_house Target (sldemo_mdlref_house_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 4.7473s sldemo_mdlref_outdoor_temp Target (sldemo_mdlref_outdoor_temp_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 5.8828s 3 of 5 models built (2 models already up to date) Build duration: 0h 0m 15.977s ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Model reference simulation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 5 models built (5 models already up to date) Build duration: 0h 0m 0.17257s
3. 出力を指定してレポートの場所を検索します。
reportLocation = upgrader.ReportFile;
4. モデルを解析またはアップグレードする前にオプションを構成します。
既定では、
upgradeadvisorはアップグレード プロセス時にモデルのバックアップ コピーを生成します。バクアップ ファイルの生成をオフにするには、EnableBackupsプロパティを設定します。
upgrader.EnableBackups = false;
チェックをスキップするには、アップグレード アドバイザーでチェックを右クリックして [ワークスペースにチェック ID を送信] を選択し、
ChecksToSkipプロパティを設定します。
upgrader.ChecksToSkip = {"mathworks.design.CSStoVSSConvert"};ライブラリ リンク、モデル参照、または外部モデルとして保存されたテスト ハーネスを解析せずに現在のモデルを解析またはアップグレードするには、
OneLevelOnlyプロパティを有効にします。
upgrader.OneLevelOnly = true;
現在のモデルとモデル参照をライブラリ リンクなしで解析またはアップグレードするには、
SkipLibrariesプロパティを有効にします。
upgrader.SkipLibraries = true;
現在のモデルとブロックセットまたはツールボックスのファイルを解析またはアップグレードするには、
SkipBlocksetsプロパティを無効にします。既定では、アップグレード アドバイザーはブロックセットまたはツールボックスのファイルをアップグレードしません。アップグレード アドバイザーは、関数verの出力とContentsファイルの存在から、ブロックセットを検出します。
upgrader.SkipBlocksets = false;
モデルの解析またはアップグレードの後のレポートの表示をオフにするには、
ShowReportプロパティを無効にします。
upgrader.ShowReport = false;
5. モデルをアップグレードし、自動修正が利用可能な場合は適用します。
upgrade(upgrader);
(1/2) Upgrading Model "sldemo_mdlref_depgraph" (2/2) Upgrading Model "sldemo_mdlref_depgraph" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Unable to find Simulink cache file "sldemo_mdlref_depgraph.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heat2cost.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heater.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_thermostat.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_house.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_outdoor_temp.slxc" because the relevant build artifacts on disk are up to date. ### Total of 7 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heat2cost'. ### Model reference code generation target for sldemo_mdlref_heat2cost is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target for sldemo_mdlref_thermostat is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_house'. ### Model reference code generation target for sldemo_mdlref_house is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heater'. ### Model reference code generation target for sldemo_mdlref_heater is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_outdoor_temp'. ### Model reference code generation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 6 models built (6 models already up to date) Build duration: 0h 0m 0.24639s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date.### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Model reference simulation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 5 models built (5 models already up to date) Build duration: 0h 0m 0.11109s
アップグレード アドバイザーで見つかった問題と自動修正のリストが表示されます。
アップグレード アドバイザーでモデル ファイルに対する修正が保存されます。
関連する例
プログラムでの使用
ヒント
階層のないモデルについては、アップグレード アドバイザー は既定で [モデル階層を解析してアップグレード シーケンスを続行] チェックを除くすべてのチェックを選択および実行します。
モデルの階層構造について、手順どおりにアップグレード チェックを実行するには [モデル階層を解析してアップグレード シーケンスを続行] チェックを使用します。アップグレード チェックは次の順序で実行しなければなりません。コンパイル時の情報が不要でブロック線図の更新を伴わない項目から先にチェックし、その後にコンパイル チェックを実行します。詳細については、Analyze model hierarchy and continue upgrade sequenceを参照してください。
個々のアップグレード アドバイザー チェックのリストについては、モデルのアップグレード を参照してください。
MATLAB プロジェクト全体のアップグレード方法を示す例については、プロジェクトのアップグレードを使用した互換性の問題のチェックおよび Simulink モデルのアップグレードを参照してください。
バージョン履歴
R2012b で導入
