ROS Apply Transform, ROS 2 Apply Transform

Transform input ROS or ROS 2 message to target frame

Since R2023b

expand all in page
  • ROS Apply Transform Block

Libraries:
ROS Toolbox / ROS
ROS Toolbox / ROS 2

Description

The Apply Transform block transforms the input ROS or ROS 2 entity message to the target frame based on the homogeneous transformation value specified in the input gemonetry_msgs/TransformStamped message. The Apply Transform block supports these input entity message types:

  • geometry_msgs/PointStamped

  • geometry_msgs/PoseStamped

  • geometry_msgs/QuaternionStamped

  • geometry_msgs/Vector3Stamped

To transform the entity message into target frame, the block applies forward transformation to the entity message using the pre-multiply convention.

Examples

Read and Apply Transformation to ROS Message in Simulink

Read and Apply Transformation to ROS Message in Simulink

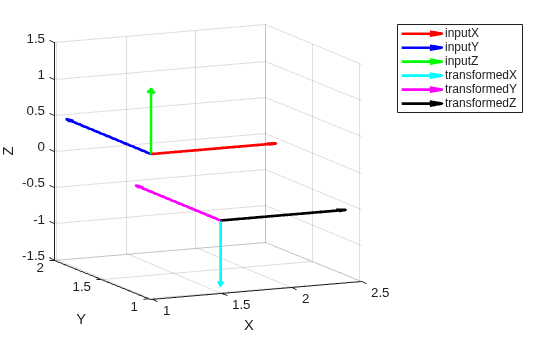

Read transformations from ROS network and use them to transform a pose message using Simulink®.

Open Live Script
Read and Apply Transformation to ROS 2 Message in Simulink

Read and Apply Transformation to ROS 2 Message in Simulink

Read transformations from ROS 2 network and use them to transform a pose message using Simulink®.

Open Live Script

Ports

Input

expand all

ROS or ROS 2 geometry_msgs/TransformStamped message, specified a non-virtual bus.

ROS or ROS 2 entity message, specified as a non-virtual bus.

Output

expand all

Transformed ROS or ROS 2 entity message, returned as a non-virtual bus. The output TFEntity message has the same message type as input Entity message.

Parameters

expand all

Type of input entity message specified as one of these options:

  • geometry_msgs/PointStamped

  • geometry_msgs/PoseStamped

  • geometry_msgs/QuaternionStamped

  • geometry_msgs/Vector3Stamped

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2023b
