turbo
説明
例
カラーマップの反転

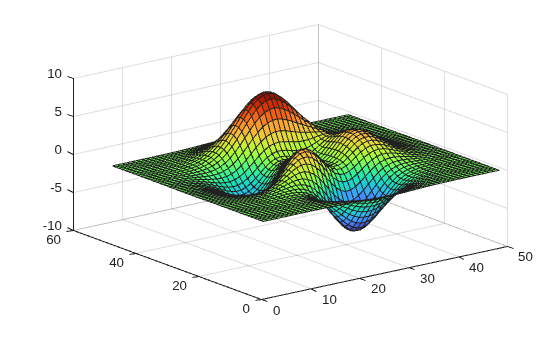

表面をプロットし、turbo カラーマップを割り当てます。
surf(peaks);
colormap('turbo');

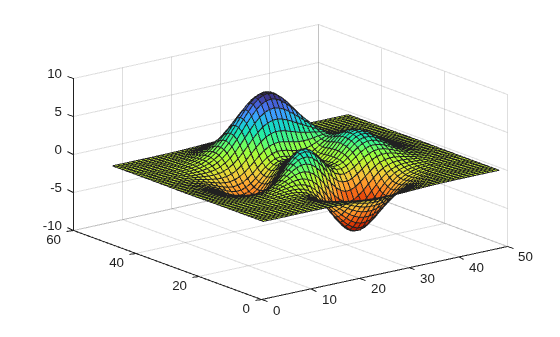

turbo カラーマップ配列を取得し、順序を逆にします。次に、変更したカラーマップを表面に適用します。
c = turbo; c = flipud(c); colormap(c);
カラーマップのダウンサンプリング

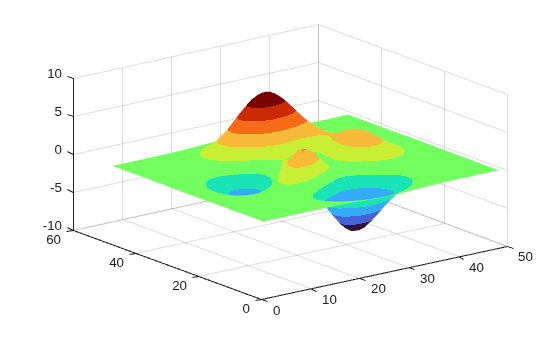

10 色のみを含む、turbo カラーマップのダウンサンプリング バージョンを取得します。次に、そのカラーマップと内挿によるシェーディングを適用して、関数 peaks
の等高線を表示します。
c = turbo(10);
surf(peaks);
colormap(c);
shading interp;
jet カラーマップと turbo カラーマップを比較
peaks

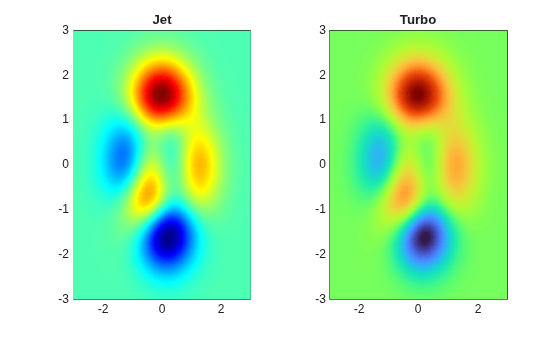

データ セットの 2 つの擬似カラー プロットを含むタイル表示チャート レイアウトを作成します。左のプロットは jet カラーマップを、右のプロットは turbo カラーマップを使用します。turbo プロットの方が、jet プロットよりも色相の変化が大きくないことに注目してください。
t = tiledlayout(1,2); [X,Y,Z] = peaks; % Left image ax1 = nexttile; s1 = pcolor(ax1,X,Y,Z); s1.EdgeColor = 'none'; s1.FaceColor = 'interp'; ax1.Colormap = jet; title(ax1,'Jet'); % Right image ax2 = nexttile; s2 = pcolor(ax2,X,Y,Z); s2.EdgeColor = 'none'; s2.FaceColor = 'interp'; ax2.Colormap = turbo; title(ax2,'Turbo');
入力引数
m
— 色数
256
(既定値) | 非負の整数
色数。非負の整数として指定します。m
の既定値は現在の Figure のカラーマップの色の数です。Figure が存在しない場合、既定値は 256
です。
データ型: single
| double
バージョン履歴
R2020b で導入
