イメージを含む現在の Figure を取得
fig = imgcf
例
fig = imgcf は、イメージを含む現在の Figure を返します。Figure は、少なくとも 1 つのイメージを含む正規の Figure ウィンドウ またはイメージ ツールのウィンドウです。
fig
現在開いており、かつイメージを含む Figure がない場合、imgcf は新規の Figure を作成します。
imgcf
すべて折りたたむ

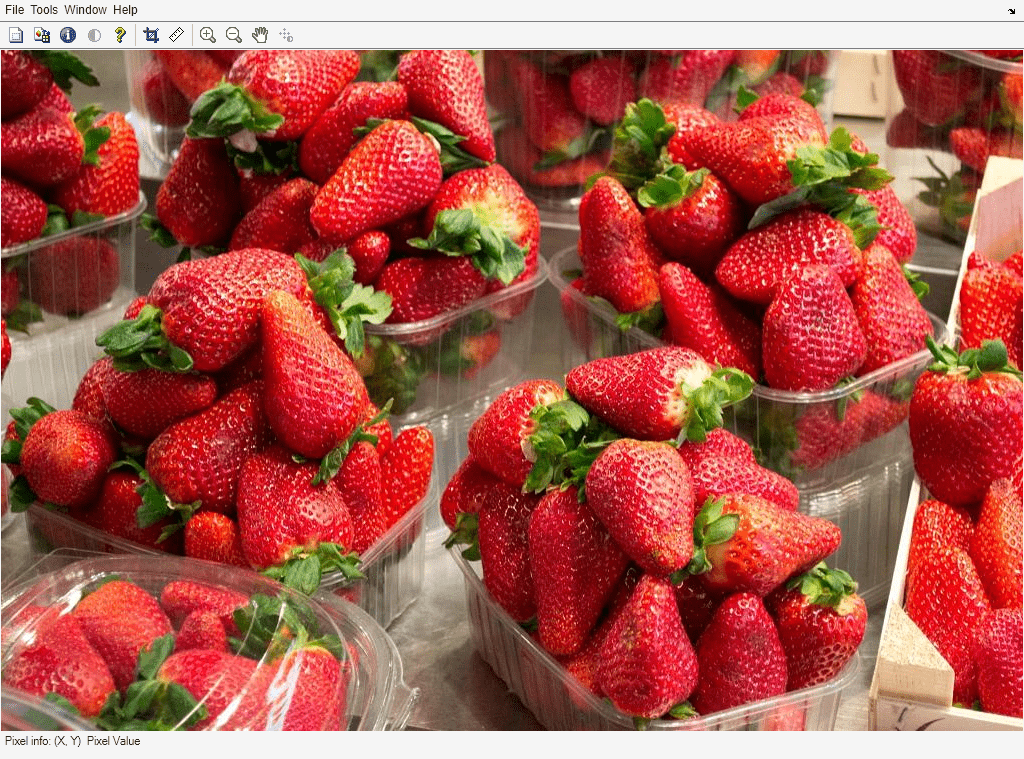

イメージ ツールのウィンドウでイメージを開きます。
I = imread('strawberries.jpg'); imtool(I)
イメージ ツールのウィンドウを含む Figure のハンドルを使用して、ウィンドウを画面の中心に配置します。
sz = get(groot,'ScreenSize'); pos = get(imgcf,'Position'); pos = [(sz(3)-pos(3))/2 (sz(4)-pos(4))/2 pos(3) pos(4)]; set(imgcf,'Position',pos)
イメージを含む現在の Figure。figure オブジェクトとして返されます。
figure
imgcf は、イメージ ツールで使用される Figure の取得に役立ちます。ツールの Figure は gcf では取得できません。
gcf
R2006a より前に導入
gca | gcf | imgca | imhandles
gca
imgca
imhandles
