# sgdmupdate

Update parameters using stochastic gradient descent with momentum (SGDM)

## Syntax

``[dlnet,vel] = sgdmupdate(dlnet,grad,vel)``
``[params,vel] = sgdmupdate(params,grad,vel)``
``[___] = sgdmupdate(___learnRate,momentum)``

## Description

Update the network learnable parameters in a custom training loop using the stochastic gradient descent with momentum (SGDM) algorithm.

Note

This function applies the SGDM optimization algorithm to update network parameters in custom training loops that use networks defined as `dlnetwork` objects or model functions. If you want to train a network defined as a `Layer` array or as a `LayerGraph`, use the following functions:

example

````[dlnet,vel] = sgdmupdate(dlnet,grad,vel)` updates the learnable parameters of the network `dlnet` using the SGDM algorithm. Use this syntax in a training loop to iteratively update a network defined as a `dlnetwork` object.```

example

````[params,vel] = sgdmupdate(params,grad,vel)` updates the learnable parameters in `params` using the SGDM algorithm. Use this syntax in a training loop to iteratively update the learnable parameters of a network defined using functions. ```

example

````[___] = sgdmupdate(___learnRate,momentum)` also specifies values to use for the global learning rate and momentum, in addition to the input arguments in previous syntaxes. ```

## Examples

collapse all

Perform a single SGDM update step with a global learning rate of `0.05` and momentum of `0.95`.

Create the parameters and parameter gradients as numeric arrays.

```params = rand(3,3,4); grad = ones(3,3,4);```

Initialize the parameter velocities for the first iteration.

`vel = [];`

Specify custom values for the global learning rate and momentum.

```learnRate = 0.05; momentum = 0.95;```

Update the learnable parameters using `sgdmupdate`.

`[params,vel] = sgdmupdate(params,grad,vel,learnRate,momentum);`

Use `sgdmupdate` to train a network using the SGDM algorithm.

```[XTrain,YTrain] = digitTrain4DArrayData; classes = categories(YTrain); numClasses = numel(classes);```

Define Network

Define the network architecture and specify the average image value using the `'Mean'` option in the image input layer.

```layers = [ imageInputLayer([28 28 1], 'Name','input','Mean',mean(XTrain,4)) convolution2dLayer(5,20,'Name','conv1') reluLayer('Name', 'relu1') convolution2dLayer(3,20,'Padding',1,'Name','conv2') reluLayer('Name','relu2') convolution2dLayer(3,20,'Padding',1,'Name','conv3') reluLayer('Name','relu3') fullyConnectedLayer(numClasses,'Name','fc') softmaxLayer('Name','softmax')]; lgraph = layerGraph(layers);```

Create a `dlnetwork` object from the layer graph.

`dlnet = dlnetwork(lgraph);`

Create the helper function `modelGradients`, listed at the end of the example. The function takes a `dlnetwork` object `dlnet` and a mini-batch of input data `dlX` with corresponding labels `Y`, and returns the loss and the gradients of the loss with respect to the learnable parameters in `dlnet`.

Specify Training Options

Specify the options to use during training.

```miniBatchSize = 128; numEpochs = 20; numObservations = numel(YTrain); numIterationsPerEpoch = floor(numObservations./miniBatchSize);```

Train on a GPU, if one is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Support by Release (Parallel Computing Toolbox).

`executionEnvironment = "auto";`

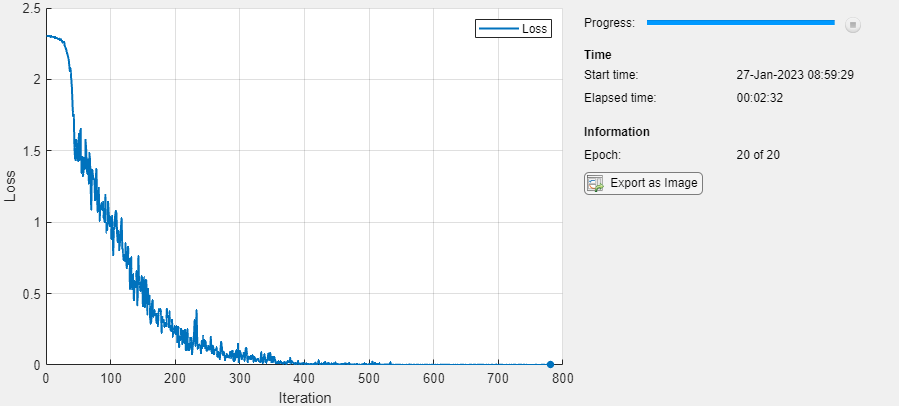

Visualize the training progress in a plot.

`plots = "training-progress";`

Train Network

Train the model using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. Update the network parameters using the `sgdmupdate` function. At the end of each epoch, display the training progress.

Initialize the training progress plot.

```if plots == "training-progress" figure lineLossTrain = animatedline('Color',[0.85 0.325 0.098]); ylim([0 inf]) xlabel("Iteration") ylabel("Loss") grid on end```

Initialize the velocity parameter.

`vel = [];`

Train the network.

```iteration = 0; start = tic; for epoch = 1:numEpochs % Shuffle data. idx = randperm(numel(YTrain)); XTrain = XTrain(:,:,:,idx); YTrain = YTrain(idx); for i = 1:numIterationsPerEpoch iteration = iteration + 1; % Read mini-batch of data and convert the labels to dummy % variables. idx = (i-1)*miniBatchSize+1:i*miniBatchSize; X = XTrain(:,:,:,idx); Y = zeros(numClasses, miniBatchSize, 'single'); for c = 1:numClasses Y(c,YTrain(idx)==classes(c)) = 1; end % Convert mini-batch of data to a dlarray. dlX = dlarray(single(X),'SSCB'); % If training on a GPU, then convert data to a gpuArray. if (executionEnvironment == "auto" && canUseGPU) || executionEnvironment == "gpu" dlX = gpuArray(dlX); end % Evaluate the model gradients and loss using dlfeval and the % modelGradients helper function. [gradients,loss] = dlfeval(@modelGradients,dlnet,dlX,Y); % Update the network parameters using the SGDM optimizer. [dlnet,vel] = sgdmupdate(dlnet,gradients,vel); % Display the training progress. if plots == "training-progress" D = duration(0,0,toc(start),'Format','hh:mm:ss'); addpoints(lineLossTrain,iteration,double(gather(extractdata(loss)))) title("Epoch: " + epoch + ", Elapsed: " + string(D)) drawnow end end end``` Test the Network

Test the classification accuracy of the model by comparing the predictions on a test set with the true labels.

`[XTest, YTest] = digitTest4DArrayData;`

Convert the data to a `dlarray` with the dimension format `'SSCB'`. For GPU prediction, also convert the data to a `gpuArray`.

```dlXTest = dlarray(XTest,'SSCB'); if (executionEnvironment == "auto" && canUseGPU) || executionEnvironment == "gpu" dlXTest = gpuArray(dlXTest); end```

To classify images using a `dlnetwork` object, use the `predict` function and find the classes with the highest scores.

```dlYPred = predict(dlnet,dlXTest); [~,idx] = max(extractdata(dlYPred),[],1); YPred = classes(idx);```

Evaluate the classification accuracy.

`accuracy = mean(YPred==YTest)`
```accuracy = 0.9916 ```

The `modelGradients` helper function takes a `dlnetwork` object `dlnet` and a mini-batch of input data `dlX` with corresponding labels `Y`, and returns the loss and the gradients of the loss with respect to the learnable parameters in `dlnet`. To compute the gradients automatically, use the `dlgradient` function.

```function [gradients,loss] = modelGradients(dlnet,dlX,Y) dlYPred = forward(dlnet,dlX); loss = crossentropy(dlYPred,Y); gradients = dlgradient(loss,dlnet.Learnables); end```

## Input Arguments

collapse all

Network, specified as a `dlnetwork` object.

The function updates the `dlnet.Learnables` property of the `dlnetwork` object. `dlnet.Learnables` is a table with three variables:

• `Layer` — Layer name, specified as a string scalar.

• `Parameter` — Parameter name, specified as a string scalar.

• `Value` — Value of parameter, specified as a cell array containing a `dlarray`.

The input argument `grad` must be a table of the same form as `dlnet.Learnables`.

Network learnable parameters, specified as a `dlarray`, a numeric array, a cell array, a structure, or a table.

If you specify `params` as a table, it must contain the following three variables.

• `Layer` — Layer name, specified as a string scalar.

• `Parameter` — Parameter name, specified as a string scalar.

• `Value` — Value of parameter, specified as a cell array containing a `dlarray`.

You can specify `params` as a container of learnable parameters for your network using a cell array, structure, or table, or nested cell arrays or structures. The learnable parameters inside the cell array, structure, or table must be `dlarray` or numeric values of data type `double` or `single`.

The input argument `grad` must be provided with exactly the same data type, ordering, and fields (for structures) or variables (for tables) as `params`.

Data Types: `single` | `double` | `struct` | `table` | `cell`

Gradients of the loss, specified as a `dlarray`, a numeric array, a cell array, a structure, or a table.

The exact form of `grad` depends on the input network or learnable parameters. The following table shows the required format for `grad` for possible inputs to `sgdmupdate`.

`dlnet`Table `dlnet.Learnables` containing `Layer`, `Parameter`, and `Value` variables. The `Value` variable consists of cell arrays that contain each learnable parameter as a `dlarray`. Table with the same data type, variables, and ordering as `dlnet.Learnables`. `grad` must have a `Value` variable consisting of cell arrays that contain the gradient of each learnable parameter.
`params``dlarray``dlarray` with the same data type and ordering as `params`
Numeric arrayNumeric array with the same data type and ordering as `params`
Cell arrayCell array with the same data types, structure, and ordering as `params`
StructureStructure with the same data types, fields, and ordering as `params`
Table with `Layer`, `Parameter`, and `Value` variables. The `Value` variable must consist of cell arrays that contain each learnable parameter as a `dlarray`.Table with the same data types, variables, and ordering as `params`. `grad` must have a `Value` variable consisting of cell arrays that contain the gradient of each learnable parameter.

You can obtain `grad` from a call to `dlfeval` that evaluates a function that contains a call to `dlgradient`. For more information, see Use Automatic Differentiation In Deep Learning Toolbox.

Parameter velocities, specified as an empty array, a `dlarray`, a numeric array, a cell array, a structure, or a table.

The exact form of `vel` depends on the input network or learnable parameters. The following table shows the required format for `vel` for possible inputs to `sgdmpdate`.

InputLearnable ParametersVelocities
`dlnet`Table `dlnet.Learnables` containing `Layer`, `Parameter`, and `Value` variables. The `Value` variable consists of cell arrays that contain each learnable parameter as a `dlarray`. Table with the same data type, variables, and ordering as `dlnet.Learnables`. `vel` must have a `Value` variable consisting of cell arrays that contain the velocity of each learnable parameter.
`params``dlarray``dlarray` with the same data type and ordering as `params`
Numeric arrayNumeric array with the same data type and ordering as `params`
Cell arrayCell array with the same data types, structure, and ordering as `params`
StructureStructure with the same data types, fields, and ordering as `params`
Table with `Layer`, `Parameter`, and `Value` variables. The `Value` variable must consist of cell arrays that contain each learnable parameter as a `dlarray`.Table with the same data types, variables, and ordering as `params`. `vel` must have a `Value` variable consisting of cell arrays that contain the velocity of each learnable parameter.

If you specify `vel` as an empty array, the function assumes no previous velocities and runs in the same way as for the first update in a series of iterations. To update the learnable parameters iteratively, use the `vel` output of a previous call to `sgdmupdate` as the `vel` input.

Learning rate, specified as a positive scalar. The default value of `learnRate` is `0.01`.

If you specify the network parameters as a `dlnetwork` object, the learning rate for each parameter is the global learning rate multiplied by the corresponding learning rate factor property defined in the network layers.

Momentum, specified as a positive scalar between `0` and `1`. The default value of `momentum` is `0.9`.

## Output Arguments

collapse all

Network, returned as a `dlnetwork` object.

The function updates the `dlnet.Learnables` property of the `dlnetwork` object.

Updated network learnable parameters, returned as a `dlarray`, a numeric array, a cell array, a structure, or a table with a `Value` variable containing the updated learnable parameters of the network.

Updated parameter velocities, returned as a `dlarray`, a numeric array, a cell array, a structure, or a table.

collapse all

### Stochastic Gradient Descent with Momentum

The function uses the stochastic gradient descent with momentum algorithm to update the learnable parameters. For more information, see the definition of the stochastic gradient descent with momentum algorithm under Stochastic Gradient Descent on the `trainingOptions` reference page.

## Extended Capabilities

Introduced in R2019b
