showChanges

View changes to contents of Simulink interface dictionary in comparison viewer

Since R2022b

collapse all in page

In R2023b the Architectural Data section of data dictionaries was introduced. When managing interfaces, data types, constants, and software address methods consider using the Simulink.dictionary.ArchitecturalData programmatic interfaces instead. For more information, see Programmatically Manage AUTOSAR Architectural Data.

Syntax

showChanges(dictObj)

Description

showChanges(dictObj) opens the Comparison Tool window and displays changes to the dictionary since it was last saved. The Comparison Tool shows the differences in the Simulink design data properties. Changes made to platform properties are not shown.

example

Examples

collapse all

To open the Comparison Tool window and display changes to the dictionary since it was last saved, use the showChanges function. For an example that shows more of the workflow for related functions, see Create and Configure Interface Dictionary.

showChanges(dictAPI);

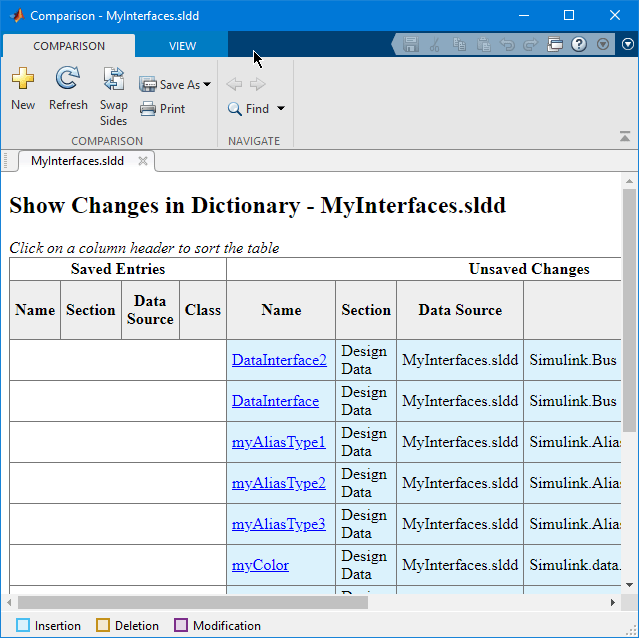

Image of standalone comparison tool

Input Arguments

collapse all

Interface dictionary, specified as a Simulink.interface.Dictionary object. Before you use this function, create or open dictObj by using Simulink.interface.dictionary.create or Simulink.interface.dictionary.open.

Version History

Introduced in R2022b

collapse all

R2023b: Simulink.interface.Dictionary object replaced by Simulink.dictionary.ArchitecturalData object

Starting in R2023b, use the Simulink.dictionary.ArchitecturalData object to programmatically manage architectural data instead of the Simulink.interface.Dictionary object.
