show

View contents of Simulink interface dictionary in standalone viewer

Since R2022b

In R2023b the Architectural Data section of data dictionaries was introduced. When managing interfaces, data types, constants, and software address methods consider using the Simulink.dictionary.ArchitecturalData programmatic interfaces instead. For more information, see Programmatically Manage AUTOSAR Architectural Data.

Syntax

show(dictObj)

Description

show(dictObj) displays the dictionary contents in the standalone interface editor.

Examples

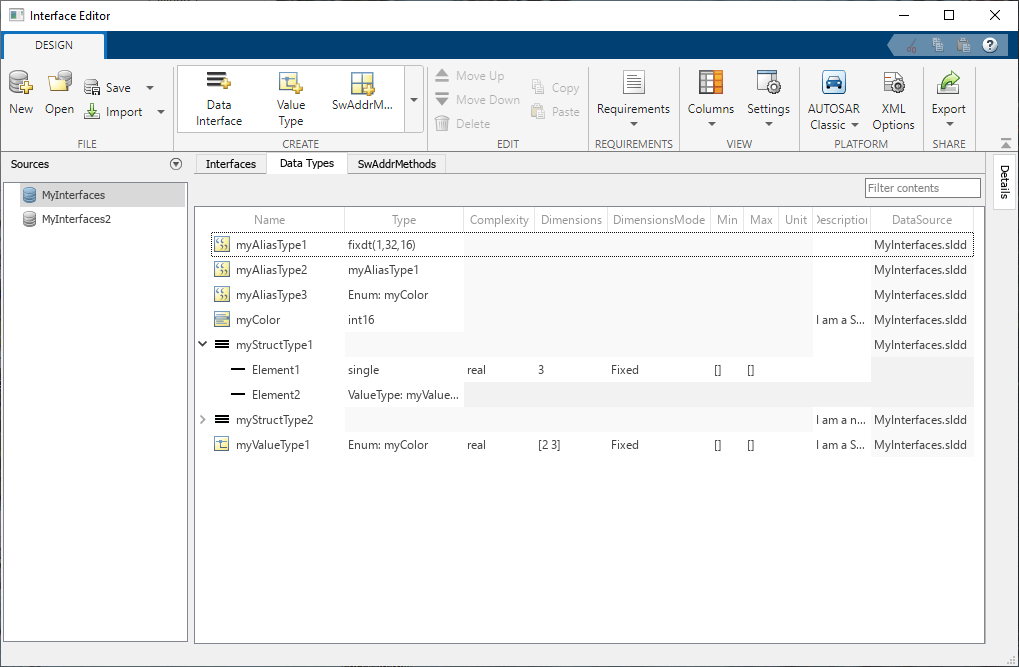

View Simulink Interface Dictionary in Interface Editor

To display the dictionary contents in the standalone interface editor, use the show function. For an example that shows more of the workflow for related functions, see Create and Configure Interface Dictionary.

show(dictAPI);

Input Arguments

dictObj — Interface dictionary

Simulink.interface.Dictionary object

Interface dictionary, specified as a Simulink.interface.Dictionary object. Before you use this function, create or open dictObj by using Simulink.interface.dictionary.create or Simulink.interface.dictionary.open.

Version History

Introduced in R2022b

R2023b: Simulink.interface.Dictionary object replaced by Simulink.dictionary.ArchitecturalData object

Starting in R2023b, use the Simulink.dictionary.ArchitecturalData object to programmatically manage architectural data instead of the Simulink.interface.Dictionary object.
