C28x SCI Receive
Receive data on target via serial communication interface (SCI) from host
Libraries:
C2000 Microcontroller Blockset /
C2802x
C2000 Microcontroller Blockset /
C2803x
C2000 Microcontroller Blockset /
C2805x
C2000 Microcontroller Blockset /
C2806x
C2000 Microcontroller Blockset /
C280x
C2000 Microcontroller Blockset /
C281x
C2000 Microcontroller Blockset /
C2833x
C2000 Microcontroller Blockset /
C2834x
C2000 Microcontroller Blockset /
F280013x
C2000 Microcontroller Blockset /
F280015x
C2000 Microcontroller Blockset /
F28002x
C2000 Microcontroller Blockset /
F28003x
C2000 Microcontroller Blockset /
F28004x
C2000 Microcontroller Blockset /
F2807x
C2000 Microcontroller Blockset /
F2837xD
C2000 Microcontroller Blockset /
F2837xS
C2000 Microcontroller Blockset /
F2838x /
C28x
C2000 Microcontroller Blockset /
F28M35x /
C28x
C2000 Microcontroller Blockset /
F28M36x /
C28x
C2000 Microcontroller Blockset /
F28p65x
C2000 Microcontroller Blockset /
F28p55x
Description
The SCI Receive block supports asynchronous serial digital communication between the processor and other asynchronous peripherals. This block receives scalar or vector data using the specified SCI hardware module.
A model can only contain one SCI Receive block for each module. The C28x processor has four SCI modules — A, B, C, and D. The number of SCI modules available varies depending on the processor selected. You can configure the SCI modules by navigating to Hardware Implementation > Target hardware resources. Verify that these settings meet the requirements of your application.
Note
Serial External mode with similar SCI module blocks results in conflict check error.
The block outputs data either in blocking mode or in non-blocking mode. In blocking mode, the model blocks the execution while it waits for the requested data to be available. In non-blocking mode, the model runs continuously. To set the block in blocking mode, select the Wait until data received option.
Examples
Serial Communication Using SCI Blocks
Use the SCI blocks to set up serial communication between the target hardware and your host computer for C2000™ Microcontroller Blockset.

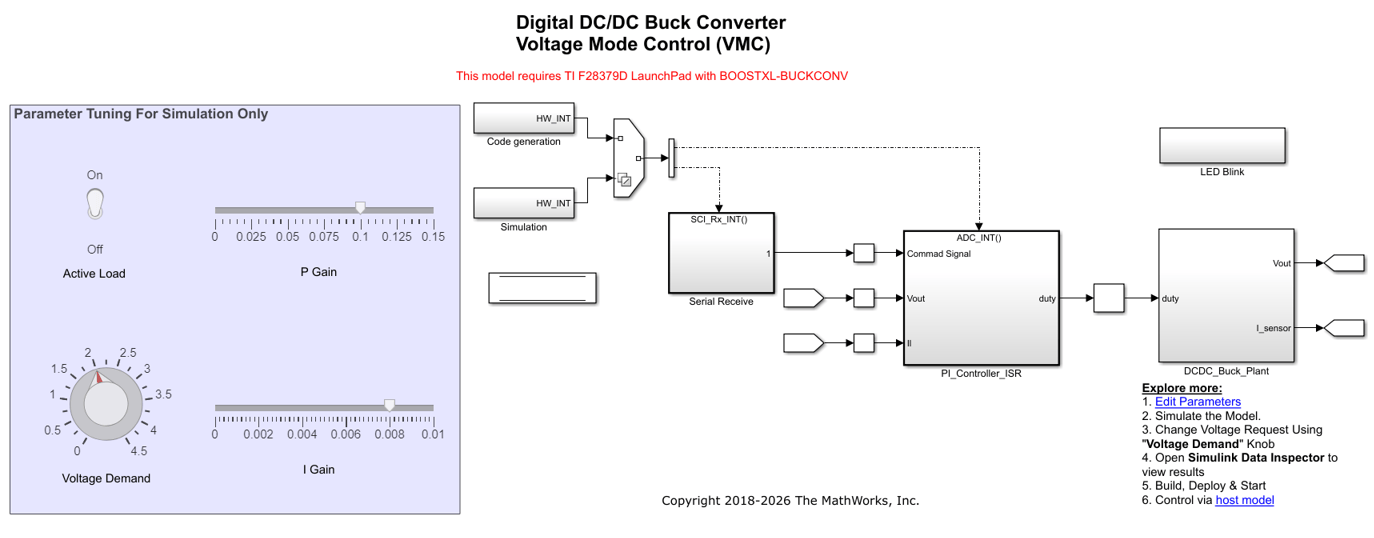

Closed Loop Control of a DC-DC Buck Converter
Model a closed loop control of a DC-DC buck converter in the C2000™ Microcontroller Blockset. The model runs on a F28379D Launchpad connected to the C2000 digital power supply booster pack.

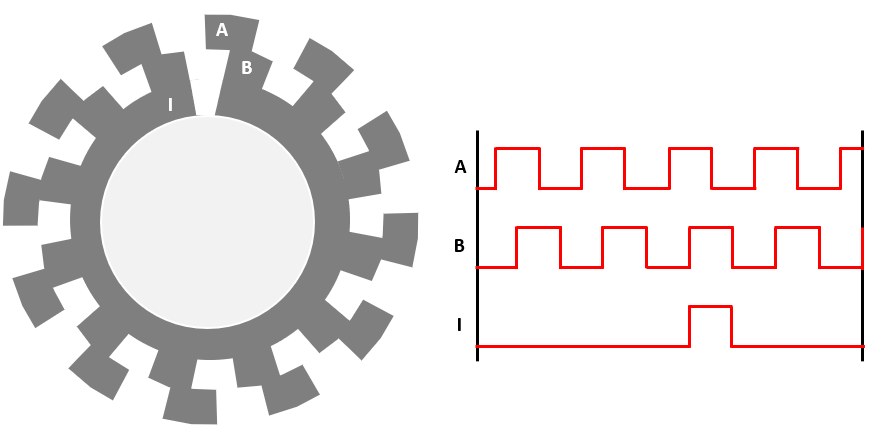

Field-Oriented Control of PMSM with Quadrature Encoder Using C2000 Processors
Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a quadrature encoder sensor. For details about FOC, see Field-Oriented Control (FOC) (Motor Control Blockset).
Ports
Input
Length — Data length received from input port
scalar
The block accepts the length of the data to be received.
Dependencies
To enable this port, set the Data length
option parameter to Length via input
port
.
Data Types: uint8
| uint16
| uint32
Output
Data — Data received from serial bus
scalar | vector
The data received from the serial communication bus.
The data port is configured as fixed size signal when data length is set to
Length via dialog
. It outputs only received data.The data port is configured as variable size signal when data length is set to
Length via Input port
orVariable Length
. In this case the port outputs received data along with the length of the received data.When Data length is set as
Variable Length
orLength via input port
the output data width is0
if the data is not received. This is independent of connection output type set for Action taken when connection times out parameter.In order to generate code for variable size signals, go to Configuration Parameters > Code Generation > Interface and select Variable-size signals. For more information, see
Note
Currently, Monitor & Tune (External mode) is not supported to output the variable size signal.
Data Types: int8
| uint8
| int16
| uint16
| int32
| uint32
| single
status — Status of serial communication
scalar
Indicates the status of the received serial data:
0
- No errors.1
- A time-out occurred while the block was waiting to receive data. This is the default status if expected header is not received.2
- The received data contains an error (checksum error) or if the required tail is not received.3
- SCI parity error flag: occurs when a character is received with a mismatch.4
- SCI framing error flag: occurs when an expected stop bit is not found.5
- SCI overrun error flag: occurs when a character is transferred to the receive registers before reading the previous character.6
- SCI break-detect flag: occurs when SCI receiver data line (SCIRXD) remains continuously low for at least ten bits.7
- Data not available flag: occurs in non-blocking mode when data is not available in the FIFO. The status is Data not available when the data length is set to Variable length after receiving the header, and if data is not available in the FIFO to read as a data or terminator.8
- Partial Data available: Partial data status represents the data received partially excluding header. The status is set to Partial Data when the data length is set toVariable length
, and if the terminator is expected to be received and when not received up to theMax data length
.
Dependencies
This port appears only when you select Output receiving status.
Data Types: uint16
Parameters
SCI module — SCI module for communication
A
(default) | B
| C
| D
The SCI module used for communication. The number of SCI modules supported varies across different C2000™ processors.
Additional package header — Indicates start of data
'S'
(default) | string | char | number from 0 to 255
The data located at the front of the received data package, which is not part of the data being received, and indicates the start of data. The additional package header must be represented using ASCII characters. You can use a string or a number (0–255). You must add single quotes around strings entered for this parameter, but the quotes are not received or included in the total byte count. To specify a null value (no package header), enter two single quotes only.
The data type of header is not related to the data type mentioned on the block.
Note
Match additional package headers or terminators with those specified in the host SCI Transmit block.
If header is empty then whatever present in the receive buffer will be considered as starting point to receive. In case of data length option as Variable length, the tail will be calculated from this starting point itself if header is empty.
If the expected header is not provided on the block then the data present in the FIFO is considered as a starting point of reception and from that point onwards required length of the data and terminal will be expected to retrieve.
Additional package terminator — Indicates end of data
'E'
(default) | string | char | number from 0 to 255
The data located at the end of the received data package, which is not part of the data being received, and indicates the end of data. The additional package terminator must be represented using ASCII characters. Use a string or a number (0–255). You must add single quotes around strings entered for this parameter, but the quotes are not received or included in the total byte count. To specify a null value (no package terminator), enter two single quotes only.
The data type of terminator is not related to the data type mentioned on the block.
Number of retries for header receive check — Custom retrial count for header receive check
16
(default) | positive integer, finite
| scalar
This parameter ensures to check the expected header as part of receive data.
When the data is received in the FIFO, the block verifies for the header in the received data one by one. If the data does not match with the header, the block will discard the data and continue looking for the header in the next data until the retry count expires.
If the header matches within the retry count, then it is considered as start of the packet and the further received data is considered as valid data.
Data type — Data type of output data
uint8
(default) | single
| int8
| int16
| uint16
| int32
| uint32
The data type of the output data.
If data is transmitted as uint8
but SCI receive block
output is expected to be int16/int32
then it is assumed
that even number of bytes are present and that the output is formatted in
different data type. In case if there are odd number of data bytes are
present then last byte will be missed in the formatting even if the status
is showing No Error.
Data length option — Data length the block receives
Length via dialog
(default) | Length via input port
| Variable length
Select the data length option for the block.
Length via dialog
- Length of the data to be received is provided viaData length
parameter.Length via input port
- the block receives variable size data depending on the length received at the input port. If the length received at the input port is greater than the length provided in the maximum data length parameter, then maximum data length is considered.Variable length
- The data is received until the tail matches in non-blocking mode. Ensure that the tail is not present as a part of data. When only header and terminator is available and data is not available then the status is set to No Error with variable data length set to zero.If terminator value does not match till maximum length or if the data is not available in between then the block will output the received data along with its length and status will be set to
Partial data available
.If terminator value is not provided the block tries to receive data of max data length. If length of the data read is less than max length or if the data is not available in between then the block will output received data with its length and status will be set to
Partial data available
.If data is not read then status is set to Data not available.
The status is read as data not available when Header and terminator received with no data.
Tail to be avoided as part of SCI Data when using in variable length as presence of Tail is treated as end of Data Packet.
Output data port length is 0 if no data is received in variable length mode.
To enable input port length, select data length
option as Length via input port
.
Data length — Number of data types the block receives
1
(default) | positive integer, finite
| scalar
The number of Data type the block receives (not
bytes). If this parameter is set to more than 1
, the
output will be a vector. Ensure that the data length specified is same as
that of the SCI Transmit block from which data is
received.
Dependencies
To enable this parameter, set the Data length
option parameter to Length via
dialog
.
Max data length — Maximum number of data types the block receives
1
(default) | positive integer, finite | positive integer, finite
The maximum number of Data type the block can receive (not bytes).
If the data size to be received (based on data length or max data length, header, terminator and data type) is greater than FIFO size bytes then it will result in loss of data.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Variable length
.
Initial output — Default value output from block
0
(default) | scalar | vector
The default value output from the SCI Receive block. This
value is output, for example,when the Action taken when connection
timeout parameter is set to Output the last
received value
and a connection time-out occurs before
data is received.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Length via dialog
.
Action taken when connection times out — Select type of output when connection times out
Output the last received value
(default) | Output custom value
Specifies what to output when a connection time out occurs. If
Output the last received value
is selected,
the block outputs the last received value. If a value has not been received,
the block outputs the Initial output value.
If you select Output custom value
, use the
Output value when connection times out parameter to
set the custom value.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Length via dialog
.
Output value when connection times out — Custom output value from block when connection times out
0
(default) | scalar | vector
Set the custom time out value.
Output value when connection times out parameter is
available only when Action taken when connection times
out parameter is set to Output custom
value
.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Length via dialog
.
Sample time — Frequency at which data is read from SCI device
0.1
(default) | -1
| scalar
Sample time for the block in seconds. To execute this block
asynchronously, set this parameter to -1
.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via
dialog
or Variable length
.
The sample time will inherit properties from input port when data
length option is set to Length via input port
.
Wait until data received — Wait until requested data is available
off
(default) | on
on
— If this option is enabled, the system waits until data is available to read (when data length is reached). The read operation runs in the blocking mode. The read operation is blocked when the block is waiting for the requested data. If data is available, the block outputs the data. If data is not available, the block waits for the data.A task overrun occurs if the target hardware is still waiting for the data when the next read operation begins.
To fix overruns, increase the time step by using the Sample time parameter.
off
— If this option is disabled, the system checks FIFO at each time step (in polling mode) for data to read. If data is present, the block reads and outputs the contents. If data is not present, the block outputs the last value and continues. When you clear this parameter, the read operation runs in the nonblocking mode.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Length via dialog
.
Note
When data length option is selected as Variable length, the block execution will always occurs in non-blocking mode.
Timeout — Amount of time in seconds the block waits until data is received
inf
(default) | positive value greater than 0
Specify the amount of time that the block should wait during each time step if the data is not available in the receive FIFO to read. If timeout occurs, the read operation is aborted.
If the value is set to inf
the block waits infinitely
for data to be available in FIFO.
Note
3 types of mode can be achieved with parameters Wait until data received and Timeout.
Blocking mode - In blocking mode, parameters Wait until data received is enabled and Timeout set to
inf
.In this mode, if data is not available in FIFO to read, it will wait for infinite time until the data is available to read.
Blocking mode with Timeout - In blocking mode with timeout, parameters Wait until data received is enabled and Timeout set to
any finite value > 0
.In this mode if data is not available in FIFO to read, it will wait checking the FIFO status until the timeout value mentioned. If data is not available in FIFO to read within that time then the SCI Receive block will output status as
timeout
.Non-Blocking mode - In Non-Blocking mode, parameter Wait until data received is disabled.
In this mode the SCI Receive block will read the data if the data is available in FIFO else the SCI Receive block will output status as
Data not available
.In order to receive data of length more than FIFO length use either blocking mode or blocking mode with timeout. This ensures of extra time to get remaining data in FIFO after reading entire FIFO. You might encounter data loss, if you try to receive data greater than the FIFO length in Non-Blocking mode.
In blocking mode with and without timeout enabled, you might encounter task overrun as it waits for the data to read.
Dependencies
To enable this parameter, set the Data length
option parameter to either Length via input
port
or Length via dialog
and enable
the parameter Wait until data received
.
Output receiving status — Status of serial communication
off
(default) | on
Creates a Status block output that provides the status of serial communication.
MATLAB コマンド
次の MATLAB コマンドに対応するリンクがクリックされました。
コマンドを MATLAB コマンド ウィンドウに入力して実行してください。Web ブラウザーは MATLAB コマンドをサポートしていません。
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
