# Enforce Passivity Constraints for Quadruple-Tank System

This example shows how to enforce passivity constraints for controlling quadruple tank using the Passivity Enforcement block.

### Overview

You can write the dynamics for a quadruple tank system as follows [1].

`$\stackrel{˙}{\mathit{x}}=\mathit{f}\left(\mathit{x}\right)+\mathit{g}\left(\mathit{x}\right)\mathit{u}$`

Here, the vector $\mathit{x}$ denotes the heights of the four tanks and the vector $\mathit{u}$ denotes the flows of the two pumps. The dynamics are implemented in the script `stateFcnQuadrupleTank.m`.

The control objective is to select the flow of the pumps $\mathit{u}$ such that $\left(\mathit{x},\mathit{u}\right)$ moves towards the equilibrium $\left({\mathit{x}}_{\mathit{s}},{\mathit{u}}_{\mathit{s}}\right)$.

Specify the initial conditions of the states.

`x0 = [25;16;20;21];`

Specify the equilibrium point for the quadruple-tank model.

```xs = [28.1459,17.8230,18.3991,25.1192]'; us = [37,38]';```

### Design PID Controllers

Before applying constraints, design PID controllers for the quadruple-tank model. The `passivityTank` model contains two PID controllers. For information on tuning PID controllers in Simulink models, see Introduction to Model-Based PID Tuning in Simulink.

Disable the passivity constraint enforcement and open the model.

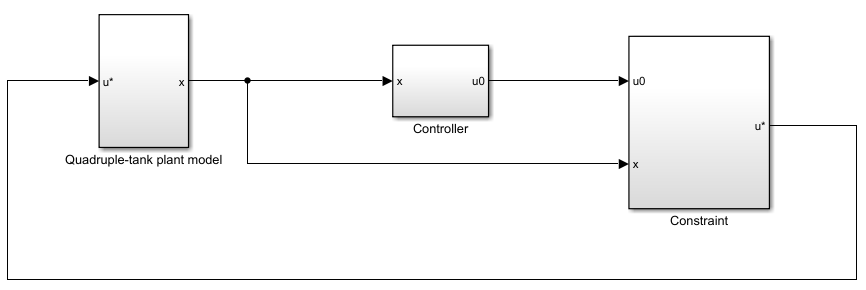

```constrained = 0; mdl = 'passivityTank'; open_system(mdl)```

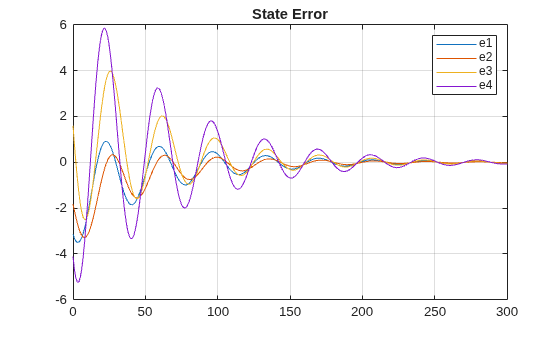

Simulate the PID controllers and plot the performance.

```% Simulate the model. out = sim(mdl); % Extract trajectories. logsout = out.logsout; % Plot trajectories of state error. e = logsout.getElement('states_error'); e_vector = e.Values.Data(:,:)'; plot(e.Values.time,e_vector) ylim([-6 6]) grid on legend('e1','e2','e3','e4','location','NorthEast') title('State Error')```

The errors go to zero and the closed loop system is stable.

### Passivity Constraint

To define the passivity constraint, first define the state error vector:

$\mathit{e}=\mathit{x}-{\mathit{x}}_{\mathit{s}}$.

Define the storage function as $\mathit{V}=\frac{1}{2}\left({\mathit{e}}_{3}^{2}+{\mathit{e}}_{4}^{2}\right)$ and take the derivative of $\mathit{V}$ to obtain the following relationship [1].

`$\stackrel{˙}{\mathit{V}}\le {{\mathit{u}}_{\mathit{p}}}^{\mathit{T}}{\mathit{y}}_{\mathit{p}}$`

This means that, the system is passive from ${\mathit{u}}_{\mathit{p}}=\left[{\mathit{u}}_{1};{\mathit{u}}_{2}\right]-{\mathit{u}}_{\mathit{s}}$ to ${\mathit{y}}_{\mathit{p}}=\left[{\mathit{e}}_{4};{\mathit{e}}_{3}\right]$.

The Passivity Enforcement block accepts passivity constraint in the forms ${\mathit{u}}_{\mathit{p}}={\mathit{f}}_{\mathit{p}}\left(\mathit{x}\right)+{\mathit{g}}_{\mathit{p}}\left(\mathit{x}\right)\mathit{u}$ and ${\mathit{y}}_{\mathit{p}}={\mathit{h}}_{\mathit{p}}\left(\mathit{x}\right)$. In this application,

${\mathit{f}}_{\mathit{p}}\left(\mathit{x}\right)=-{\mathit{u}}_{\mathit{s}}$, ${\mathit{g}}_{\mathit{p}}\left(\mathit{x}\right)=\left[\begin{array}{cc}1& 0\\ 0& 1\end{array}\right]$, and ${\mathit{h}}_{\mathit{p}}\left(\mathit{x}\right)=\left[\begin{array}{c}{\mathit{x}}_{4}-{\mathit{x}}_{\mathit{s},4}\\ {\mathit{x}}_{3}-{\mathit{x}}_{\mathit{s},3}\end{array}\right]$.

### Simulate Controller with Passivity Constraint

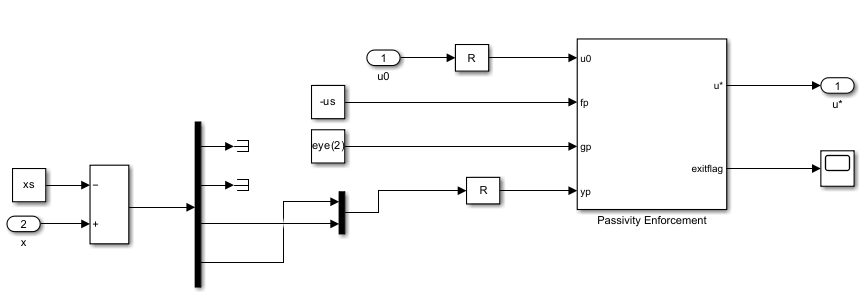

To view the constraint implementation, open the `Constraint` > `Constrained` subsystem.

Enable the passivity constraint enforcement.

`constrained = 1;`

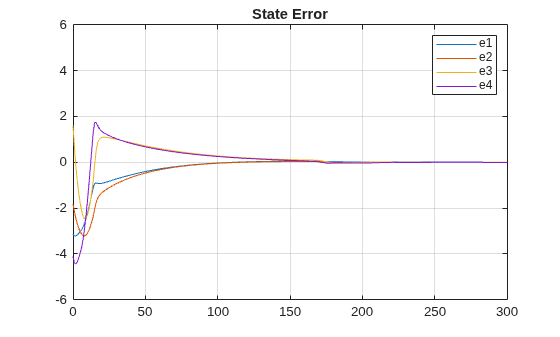

Run the model and plot the simulation results.

```% Simulate the model. out = sim(mdl); % Extract trajectories. logsout = out.logsout; % Plot trajectories of state error. e = logsout.getElement('states_error'); e_vector = e.Values.Data(:,:)'; plot(e.Values.time,e_vector) ylim([-6 6]) grid on legend('e1','e2','e3','e4','location','NorthEast') title('State Error')```

The errors go to zero and the closed loop system is stable. When you enforce passivity constraint, the errors have smaller magnitudes and smoother transient behavior.

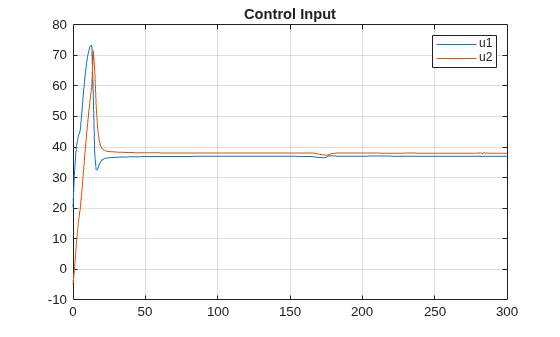

```% Plot trajectories of control inputs u = logsout.getElement('u*'); u_vector = u.Values.Data(:,:)'; plot(u.Values.time,u_vector) grid on legend('u1','u2','location','NorthEast') title('Control Input')```

The control inputs also converge to the specified equilibrium.

Close the model.

`bdclose(mdl)`

### References

[1] Raff, Tobias, Christian Ebenbauer, and Frank Allgöwer. “Nonlinear Model Predictive Control: A Passivity-Based Approach.” In Assessment and Future Directions of Nonlinear Model Predictive Control, edited by Rolf Findeisen, Frank Allgöwer, and Lorenz T. Biegler, 358:151-162. Berlin, Heidelberg: Springer Berlin Heidelberg, 2007. https://doi.org/10.1007/978-3-540-72699-9_12.
