pow2db

Convert power to decibels

Syntax

ydb = pow2db(y)

Description

example

ydb = pow2db(y) expresses in decibels (dB) the power measurements specified in y. The relationship between power and decibels is ydb = 10 log10(y).

Examples

collapse all

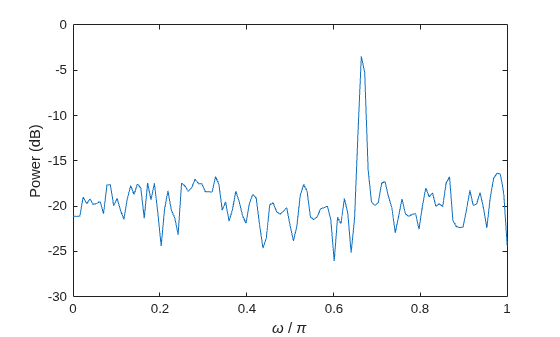

Generate 1024 samples of a noisy sinusoid having a normalized frequency of 2π/3 rad/sample. Estimate the power spectrum of the signal using pwelch. Express the estimate in decibels and plot it.

n = 0:1024-1;
x = cos(2*pi*n/3) + randn(size(n));

[pxx,w] = pwelch(x,'power');

dB = pow2db(pxx);

plot(w/pi,dB)
xlabel('\omega / \pi')
ylabel('Power (dB)')

Repeat the computation using pwelch without output arguments.

pwelch(x,'power')

Input Arguments

collapse all

Input array, specified as a scalar, vector, matrix, or N-D array. When y is nonscalar, pow2db is an element-wise operation.

Data Types: single | double

Output Arguments

collapse all

Power measurements in decibels, returned as a scalar, vector, matrix, or N-D array of the same size as y.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

See Also

| | |

Introduced in R2007b
