gausswin

Gaussian window

Syntax

w = gausswin(L)

w = gausswin(L,alpha)

w = gausswin(___,typeName)

Description

w = gausswin(L) returns an L-point Gaussian window.

w = gausswin(L,alpha) returns an L-point Gaussian window with width factor alpha.

Note

If the window appears to be clipped, increase L, the number of points.

w = gausswin(___,typeName) specifies the option to return the window w with single or double precision for any of the previous syntaxes. (since R2026a)

Examples

Gaussian Window

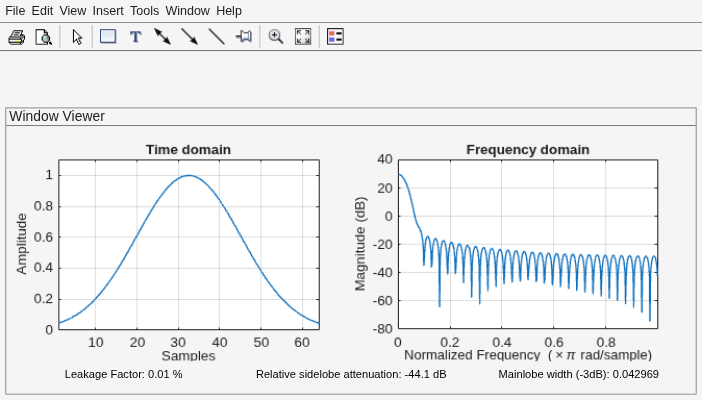

Create a 64-point Gaussian window. Display the result in wvtool.

L = 64;
wvtool(gausswin(L))

Gaussian Window and the Fourier Transform

This example shows that the Fourier transform of the Gaussian window is also Gaussian with a reciprocal standard deviation. This is an illustration of the time-frequency uncertainty principle.

Create a Gaussian window of length $N=64$ by using gausswin and the defining equation. Set $$\alpha =8$$, which results in a standard deviation of $\left(N-1\right)/2\alpha =63/16$. The Gaussian is essentially limited to the mean plus or minus 3 standard deviations, or an approximate support of [–12, 12].

N = 64;
n = -(N-1)/2:(N-1)/2;
alpha = 8;

w = gausswin(N,alpha);

stdev = (N-1)/(2*alpha);
y = exp(-1/2*(n/stdev).^2);

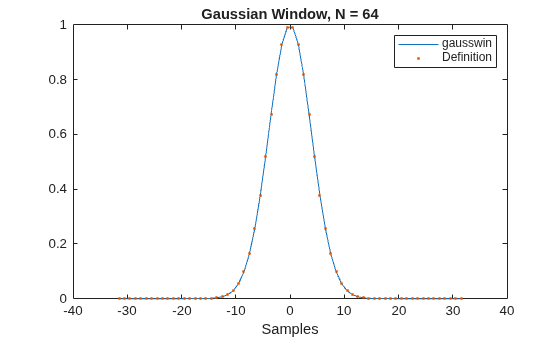

plot(n,w)
hold on
plot(n,y,".")
hold off

xlabel("Samples")
title("Gaussian Window, N = "+N)
legend(["gausswin" "Definition"])

Obtain the Fourier transform of the Gaussian window at $4N=256$ points. Use fftshift to center the Fourier transform at zero frequency (DC).

nfft = 4*N;
freq = -pi:2*pi/nfft:pi-pi/nfft;

wdft = fftshift(fft(w,nfft));

The Fourier transform of the Gaussian window is also Gaussian with a standard deviation that is the reciprocal of the time-domain standard deviation. Include the Gaussian normalization factor in your computation.

ydft = exp(-1/2*(freq/(1/stdev)).^2)*(stdev*sqrt(2*pi));

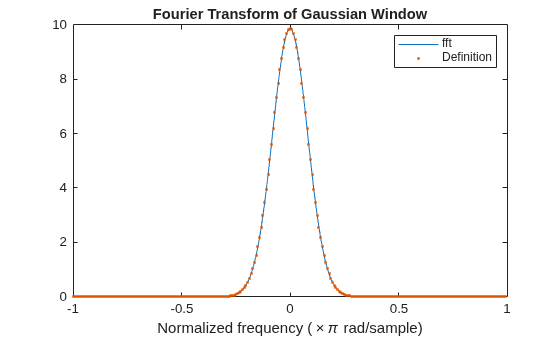

plot(freq/pi,abs(wdft))
hold on
plot(freq/pi,abs(ydft),".")
hold off

xlabel("Normalized frequency (\times\pi rad/sample)")
title("Fourier Transform of Gaussian Window")
legend(["fft" "Definition"])

Input Arguments

L — Window length

nonnegative integer

Window length, specified as a nonnegative integer.

Note

If you specify L as noninteger, the function rounds it to the nearest integer value.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

alpha — Width factor

2.5 (default) | positive real scalar

Width factor, specified as a positive real scalar. alpha is inversely proportional to the width of the window.

Data Types: single | double

typeName — Output data type

"double" (default) | "single"

Output data type (class), specified as one of these:

• "double" — Use this option to return a double-precision output w.

• "single" — Use this option to return a single-precision output w.

Data Types: char | string

Output Arguments

w — Gaussian window

column vector

Gaussian window, returned as a column vector.

Algorithms

The coefficients of a Gaussian window are computed from the following equation:

$$w(n)=e^{-\frac{1}{2}{\left(\alpha \frac{n}{(L-1)/2}\right)}^2}=e^{-n^2/2{\sigma }^2},$$

where –(L – 1)/2 ≤ n ≤ (L – 1)/2, and α is inversely proportional to the standard deviation, σ, of a Gaussian random variable. The exact correspondence with the standard deviation of a Gaussian probability density function is σ = (L – 1)/(2α).

References

[1] Hansen, Eric W. Fourier Transforms: Principles and Applications. New York: John Wiley & Sons, 2014.

[2] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Version History

Introduced before R2006a

R2026a: Generate single-precision outputs

The gausswin function supports single-precision outputs.
