createGridWorld
Create a two-dimensional grid world object
Description
A grid world is a two-dimensional grid in which each position is a possible state
that the agent can occupy. The actions that an agent can attempt represent moves from one
position to the next. Many introductory reinforcement learning examples use grid worlds. Use
the createGridWorld function to create a GridWorld
object with a specified size and move types. You can then modify some of the object properties
and pass it to rlMDPEnv to create an
environment that agents can interact with. For more information, see Create Custom Grid World Environments.
Examples

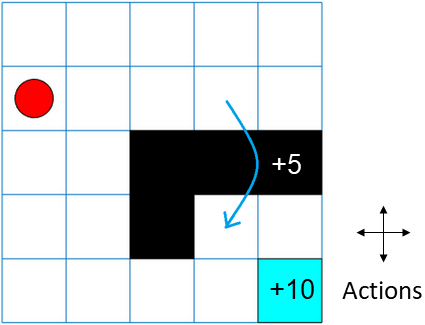

For this example, create a 5-by-5 grid world object with these rules:
A 5-by-5 grid world bounded by borders, with four possible actions: North = 1, South = 2, East = 3, West = 4.
The agent begins from cell [2,1] (second row, first column, indicated by the red circle in the figure).
The agent receives reward +10 if it reaches the terminal state at cell [5,5] (blue cell).
The environment contains a special jump from cell [2,4] to cell [4,4] with +5 reward (blue arrow).
The agent is blocked by obstacles in cells [3,3], [3,4], [3,5], and [4,3] (black cells).
All other actions result in –1 reward.
Then, use the gridworld object to create an environment for which you can train and simulate an agent.
First, create a GridWorld object using the createGridWorld function.
gw = createGridWorld(5,5)
gw =
GridWorld with properties:
GridSize: [5 5]
CurrentState: "[1,1]"
States: [25×1 string]
Actions: [4×1 string]
T: [25×25×4 double]
R: [25×25×4 double]
ObstacleStates: [0×1 string]
TerminalStates: [0×1 string]
ProbabilityTolerance: 8.8818e-16
Display the action names.
gw.Actions
ans = 4×1 string
"N"
"S"
"E"
"W"
Then set the initial, terminal, and obstacle states.
gw.CurrentState = "[2,1]"; gw.TerminalStates = "[5,5]"; gw.ObstacleStates = ["[3,3]";"[3,4]";"[3,5]";"[4,3]"];
Update the state transition matrix for the obstacle states.
updateStateTranstionForObstacles(gw)
To set the jump rule over the obstacle states, first zero out all the transitions out from state "[2,4]" for any action. Note that, because each number in one row represents a probability of moving into a specific cell, all the numbers along a row must always add to either one or zero, otherwise an error is thrown.
Set to zero the probability of transitioning out from state "[2,4]". Use the state2idx function to obtain the index associated with the state "[2,4]".
gw.T(state2idx(gw,"[2,4]"),:,:) = 0;Then, for any action, set to one the probability from transitioning from state "[2,4]" to state "[4,4]".
gw.T(state2idx(gw,"[2,4]"),state2idx(gw,"[4,4]"),:) = 1;
Next, define the rewards in the reward transition matrix.
nS = numel(gw.States); nA = numel(gw.Actions); gw.R = -1*ones(nS,nS,nA); gw.R(state2idx(gw,"[2,4]"),state2idx(gw,"[4,4]"),:) = 5; gw.R(:,state2idx(gw,gw.TerminalStates),:) = 10;
Use rlMDPEnv to create the grid world environment env from the GridWorld object gw.
env = rlMDPEnv(gw)
env =
rlMDPEnv with properties:
Model: [1×1 rl.env.GridWorld]
ResetFcn: []

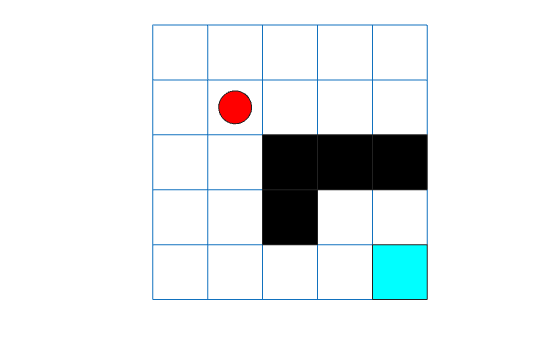

You can visualize the grid world environment using the plot function.
plot(env)
Use the action2idx function to obtain the index associated with the "E" action. Then use the environment step function to move the agent eastward.
[xn,rn,id]=step(env,action2idx(env.Model,"E"))
xn = 7
rn = -1
id = logical
0
Use the idx2state function to display the name of the next state.
idx2state(env.Model,xn)
ans = "[2,2]"
Use the getActionInfo and getObservationInfo functions to extract the action and observation specification objects from the environment.
actInfo = getActionInfo(env)
actInfo =
rlFiniteSetSpec with properties:
Elements: [4×1 double]
Name: "MDP Actions"
Description: [0×0 string]
Dimension: [1 1]
DataType: "double"
obsInfo = getObservationInfo(env)
obsInfo =
rlFiniteSetSpec with properties:
Elements: [25×1 double]
Name: "MDP Observations"
Description: [0×0 string]
Dimension: [1 1]
DataType: "double"
You can now use the action and observation specifications to create an agent for env, and then use the train and sim functions to train and simulate the agent within the environment.
Input Arguments
Output Arguments
Version History
Introduced in R2019a
