大きいイメージのナビゲーション用アプリの作成

この例では、モジュラー ツールを使用して、スクロール バー、概要ウィンドウ、倍率ボックスなどのナビゲーション支援ツールと共にイメージを表示するアプリを作成する方法を説明します。

まず、アプリを作成する関数を定義します。この例では、my_large_image_display と呼ばれる関数を、例の最後に定義します。

アプリを作成する関数を定義した後、このアプリをテストします。イメージをワークスペースに読み取ります。

I = imread('car1.jpg');

アプリ内のナビゲーション支援ツールでイメージを表示します。

 my_large_image_display(I)

アプリ作成関数

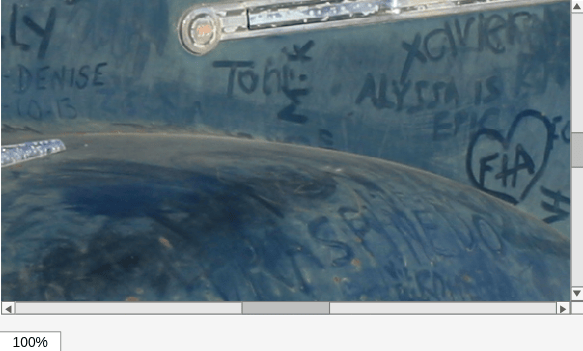

関数 my_large_image_display は、イメージを引数として受け入れ、スクロール バー、概要ツールおよび倍率ボックスと共に Figure ウィンドウにイメージを表示します。スクロール可能なナビゲーションは標準の MATLAB™ Figure ウィンドウのナビゲーション ツールとの互換性がないため、この関数は Figure ウィンドウのツール バーとメニュー バーを表示しないことに注意してください。

function my_large_image_display(im)

% Create a figure without toolbar and menubar
hfig = figure('Toolbar','none', ...
              'Menubar','none', ...
              'Name','My Large Image Display Tool', ...
              'NumberTitle','off', ...
              'IntegerHandle','off');

% Display the image in a figure with imshow
himage = imshow(im);

% Add the scroll panel
hpanel = imscrollpanel(hfig,himage);

% Position the scroll panel to accommodate the other tools
set(hpanel,'Units','normalized','Position',[0 .1 1 .9]);

% Add the magnification box
hMagBox = immagbox(hfig,himage);

% Position the magnification box
pos = get(hMagBox,'Position');
set(hMagBox,'Position',[0 0 pos(3) pos(4)]);

% Add the Overview tool
hovervw = imoverview(himage);

end
