cordictanh
CORDIC ベースの双曲線正接
説明
例
CORDIC 双曲線正接の計算
既定の反復回数で CORDIC の実装を使用して fi
オブジェクト theta
の双曲線正接を求めます。
theta = fi(-2*pi:.1:2*pi-.1); T_cordic = cordictanh(theta);

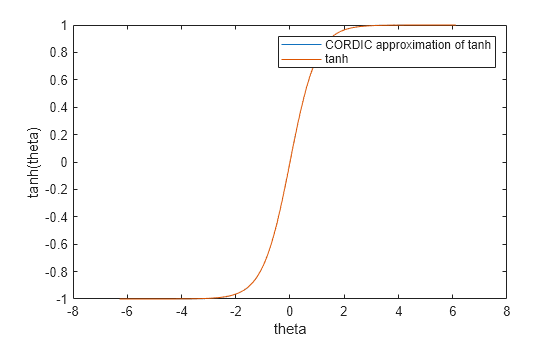

関数 tanh
とその CORDIC 近似を使用して theta
の双曲線正接をプロットします。
T = tanh(double(theta)); plot(theta, T_cordic); hold on; plot(theta, T); legend('CORDIC approximation of tanh', 'tanh'); xlabel('theta'); ylabel('tanh(theta)');

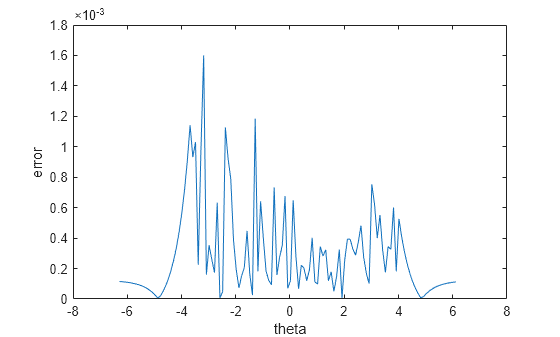

関数 cordictanh
と関数 tanh
の結果の差分を計算します。
figure; err = abs(T - double(T_cordic)); plot(theta, err); xlabel('theta'); ylabel('error');

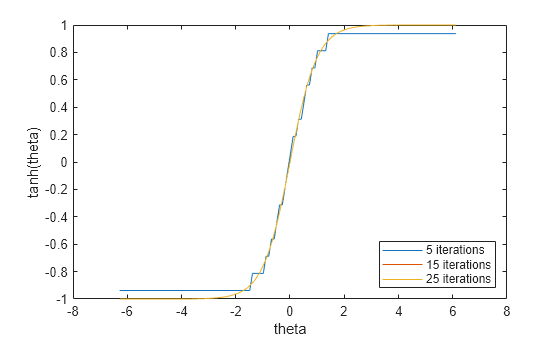

指定した反復回数による CORDIC 双曲線正接の計算
CORDIC 実装を使用して fi
オブジェクト theta
の双曲線正接を求め、CORDIC カーネルで実行すべき反復回数を指定します。さまざまな反復回数で theta の双曲線正接の CORDIC 近似をプロットします。
theta = fi(-2*pi:.1:2*pi-.1); for niters = 5:10:25 T_cordic = cordictanh(theta,niters); plot(theta,T_cordic); hold on; end xlabel('theta'); ylabel('tanh(theta)'); legend('5 iterations','15 iterations',... '25 iterations','Location','southeast');
入力引数
theta
— 角度の値
スカラー | ベクトル | 行列 | n 次元配列
ラジアン単位の角度の値。スカラー、ベクトル、行列または多次元配列として指定します。
データ型: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fi
niters
— 反復回数
スカラー
CORDIC アルゴリズムを実行する反復回数。正の整数値スカラーとして指定します。niters
を指定しない場合、アルゴリズムは既定値を使用します。固定小数点の入力では、niters
の既定値は入力配列 theta
の語長よりも 1 つ少なくなります。倍精度の入力では、niters
の既定値は 52 です。単精度の入力では、既定値は 23 です。
データ型: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fi
出力引数
T
— 出力配列
スカラー | ベクトル | 行列 | n 次元配列
T
は theta
の双曲線正接の CORDIC ベースの近似です。関数への入力が浮動小数点である場合、出力のデータ型は入力のデータ型と同じです。入力が固定小数点である場合、出力の語長は入力の語長と等しく、小数部の長さは WordLength
– 2
と等しくなります。
拡張機能
HDL コード生成
HDL Coder™ を使用して FPGA 設計および ASIC 設計のための VHDL、Verilog および SystemVerilog のコードを生成します。
関数 cordictanh
は、MATLAB® からの SystemC™ コード生成もサポートしています。
バージョン履歴
R2017b で導入
参考
cordicatan2
| cordicsin
| cordiccos
| tanh
